CN211796605U - Make things convenient for women's diabetes mellitus patient to detect and use urine collection device - Google Patents

Abstract

The utility model discloses a urine collection device for convenient detection of female diabetic patients, which comprises a wide-mouth collector, wherein the wide-mouth collector is oval-shaped, and the front and rear side walls of the wide-mouth collector are fixedly connected with a fan-shaped collector. The side walls of the fan-shaped ties are fixedly connected with double-sided stickers, the left and right side walls of the wide-mouth collector are fixedly connected with strip-shaped ties, and the side walls of the strip-shaped ties are also fixedly connected There are double-sided stickers, the inner wall of the wide-mouth collector is pasted with non-woven fabric, the lower end of the wide-mouth collector is fixedly connected with a vertical pipe that communicates with it, and the lower end of the vertical pipe extends to the bottom of the wide-mouth collector. The lower side, and the outer side of the vertical pipe is threadedly sleeved with a first connector. The utility model makes the collector fit more closely with the female patient, reduces the splashing of urine, ensures the stability of urine collection, and has the effect of sealing the urine collecting bottle to reduce the leakage of urine.

Description

A urine collection device for convenient detection of female diabetic patients

technical field

The utility model relates to the technical field of medical supplies, in particular to a urine collection device for convenient detection of female diabetic patients.

Background technique

With the popularization of pre-hospital examinations and general physical examinations, more and more patients need to do a lot of examinations in outpatient clinics. Urine testing is a common auxiliary method for clinical diagnosis of diseases, especially for diabetic patients who need to use urine collection devices frequently.

Publication No. CN205449559U discloses "a female urine collector, comprising a flow guide, a urine collection cup and a sealing cover, the inner surface of the opening at the top of the urine collection cup is provided with internal threads, and the outer surface of the bottom of the sealing cover is provided with internal threads. An external thread is provided, and the sealing cover is used to open and cover the urine collection cup through the cooperation of the internal and external threads; the flow guide is gradually reduced from the top to the bottom, and the outer surface of the bottom of the flow guide is provided with an external thread , the bottom of the guide member is connected to the top opening of the urine collection cup through the cooperation of internal and external threads, so that urine flows into the urine collection cup through the drainage member; the top of the drainage member is on opposite sides. The depression at the bottom is arc-shaped. The female urine collector has low production cost, strong practicability, and is suitable for promotion. It is a convenient and hygienic urine collection device for medical examination." In the process of collecting urine, the part of the urine collecting cup that is in contact with the patient will still not be close, causing the urine to splash, so that the urine samples in the cup will be spilled, or accidentally knocked down, polluting the environment. , to this end, we propose a urine collection device for convenient detection of female diabetic patients to further solve the above-mentioned problems.

Utility model content

The purpose of the utility model is to solve the shortcomings existing in the prior art, and proposes a urine collection device for convenient detection of female diabetic patients.

In order to achieve the above-mentioned purpose, the utility model adopts the following technical solutions:

A urine collection device for convenient detection of female diabetic patients, comprising a wide-mouth collector, the wide-mouth collector is elliptical, the front and rear side walls of the wide-mouth collector are fixedly connected with fan-shaped straps, and the fan-shaped A double-sided sticker is fixedly connected to the side wall of the strap, the left and right side walls of the wide-mouth collector are fixedly connected with a strip-shaped binding tape, and the side wall of the strip-shaped binding tape is also fixedly connected with a double-sided sticker. The inner wall of the wide-mouth collector is pasted with a non-woven fabric, the lower end of the wide-mouth collector is fixedly connected with a vertical pipe that communicates with it, and the lower end of the vertical pipe extends to the lower side of the wide-mouth collector, and is vertically connected. The outer side of the pipe is threadedly sleeved with a first connecting head, the lower end of the first connecting head is fixedly connected with a liquid guide hose, and the end of the liquid guide hose away from the first connecting head is fixedly connected with a second connecting head, and The lower end of the second connecting head is fixedly connected with an intubation tube, and the outer side of the intubation tube is sleeved with a urine collection bottle.

Preferably, the fan-shaped straps are attached to the waist of the patient, and the strip-shaped straps are attached to the legs of the patient.

Preferably, the wide-mouth collector, the first connector, the catheter tube, the second connector and the urine collection bottle are all disposable.

Preferably, a negative pressure pipe in communication therewith is fixedly connected to the side wall of the liquid guiding hose, and a control valve is connected to the side wall of the second connecting head.

Preferably, an end cap is sleeved on the upper end of the urine collection bottle, and the end cap is made of rubber, and the lower end of the intubation tube penetrates the end cap and extends into the urine collection bottle.

Preferably, the outer side wall of the urine collection bottle is uniformly distributed with volume scale values, and the specification of the urine collection bottle is 120ml.

Compared with the prior art, the beneficial effects of the present utility model are:

1. By connecting the fan-shaped straps on the front and rear side walls of the wide-mouth collector, and connecting the strip-shaped straps on the left and right side walls of the wide-mouth collector, the wide-mouth collector can be connected to the perineum of women. The fit is tighter. In addition, by connecting the non-woven fabric on the inner wall of the wide-mouth collector, it can further reduce the splash of urine and ensure the stability of urine collection.

2. A rubber end cap is sleeved on the upper end of the urine collection bottle, which can seal the urine collection bottle, reduce the leakage of urine, and reduce the spread of odor into the air. In addition, during the urine collection process, it can be operated. The control valve controls the amount of urine accordingly to meet the needs of inspection.

Description of drawings

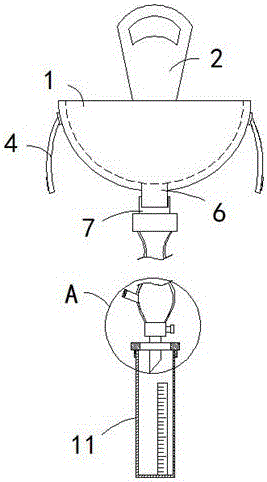

1 is a schematic structural diagram of a urine collection device for convenient detection of female diabetic patients proposed by the utility model;

2 is a top view of a wide-mouth collector of a urine collection device for convenient detection of female diabetic patients proposed by the utility model;

FIG. 3 is a partial enlarged view of A in FIG. 1 .

In the picture: 1 wide-mouth collector, 2 fan-shaped straps, 3 double-sided stickers, 4 strip-shaped straps, 5 non-woven fabrics, 6 vertical pipes, 7 first connector, 8 catheter hose, 9 second connection Head, 10 cannula, 11 urine collection bottle, 12 negative pressure tube, 13 control valve, 14 end cap.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example.

Referring to Figures 1-3, a urine collection device for convenient detection of female diabetic patients, comprising a wide-mouth collector 1, the wide-mouth collector 1 is elliptical, and the front and rear side walls of the wide-mouth collector 1 are fixedly connected with a fan shape. The strap 2, and the side wall of the fan-shaped strap 2 is fixedly connected with a double-sided sticker 3, the left and right side walls of the wide-mouth collector 1 are fixedly connected with a strip strap 4, and the side wall of the strip strap 4 is fixedly connected. The top is also fixedly connected with double-sided stickers 3, the fan-shaped straps 2 are pasted with the waist of the patient, and the strip-shaped straps 4 are pasted with the legs of the patient to improve the strength of the connection between the wide-mouth collector 1 and the patient's body, and the wide-mouth collector 1 Non-woven fabric 5 is pasted on the inner wall of the bag to reduce the splashing of urine and ensure the cleanliness and hygiene of urine during the collection process.

The lower end of the wide-mouth collector 1 is fixedly connected with a vertical pipe 6 that communicates with it, the lower end of the vertical pipe 6 extends to the lower side of the wide-mouth collector 1 , and the outer side of the vertical pipe 6 is threadedly sleeved with a first connector 7 . , the lower end of the first connecting head 7 is fixedly connected with a liquid guide hose 8, the end of the liquid guide hose 8 away from the first connecting head 7 is fixedly connected with a second connecting head 9, and the side wall of the liquid guide hose 8 is fixedly connected There is a negative pressure pipe 12 communicating with it, and a control valve 13 is connected to the side wall of the second connector 9. Under the action of the control valve 13, the amount of urine in the urine collection bottle 11 can be controlled to meet the needs of urine detection, The lower end of the second connector 9 is fixedly connected with an intubation tube 10, the outer side of the intubation tube 10 is sleeved with a urine collection bottle 11, and the upper end of the urine collection bottle 11 is sleeved with an end cap 14, and the end cap 14 is made of rubber, the intubation tube 10 The lower end of the urine collection bottle 14 penetrates through the end cap 14 and extends into the urine collection bottle 11. The outer side wall of the urine collection bottle 11 is evenly distributed with capacity scale values, and the specification of the urine collection bottle 11 is 120ml. After the urine collection is completed, the cannula 10 can be removed from The urine collection bottle 11 can be pulled out, and the rubber end cap 14 has a sealing effect on the urine collection bottle 11, thereby reducing the spread of odor into the air.

Among them, the wide-mouth collector 1, the first connector 7, the catheter tube 8, the second connector 9 and the urine collection bottle 11 are all disposable appliances. On the one hand, the use of disposable appliances can avoid the situation of bacterial cross infection. , improve the safety of urine collection, on the other hand, the manufacturing cost is low, has good practicability, can be used for female patients, reduce the splash of urine, and improve the stability of urine collection.

When the utility model is in use, the wide-mouth collector 1 corresponds to the perineum of the female patient, the fan-shaped bandage 2 is attached to the abdomen of the patient, and the strip-shaped bandage 4 is attached to the patient's leg, so that the The mouth collector 1 is more closely fitted with the patient, and a non-woven fabric 5 is connected to the inner wall of the wide-mouth collector 1, which can further reduce the splash of urine and ensure the stability of urine collection. During the process, the control valve 13 can be operated to control the amount of urine correspondingly to meet the needs of inspection. In addition, the upper end of the urine collection bottle 11 is sleeved with a rubber end cap 14 to seal the urine collection bottle 11. To reduce the leakage of urine and reduce the spread of odor into the air, after the urine collection is completed, the cannula 10 can be pulled out from the urine collection bottle 11 .

The above description is only a preferred embodiment of the present invention, but the protection scope of the present invention is not limited to this. Equivalent replacement or modification of the new technical solution and its utility model concept shall be included within the protection scope of the present utility model.

Claims (6)

1. The utility model provides a make things convenient for women's diabetes mellitus patient to detect and use urine collection device, includes wide-mouth collector (1), its characterized in that, wide-mouth collector (1) is oval-shaped, equal fixedly connected with fan-shaped bandage (2) on the lateral wall around wide-mouth collector (1), and fixedly connected with two-sided subsides (3) on the lateral wall of fan-shaped bandage (2), equal fixedly connected with bar bandage (4) on the lateral wall of the left and right sides of wide-mouth collector (1), and also fixedly connected with two-sided subsides (3) on the lateral wall of bar bandage (4), paste on the inner wall of wide-mouth collector (1) and have non-woven fabrics (5), the lower extreme fixedly connected with of wide-mouth collector (1) has standpipe (6) rather than the intercommunication, the lower extreme of standpipe (6) extends to the downside of wide-mouth collector (1), and the outside screw thread of standpipe (6) has cup jointed first connector, the utility model discloses a urine collection bottle, including first connector (7), the one end fixedly connected with second connector (9) of first connector (7) are kept away from in drain hose (8), lower extreme fixedly connected with intubate (10) of second connector (9), urine collection bottle (11) have been cup jointed in the outside of intubate (10), lower extreme fixedly connected with drain hose (8) of first connector (7).

2. The urine collecting device for female diabetic patients according to claim 1, wherein the fan-shaped bandage (2) is adhered to the waist of the patient and the strip-shaped bandage (4) is adhered to the leg of the patient.

3. The urine collecting device convenient for female diabetes detection as claimed in claim 1, wherein the wide-mouth collector (1), the first connector (7), the liquid guide hose (8), the second connector (9) and the urine collecting bottle (11) are all disposable tools.

4. The urine collecting device convenient for female diabetes detection as claimed in claim 1, wherein a negative pressure tube (12) communicated with the liquid guiding hose (8) is fixedly connected to the side wall of the liquid guiding hose, and a control valve (13) is connected to the side wall of the second connector (9).

5. The urine collecting device convenient for female diabetic patients to detect according to claim 1, characterized in that an end cap (14) is sleeved on the upper end of the urine collecting bottle (11), the end cap (14) is made of rubber, and the lower end of the insertion tube (10) penetrates through the end cap (14) and extends into the urine collecting bottle (11).

6. The urine collecting device for testing female diabetics as claimed in claim 1, wherein the urine collecting bottle (11) has a graduated capacity value on its outer side wall, and the urine collecting bottle (11) is 120ml in size.
