Abstract

The utility model relates to an improved hospital gown for critically ill patients, comprising: the upper garment adopts a partial shirt structure and uses laces to fasten buttons; the collar of the upper garment is a V-neck structure; The position of the trousers is fixed with a fixed rope, and a first opening is respectively provided in the middle of the mid-axillary line on both sides of the jacket. The waist of the trousers is an elastic waistband. A second opening is provided so that the trousers have a two-piece structure from the waistband to the crotch, and the crotch of the trousers is provided with a third opening for insertion of the urethra. The utility model has a simple structure, is extremely easy to manufacture, and has low cost. The sleeves of the jacket adopt spacious middle sleeves, which is simple and convenient, which is very beneficial to protect the skin at the cuff of the monitor and is also convenient for nurses to operate; the structure of the trousers is very convenient for skin observation and nursing operations. The hip is made of anti-leakage material, which is removable for easy replacement.

Description

An improved hospital gown for critically ill patients

technical field

The utility model belongs to the technical field of medical devices, in particular to an improved medical gown for critically ill patients.

Background technique

Clinically, critically ill patients are bedridden for a long time, unable to take care of themselves, and various pipelines are concentrated on their bodies, which brings a lot of inconvenience to treatment and nursing. Traditional hospital gowns cannot meet the needs of such patients, so in clinical practice, patients are more likely to be naked, which exposes the patient's privacy and can easily cause complications such as joint pain in winter or laminar flow wards. In order to improve patient satisfaction, provide patients with efficient, comfortable and humanized nursing services. A gown is specially designed for patients.

SUMMARY OF THE INVENTION

In view of this, the purpose of the present invention is to provide an improved medical gown for critically ill patients, which aims to solve the defect that critically ill patients are completely naked and expose the patient's privacy.

In order to achieve the above purpose, the technical solutions adopted are as follows:

An improved medical gown for critically ill patients, comprising:

The jacket adopts a partial shirt structure and uses lace-up buttons. The neckline of the jacket is a V-neck structure, which is used for symptom observation of patients with organotomy and CVC use. The position of the through hole is fixed with a fixing rope for fixing the circuit of the medical device. At the same time, a first opening for the chest cavity drainage tube and the abdominal cavity drainage tube to pass through is respectively opened in the middle of the mid-axillary line on both sides of the jacket. In addition, the sleeves of the jacket are made of Spacious mid-sleeves, the length of the sleeves reaches the position of the human forearm;

The trousers have an elastic waistband at the waist, the two sides of the trousers are flush with the trousers seam, and the second openings are respectively opened from the waistband to the crotch level position, so that the trousers have a two-piece structure from the waistband to the crotch level. A third opening for insertion of the urinary catheter is opened.

As a further improvement of the present invention, the through holes are in a plurality of petal-shaped splicing structures, and the fixing rope adopts a sticking rope. In addition, the length of the first opening is 7cm.

As a further improvement of the present invention, the waistband of the trousers adopts a diaper-type sticking structure.

As a further improvement of the present utility model, detachable anti-leakage material is used at the buttocks of the trousers.

As a further improvement of the utility model, the jacket and trousers are made of sweat-absorbing cotton fabrics.

The beneficial effects of the utility model are as follows: the utility model is simple in structure, extremely easy to manufacture, and low in cost; the sleeves of the jacket adopt spacious middle sleeves, which is simple and convenient, which is very beneficial to the protection of the skin at the cuff of the monitor and is also convenient for nurses to operate; For elastic waist, it adopts diaper-type paste, and the two sides of the pants are open from the waistband to the crotch, which is easy to observe the skin and care operations.

Description of drawings

The accompanying drawings constituting a part of the present application are used to provide further understanding of the present invention, and the schematic embodiments of the present invention and descriptions thereof are used to explain the present invention and do not constitute an improper limitation of the present invention. In the attached image:

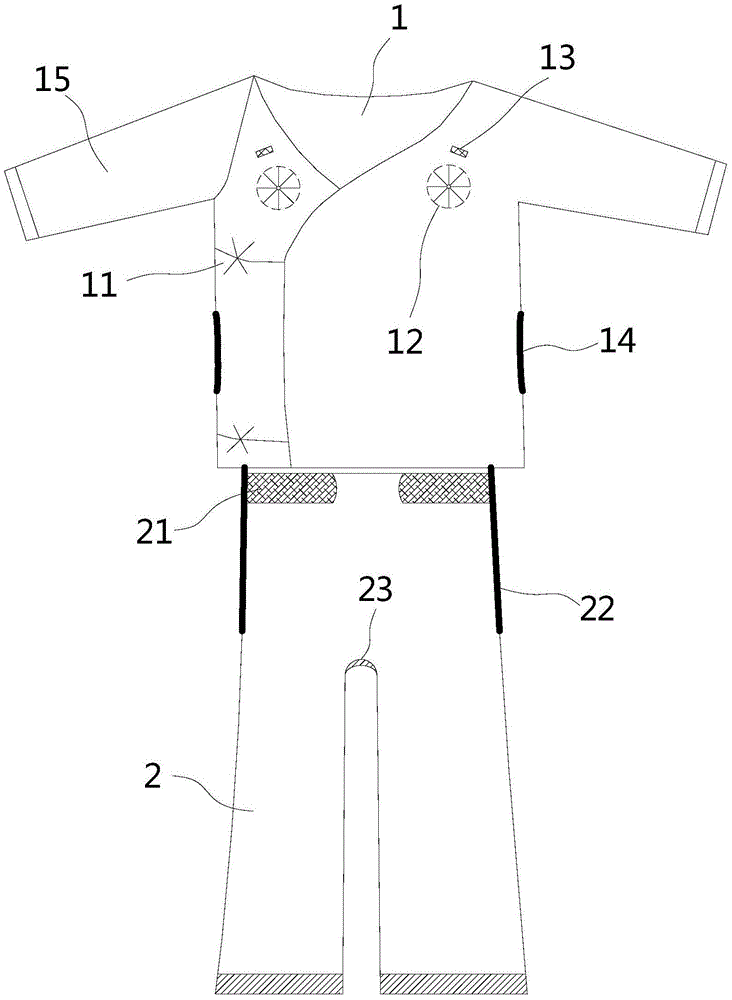

Fig. 1 is the structural representation of the utility model;

FIG. 2 is a schematic structural diagram of the waistband opening of the trousers in FIG. 1 .

Detailed ways

It should be noted that the embodiments in the present application and the features of the embodiments may be combined with each other in the case of no conflict. The present utility model will be described in detail below with reference to the accompanying drawings and in conjunction with the embodiments.

In order to make those skilled in the art better understand the solutions of the present application, the technical solutions in the embodiments of the present application will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present application. Obviously, the described embodiments are only The embodiments are part of the present application, but not all of the embodiments. Based on the embodiments in the present application, all other embodiments obtained by those of ordinary skill in the art without creative work shall fall within the scope of protection of the present application.

As shown in Figure 1, an improved hospital gown for critically ill patients includes a top 1 and trousers 2, and is made of sweat-absorbing cotton fabric; the top 1 adopts a partial shirt structure and is fastened with a tie 11, as in Baby clothes, the neckline of the jacket 1 is a V-neck structure, which is used for symptom observation of patients with organotomy and CVC use. , a fixing rope 13 for fixing the medical device circuit is fixedly arranged at a position close to the through hole 12, and the fixing rope 13 adopts a sticking rope. For patients using ECG monitoring, the ECG monitoring lead wire can be connected from the through hole. 12 is passed through and fixed by the sticking rope, and meanwhile, the first opening 14 for the chest cavity drainage tube and the abdominal cavity drainage tube to pass through is respectively opened at the middle position of the mid-axillary line on both sides of the jacket 1, and the length of the first opening 14 is 7cm. In addition, The sleeve 15 adopts a spacious middle sleeve, and the length of the sleeve 15 reaches the position of the human forearm, which is convenient for the skin at the monitor cuff to be protected, and is also convenient for nurses to operate;

As shown in FIG. 2, the waist of the pants 2 is an elastic waistband 21. The waistband 21 of the pants 2 adopts a diaper-type sticking structure. A second opening 22 is provided, so that the trousers 2 have a two-piece structure from the waistband 21 to the crotch portion. The crotch portion of the trousers 2 is provided with a third opening 23 for the insertion of the urethra. The buttocks of the trousers 2 are detachable and leak-proof. Material 24, for bedridden patients, those who cannot take care of their bowels and bowels can be removed, and they can be worn as ordinary trousers until the patient's condition improves.

The above descriptions are only preferred embodiments of the present utility model, and are not intended to limit the present utility model. For those skilled in the art, the present utility model may have various modifications and changes. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present invention shall be included in the protection scope of the present invention.

Claims (5)

1. A critically ill patient improvement gown, comprising:

the jacket adopts a sweater structure and is tied and buckled by using a lace, the neckline of the jacket is of a V-neck structure and is used for observing symptoms of an organ incised patient and a CVC patient, through holes are respectively formed in the middle positions of collarbons on two sides, fixing ropes for fixing lines of medical instruments are fixedly arranged at positions close to the through holes, meanwhile, first openings for allowing a thoracic drainage tube and an abdominal drainage tube to penetrate through are respectively formed in the middle positions of axillary midline lines on two sides of the jacket, in addition, wide middle sleeves are adopted as sleeves of the jacket, and the length of the sleeves reaches the position of the small arms of a human body;

trousers, its waist is the elasticity waistband, and the trousers both sides flush the position with the trousers seam and from the waistband to the second opening has been seted up respectively to neat crotch portion position, causes trousers to be two formula structures from the waistband to neat crotch portion, and trousers crotch portion sets up the third opening that is used for the ureter to alternate.

2. The critical patients improvement disease clothing of claim 1, wherein the through hole is a plurality of petal-shaped splicing structures, and the fixing rope is a sticking rope.

3. The improved patient garment for critically ill patients according to claim 1, wherein the waistband of the trousers adopts a paper diaper type sticking structure.

4. The improved patient garment for critically ill patients according to claim 1, wherein the hip position of the trousers is made of detachable leakproof material.

5. The improved hospital gown of claim 1 wherein the top and pants are made of a sweat absorbent cotton fabric.
