Abstract

The utility model discloses a special medical suit for cardiac surgery ICU. The hem of the medical suit body is long to the position of the patient's knee to cover the patient's private parts, the back of the medical suit body is provided with a back opening, and the back opening is provided with a back opening. Fastening parts; the body of the medical suit has an arc-shaped neckline, so as to facilitate the observation of the condition of the central venous infusion pipeline and the tracheal incision at the neck or the clavicle of the patient; the chest of the body of the medical suit is provided with a chest opening, and the A chest opening and closing cover is arranged on the chest opening; a heart monitoring opening is arranged on the lower left side of the chest opening corresponding to the position of the heart, and a heart opening and closing cover is arranged on the heart monitoring opening; the lower right side of the chest opening is provided with a heart monitoring opening The drainage tube squeezes the opening to facilitate squeezing the drainage tube. The drainage tube squeeze opening is provided with the drainage tube squeeze opening and the lid is closed; an analgesic pump is placed on each side of the lower front of the body of the patient suit. pocket. It has the characteristics of being easy to put on and take off, and convenient for patient care.

Description

A kind of special medical uniform for cardiac surgery ICU

technical field

The utility model relates to the technical field of medical supplies, in particular to a special medical suit for cardiac surgery ICU.

Background technique

The patients treated in the ICU ward belong to the special critically ill patients, and most of them are in a bedridden state. The nursing work for such patients is very complicated and difficult.

Figure 1 shows the common medical clothes at present, including top 1 and pants 2. The current medical clothes mainly have the following problems:

1. Because patients in the ICU ward are often in a bedridden state, in order to put on and take off the hospital clothes without the patient sitting up, the tops of the existing hospital clothes are generally reversed. Because ICU patients often have indwelling catheters, if the trousers in ordinary hospital clothes are worn to the buttocks, the catheter will easily be discounted or cause skin pressure injury. Therefore, in actual nursing, patients with postoperative indwelling catheters generally do not wear the trousers to the thigh. Above the root, but this is not conducive to protecting the patient's privacy. Moreover, for patients with fecal incontinence, it is also easy to contaminate the pants of the sick suit. At the same time, when the top is put on backwards, there are buttons 11 on the hospital clothes, and the patient is easy to press on the buttons 11 after lying down. For comatose patients or patients in continuous sedation (both of which have perceptual disturbances), it will cause a long time after Pressure injuries of the dorsal skin;

2. For patients undergoing cardiac surgery, after the operation, there is a wound in the middle of the chest, and a drainage tube is inserted. Every time the drainage tube is squeezed and the electrocardiogram is performed, the shirt must be lifted, which is very troublesome, and the jacket is lifted. When the patient's entire abdomen is exposed, it is not conducive to the patient to keep warm;

3. When the doctor changes the dressing for the patient's chest wound, he must also lift the shirt and even take off the sleeves, which is very troublesome;

4. The opening of the current coat pocket is vertically upward, and when the patient is moved, especially when the patient is lifted upwards, the analgesic pump in the pocket of the patient suit can easily slip out.

Utility model content

The utility model aims to solve at least one of the technical problems existing in the prior art. Therefore, the utility model proposes a special medical suit for cardiac surgery ICU which is specially suitable for being worn by critically ill patients in ICU and simultaneously solves the above problems.

The technical scheme adopted by the utility model is: a special medical suit for cardiac surgery ICU, comprising:

An integrated medical suit body, the hem of the medical suit body is long to the position of the patient's knee to cover the patient's private part, the back of the medical suit body is provided with a back opening, and the back opening is provided with a fastener;

The body of the medical suit has an arc-shaped neckline, which is convenient for observing the situation of the central venous infusion pipeline and the trachea incision at the patient's neck or clavicle;

The chest of the medical suit body is provided with a chest opening, and the chest opening is provided with a chest flap;

A heart monitoring opening is provided on the lower left side of the chest opening corresponding to the position of the heart, and a heart flap cover is provided on the heart monitoring opening;

A drainage tube extrusion opening is provided on the lower right side of the chest opening, so as to facilitate the extrusion of the drainage tube, and the drainage tube extrusion opening is provided with a lid on the drainage tube extrusion opening;

An analgesic pump placement pocket is respectively provided on both sides of the front lower part of the medical suit body.

Further optimization, the fastener includes a plurality of velcro patches arranged on both sides of the back opening, and each of the velcro patches is arranged at intervals.

Further optimization, the two analgesic pump placement pockets are arranged obliquely, and the openings of the analgesic pump placement pockets face the inside.

Further optimization, both sides of the chest flap cover are provided with first fixing connectors for fixing when the chest flap cover is opened and closed.

Further optimization, both sides of the heart flap cover are provided with second fixing connectors for fixing when the heart flap cover is opened and closed.

Further optimization, both sides of the lid of the drainage tube extrusion opening are provided with third fixing connectors for fixing when the drainage tube extrusion opening lid is opened and closed.

Further optimization, sleeves are provided on both sides of the body of the medical suit, and the sleeves are three-quarter sleeves with wide openings.

Further optimization, the groin opening of the medical suit body is provided with an inguinal opening, and an inguinal flip-up cover is provided on the inguinal opening.

Further optimization, both sides of the groin flap are provided with fourth fixing connectors for fixing when the groin flap is opened and closed.

The special medical gown for cardiac surgery ICU according to the embodiment of the present utility model has at least the following beneficial effects:

1. The hem of the body of the medical suit is long to the knee of the patient, which can protect the patient's private parts even when the patient does not wear pants, and is also convenient for toilet care;

2. The body of the medical suit has an arc-shaped neckline, and the distance between the center of the neckline and the neck is 15 cm, so as to facilitate the observation of the central venous infusion line and tracheal incision at the patient's neck or clavicle, and avoid the medical suit touching the patient's tracheostomy. At the opening, keep the opening of the tracheotomy clean to prevent infection and facilitate observation and care;

3. The design of the back opening is convenient for ICU patients to put on and take off their hospital clothes while lying down;

4. The design of the chest opening is convenient for doctors to change dressings and nurses to observe the wound;

5. The design of the heart monitoring opening is convenient for ECG monitoring and cardiac color ultrasound examination of patients;

6. The drainage tube extrusion opening is convenient for nurses to squeeze and dredge the drainage tube;

7. The analgesic pump placement pocket is used to place the analgesic pump that needs to be used after the operation, and the analgesic pump placement pocket is slanted, with the opening facing the inside, so that the analgesic pump is not easy to slip out of the pocket when moving the patient.

Description of drawings

The above and/or additional aspects and advantages of the present invention will become apparent and readily understood from the following description of embodiments in conjunction with the accompanying drawings, wherein:

Fig. 1 is a kind of sick clothes in common use at present;

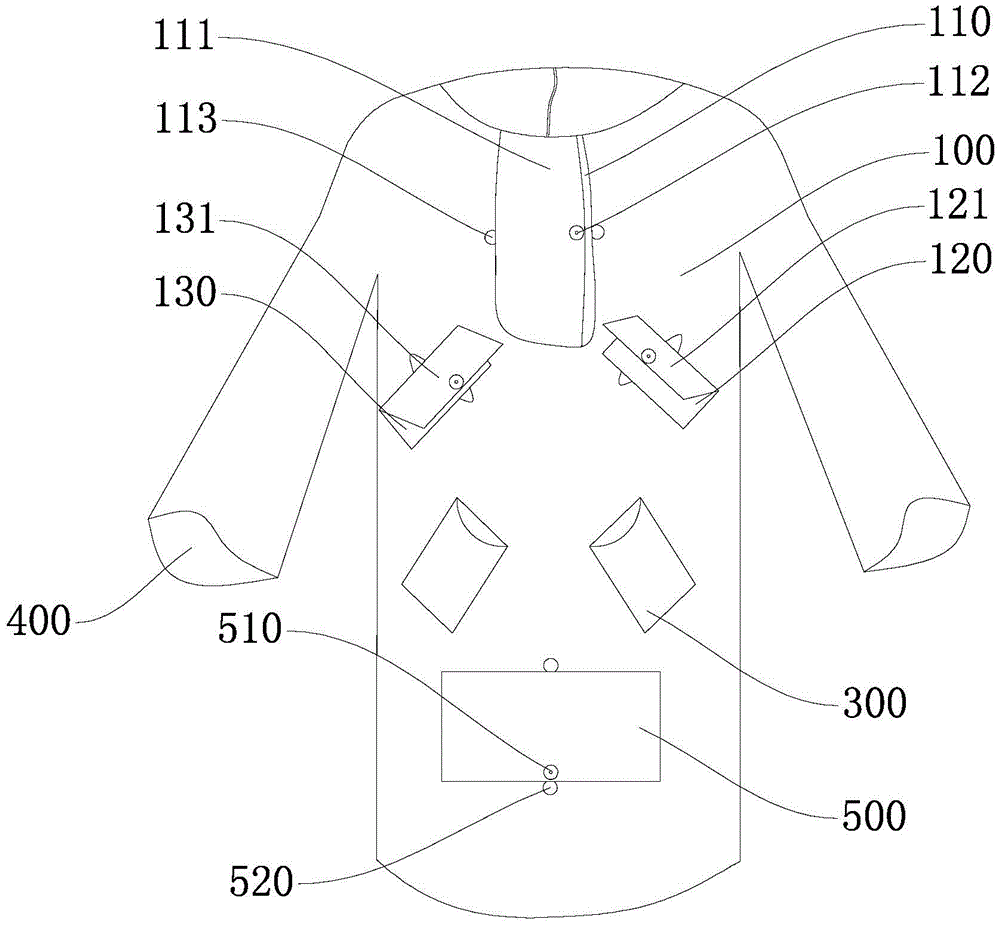

Fig. 2 is the frontal structure schematic diagram of the special hospital gown for cardiac surgery ICU according to the embodiment of the present utility model;

FIG. 3 is a schematic diagram of the back structure of the special medical suit for cardiac surgery ICU according to the embodiment of the present invention.

Detailed ways

Embodiments of the present invention are described in detail below, examples of which are illustrated in the accompanying drawings, wherein the same or similar reference numerals refer to the same or similar elements or elements having the same or similar functions throughout. The embodiments described below with reference to the accompanying drawings are exemplary and are only used to explain the present invention, but should not be construed as a limitation of the present invention.

In the description of the present utility model, it should be understood that the orientation descriptions related to orientations, such as up, down, front, rear, left, right, etc., are based on the orientation or positional relationship shown in the accompanying drawings, only It is for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the indicated device or element must have a specific orientation, be constructed and operated in a specific orientation, and therefore should not be construed as a limitation of the present invention.

In the description of the present utility model, the meaning of several is one or more, the meaning of multiple is two or more, greater than, less than, exceeding, etc. are understood as not including this number, above, below, within, etc. are understood as including this number. If it is described that the first and the fourth are only for the purpose of distinguishing technical features, it cannot be understood as indicating or implying relative importance, or indicating the number of the indicated technical features or the order of the indicated technical features. relation.

In the description of the present invention, unless otherwise clearly defined, words such as setting, installation, connection should be understood in a broad sense, and those skilled in the art can reasonably determine the specific meanings of the above words in the present invention in combination with the specific content of the technical solution .

Referring to Figures 2 and 3, the special medical suit for cardiac surgery ICU includes:

The integrated medical suit body 100, the hem of the medical suit body 100 is long to the patient's knee position to cover the patient's private parts, the back of the medical suit body 100 is provided with a back opening, and the back opening is provided with a fastener 200;

The body 100 of the medical suit has an arc-shaped neckline, so as to facilitate the observation of the central venous infusion pipeline and the tracheal incision at the patient's neck or clavicle;

A chest opening 110 is provided at the chest of the main body 100 of the medical suit, and a chest flap 111 is provided on the chest opening 110;

A heart monitoring opening 120 is provided on the lower left side of the chest opening 110 corresponding to the position of the heart, and a heart flap 121 is arranged on the heart monitoring opening 120;

A drainage tube extrusion opening 130 is provided on the lower right side of the chest opening 110 to facilitate the extrusion of the drainage tube, and the drainage tube extrusion opening 130 is provided with a drainage tube extrusion opening flip cover 131;

An analgesic pump placement pocket 300 is respectively provided on both sides of the front lower part of the main body 100 of the medical suit.

In the present invention, the hem of the medical suit body 100 is long to the knee position of the patient, so that the patient's private parts can be protected even when the patient does not wear trousers.

The body of the medical suit has an arc-shaped neckline, and the opening range of the arc-shaped neckline is relatively large, which is convenient for medical staff to observe the central venous infusion pipeline at the patient's neck or clavicle. The distance between the center of the neckline and the neck is 15 cm, which can prevent the patient's clothes from touching the tracheotomy opening of the patient, keep the tracheotomy opening clean, prevent infection, and facilitate observation and nursing.

When putting on the patient suit of the utility model for a lying patient, the patient can be put on while lying down without lifting the patient up. At this time, it is equivalent to cover the patient with a medical suit and block the front of the patient. When it is necessary to lift the patient up, close the back opening to block the patient's back.

When changing the dressing on the patient's chest or observing the wound, the chest opening 110 is opened, as long as the patient's chest is exposed, and the chest opening 110 is closed after changing the dressing or checking. Thereby, it is convenient for doctors to change dressings and nurses to observe wounds.

When it is necessary to perform an electrocardiogram operation or a color ultrasound on the patient, the heart monitoring opening 120 is opened, so as to perform an electrocardiogram or color ultrasound examination on the patient's heart position.

When it is necessary to squeeze and dredge the drainage tube, open the drainage tube extrusion opening 130 on the patient suit, and squeeze and dredge the drainage tube under the patient suit. After the operation of squeezing the drainage tube is completed, squeeze the drainage tube again. Opening 130 is closed.

The analgesic pump placement pocket 300 is used to place the analgesic pump that needs to be used after the operation, and the analgesic pump placement pocket is slanted, so that the analgesic pump cannot easily slip out of the pocket when moving the patient. When patients after cardiac surgery return to the ICU, the anesthesiologist usually connects the analgesia pump to the infusion channel of the peripheral vein, and sets up two pockets, which are not limited by the position of the infusion channel, which is convenient for the analgesic pump to be placed on the same side as the infusion channel, so as not to be stretched. and pressure.

In this embodiment, the fastener 200 includes a plurality of velcro patches arranged on both sides of the back opening, and each velcro patch is arranged at intervals. It is simple and convenient to select a few points of the Velcro.

Preferably, both sides of the chest flap 111 are provided with first fixing connectors for fixing the chest flap 111 when it is opened and closed.

In this embodiment, when the chest flap cover 111 is closed, the first button 112 on the chest flap cover 111 is fastened with the first buckle 113 on the side of the fastening surface. When the chest flap 111 is opened, the first button 112 is fastened with the first buckle 113 on the other side. It is avoided that when the chest lid 111 is opened, the chest lid 111 swings, which affects the breast care.

Likewise, both sides of the heart flap cover 121 are provided with second fixing connectors for fixing when the heart flap cover 121 is opened and closed.

In addition, both sides of the lid 131 for the extrusion opening of the drainage tube are provided with third fixing connectors for fixing when the lid 131 for the extrusion opening for the drainage tube is opened and closed.

Wherein, the two sides of the main body 100 of the medical suit are provided with sleeves 400, and the sleeves 400 are three-quarter sleeves with wide openings. The sleeve 400 chooses a wider three-quarter sleeve design, which is convenient for patients to put on. The distance between the sleeve and the wrist is 10-15 cm, which is conducive to the exposure of the radial artery manometry puncture point and the use of the restraint band.

Further, an inguinal opening is provided at the inguinal position of the main body 100 of the medical suit, and an inguinal flip-up cover 500 is provided on the inguinal opening. It is convenient to observe the condition of the patient's perineum, the hemodialysis tube in the groin, the wound dressing and the urinary catheter.

Both sides of the groin flap 500 are provided with fourth fixing connectors for fixing when the groin flap 500 is opened and closed.

In this embodiment, when the groin flap 500 is closed, the fourth button 510 on the groin flap 500 and the buckle 520 on the side of the sealing surface are fastened together. When the groin cover 500 is opened, the fourth button 510 is fastened with the buckle 520 on the other side, so as to avoid the sliding of the cover 500 when nursing the groin, which affects the nursing work.

Of course, the present invention is not limited to the above-mentioned embodiments, and those skilled in the art can also make equivalent modifications or replacements without departing from the spirit of the present invention, and these equivalent modifications or replacements are included in the claims of the present application within the limited range.

Claims (9)

1. A special hospital gown for a cardiac surgery ICU, comprising:

the hospital dress comprises an integrated hospital dress body (100), wherein the lap of the hospital dress body (100) is extended to the knee position of a patient to shield the privacy position of the patient, the back of the hospital dress body (100) is provided with a back opening, and the back opening is provided with a buckling piece (200);

the hospital dress body (100) is an arc-shaped collar so as to be convenient for observing the conditions of a central venous transfusion pipeline and an air pipe cut at the neck or the clavicle of a patient;

a chest opening (110) is formed in the chest of the hospital dress body (100), and a chest lifting cover (111) is arranged on the chest opening (110);

a heart monitoring opening (120) is arranged at the left side below the chest opening (110) and corresponds to the heart, and a heart lifting cover (121) is arranged on the heart monitoring opening (120);

a drainage tube extrusion opening (130) is arranged on the right side below the chest opening (110) so as to facilitate the extrusion of the drainage tube, and a drainage tube extrusion opening lift-close cover (131) is arranged on the drainage tube extrusion opening (130);

two analgesic pump placing pockets (300) are respectively arranged on two sides of the lower part of the front surface of the hospital dress body (100).

2. The cardiac surgery ICU special-purpose hospital garment of claim 1, wherein: the buckling piece (200) comprises a plurality of magic patches arranged on two sides of the back opening, and the magic patches are arranged at intervals.

3. The cardiac surgery ICU special-purpose hospital garment of claim 1, wherein: the two analgesic pump placing bags (300) are obliquely arranged, and the openings of the analgesic pump placing bags (300) face the inner side.

4. The cardiac surgery ICU special-purpose hospital garment of claim 1, wherein: and first fixed connecting pieces are arranged on two sides of the chest lifting cover (111) and are used for fixing the chest lifting cover (111) when the chest lifting cover is opened and closed.

5. The cardiac surgery ICU special-purpose hospital garment of claim 1, wherein: and second fixed connecting pieces are arranged on two sides of the heart opening and closing cover (121) and are used for fixing the heart opening and closing cover (121) when the heart opening and closing cover is opened and closed.

6. The cardiac surgery ICU special-purpose hospital garment of claim 1, wherein: and third fixed connecting pieces are arranged on two sides of the drainage tube extrusion opening flip cover (131) respectively and are used for fixing the drainage tube extrusion opening flip cover (131) when the drainage tube extrusion opening flip cover is opened and closed.

7. The cardiac surgery ICU dedicated hospital garment according to any one of claims 1 to 6, wherein: sleeves (400) are arranged on two sides of the hospital dress body (100), and the sleeves (400) are seven-part sleeves with wide openings.

8. The cardiac surgery ICU dedicated hospital garment according to any one of claims 1 to 6, wherein: the groin of the hospital dress body (100) is provided with a groin opening, and the groin opening is provided with a groin opening cover (500).

9. The cardiac surgery ICU special-purpose hospital garment of claim 8, wherein: and fourth fixed connecting pieces are arranged on two sides of the groin opening and closing cover (500) respectively and used for fixing the groin opening and closing cover (500) when the groin opening and closing cover is opened and closed.
