Abstract

The utility model discloses a rain-proof security monitoring device, which comprises a rain-shielding shell, a connecting rod is installed on the outer wall of the bottom of the rain-shielding shell, and a transparent cylinder is installed on the outer wall of the bottom of the connecting rod. A support column is installed on the inner wall of one side, and a rectangular slot is opened on the outer wall of one side of the support column. The top and bottom inner walls of the rectangular slot are rotatably connected with the same screw rod. A connecting block is installed on the outer wall of one side. In the utility model, the internal electrical appliances can be sealed by being provided with a transparent cylinder to avoid the entry of external rainwater, and the rainproof function is realized. The screw rod, sliding block, connecting block and wiper strip on the ring can clean the outer wall of the transparent cylinder to prevent dust from accumulating on its surface and improve the quality of the monitoring screen.

Description

A rain-proof security monitoring device

technical field

The utility model relates to the technical field of security monitoring, in particular to a rain-proof security monitoring device.

Background technique

The monitoring system is one of the most widely used systems in the security system. The most suitable construction site monitoring system on the market is handheld video communication equipment, and video monitoring is now the mainstream. From the earliest analog monitoring to the fiery digital monitoring in the past few years, and now the emerging network video monitoring has undergone earth-shaking changes. As IP technology gradually unifies the world today, it is necessary for us to re-understand the history of video surveillance system development.

However, the existing monitoring equipment has a single function. The existing outdoor monitoring equipment does not have a rain cover, which may be damaged by getting wet, and the outdoor dust is large. It is easy to accumulate a lot of dust outside after long-term use, which will affect the monitoring screen. , is not convenient for people to use.

Utility model content

The purpose of the present utility model is to solve the shortcomings existing in the prior art, and a rain-proof security monitoring device is proposed, which can effectively solve the problems raised by the background technology.

In order to achieve the above-mentioned purpose, the utility model adopts the following technical solutions:

A rain-proof security monitoring device includes a rain-shielding shell, a connecting rod is installed on the outer wall of the bottom of the rain-shielding shell, a transparent cylinder is installed on the outer wall of the bottom of the connecting rod, and an inner wall of one side of the rain-shielding shell is installed with a connecting rod. The support column is provided with a rectangular groove on the outer wall of one side of the support column. The top and bottom inner walls of the rectangular groove are rotatably connected with the same screw rod. In the connecting block, a circular ring is sleeved on the circumferential outer wall of the transparent cylinder, the top outer wall of the circular ring and the bottom outer wall of the connecting block are fixedly connected by bolts, and a wiper strip is installed on the inner wall of the circular ring.

Preferably, a motor is installed on the outer wall of the bottom of the support column, and the output shaft of the motor is fixedly connected to the outer wall of the bottom of the screw rod through bolts.

Preferably, the outer wall of the top of the rain shielding shell is installed with solar cell panels distributed at equal distances, and the outer wall of the top of the rain shielding shell is installed with a connecting frame, and the outer wall of one side of the connecting frame is installed with a fixing plate.

Preferably, a liquid storage casing is installed on the outer wall of the other side of the bottom of the rainproof casing, and a liquid filling pipe is inserted into the outer wall of the top of the liquid storage casing.

Preferably, a liquid spray pipe is sleeved on the top of the outer wall of the transparent cylinder, and a liquid suction pump is installed on the inner wall of the bottom of the liquid storage shell, the output end of the liquid suction pump is installed with a liquid outlet pipe, and the bottom outer wall of the liquid spray pipe is installed with etc. Distance distributed nozzles.

Preferably, the same battery is installed on the inner walls on both sides of the transparent cylinder, and the same fixing plate is installed on the inner walls on both sides of the transparent cylinder. Connected with equidistantly distributed heat sinks.

Preferably, a fixed casing is installed on the outer wall of the bottom of the transparent cylinder, and the same exhaust fan is installed on the inner walls on both sides of the fixed casing.

Compared with the prior art, the beneficial effects of the present utility model are:

1. By being provided with a connecting frame and a fixing plate, the device can be fixed on the work site. By being provided with a solar panel and a battery, the external sunlight can be absorbed and utilized, making the device environmentally friendly. By providing three cameras , to ensure the security monitoring effect.

2. By providing a transparent cylinder, the internal electrical appliances can be sealed to avoid the entry of external rainwater, and the rainproof function is realized. By providing a heat sink, the internal heat can be dissipated. The sliding block, the connecting block and the wiper strip on the ring can clean the outer wall of the transparent cylinder, prevent dust from accumulating on its surface, and improve the quality of the monitoring screen. The nozzle under the tube can work with the wiper strip to improve the cleaning quality.

3. Embodiment 2 is provided with an exhaust fan and a fixed casing, which improves the air flow speed on the surface of the heat sink, improves the heat dissipation efficiency of the heat sink, and ensures the normal use of electrical appliances inside the transparent cylinder.

Description of drawings

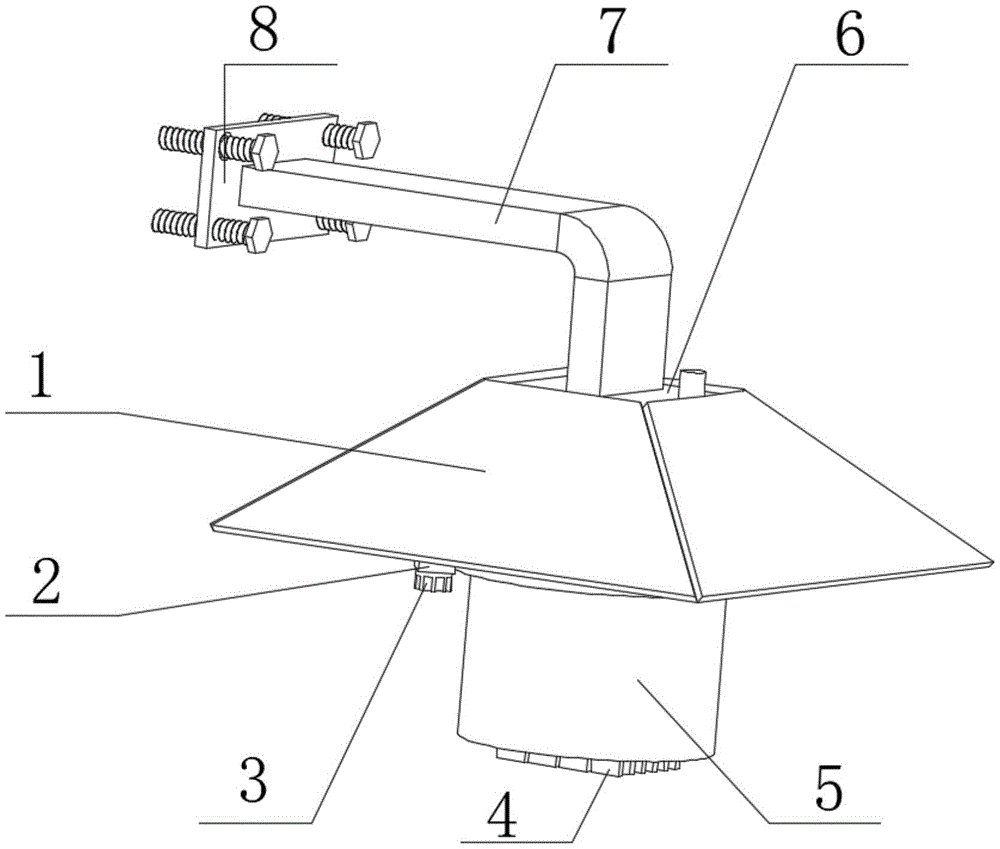

Fig. 1 is the front view structure schematic diagram of a kind of rainproof type security monitoring device proposed by the utility model;

Fig. 2 is the partial structure schematic diagram of a kind of rainproof security monitoring device proposed by the utility model;

Fig. 3 is the transparent cylinder sectional structure schematic diagram of a rain-proof security monitoring device proposed by the utility model;

FIG. 4 is a partial structural schematic diagram of Embodiment 2 of a rain-proof security monitoring device proposed by the present invention.

In the picture: 1 solar panel, 2 support column, 3 motor, 4 heat sink, 5 transparent cylinder, 6 rain shield, 7 connecting frame, 8 fixing plate, 9 ring, 10 liquid spray pipe, 11 liquid storage Shell, 12 connecting rod, 13 connecting block, 14 sliding block, 15 screw rod, 16 battery, 17 camera, 18 exhaust fan, 19 fixed shell.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. For example, in the present utility model, unless otherwise expressly specified and limited, terms such as "installation", "arrangement", "connection", "fixation", "screw connection" should be understood in a broad sense, for example, it may be fixed The connection can also be a detachable connection or an integral body; it can be a mechanical connection or an electrical connection; it can be a direct connection or an indirect connection through an intermediate medium, and it can be the internal connection of the two elements or the connection between the two elements. Interaction relationship, unless otherwise clearly defined, those of ordinary skill in the art can understand the specific meanings of the above terms in the present invention according to specific situations.

Example 1

1-3, a rain-proof security monitoring device includes a rain-proof housing 6, a connecting rod 12 is installed on the bottom outer wall of the rain-proof casing 6, and a transparent cylinder 5 is installed on the bottom outer wall of the connecting rod 12, which protects against rain. A support column 2 is installed on the inner wall of one side of the housing 6, and a rectangular groove is opened on the outer wall of one side of the support column 2. The top and bottom inner walls of the rectangular groove are rotatably connected with the same lead screw 15, and the circumferential outer wall of the lead screw 15 is connected with a sliding screw thread. Block 14, and a connecting block 13 is installed on the outer wall of one side of the sliding block 14, the outer wall of the transparent cylinder 5 is sleeved with a ring 9, and the top outer wall of the ring 9 and the bottom outer wall of the connecting block 13 are fixedly connected by bolts, and the inner wall of the ring 9 Wiper strips are installed.

In the present invention, a motor 3 is installed on the bottom outer wall of the support column 2, and the output shaft of the motor 3 is fixedly connected to the bottom outer wall of the screw rod 15 through bolts, and the top outer wall of the rain shielding shell 6 is installed with equidistantly distributed solar panels 1, and A connecting frame 7 is installed on the outer wall of the top of the rain shielding shell 6, a fixing plate 8 is installed on the outer wall of one side of the connecting frame 7, and the outer wall on one side of the fixing plate 8 is rotatably connected with threaded rods distributed at equal distances, and the other side of the bottom of the rain shielding shell 6 is installed. A liquid storage housing 11 is installed on the outer wall, and a liquid filling pipe is inserted into the outer wall of the top of the liquid storage housing 11. The other end of the liquid filling pipe extends to the outside of the rain shielding shell 6, and the top of the outer wall of the transparent cylinder 5 is sleeved with a liquid spray. Pipe 10, and a liquid suction pump is installed on the inner wall of the bottom of the liquid storage housing 11, a liquid outlet pipe is installed at the output end of the liquid suction pump, the other end of the liquid outlet pipe extends into the inside of the liquid spray pipe 10, and the bottom outer wall of the liquid spray pipe 10 is installed with etc. Nozzles with distance distribution, the same battery 16 is installed on the inner walls of the transparent cylinder 5, and the same fixing plate is installed on the inner walls of the transparent cylinder 5, and three cameras 17 are installed at the same distance on the outer wall of the bottom of the fixing plate. The outer wall of the bottom of the cylinder 5 is plugged with radiating fins 4 distributed at equal distances.

Working principle: when in use, the device is fixed on the work site through the connecting frame 7 and the fixing plate 8, and then an external power supply is provided. By setting the solar panel 1, the solar energy can be converted into electric energy, and the electric energy can be stored in the storage battery 16, Provide auxiliary power supply to the device, the device can start the liquid pump regularly, spray the cleaning liquid to the outer wall of the transparent cylinder 5 through the nozzle under the liquid spray pipe 10, and then turn on the motor 3 to drive the sliding block 14 on the screw rod 15 to move up and down, As a result, the ring 9 on the connecting block 13 is driven to move up and down, and the wiper strip on the ring 9 brushes the outer wall of the transparent cylinder 5 .

Example 2

1-4, a rain-proof security monitoring device further includes a fixed casing 19 installed on the outer wall of the bottom of the transparent cylinder 5, and the same exhaust fan 18 is installed on the inner walls of both sides of the fixed casing 19, and the circumference of the fixed casing 19 is installed. The outer wall is provided with through holes distributed at equal distances, and the through holes are inclined downward.

Working principle: Compared with Embodiment 1, by being provided with an exhaust fan 18 and a fixed casing 19, the air flow speed on the surface of the heat sink 4 is improved, the heat dissipation efficiency of the heat sink 4 is improved, and the normal operation of the electrical appliances inside the transparent cylinder 5 is ensured. use.

The control method of the present invention is automatically controlled by the controller, and the control circuit of the controller can be realized by simple programming by those skilled in the art. The supply of power also belongs to the common knowledge in the art, and the present invention is mainly used to protect the It is a mechanical device, so the present utility model will not explain the control mode and circuit connection in detail.

The above description is only a preferred embodiment of the present invention, but the protection scope of the present invention is not limited to this. Equivalent replacement or modification of the new technical solution and its utility model concept shall be included within the protection scope of the present utility model.

Claims (7)

1. The utility model provides a rainproof type security protection monitoring device, includes rain-proof casing (6), its characterized in that, connecting rod (12) are installed to rain-proof casing (6) bottom outer wall, and connecting rod (12) bottom outer wall installs transparent drum (5), support column (2) are installed to rain-proof casing (6) one side inner wall, and support column (2) one side outer wall seted up the rectangular channel, and the rectangular channel top rotates with the bottom inner wall and is connected with same lead screw (15), lead screw (15) circumference outer wall is connected with sliding block (14) through the screw rotation, and sliding block (14) one side outer wall installs connecting block (13), ring (9) have been cup jointed to transparent drum (5) circumference outer wall, and ring (9) top outer wall passes through bolt fixed connection with connecting block (13) bottom outer wall, and the wiper strip has been installed to ring (9) inner wall.

2. The rainproof security monitoring device according to claim 1, wherein a motor (3) is mounted on the outer wall of the bottom of the supporting column (2), and an output shaft of the motor (3) is fixedly connected with the outer wall of the bottom of the screw rod (15) through a bolt.

3. The rainproof security monitoring device according to claim 1, wherein solar panels (1) are arranged on the outer wall of the top of the rain shielding shell (6) in an equidistant mode, a connecting frame (7) is arranged on the outer wall of the top of the rain shielding shell (6), and a fixing plate (8) is arranged on the outer wall of one side of the connecting frame (7).

4. The rainproof security monitoring device according to claim 1, wherein a liquid storage shell (11) is mounted on the outer wall of the other side of the bottom of the rain shielding shell (6), and a liquid feeding pipe is inserted into the outer wall of the top of the liquid storage shell (11).

5. The rainproof security monitoring device according to claim 4, wherein a liquid spraying pipe (10) is sleeved on the top of the circumferential outer wall of the transparent cylinder (5), a liquid drawing pump is mounted on the inner wall of the bottom of the liquid storage shell (11), a liquid outlet pipe is mounted at the output end of the liquid drawing pump, and nozzles distributed equidistantly are mounted on the outer wall of the bottom of the liquid spraying pipe (10).

6. The rainproof security monitoring device according to claim 3, wherein the same storage battery (16) is mounted on the inner walls of the two sides of the transparent cylinder (5), the same fixing plate is mounted on the inner walls of the two sides of the transparent cylinder (5), three cameras (17) are mounted on the outer wall of the bottom of the fixing plate and are distributed equidistantly, and cooling fins (4) are inserted into the outer wall of the bottom of the transparent cylinder (5) and are distributed equidistantly.

7. The rainproof security monitoring device according to claim 6, wherein a fixed shell (19) is mounted on the outer wall of the bottom of the transparent cylinder (5), and the same exhaust fan (18) is mounted on the inner walls of two sides of the fixed shell (19).
