Abstract

The utility model relates to the technical field of biological product processing, and discloses a sewage treatment device for biological product processing. A rotating shell is fixedly installed on one side of the water curtain, and a gear 1 is fixedly installed on both ends of the rotating shell. The first gear meshes with the second gear and rotates. on the output. The sewage treatment device for biological product processing has a rotating casing and a magnet fixedly installed at the lower part of the water inlet pipe, the rotating casing is driven by the first motor to rotate, and the sewage cast by the water inlet pipe is driven to rotate on the rotating casing, and is fixedly installed Inside the rotating shell, it is convenient to remove the metal impurities in the sewage, and a water blocking curtain is fixedly installed on the upper part of the rotating shell, which is convenient for diverting the sewage and ensures that the sewage passes through the rotating shell evenly.

Description

A sewage treatment device for biological product processing

technical field

The utility model relates to the technical field of biological product processing, in particular to a sewage treatment device for biological product processing.

Background technique

Water treatment technology is an indispensable means to protect water resources and improve the water environment. It plays an increasingly important role in the national economy and is widely used in industrial, agricultural and domestic sewage purification and reuse. The current sewage is mainly from industrial wastewater. , Industrial wastewater refers to the wastewater, sewage and waste liquid produced in the industrial production process, which contain industrial production materials, intermediate products and products lost with the water, and pollutants generated in the production process.

There are more or less metal impurities in the sewage, and metal impurities can easily cause the device to block. However, some sewage treatment devices on the market are not effective in removing metal impurities. Long-term accumulation of metal impurities can easily cause blockage.

Utility model content

In view of the deficiencies of the prior art, the utility model provides a sewage treatment device for biological product processing, which has the advantages of processing metal impurities and grading filtration, and solves the problems mentioned in the above background technology.

The utility model provides the following technical solutions: a sewage treatment device for biological product processing, comprising a device casing, a water inlet pipe is fixedly installed on the upper part of the device casing, a water blocking curtain is fixedly installed on the lower part of the water inlet pipe, and the blocking A rotating casing is fixedly installed on one side of the water curtain, and a gear 1 is fixedly installed on both ends of the rotating casing. The gear 1 meshes with the gear 2 and rotates. A magnet is fixedly installed inside the rotating shell, the two ends of the magnet are fixedly installed on the fixing block, the lower part of the magnet is fixedly installed with a water baffle, and the bottom of the water baffle is fixedly installed with a filter plate 1, so The filter plate 2 is fixedly installed below the filter plate 1, and the filter plate 3 is fixedly installed below the filter plate 2. The upper parts of the filter plate 1, the filter plate 2, and the filter plate 3 are all fixedly installed with cleaning brushes. One end of the cleaning brush is fixedly installed on the connecting plate, the connecting plate is movably installed inside the slide rail, the upper part of the connecting plate is fixedly installed with a connecting block, and the other end of the connecting block is movably sleeved on the threaded rod One end of the threaded rod is fixedly installed on the inner wall of the device casing, the other end of the threaded rod is movably installed with a belt, and the other end of the belt is movably sleeved on the output end of the second motor.

Selected, one end of the filter plate 1, the filter plate 2, and the filter plate 3 are fixedly installed with a sewage outlet.

Selected, the filter plate 1, the filter plate 2, the filter plate 3 and the sliding rail are all arched, and the filter plate 1, the filter plate 2, the filter plate 3 and the sliding rail are provided with long grooves on one side. The width value of the long slot is the same as the width value of the connecting plate.

Selected, the water blocking curtain is a double layer, and the number of the water blocking curtain is nine.

Selectively, the magnet is a cylindrical magnet with a three-quarter circumference, and the length of the magnet is consistent with the length of the rotating shell.

Compared with the prior art, the utility model has the following beneficial effects:

1. The sewage treatment device for biological product processing is fixedly installed with a rotating casing and a magnet at the lower part of the water inlet pipe, the rotating casing is driven by the first motor to rotate, and the sewage dropped by the water inlet pipe is driven to rotate on the rotating casing, and The magnet is fixedly installed inside the rotating shell, which is convenient to remove the metal impurities in the sewage, and a water blocking curtain is fixedly installed on the upper part of the rotating shell, which is convenient to guide the sewage and ensure that the sewage passes through the rotating shell evenly.

2. The sewage treatment device for biological product processing is fixedly installed with filter plate 1, filter plate 2 and filter plate 3 inside the device shell, which facilitates multiple filtration of sewage and facilitates accurate treatment of sewage. , The upper part of filter plate 2 and filter plate 3 are fixedly installed with cleaning brushes, and the cleaning brushes are connected with connecting plates and threaded rods, and the second motor drives the threaded rods to rotate, thereby driving the cleaning brushes on filter plate 1 and filter plate. The second and the third are cleaned, which is convenient for scooping up the impurity adhesives on the first, second and third filter plates, so as to ensure the filtering effect of the first filter plate, the second filter plate and the third filter plate.

Description of drawings

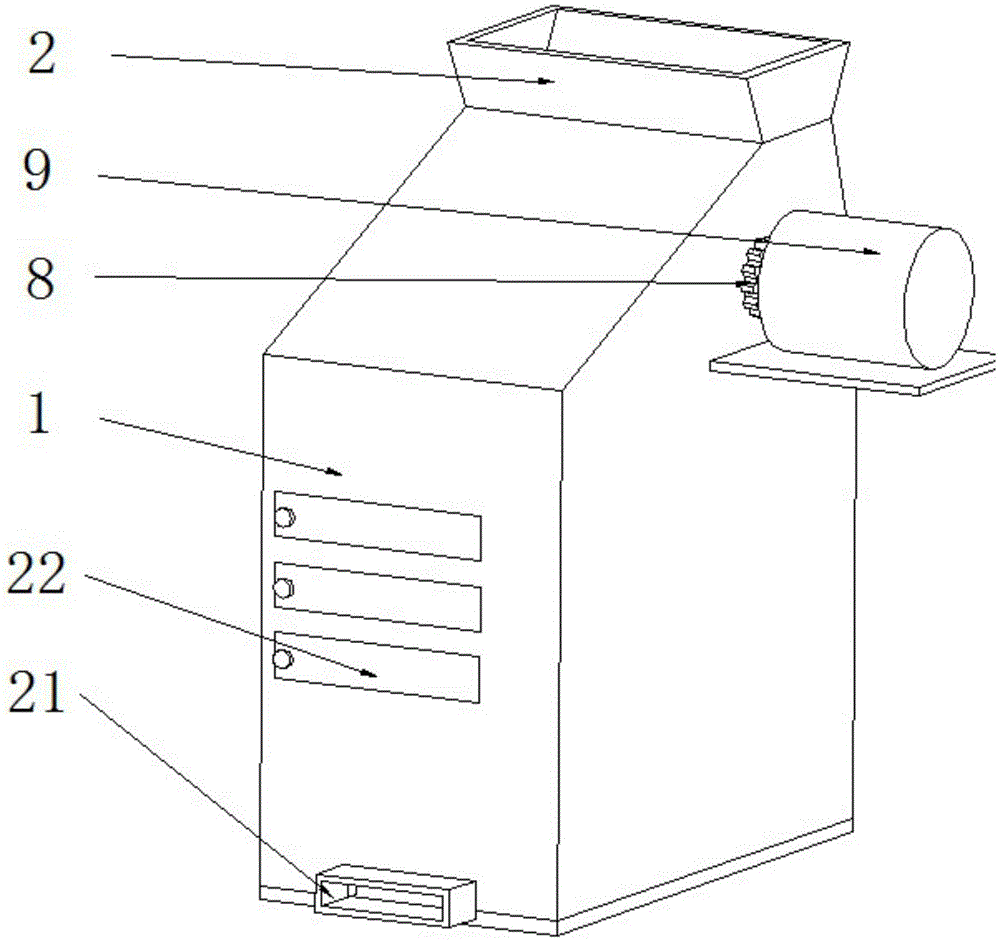

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the structural sectional view of the utility model;

3 is a schematic diagram of the internal structure of the utility model;

FIG. 4 is a schematic diagram of the cleaning brush of the present invention.

In the figure: 1. Device shell; 2. Water inlet pipe; 3. Water curtain; 4. Rotating shell; 5. Magnet; 6. Fixed block; 7. Gear 1; 8. Gear 2; 9. Motor 1; 10. Water retaining plate; 11, filter plate one; 12, filter plate two; 13, filter plate three; 14, cleaning brush; 15, slide rail; 16, connecting plate; 17, connecting block; 18, threaded rod; 19, belt ; 20, motor two; 21, water outlet; 22, sewage outlet.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to Figures 1-4, a sewage treatment device for biological product processing, including a device casing 1, a water inlet pipe 2 is fixedly installed on the upper part of the device casing 1, and a water blocking curtain 3 is fixedly installed on the lower part of the water inlet pipe 2. The water blocking curtain 3 is a double layer, and the number of water blocking curtains 3 is nine. The water blocking curtain 3 is fixedly installed on the upper part of the rotating shell 4, which is convenient for diverting the sewage and ensuring that the sewage passes through the rotating shell 4 evenly. A rotating casing 4 is fixedly installed on the side, and both ends of the rotating casing 4 are fixedly installed with a gear one 7, the gear one 7 is meshed with the gear two 8 and rotates, and the gear two 8 is fixedly installed on the output end of the motor one 9. A magnet 5 is fixedly installed inside. The magnet 5 is a cylindrical magnet with three-quarters of the circumference. The length of the magnet 5 is consistent with the length of the rotating shell 4. The rotating shell 4 and the magnet 5 are fixedly installed at the lower part of the water inlet pipe 2. , the rotating shell 4 is rotated under the driving of the motor one 9, and the sewage dropped by the water inlet pipe 2 is driven to rotate on the rotating shell 4, and the magnet 5 is fixedly installed inside the rotating shell 4, which is convenient for the removal of metal impurities in the sewage , the two ends of the magnet 5 are fixedly installed on the fixing block 6, the lower part of the magnet 5 is fixedly installed with a water baffle 10, the bottom of the water baffle 10 is fixedly installed with a filter plate 11, and the bottom of the filter plate 11 is fixedly installed with a filter The second plate 12, the filter plate three 13 is fixedly installed under the filter plate two 12, the upper part of the filter plate one 11, the filter plate two 12, and the filter plate three 13 are fixedly installed with the cleaning brush 14, the filter plate one 11, and the filter plate two. 12. Filter plate three 13 and slide rail 15 are arched, and one side of filter plate one 11, filter plate two 12, filter plate three 13 and slide rail 15 is provided with a long groove, and the width of the long groove is related to the connecting plate. The width value of 16 is the same, the upper part of filter plate 11, filter plate 2 12 and filter plate 3 13 are fixedly installed with cleaning brush 14, and the cleaning brush 14 is connected with the connecting plate 16, threaded rod 18, etc., and through the motor two 20 The threaded rod 18 is driven to rotate, thereby driving the cleaning brush 14 to clean the filter plate one 11, the filter plate two 12 and the filter plate three 13, which is convenient for removing the impurities on the filter plate one 11, the filter plate two 12 and the filter plate three 13. The adhesive is scooped up to ensure the filtering effect of the first filter plate 11, the second filter plate 12 and the third filter plate 13. One end of the cleaning brush 14 is fixedly installed on the connecting plate 16, and the connecting plate 16 is movably installed inside the slide rail 15. , the upper part of the connecting plate 16 is fixedly installed with a connecting block 17, the other end of the connecting block 17 is movably sleeved on the threaded rod 18, one end of the threaded rod 18 is fixedly installed on the inner wall of the device housing 1, and the other end of the threaded rod 18 is movable A belt 19 is installed, the other end of the belt 19 is movably sleeved on the output end of the second motor 20, and one end of the filter plate 11, the filter plate 2 12, and the filter plate 3 13 are fixedly installed with a sewage outlet 22. The inside of 1 is fixedly installed with filter plate one 11, filter plate two 12 and filter plate three 13, which is convenient for multiple filtration of sewage and convenient for accurate treatment of sewage.

Working principle: When using, turn on the power of the device, and at the same time put the sewage into the device through the water inlet pipe 2, the metal impurities in the sewage are adsorbed on the surface of the rotating shell 4 under the adsorption of the magnet 5, and are put into the rotating shell 4 along with the rotation of the rotating shell 4. In the empty groove on one side of the baffle plate 10, the sewage is then guided down by the baffle plate 10, and is graded and filtered on the filter plate 1 11, the filter plate 2 12 and the filter plate 3 13, and finally is discharged at the water outlet 21. , when the filter plate one 11, the filter plate two 12 and the filter plate three 13 need to be cleaned for a period of time after use, turn on the power of the motor two 20, the motor two 20 drives the threaded rod 18 to rotate, and the threaded rod 18 drives the connection block 17 and the connection The plate 16 moves, and the connecting plate 16 drives the cleaning brush 14 to clean the impurities on the filter plate 1 11 , the filter plate 2 12 and the filter plate 3 13 at the same time.

It should be noted that, in this document, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply any relationship between these entities or operations. any such actual relationship or sequence exists. Moreover, the terms "comprising", "comprising" or any other variation thereof are intended to encompass a non-exclusive inclusion such that a process, method, article or device that includes a list of elements includes not only those elements, but also includes not explicitly listed or other elements inherent to such a process, method, article or apparatus. Meanwhile, in the drawings of the present invention, the filling pattern is only for distinguishing the layers, and does not make any other limitation.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (5)

1. A sewage treatment device for biological product processing, comprising a device casing (1), characterized in that: a water inlet pipe (2) is fixedly installed on the upper part of the device casing (1), and the lower part of the water inlet pipe (2) is fixedly installed. A water blocking curtain (3) is fixedly installed, a rotating shell (4) is fixedly installed on one side of the water blocking curtain (3), and a gear one (7) is fixedly installed on both ends of the rotating shell (4), The first gear (7) meshes with the second gear (8) and rotates, the second gear (8) is fixedly installed on the output end of the motor one (9), and a magnet ( 5), the two ends of the magnet (5) are fixedly installed on the fixing block (6), the lower part of the magnet (5) is fixedly installed with a water blocking plate (10), and the bottom of the water blocking plate (10) is fixedly installed A filter plate one (11) is fixedly installed, a filter plate two (12) is fixedly installed below the filter plate one (11), and a filter plate three (13) is fixedly installed below the filter plate two (12), A cleaning brush (14) is fixedly installed on the upper part of the filter plate one (11), the filter plate two (12), and the filter plate three (13), and one end of the cleaning brush (14) is fixedly installed on the connecting plate (16). ), the connecting plate (16) is movably installed inside the slide rail (15), the upper part of the connecting plate (16) is fixedly installed with a connecting block (17), and the other end of the connecting block (17) is movable The threaded rod (18) is sleeved on the threaded rod (18), one end of the threaded rod (18) is fixedly mounted on the inner wall of the device housing (1), and the other end of the threaded rod (18) is movably mounted with a belt (19), so The other end of the belt (19) is movably sleeved on the output end of the second motor (20). 2. A sewage treatment device for biological product processing according to claim 1, wherein one end of the filter plate one (11), the filter plate two (12), and the filter plate three (13) are all fixedly installed There is a sewage outlet (22). 3. A sewage treatment device for biological product processing according to claim 1, characterized in that: the filter plate one (11), the filter plate two (12), the filter plate three (13) and the slide rail (15) ) are arched, and one side of filter plate one (11), filter plate two (12), filter plate three (13) and slide rail (15) are provided with long grooves, and the width of the long grooves is connected with the connection The width values of the plates (16) are the same. 4 . The sewage treatment device for biological product processing according to claim 1 , wherein the water blocking curtain ( 3 ) is double-layered, and the number of the water blocking curtain ( 3 ) is nine. 5 . 5 . The sewage treatment device for biological product processing according to claim 1 , wherein the magnet ( 5 ) is a cylindrical magnet with three quarters of the circumference, and the length of the magnet ( 5 ) is the same as the length of the magnet ( 5 ). 6 . The length of the rotating shell (4) is the same.
