CN211767322U - Tumor living body detection kit - Google Patents

Abstract

The utility model discloses a tumor biopsies detection kit, which comprises a box body, a box cover is hinged on the box body, a timer is arranged in the box cover, the box body is divided into an experiment cavity and a storage cavity by a partition, and the experiment cavity is provided with a timer. There is a detachable operation panel. The operation panel is provided with a placement hole and a sample hole. The placement hole is provided with an elastic card. A temperature control box is provided under the experimental chamber. The temperature control box is provided with a cooling device. Drawer boxes are evenly arranged, a lock is arranged on the drawer box, an anti-collision pad is arranged in the drawer box, a plurality of reagent tubes are placed horizontally on the anti-collision pad, and an elastic band is arranged in the drawer box. Compared with the prior art, the advantage of the utility model is that the reagent tube is placed horizontally in the drawer box provided with the pad body, and is fixed by the blocking blocks at both ends and the elastic band, so as to avoid the reagent tube from sliding when placed vertically In the case of collision, the cooling device at the bottom effectively refrigerates the medicine bottle and the operated reagent tube to reduce errors in the results during the detection process.

Description

A tumor biopsy kit

technical field

The utility model relates to the technical field of kits, in particular to a tumor living body detection kit.

Background technique

The incidence and mortality of tumors in China are among the highest in the world. According to the China Cancer Registry Annual Report, there are about 3 million cancer patients in China every year, of which about 5-10% are hereditary. For example, a female carrier with a genetic variant has a 56-87% risk of hereditary breast cancer, a carrier has a 90% risk of hereditary colorectal cancer, a carrier has an 80% risk of hereditary cancer, etc. Early detection, early detection, early prevention, and early treatment can scientifically minimize one's own risk.

Biopsy is one of the commonly used clinical examination methods, which can provide the most reliable basis for the diagnosis of clinicians. For the diagnosis of malignant tumors, it has the characteristics of direct, reliable, safe and accurate, and the scope of biopsy includes almost all organs in the body, which has the incomparable advantages of other inspection methods. With the rapid development of science and technology, medical equipment and appliances have become more advanced and widely used, which has greatly improved the level of medical treatment. It is used by enterprises to facilitate the collection and collection of relevant sample information, so as to conduct research on it to carry out medical prevention and treatment.

A kit is a box used to store chemical reagents for detecting chemical components, drug residues, virus types, etc. It usually needs to put a variety of preparations inside, such as diluents, flushing agents, etc. To facilitate storage of the formulation, the kit is usually stored at low temperature. Moreover, the test tube is placed vertically in the box, which is prone to collision and damage. The partition setting is unreasonable and it is inconvenient to use.

Utility model content

The technical problem to be solved by the present utility model is to overcome the defects of the above-mentioned technologies and provide a tumor biopsy detection kit.

In order to solve the above-mentioned technical problems, the technical solution provided by the present invention is as follows: a tumor biopsy kit, comprising a box body, the top of the box body is provided with an opening, the box body is hinged with a box cover, and the box body is hinged. A timer is arranged in the cover, a sponge layer is arranged on the inner side of the box body, an anti-collision rubber layer is arranged between the box body and the sponge layer, and the box body is divided into an experimental cavity and a storage cavity by a partition, The experimental chamber is provided with a detachable operation panel, the operation panel is provided with a placement hole for fixing the medicine bottle and a sample hole for storing the reagent tube, and an elastic card is arranged on the placement hole, and the elastic card is placed along the The holes are evenly arranged in the circumferential direction, and a temperature control box can be pulled below the experimental chamber. The temperature control box is slidably connected with the box body. Drawer boxes are evenly arranged on the side, the drawer box is communicated with the storage cavity, a lock is arranged on the drawer box, a crash pad is arranged in the drawer box, and a plurality of reagent tubes are placed horizontally on the crash pad. , a blocking block is arranged between adjacent reagent tubes, an elastic band is arranged in the drawer box, and the elastic band is arranged at both ends of the reagent tube.

As an improvement, the timer is a mechanical hand twist timer, and the range of one rotation of the timer is 30 minutes.

As an improvement, the operation panel is provided with a pick-up hole that facilitates the penetration of fingers.

As an improvement, the cooling device is a refrigeration compression tablet.

As an improvement, the storage chamber is provided with an ultraviolet lamp for sterilization.

Compared with the prior art, the utility model has the advantages that: the sponge layer and the rubber layer in the inner layer of the box improve the stability of the box body, buffer the impact force caused by the collision, and have a good shock absorption effect; the timer accurately records the time , real-time monitoring to ensure work efficiency; reagent tubes are placed horizontally in a drawer box with a cushion body, and are fixed by the blocking blocks at both ends and elastic bands, the storage effect is better, and the reagent tube is effectively avoided when it is placed vertically. In the case of sliding collision, the cooling device at the bottom effectively refrigerates the medicine bottle and the reagent tube to be operated, reducing the error in the results during the detection process; the top of the medicine bottle is fixed by the elastic card at the placement hole, and the fixing effect is better. , no offset will occur.

Description of drawings

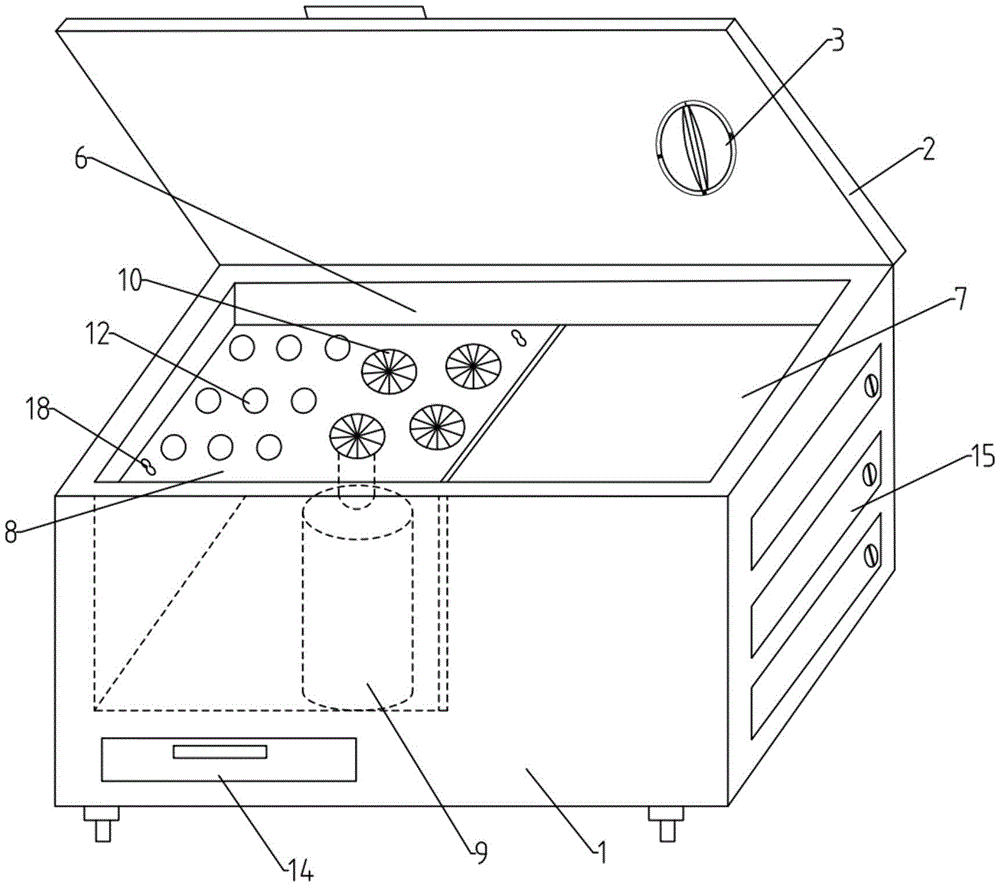

FIG. 1 is a schematic structural diagram of a tumor biopsies detection kit of the present invention.

FIG. 2 is a schematic structural diagram of an operation panel of a tumor biopsies detection kit of the present invention.

3 is a horizontal cross-sectional schematic diagram of a box body of a tumor biopsies detection kit of the present invention.

As shown in the picture: 1. Box body, 2. Box cover, 3. Timer, 4. Sponge layer, 5. Rubber layer, 6. Experimental cavity, 7. Storage cavity, 8. Operation panel, 9. Medicine bottle, 10. Placement hole, 11, reagent tube, 12, sample hole, 13, elastic card, 14, temperature control box, 15, drawer box, 16, blocking block, 17, elastic band, 18, pick-up hole.

Detailed ways

A tumor biopsy detection kit of the present invention will be further described in detail below with reference to the accompanying drawings.

With reference to the accompanying drawings, a tumor biopsy kit includes a box body 1, the top of the box body 1 is provided with an opening, a box cover 2 is hinged on the box body 1, and a timer 3 is arranged in the box cover 2, and the timer 3 is Mechanical hand-twisted timer, the range of one rotation of timer 3 is 30 minutes, the inner side of the box body 1 is provided with a sponge layer 4, and an anti-collision rubber layer 5 is arranged between the box body 1 and the sponge layer 4. The body 1 is divided into an experimental cavity 6 and a storage cavity 7 by a partition plate. The experimental cavity 6 is provided with a detachable operation panel 8, and the operation panel 8 is provided with a placement hole 10 for fixing the medicine bottle 9 and a sample for storing the reagent tube 11. Hole 12, the placement hole 10 is provided with elastic cards 13, the elastic cards 13 are evenly arranged along the circumferential direction of the placement hole 10, the operation panel 8 is provided with a pick-up hole 18 for the convenience of fingers, and the bottom of the experimental chamber 6 can be pulled out The temperature control box 14 is slidably connected with the box body 1. The temperature control box 14 is provided with a cooling device, and the cooling device is a refrigeration compression tablet. Drawer boxes 15 are evenly arranged on one side of the box body 1. The drawer boxes 15 Connected with the storage cavity 7, the drawer box 15 is provided with a lock, the drawer box 15 is provided with a crash pad, a plurality of reagent tubes 11 are placed horizontally on the crash pad, and a blocking block 16 is arranged between the adjacent reagent tubes 11, The drawer box 15 is provided with an elastic band 17, the elastic band 17 is arranged on both ends of the reagent tube 11, and the storage cavity 7 is provided with an ultraviolet lamp for sterilization.

When the utility model is specifically implemented, the sponge layer and the rubber layer in the inner layer of the box improve the stability of the box body, buffer the impact force caused by the collision, and have a good shock absorption effect; when in use, the box cover is opened, Expose the inside of the box body, open the lock on the drawer box, pull the drawer box out of the storage cavity, turn the elastic band, pick up the reagent tube from between the blocking blocks, and pass the dropper from the medicine bottle. The corresponding liquid is sucked for experimental detection. The reagent tubes are placed in the sample holes on the operation panel in turn. The temperature control box at the bottom controls the temperature in the experimental chamber. The pullable structure is convenient for later maintenance; When it is missing, remove the operation board through the pick-up hole on the operation board, and remove the medicine bottle from the placement hole. Fixed, when the medicine bottle is dragged downward or the medicine bottle is rotated horizontally, the rotation amount of the medicine bottle is small; the reagent tube is placed horizontally in the drawer box with the cushion body, and is fixed by the blocking blocks at both ends and the elastic band, The storage effect is better, effectively avoiding the sliding collision of the reagent tubes when they are placed vertically, and the cooling device at the bottom effectively refrigerates the reagent bottles and the reagent tubes that are operated, reducing the error in the results during the detection process; manual rotation The rotary switch on the timer sets the countdown, the timer accurately records the time, and monitors it in real time to ensure work efficiency.

The present invention and the embodiments thereof have been described above, and the description is not restrictive, and what is shown in the accompanying drawings is only one of the embodiments of the present invention, and the actual structure is not limited thereto. All in all, if those of ordinary skill in the art are inspired by it, without departing from the purpose of the present invention, and without creatively designing the structural modes and embodiments similar to the technical scheme, all should belong to the protection of the present invention. scope.

Claims (5)

1. A tumor biopsy kit comprises a kit body (1), and is characterized in that: the top of the box body (1) is provided with an opening, the box body (1) is hinged with a box cover (2), a timer (3) is arranged in the box cover (2), a sponge layer (4) is arranged on the inner side of the box body (1), an anti-collision rubber layer (5) is arranged between the box body (1) and the sponge layer (4), the box body (1) is divided into an experiment cavity (6) and a storage cavity (7) through a partition plate, a detachable operating plate (8) is arranged on the experiment cavity (6), a placing hole (10) for fixing a medicament bottle (9) and a sample hole (12) for storing a reagent tube (11) are arranged on the operating plate (8), an elastic card (13) is arranged on the placing hole (10), the elastic card (13) is uniformly arranged along the circumferential direction of the placing hole (10), and a temperature control box (14) can be drawn below the experiment cavity (6), control by temperature change box (14) and box body (1) sliding connection, be equipped with the heat sink in control by temperature change box (14), drawer box (15) have evenly been arranged to one side of box body (1), drawer box (15) and storage chamber (7) intercommunication, be equipped with the hasp on drawer box (15), be equipped with the crash pad in drawer box (15), a plurality of reagent pipes (11) have been placed to the level on the crash pad, be equipped with between adjacent reagent pipe (11) and block piece (16), be equipped with elastic band (17) in drawer box (15), elastic band (17) set up the both ends in reagent pipe (11).

2. The kit for in vivo tumor detection according to claim 1, wherein: the timer (3) is a mechanical hand-screw timer, and the range of one circle of rotation of the timer (3) is 30 minutes.

3. The kit for in vivo tumor detection according to claim 1, wherein: the operating plate (8) is provided with a pick-up hole (18) which is convenient for fingers to go deep.

4. The kit for in vivo tumor detection according to claim 1, wherein: the cooling device is a refrigeration compression sheet.

5. The kit for in vivo tumor detection according to claim 1, wherein: the storage cavity (7) is provided with an ultraviolet lamp for sterilization.
