CN211761310U - Platform is used in electronic components processing convenient to adjust - Google Patents

Abstract

The utility model discloses an electronic component processing platform which is easy to adjust, belonging to the technical field of electronic component processing. The installed workbench, a first connecting rod is connected between the first support rod and the first support rod, the lower end of the first support rod is sleeved with a second support rod, and one side of the first support rod is installed with a fastening rod bolts, a second connecting rod is connected between the second supporting rod and the second supporting rod, and an adjusting screw is installed between the first connecting rod and the second connecting rod. The utility model can adjust the height of the workbench by installing the adjusting screw, so that the staff can process the electronic components at a more comfortable height. The workbench can be cleaned, and when not in use, it can be put away, so as not to affect the normal processing of electronic components.

Description

An easy-to-adjust electronic component processing platform

technical field

The utility model relates to a processing platform, in particular to an electronic component processing platform which is easy to adjust, and belongs to the technical field of electronic component processing.

Background technique

In the process of processing and producing electronic components, a processing platform is required. At present, the height of most processing platforms on the market is fixed, so it is not user-friendly, and after the processing is completed, it is necessary to manually clean the dust left by the processing. Removal, manual removal is not only inefficient, but also wastes a lot of labor.

Utility model content

The main purpose of the utility model is to provide a platform for processing electronic components that is easy to adjust. By installing an adjusting screw, the height of the workbench can be adjusted, so that the staff can process electronic components at a more comfortable height. , By dismounting a cleaning mechanism above the worktable, not only the worktable can be cleaned, but also it can be stowed away when not in use, so as not to affect the normal processing of electronic components.

The purpose of the present utility model can be achieved by adopting the following technical solutions: a platform for processing electronic components that is easy to adjust, comprising a first support plate and a first support rod installed at the bottom of the first support plate and a A workbench installed on the surface of the support plate, a first connecting rod is connected between the first support rod and the first support rod, the lower end of the first support rod is sleeved with a second support rod, and one side of the first support rod is A second connecting rod is installed, a second connecting rod is connected between the second supporting rod and the second supporting rod, and an adjusting screw is installed between the first connecting rod and the second connecting rod, and the adjusting screw The top of the connecting rod is installed on one side of the first connecting rod, the lower end of the adjusting screw penetrates the second connecting rod, and a third support rod runs through the upper part of the first support rod, and the third support rod A second support plate is arranged above the third support rod, and a buckle adjustment component is connected between the third support rod and the second support plate, and the lower end of the third support rod penetrates the first support rod and is connected with a A fourth support rod is sleeved with a shock-absorbing spring on the outer side of the fourth support rod, a groove is formed on the first support rod, and the shock-absorbing spring is inserted in the groove.

Preferably, a vacuum cleaner is installed on the top of the second support plate, one end of the vacuum cleaner is connected with a suction port, and an electric telescopic rod is installed on the bottom side of the second support plate, and one end of the electric telescopic rod is connected to There is a mounting plate.

Preferably, a motor is mounted on the mounting plate, a scrubbing plate is connected to the output end of the motor, and bristles are provided on one side of the scrubbing plate.

Preferably, the buckle adjustment assembly includes a first connecting frame and an L-shaped push rod, the first connecting frame is fixedly welded on the bottom of the second support plate, and a rotating shaft is installed inside the first connecting frame, so The rotating shaft penetrates through the top end of the third support rod.

Preferably, a return spring is installed on the inner side of the third support rod, and the return spring is installed below the rotating shaft, one end of the return spring is connected to a limit rod, and the L-shaped push rod is welded to the On the limit rod, one end of the L-shaped push rod penetrates one side of the third support rod.

Preferably, a support frame is fixedly installed on the upper surface of the workbench, one side of the support frame is connected with an adjusting cylinder, an output end of the adjusting cylinder is connected with a second connecting frame, and the top end of the second connecting frame is connected A pulling rod is penetrated through the upper part, one end of the pulling rod is connected with a clamping spring, and one end of the clamping spring is welded with a clamping plate.

Preferably, a regulating handle is installed on the regulating screw, and an illuminating table lamp is arranged on one side of the working table.

Beneficial technical effects of the present utility model:

The utility model provides a platform for processing electronic components that is easy to adjust. By installing an adjusting screw, the height of the workbench can be adjusted, so that the staff can process the electronic components at a more comfortable height. A cleaning mechanism is detachably arranged above the table, which can not only clean the work table, but also stow it when not in use, so as not to affect the normal processing of electronic components.

Description of drawings

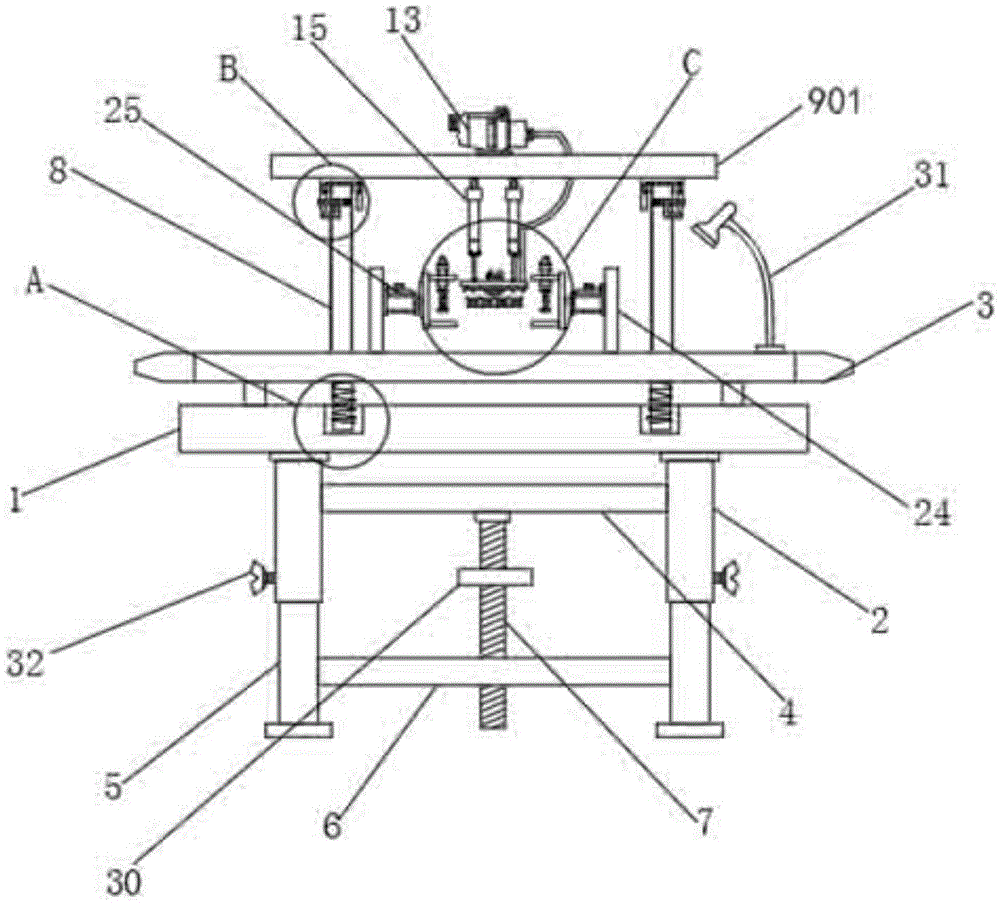

1 is a cross-sectional view of a preferred embodiment of a platform for processing electronic components that is easy to adjust according to the present invention;

2 is an enlarged schematic view of the structure at position A of a preferred embodiment of a platform for processing electronic components that is easy to adjust according to the present invention;

3 is an enlarged schematic view of the structure at position B of a preferred embodiment of a platform for processing electronic components that is easy to adjust according to the present invention;

4 is an enlarged schematic view of the structure at position C of a preferred embodiment of a platform for processing electronic components that is easy to adjust according to the present invention.

In the figure: 1, the first support plate; 2, the first support rod; 3, the workbench; 4, the first connecting rod; 5, the second support rod; 6, the second connecting rod; 7, the adjusting screw; 8, The third support rod; 901, the second support plate; 10, the fourth support rod; 11, the shock spring; 12, the groove; 13, the vacuum cleaner; 14, the suction port; 15, the electric telescopic rod; 16, the mounting plate ;17, motor; 18, washing plate; 19, first connecting frame; 20, L-shaped push rod; 21, shaft; 22, return spring; 23, limit rod; 24, support frame; 25, adjusting cylinder; 26 27. Pulling rod; 28. Clamping spring; 29. Clamping plate; 30. Control handle; 31. Lighting table lamp; 32. Fastening bolt.

Detailed ways

In order to make the technical solutions of the present invention more clear and clear to those skilled in the art, the present invention will be described in further detail below with reference to the embodiments and the accompanying drawings, but the embodiments of the present invention are not limited thereto.

As shown in Figures 1-4, an embodiment provided by the present invention: a platform for processing electronic components that is easy to adjust, comprising a first support plate 1 and a first support rod 2 installed at the bottom of the first support plate 1 and a platform located at the bottom of the first support plate 1. A workbench 3 mounted on the upper surface of the first support plate 1, a first connecting rod 4 is connected between the first support rod 2 and the first support rod 2, and a second support rod 5 is sleeved on the lower end of the first support rod 2 , and a second connecting rod 6 is installed on one side of the first support rod 2, a second connecting rod 6 is connected between the second support rod 5 and the second support rod 5, and the first connecting rod 4 and the second connecting rod An adjusting screw 7 is installed between 6, the top of the adjusting screw 7 is installed on one side of the first connecting rod 4, the lower end of the adjusting screw 7 penetrates the second connecting rod 6, and a third support penetrates above the first support rod 2 rod 8, a second support plate 901 is arranged above the third support rod 8, and a snap adjustment assembly is connected between the third support rod 8 and the second support plate 901, and the lower end of the third support rod 8 penetrates the first The support rod 2 is connected with a fourth support rod 10 , and the outer side of the fourth support rod 10 is sleeved with a shock-absorbing spring 11 , the first support rod 2 is provided with a groove 12 , and the shock-absorbing spring 11 is inserted in the groove 12 .

In this embodiment, a vacuum cleaner 13 is installed on the top of the second support plate 901 , one end of the vacuum cleaner 13 is connected with a suction port 14 , and an electric telescopic rod 15 is installed on the bottom side of the second support plate 901 . A mounting plate 16 is connected to one end.

In this embodiment, a motor 17 is installed on the mounting plate 16, and the output end of the motor 17 is connected with a scrubbing plate 18, and one side of the scrubbing plate 18 is provided with bristles.

In this embodiment: the buckle adjustment assembly includes a first connecting frame 19 and an L-shaped push rod 20, the first connecting frame 19 is fixedly welded to the bottom of the second support plate 901, and the inner side of the first connecting frame 19 is installed with a rotating shaft 21, The rotating shaft 21 penetrates the top end of the third support rod 8 .

In this embodiment: a return spring 22 is installed on the inner side of the third support rod 8, and the return spring 22 is installed under the rotating shaft 21, one end of the return spring 22 is connected to the limit rod 23, and the L-shaped push rod 20 is welded to the limit On the rod 23 , one end of the L-shaped push rod 20 penetrates one side of the third support rod 8 .

In this embodiment, a support frame 24 is fixedly installed on the upper surface of the worktable 3 , an adjusting cylinder 25 is connected to one side of the support frame 24 , and a second connecting frame 26 is connected to the output end of the adjusting cylinder 25 , and the second connecting frame 26 There is a pull rod 27 running through the top of the pull rod 27 , one end of the pull rod 27 is connected with a clamping spring 28 , and one end of the clamping spring 28 is welded with a clamping plate 29 .

In this embodiment, a control handle 30 is installed on the adjustment screw 7 , and a lighting table lamp 31 is installed on one side of the worktable 3 .

As shown in FIGS. 1-4 , the working process of a platform for processing electronic components that is easy to adjust provided by this embodiment is as follows: manually rotate the control handle 30 to drive the adjustment screw 7 to rotate, so that the adjustment screw 7 is in the first position. The two connecting rods 6 move up and down, thereby driving the first connecting rod 4 to move up and down, connecting the first supporting rod 2 through the second connecting rod 6, and the first supporting rod 2 is sleeved in the second supporting rod 5, Thereby, the second connecting rod 6 is driven to move up and down, and after adjusting to a suitable height, the first support rod 2 is fixed by the tightening bolts 32, thereby fixing the height of the workbench 3, and then the electronic components are placed inside the second connecting frame 26. , the clamping plate 29 is pulled up by pulling up the pulling rod 27, and then the electronic components are placed under the clamping plate 29, and then the pulling rod 27 is released, and the clamping spring 28 and the clamping plate 29 are used. The electronic components are clamped, and then the electronic components are processed. After the processing is completed, the second support plate 901 is first installed above the worktable 3, and the limit rod 23 is pushed inward through the L-shaped push rod 20, and then the first support plate 901 is installed. The three support rods 8 are rotated to the vertical position of the second support plate 901, and then the L-shaped push rod 20 is released. Under the elastic action of the return spring 22, the limit rod 23 moves to the outside, and the limit rod 23 passes through the first connecting frame. 19 side, so as to fix the third support rod 8 vertically, and then insert the fourth support rod 10 connected with the lower end of the third support rod 8 through the workbench 3 to the inside of the groove 12, so as to connect the second support rod The plate 901 is fixedly installed above the workbench 3, and then the electric telescopic rod 15 is activated to move the scrubbing plate 18 to contact the upper surface of the workbench 3, and then the vacuum cleaner 13 is started to work, and the workbench 3 is moved through the pipe and the dust suction port 14. The dust generated is collected and cleaned, and then the motor 17 is restarted to work, and the motor 17 is rotated to drive the scrubbing plate 18 to rotate, and the surface of the worktable 3 is cleaned by the brush on the surface of the scrubbing plate 18. When the workbench 3 is cleaned, it is only necessary to pull out the shock-absorbing spring 11 from the groove 12, and then pull out the limit rod 23 from the first connecting frame 19 through the L-shaped push rod 20, and finally pull out the third support rod 8 The rotation is parallel to the second support plate 901, so that the cleaning mechanism can be easily stowed away.

The above are only further embodiments of the present utility model, but the protection scope of the present utility model is not limited thereto. Equivalent replacement or modification of the technical solutions and their concepts all belong to the protection scope of the present invention.

Claims (7)

1. A platform for processing electronic components that is easy to adjust, characterized in that it comprises a first support plate (1), a first support rod (2) installed at the bottom of the first support plate (1), and a first support rod (2) located at the bottom of the first support plate (1). A workbench (3) mounted on the upper surface of the first support plate (1), a first connecting rod (4) is connected between the first support rod (2) and the first support rod (2), and the first support rod (2) ) is sleeved with a second support rod (5), and a fastening bolt (32) is installed on one side of the first support rod (2), the second support rod (5) and the second support rod (5) A second connecting rod (6) is connected therebetween, and an adjusting screw (7) is installed between the first connecting rod (4) and the second connecting rod (6). The top is mounted on one side of the first connecting rod (4), the lower end of the adjusting screw (7) penetrates the second connecting rod (6), and a third connecting rod (6) penetrates above the table (3). A support rod (8), a second support plate (901) is provided above the third support rod (8), and the third support rod (8) and the second support plate (901) are connected There is a snap adjustment assembly, the lower end of the third support rod (8) is connected with a fourth support rod (10) through the worktable (3), and the outer side of the fourth support rod (10) is sleeved There is a shock-absorbing spring (11), a groove (12) is formed on the first support rod (2), and the third support rod (8) is inserted into the groove (12). 2 . The easy-to-adjust electronic component processing platform according to claim 1 , wherein a vacuum cleaner ( 13 ) is installed on the top of the second support plate ( 901 ), and the vacuum cleaner ( 13 ) has a One end of the pipe is connected with a dust suction port (14), an electric telescopic rod (15) is installed on the bottom side of the second support plate (901), and one end of the electric telescopic rod (15) is connected with a mounting plate (16). 3. The easy-to-adjust electronic component processing platform according to claim 2, wherein a motor (17) is mounted on the mounting plate (16), and an output end of the motor (17) is mounted on the mounting plate (16). A scrubbing plate (18) is connected, and one side of the scrubbing plate (18) is provided with bristles. 4. The easily adjustable electronic component processing platform according to claim 1, characterized in that: the buckle adjustment assembly comprises a first connecting frame (19) and an L-shaped push rod (20), the The first connecting frame (19) is fixedly welded on the bottom of the second support plate (901), and a rotating shaft (21) is installed inside the first connecting frame (19), and the rotating shaft (21) penetrates the third The top of the support rod (8). 5. A kind of easy-to-adjust electronic component processing platform according to claim 4, characterized in that: a return spring (22) is installed on the inner side of the third support rod (8), and the return spring ( 22) Installed below the rotating shaft (21), one end of the return spring (22) is connected to a limit rod (23), and the L-shaped push rod (20) is welded on the limit rod (23) One end of the L-shaped push rod (20) penetrates one side of the third support rod (8). 6. The easily adjustable electronic component processing platform according to claim 1, characterized in that: a support frame (24) is fixedly installed on the upper surface of the workbench (3), and the support frame (24) ) is connected with an adjusting cylinder (25), the output end of the adjusting cylinder (25) is connected with a second connecting frame (26), and the top end of the second connecting frame (26) is pierced with a pulling rod (27). ), one end of the pulling rod (27) is connected with a clamping spring (28), and one end of the clamping spring (28) is welded with a clamping plate (29). 7. An electronic component processing platform that is easy to adjust according to claim 1, characterized in that: a control handle (30) is installed on the adjustment screw (7), and a control handle (30) is installed on the adjustment screw (7). An illuminating table lamp (31) is arranged on the side.
