Blanking die of automobile air outlet inner cone
Technical Field
The utility model belongs to the technical field of the mould, especially, relate to a blanking mould of interior awl is given vent to anger to car.
Background
Figure 1 is the car and gives vent to anger the interior schematic structure diagram of awl, and the first process of the stamping process of the car give vent to anger the interior awl utilizes the blanking mould to carry out the blanking promptly, obtains as the finished product blanking shown in figure 2, in addition for improving machining efficiency, adopts continuous blanking and the processing method of two finished product blanking of compound die output, in order to guarantee machining precision, still need carry out the accurate direction to the blank. Based on the above reason, the utility model discloses a blanking mould of interior awl is given vent to anger to car has realized that the car is given vent to anger the blanking operation of the high efficiency and the high accuracy of interior awl stamping process.
Disclosure of Invention
The purpose of the invention is as follows: in order to overcome the not enough of existence among the prior art, the utility model provides a pair of car is given vent to anger blanking mould of interior awl has realized that the car is given vent to anger the blanking operation of high efficiency and high accuracy of interior awl stamping process.
The technical scheme is as follows: in order to achieve the purpose, the blanking die of the automobile air outlet inner cone comprises an upper die structure, a lower die structure and a guide unit, wherein the upper die structure and the lower die structure are arranged oppositely from top to bottom, and the upper die structure is guided by the guide unit to move vertically to open and close the die with the lower die structure; the upper die structure comprises an upper die plate, an upper backing plate and a male die which are relatively fixed from top to bottom, the lower die structure comprises a lower die plate, a lower backing plate and a female die which are relatively fixed from bottom to top, and the male die moves downwards to be matched with the female die to cut blanks on the female die to realize blanking;
the lower die structure also comprises a feeding guide unit and a feeding limiting unit; the feeding guide unit is positioned at the input end of the blank and used for guiding the blank to feed along the feeding processing direction; the feeding limiting units are positioned on two sides of the material blanks and used for limiting the material blanks and preventing the material blanks from being fed obliquely.
Furthermore, the upper die structure also comprises a pressure plate, an upper rectangular spring and an upper discharging screw; the material pressing plate is of a horizontal hollow frame structure and is arranged around the male die in a surrounding manner; the material pressing plate is movably connected below the upper backing plate through an upper rectangular spring and an upper discharging screw, the upper rectangular spring is elastically connected between the upper template and the material pressing plate, and the upper discharging screw vertically slides and penetrates through the upper template to be fixedly connected with the material pressing plate; the material pressing plate can vertically move relative to the upper die plate, and the vertical downward movement of the material pressing plate is limited by the upper discharging screw; the upper die structure further comprises a discharging guide pillar and a discharging guide sleeve, the discharging guide pillar is vertically and fixedly arranged at the bottom of the upper die plate, the discharging guide sleeve is vertically embedded in the pressure plate, and the discharging guide sleeve vertically slides to penetrate through the discharging guide sleeve.
Furthermore, the upper die structure also comprises a waste material cutter positioned at the output end of the material blank, and the waste material cutter is fixedly arranged on the side surface of the upper backing plate; the lower die structure further comprises a waste sliding block located at the output end of the material blank, the waste sliding block is fixedly arranged on the lower die plate, and the top surface of the waste sliding block is a lower inclined surface.
Furthermore, the two feeding guide units are symmetrically arranged on two sides of the input end of the material blank; the guide unit comprises a cushion block, a material guide plate, a guide block and a guide block pressing plate; the material guide plate is horizontally arranged on the lower template through a cushion block and used for supporting a material blank; the guide blocks are arranged on the material guide plate through guide block pressing plates, and a guide channel for guiding the material blanks is formed between the two guide blocks.
Further, the feeding limiting unit comprises a buoyancy lifting guide pin which is elastically supported by a first lower rectangular spring and vertically slides to penetrate through the female die, the side edge of a material blank extends into an annular groove of the buoyancy lifting guide pin to achieve guiding limiting, and the vertical sliding penetrates through the female die and is provided with a material ejecting pin which is elastically supported by a second lower rectangular spring.
Furthermore, a notch female die insert is arranged on the lower base plate, a notch punch is arranged on the upper base plate, and the notch punch corresponds to the notch female die insert up and down.
Furthermore, the guide unit comprises a guide pillar arranged on the lower template and a guide sleeve embedded in the upper template, and the guide pillar concentrically slides and penetrates through the guide sleeve to realize the die opening and closing guide.
Furthermore, an upper limiting column is arranged on the upper template, a lower limiting column is arranged on the lower template, and the upper limiting column moves downwards to abut against the lower limiting column to limit the die closing stroke.
Furthermore, the upper template is connected with an upper template leg and an upper bottom plate, and the lower template is connected with a lower template leg and a lower bottom plate.
Has the advantages that: the utility model discloses a blanking mould of interior awl of car is given vent to anger, beneficial effect as follows:
1) the utility model realizes the high-efficiency and high-precision blanking operation of the automobile air outlet inner cone stamping process, quickly processes qualified products and improves the product percent of pass;
2) the blanking die of the utility model can realize continuous discharging, and two finished product blanking blanks are cut out in a qualified mode in sequence, so that the processing efficiency is greatly improved;
3) the utility model discloses it is high to the feeding direction accuracy of material article, effectively guaranteed blanking machining precision.
Drawings
FIG. 1 is a schematic structural diagram of an automobile air outlet cone;
FIG. 2 is a schematic view of a continuous blank blanking;

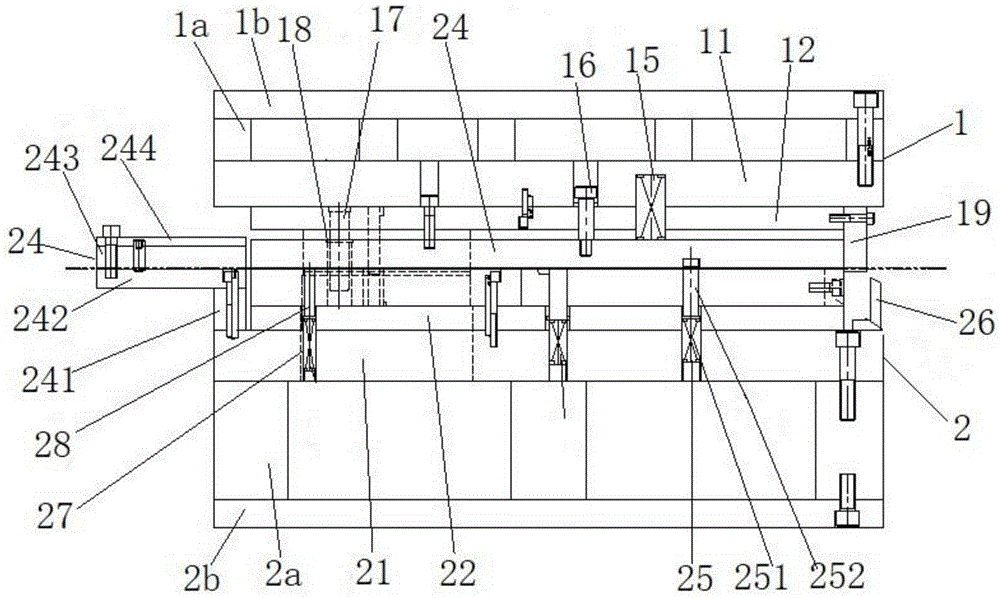

FIG. 3 is a front view of the blanking die;
FIG. 4 is a top view of the lower die structure;
FIG. 5 is a top view of the upper die structure;
FIG. 6 is a schematic structural view of a guide unit;
fig. 7 is a schematic structural view of the upper and lower restraint posts.
Detailed Description
The present invention will be further described with reference to the accompanying drawings.
As shown in fig. 3 to 5, the blanking die for the inner vent cone of the automobile comprises an upper die structure 1, a lower die structure 2 and a guide unit 3, wherein the upper die structure 1 and the lower die structure 2 are arranged in an up-down opposite manner, and the upper die structure 1 is guided by the guide unit 3 to move vertically to open and close the die with the lower die structure 2; the upper die structure 1 comprises an upper die plate 11, an upper backing plate 12 and a male die 13 which are relatively fixed from top to bottom, the lower die structure 2 comprises a lower die plate 21, a lower backing plate 22 and a female die 23 which are relatively fixed from bottom to top, and the male die 13 moves downwards to be matched with the female die 23 to cut blanks on the female die 23 to realize blanking; the lower die structure 2 further comprises a feeding guide unit 24 and a feeding limiting unit 25; the feeding guide unit 24 is positioned at the blank input end and used for guiding the blanks to feed in the feeding processing direction; the feeding limiting units 25 are positioned at two sides of the blanks and used for limiting the blanks and preventing the blanks from being fed obliquely. The utility model discloses a blanking operation of the interior awl stamping process's of car giving vent to anger high efficiency and high accuracy processes out qualified product fast, improves the product percent of pass.
The upper die structure 1 further comprises a material pressing plate 14, an upper rectangular spring 15 and an upper discharging screw 16; the material pressing plate 14 is of a horizontal hollow frame structure and is arranged around the male die 13 in a surrounding manner; the material pressing plate 14 is movably connected below the upper backing plate 12 through an upper rectangular spring 15 and an upper discharging screw 16, the upper rectangular spring 15 is elastically connected between the upper template 11 and the material pressing plate 14, and the upper discharging screw 16 vertically slides and penetrates through the upper template 11 to be fixedly connected with the material pressing plate 14; the pressure plate 14 can vertically move relative to the upper template 11, and the vertical downward movement of the pressure plate 14 is limited by the upper discharging screw 16; the upper die structure 1 further comprises a discharging guide pillar 17 and a discharging guide sleeve 18, the discharging guide pillar 17 is vertically and fixedly arranged at the bottom of the upper die plate 11, the discharging guide sleeve 18 is vertically embedded in the pressure plate 14, the discharging guide sleeve 18 vertically slides and passes through the discharging guide sleeve 18, the discharging guide pillar 17 also plays a guiding role, the discharging guide pillar can share the transverse dragging force of the discharging screw 16, and the discharging screw 16 is prevented from being broken.
The upper die structure 1 further comprises a waste material cutter 19 positioned at the output end of the material blank, and the waste material cutter 19 is fixedly arranged on the side surface of the upper backing plate 12; the lower die structure 2 further comprises a scrap sliding block 26 positioned at the material blank output end, the scrap sliding block 26 is fixedly arranged on the lower die plate 21, and the top surface of the scrap sliding block 26 is a lower inclined surface. In the process of die assembly, the waste material can be cut off, and the waste material falls onto the waste material slide block 26 and slides down.
The two feeding guide units 24 are symmetrically arranged on two sides of the input end of the material blank; the guide unit 24 comprises a cushion block 241, a material guide plate 242, a guide block 243 and a guide block pressing plate 244; the material guide plate 242 is horizontally arranged on the lower template 21 through a cushion block 241 and is used for supporting material blanks; the guide blocks 243 are arranged on the material guide plate 242 through the guide block pressing plate 244, and a guide channel for guiding the material blank is formed between the two guide blocks 243, so that the precise feeding and guiding of the material blank are realized, the processing precision is ensured, and the product percent of pass is improved.
The feeding limiting unit 25 comprises a buoyancy lifting material guide pin 252 which is elastically supported by a first lower rectangular spring 251 and vertically slides to penetrate through the female die 23, the side edge of a material blank extends into an annular groove of the buoyancy lifting material guide pin 252 to realize guiding limiting, the vertical sliding penetrates through the female die 23 and is provided with an ejecting pin 28 which is elastically supported by a second lower rectangular spring 27, and the ejecting pin 28 is used for ejecting the material blank.
The lower backing plate 22 is provided with a notch female die insert 29, the upper backing plate 12 is provided with a notch punch 1.1, the notch punch 1.1 corresponds to the notch female die insert 29 up and down, and the notch punch 1.1 penetrating through the blank can limit the blank in the die assembly and blanking process through the notch punch 1.1 and the notch female die insert 29, so that the blank is prevented from deviating, and the processing precision is improved.
The guide unit 3 comprises a guide post 31 arranged on the lower template 21 and a guide sleeve 32 embedded in the upper template 11, and the guide post 31 concentrically slides and penetrates through the guide sleeve 32 to realize die opening and closing guide.
As shown in fig. 6, an upper limiting column 1.2 is arranged on the upper template 11, a lower limiting column 1.3 is arranged on the lower template 21, and the upper limiting column 1.2 moves downwards to abut against the lower limiting column 1.3 to realize limiting of a mold closing stroke.
As shown in fig. 7, the upper mold plate 11 is connected with an upper mold leg 1a and an upper bottom plate 1b, and the lower mold plate 21 is connected with a lower mold leg 2a and a lower bottom plate 2 b.
The utility model discloses still have following advantage:
4) the utility model realizes the high-efficiency and high-precision blanking operation of the automobile air outlet inner cone stamping process, quickly processes qualified products and improves the product percent of pass;
5) the blanking die of the utility model can realize continuous discharging, and two finished product blanking blanks are cut out in a qualified mode in sequence, so that the processing efficiency is greatly improved;
6) the utility model discloses it is high to the feeding direction accuracy of material article, effectively guaranteed blanking machining precision.
The above description is only a preferred embodiment of the present invention, and it should be noted that: for those skilled in the art, without departing from the principle of the present invention, several improvements and modifications can be made, and these improvements and modifications should also be considered as the protection scope of the present invention.
