Abstract

The utility model relates to a cleaning and drying device for anesthesiology instruments, comprising a cabinet body, a battery board is arranged at the bottom of the cabinet body, a charging socket is arranged on the front surface of the battery board, and an instrument cleaning box is arranged above the battery board, A brush shaft is arranged inside the instrument cleaning box, and a waterproof bearing seat is rotatably connected on both sides of the brush shaft. The waterproof bearing seat is fixedly connected with the inner wall of the instrument cleaning box, and one side of the brush shaft penetrates the instrument cleaning box. A pulley is fixedly connected, a servo motor is arranged below the pulley, and the servo motor and the pulley are rotatably connected with the pulley through a synchronous belt, a disinfectant distribution plate is arranged above the instrument cleaning box, and a mounting plate is arranged above the disinfectant distribution plate , a partition plate is arranged above the mounting plate, a drying box is arranged above the partition plate, and a device placement plate is arranged above the drying box. The utility model has novel structure, reasonable design, improved cleaning effect, and drying Efficiency has increased.

Description

A cleaning and drying device for anesthesiology instruments

technical field

The utility model relates to a cleaning and drying device for anesthesia instruments, which belongs to the technical field of medical instruments.

Background technique

Anesthesiology is a comprehensive discipline, which contains multidisciplinary knowledge and has a wide range. It not only meets the requirements of surgery, but also participates in the rescue work of various departments, painless delivery in gynecology, painless abortion and so on.

After anesthesia, in order to prevent cross-infection, medical staff need to clean, dry and disinfect the anesthesia equipment. Under the existing conditions, the methods of soaking and then brushing and high-temperature disinfection are often used, which often consumes a lot of time and reduces work efficiency. increased labor.

Utility model content

The technical problem to be solved by the utility model overcomes the existing defects, and provides a cleaning and drying device for anesthesiology instruments, the cleaning and disinfection effect is improved, the drying efficiency is improved, and the problems in the background technology can be effectively solved.

In order to solve the above-mentioned technical problems, the utility model provides the following technical solutions:

An anesthesiology instrument cleaning and drying device, comprising a cabinet body, a battery board is arranged at the bottom of the cabinet body, a charging socket is arranged on the front surface of the battery plate, an instrument cleaning box is arranged above the battery plate, and the instrument cleaning A brush shaft is arranged inside the box, and a waterproof bearing seat is rotatably connected on both sides of the brush shaft. The waterproof bearing seat is fixedly connected with the inner wall of the instrument cleaning box. One side of the brush shaft penetrates the instrument cleaning box and is fixedly connected with a pulley. , a servo motor is arranged below the pulley, the servo motor and the pulley are rotatably connected by a synchronous belt, a disinfectant distribution plate is arranged above the instrument cleaning box, and a mounting plate is arranged above the disinfectant distribution plate. A partition plate is arranged above the plate, a drying box is arranged above the partition plate, and a device placement plate is arranged above the drying box.

As a preferred technical solution of the present invention, a liquid spray head is arranged below the disinfectant distribution plate, a slider is fixedly connected on both sides of the device placement plate, and a slide rail is arranged on one side of the slider, and the The slide rail is slidably connected with the slider, and the slide rail is fixedly connected with the inner wall of the cabinet.

As a preferred technical solution of the present invention, there are universal wheels with brakes under the cabinet, the number of the universal wheels is four, and the universal wheels are distributed at the four corners of the bottom of the cabinet.

As a preferred technical solution of the present invention, a cross-flow fan is arranged inside the drying box, an electric heating wire is arranged on one side of the cross-flow fan, and an ozone generator is arranged on one side of the electric heating wire.

As a preferred technical solution of the present invention, one side of the cabinet is provided with a hinge, the hinge is rotatably connected with a cabinet door, the cabinet door is provided with an observation frame, and a control panel is arranged between the observation frames. panel.

As a preferred technical solution of the present invention, a disinfectant tank is arranged on one side of the cabinet, a water pump is arranged above the disinfectant tank, and a liquid supply pipe is arranged above the water pump, and the liquid supply pipe is connected to the disinfection solution. The liquid distribution plate is connected, the bottom of the instrument cleaning box is provided with a drain pipe, the drain pipe extends through the cabinet body to the outside of the cabinet body, and a waste liquid recovery box is provided on one side of the end of the drain pipe.

Beneficial effects of the utility model:

1. The utility model makes the cabinet easy to move by arranging a universal wheel with a brake, and when the brake is not needed to move, the cabinet is stopped at a designated place, and displacement is not easy to occur. The cleaning effect is improved. By setting the disinfectant distribution plate and the liquid nozzle to spray the disinfectant evenly, the instruments can be cleaned and disinfected in all directions. By setting the waterproof bearing seat, the friction of the brush shaft during rotation is reduced, which reduces the Wear degree, prolong the service life of the brush shaft.

2. The utility model makes the device placement board easy to take and place by setting the sliding rail and the slider, saving time and effort, and improving the work efficiency. The equipment on the board is quickly dried to improve the drying efficiency. The ozone generator can be set to sterilize the drying equipment in an all-round way, so as to avoid the cross infection of patients with residual bacteria and viruses after cleaning. The observation frame is set to facilitate medical care. Personnel observe the inside of the cabinet.

Description of drawings

The accompanying drawings are used to provide a further understanding of the present invention, and constitute a part of the specification, and are used to explain the present invention together with the embodiments of the present invention, and do not constitute a limitation to the present invention.

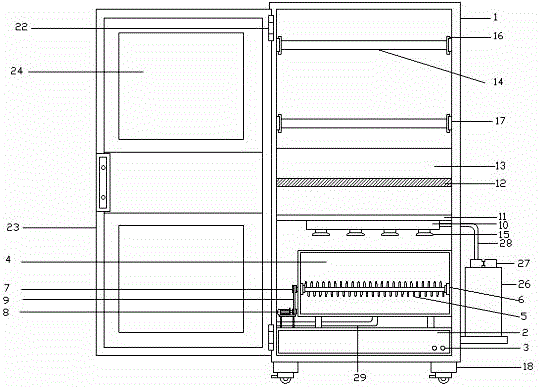

Figure 1 is a front view of the present invention.

Fig. 2 is the internal structure diagram of the drying box of the present invention.

FIG. 3 is a schematic diagram of the instrument placement plate of the present invention.

FIG. 4 is a schematic diagram of the closing of the cabinet door of the present invention.

Labels in the figure: 1. Cabinet body; 2. Battery board; 3. Charging socket; 4. Instrument cleaning box; 5. Brush shaft; 6. Waterproof bearing seat; 7. Pulley; 8. Servo motor; 9. Timing belt ; 10. Disinfectant distribution plate; 11. Installation plate; 12. Partition plate; 13. Drying box; 14. Instrument placement plate; 15. Liquid nozzle; 16. Slider; Wheel; 19, cross-flow fan; 20, electric heating wire; 21, ozone generator; 22, hinge; 23, cabinet door; 24, observation frame; 25, control panel; 26, disinfectant tank; 27, water pump; 28 , liquid supply pipe; 29, drain pipe; 30, waste liquid recovery box.

Detailed ways

The preferred embodiments of the present utility model will be described below with reference to the accompanying drawings. It should be understood that the preferred embodiments described herein are only used to illustrate and explain the present utility model, but not to limit the present utility model.

As shown in Figures 1 to 4, a cleaning and drying device for anesthesiology equipment includes a cabinet 1, a battery board 2 is provided at the bottom of the cabinet 1, a charging socket 3 is provided on the front surface of the battery board 2, and a battery board 2 is provided above the battery board 2. There is an instrument cleaning box 4, a brush shaft 5 is arranged inside the instrument cleaning box 4, and a waterproof bearing seat 6 is rotatably connected on both sides of the brush shaft 5, and the waterproof bearing seat 6 is fixedly connected with the inner wall of the instrument cleaning box 4. The side penetrating instrument cleaning box 4 is fixedly connected with a pulley 7, a servo motor 8 is arranged below the belt pulley 7, the servo motor 8 and the belt pulley 7 are rotatably connected by a synchronous belt 9, and a disinfection liquid distribution plate 10 is arranged above the instrument cleaning box 4, and the disinfection liquid is divided. A mounting plate 11 is arranged above the plate 10, a partition 12 is arranged above the mounting plate 11, a drying box 13 is arranged above the partition 12, and a device placing plate 14 is arranged above the drying box 13. The water pump 27 , the cross-flow fan 19 , the electric heating wire 20 , and the ozone generator 21 are all in the prior art, so other prior art is not described here.

As shown in FIG. 1 , a liquid spray head 15 is provided below the disinfectant distribution plate 10 of this embodiment, a slider 16 is fixedly connected on both sides of the instrument placement plate 14 , and a slide rail 17 is provided on one side of the slider 16 , and the slide rail 17 The slide rail 17 is slidably connected with the sliding block 16 , and the sliding rail 17 is fixedly connected with the inner wall of the cabinet body 1 .

As shown in FIG. 1 and FIG. 4 , there are universal wheels 18 with brakes under the cabinet body 1 of this embodiment, the number of universal wheels 18 is four, and the universal wheels 18 are distributed at the four corners of the bottom of the cabinet body 1 . By setting the universal wheel 18 with brake, the cabinet 1 is easy to move. When the brake is not needed to move, the cabinet 1 is stopped at the designated place, and the displacement is not easy to occur. There is a disinfectant tank 26 on one side of the cabinet 1. A water pump 27 is arranged above the liquid tank 26, a liquid supply pipe 28 is arranged above the water pump 27, and the liquid supply pipe 28 is connected to the disinfectant distribution plate 10. The bottom of the instrument cleaning box 4 is provided with a drain pipe 29, and the drain pipe 29 runs through the cabinet. 1 extends to the outside of the cabinet 1, and a waste liquid recovery box 30 is provided on one side of the end of the drain pipe 29.

As shown in FIG. 2 , a cross-flow fan 19 is arranged inside the drying box 13 of this embodiment, an electric heating wire 20 is arranged on one side of the cross-flow fan 19 , and an ozone generator 21 is arranged on one side of the electric heating wire 20 . The wire 20 and the cross-flow fan 19 are convenient for blowing hot air into the cabinet 1 to quickly dry the instruments on the instrument placement plate 14 and improve the drying efficiency. By setting the ozone generator 21, the drying instruments can be fully Disinfection to avoid cross-infection of patients with residual bacteria and viruses after cleaning.

As shown in FIG. 4 , a hinge 22 is provided on one side of the cabinet body 1 in this embodiment, the hinge 22 is rotatably connected with a cabinet door 23 , the cabinet door 23 is provided with an observation frame 24 , and a control panel 25 is provided below the observation frame 24 . By setting the observation frame 24 , it is convenient for medical staff to observe the internal situation of the cabinet 1 .

In order to facilitate the understanding of the above technical solutions of the present invention, the working principle or operation mode of the present invention in the actual process will be described in detail below.

The working principle of the utility model: the utility model makes the cabinet 1 easy to move by setting the universal wheel 18 with brake, and when the brake is not needed to move, the cabinet 1 is stopped at the designated place, and the displacement is not easy to occur. The shaft 5 is convenient for cleaning the instruments, and the cleaning effect is improved. By setting the disinfectant distribution plate 10 and the liquid nozzle 15 to spray the disinfectant evenly, the instruments can be cleaned and disinfected in all directions. When rotating, the friction force is reduced, the wear degree of the brush shaft 5 is reduced, and the service life of the brush shaft 5 is prolonged. Working efficiency, by setting the electric heating wire 20 and the cross-flow fan 19, it is convenient to blow hot air into the cabinet 1 to quickly dry the equipment on the equipment placing plate 14, thereby improving the drying efficiency. All-round disinfection of the drying equipment is performed to avoid cross-infection of patients with residual bacteria and viruses after cleaning, and the observation frame 24 is provided to facilitate medical staff to observe the interior of the cabinet 1 .

Claims (6)

1. An anesthesiology instrument cleaning and drying device, comprising a cabinet (1), characterized in that: a battery plate (2) is provided at the bottom of the cabinet (1), and a front surface of the battery plate (2) is provided with a battery plate (2). A charging socket (3), an instrument cleaning box (4) is arranged above the battery board (2), and a brush shaft (5) is arranged inside the instrument cleaning box (4). A waterproof bearing seat (6) is rotatably connected to the side, the waterproof bearing seat (6) is fixedly connected with the inner wall of the instrument cleaning box (4), and one side of the brush shaft (5) is fixedly connected with the instrument cleaning box (4). A pulley (7), a servo motor (8) is arranged below the pulley (7), the servo motor (8) and the pulley (7) are rotatably connected with the pulley (7) through a synchronous belt (9), above the instrument cleaning box (4) A sanitizer distribution plate (10) is provided, a mounting plate (11) is arranged above the disinfectant distribution plate (10), a partition (12) is arranged above the installation plate (11), and the partition (12) A drying box (13) is arranged above the drying box (13), and a device placing plate (14) is arranged above the drying box (13). 2. A device for cleaning and drying anesthesiology instruments according to claim 1, characterized in that: a liquid spray head (15) is arranged below the disinfectant distribution plate (10), and the instrument placement plate (14) is provided with a liquid nozzle (15). Both sides are fixedly connected with a slider (16), one side of the slider (16) is provided with a slide rail (17), the slide rail (17) is slidably connected with the slider (16), and the slide rail (17) ) is fixedly connected to the inner wall of the cabinet (1). 3. An anesthesiology instrument cleaning and drying device according to claim 1, characterized in that: a universal wheel (18) with a brake is provided under the cabinet (1), and the universal wheel (18) ) is four, and the universal wheels (18) are distributed at the four corners of the bottom of the cabinet (1). 4. A device for cleaning and drying anesthesiology instruments according to claim 1, characterized in that: a cross-flow fan (19) is provided inside the drying box (13), and a side of the cross-flow fan (19) is provided with a cross-flow fan (19). There is an electric heating wire (20), and an ozone generator (21) is provided on one side of the electric heating wire (20). 5. A cleaning and drying device for anesthesiology instruments according to claim 1, characterized in that a hinge (22) is provided on one side of the cabinet body (1), and the hinge (22) is rotatably connected with a hinge (22). A cabinet door (23) is provided with an observation frame (24), and a control panel (25) is provided between the observation frames (24). 6. An anesthesiology instrument cleaning and drying device according to claim 1, characterized in that: a disinfectant tank (26) is provided on one side of the cabinet body (1), above the disinfectant tank (26) A water pump (27) is provided, a liquid supply pipe (28) is arranged above the water pump (27), and the liquid supply pipe (28) is connected with the disinfectant distribution plate (10). A drain pipe (29) is provided, the drain pipe (29) extends through the cabinet (1) to the outside of the cabinet (1), and a waste liquid recovery box ( 30).
