CN211748402U - A high-level heavy-duty storage shelf - Google Patents

Abstract

The utility model discloses a high-level heavy-duty storage rack, which comprises C-shaped pillars, four C-shaped pillars are arranged in an array, mounting plates are arranged on the lower surfaces of the C-shaped pillars, and second mounting plates are arranged in an array on the upper surface of the mounting plate. To install the studs, the front and rear surfaces of the C-type pillars are arranged with card slots in an upper and lower array, and the left and right side surfaces of the C-type pillars are arranged with mounting screw holes in an upper and lower array. Steel and C-shaped channel steel are equipped with L-shaped positioning plates on the left and right sides. This high-level heavy-duty storage shelf has a firm structure, stable and durable structure. The L-shaped hooks on the L-shaped positioning plate are clamped inside the slot for easy installation and It can be disassembled, easy to transport, and has high load-bearing capacity. Multiple shelves can be assembled according to requirements, and after the goods are placed, the identification plate is easy to find, which improves work efficiency and brings convenience to use.

Description

A high-level heavy-duty storage shelf

technical field

The utility model relates to the technical field of storage racks, in particular to a high-level heavy storage rack.

Background technique

Shelves are an important tool for improving the efficiency of modern warehouses. With the rapid development of the economy, a large number of foreign-funded enterprises have poured into the Yangtze River Delta and the Pearl River Delta in my country, which not only drives the development of the local economy, but also brings new management concepts and management techniques. High-level heavy-duty storage shelves are one of various types of shelves. General high-level heavy-duty storage shelves are welded and have a large overall frame, which invisibly increases production costs, and has low load-bearing performance and low stability. Moreover, the disassembly of the shelves is very inconvenient, and the shelves cannot be assembled according to the needs, and it is inconvenient to find the goods after they are placed on the shelves, which greatly reduces the work efficiency.

Utility model content

The technical problem to be solved by the utility model is to overcome the existing defects and provide a high-level heavy-duty storage rack, which has a firm structure, is stable and durable, is convenient for installation and disassembly, is convenient for transportation, has high load-bearing capacity, and can assemble multiple racks according to requirements. , and it is easy to find after the goods are put on, which improves the work efficiency, brings convenience to the use, and can effectively solve the problems in the background technology.

In order to achieve the above purpose, the present utility model provides the following technical solutions: a high-level heavy-duty storage rack, including a C-type pillar, the C-type pillar array is distributed with four, the lower surface of the C-type pillar is provided with a mounting plate, the mounting plate There are second installation studs in an array on the upper surface of the C-type pillar. The front and rear surfaces of the C-type pillars are distributed with card slots in an upper and lower array. The middle of the pillar is provided with a C-shaped channel steel, and the left and right side surfaces of the C-shaped channel steel are provided with L-shaped positioning plates. Inside the mounting screw holes, the corresponding side surfaces of the two front and rear L-shaped positioning plates are provided with L-shaped hooks. A fixed column, a first connecting column and a second connecting column are arranged in sequence from bottom to top, and the left surface of the first connecting column on the left side is provided with an identification plate.

As a preferred technical solution of the present invention, the front and rear surfaces of the fixing column are provided with fastening studs, and the end of the fastening studs away from the fixing column is arranged in the hole on the lower side of the front and rear surfaces of the C-shaped pillar, and the fastening stud is fastened. The outer side of the fixed stud is threadedly connected with a tightening nut.

As a preferred technical solution of the present invention, the upper surfaces of the two C-shaped channel steels arranged in front and rear correspondingly are provided with placing plates, and the placing plates are connected with the C-shaped channel steels through the L-shaped connecting plates.

As a preferred technical solution of the present invention, the first connecting column and the second connecting column are both connected to the C-shaped column through a third mounting stud, and the side surfaces corresponding to the two first connecting columns are provided with first For the positioning block, a second positioning block is provided on the side surface of the second connecting column that is separated from each other, and the third installation stud passes through the placement hole on the side surface of the second positioning block.

As a preferred technical solution of the present invention, reinforcing plates are provided on the left and right side surfaces of the C-shaped pillars, and the reinforcing plates are connected with the upper surface of the mounting plate.

Compared with the prior art, the beneficial effects of the present utility model are: the high-position heavy-duty storage rack has a firm structure, is stable and durable, and the L-shaped hook on the L-shaped positioning plate is clamped inside the card slot, which is convenient for installation and disassembly. Transportation, high load-bearing capacity, can assemble multiple shelves according to requirements, and after the goods are placed, it is easy to find through the identification plate, which improves work efficiency and brings convenience to use.

Description of drawings

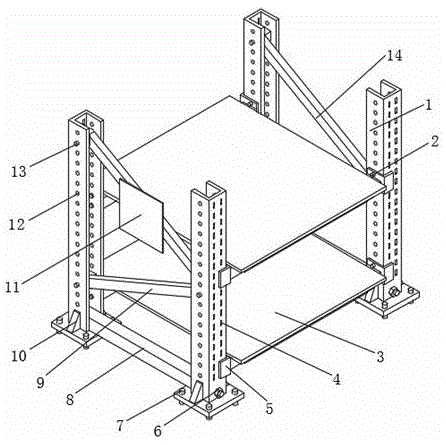

Fig. 1 is the structural representation of the utility model;

Figure 2 is a schematic side view of the utility model;

Figure 3 is an enlarged schematic view of part A of the present invention.

In the picture: 1 C-type pillar, 2 first installation stud, 3 placement plate, 4 card slot, 5 L-type positioning plate, 6 fastening nut, 7 second installation stud, 8 fixing pillar, 9 first connecting pillar , 10 reinforcement plate, 11 identification plate, 12 installation screw hole, 13 third installation stud, 14 second connection post, 15 installation plate, 16 L-shaped connection plate, 17 C-shaped channel steel, 18 first positioning block, 19 The second positioning block, 20 L-shaped hook.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

1-3, the present utility model provides a technical solution: a high-level heavy-duty storage rack, including C-type pillars 1, four C-type pillars 1 are distributed in an array, and the lower surfaces of the C-type pillars 1 are equipped with mounting brackets. Plate 15, the upper surface of the mounting plate 15 is arranged with second mounting studs 7 in an array, and the left and right side surfaces of the C-type pillar 1 are provided with reinforcing plates 10, which are connected to the upper surface of the mounting plate 15 through the mounting plate 15. It is convenient to install the C-type pillar 1 on the ground, and the reinforcing plate 10 can increase the structural strength and improve the firmness. The front and rear surfaces of the C-type pillar 1 are arranged in an up and down array with card slots 4, and the left and right side surfaces of the C-type pillar 1 are up and down. The array is provided with mounting screw holes 12, the middle of the two left and right C-shaped pillars 1 is provided with a C-shaped channel steel 17, and the left and right side surfaces of the C-shaped channel steel 17 are provided with L-shaped positioning plates 5, L-shaped positioning plates 5 is connected with the C-type pillar 1 through the first installation stud 2, and the first installation stud 2 is arranged inside the installation screw hole 12, and the corresponding side surfaces of the two front and rear corresponding L-shaped positioning plates 5 are provided with L The L-shaped hook 20 and the L-shaped hook 20 are clamped in the interior of the card slot 4. The first installation stud 2 and the L-shaped hook 20 are easy to assemble and disassemble, which brings convenience to the use. The upper surface of the 17 is provided with a placing plate 3. The placing plate 3 is connected to the C-shaped channel steel 17 through the L-shaped connecting plate 16. Through the L-shaped connecting plate 16, the placing plate 3 can be installed on the C-shaped channel steel 17, which is convenient for placing goods. , to improve the structural firmness, the middle of the two C-shaped pillars 1 correspondingly arranged in the front and rear are provided with a fixed column 8, a first connecting column 9 and a second connecting column 14 in sequence from bottom to top, and the front and rear surfaces of the fixed column 8 are provided with Fastening the stud, the end of the fastening stud away from the fixing column 8 is arranged in the hole on the lower side of the front and rear surfaces of the C-type pillar 1, and the outer side of the fastening stud is threadedly connected with a fastening nut 6, and the first connecting column 9 and The second connecting columns 14 are connected to the C-shaped column 1 through the third mounting studs 13 , the side surfaces corresponding to the two first connecting columns 9 are provided with first positioning blocks 18 , and the side surfaces of the second connecting columns 14 are separated from each other. A second positioning block 19 is provided, and the third installation stud 13 passes through the placement hole on the side surface of the second positioning block 19. The fixing column 8, the first connecting column 9 and the second connecting column 14 can increase the structural strength and improve the The first positioning block 18 and the second positioning block 19 can prevent the shaking of the first connecting column 9 and the second connecting column 14. The left surface of the first connecting column 9 on the left side is provided with an identification plate 11, The identification plate 11 facilitates finding the goods.

In use: the mounting plate 15 is used to easily install the C-shaped pillar 1 on the ground, and the reinforcing plate 10 can increase the structural strength, and the L-shaped hook 20 on the L-shaped positioning plate 5 is clamped inside the card slot 4. The first installation stud 2 installs the C-shaped channel steel 17 on the C-shaped column 1, the placement plate 3 is installed on the C-shaped channel steel 17 through the L-shaped connecting plate 16, and the fixed column 8, the first connecting column 9 and the The second connecting column 14 is installed inside the two front and rear corresponding C-shaped columns 1, which can increase the structural strength.

The structure of the utility model is firm, stable and durable. The L-shaped hook 20 on the L-shaped positioning plate 5 is clamped in the interior of the card slot 4, which is convenient for installation and disassembly, convenient for transportation, and has high bearing capacity. Multiple shelves can be assembled according to requirements. , and after the goods are put on, the identification plate 11 is easy to find, which improves the work efficiency and brings convenience to the use.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (5)

1. The utility model provides a high-order heavy storage goods shelves, includes C type pillar (1), its characterized in that: the four C-shaped pillars (1) are distributed in an array manner, the lower surfaces of the C-shaped pillars (1) are respectively provided with a mounting plate (15), second mounting studs (7) are distributed on the upper surface of the mounting plate (15) in an array manner, clamping grooves (4) are distributed on the upper surface and the lower surface of the front surface and the rear surface of the C-shaped pillars (1) in an array manner, mounting screw holes (12) are distributed on the upper surface and the lower surface of the left side surface and the right side surface of the C-shaped pillars (1) in an array manner, C-shaped channel steel (17) are arranged in the middle of the two C-shaped pillars (1) which are correspondingly arranged left and right, L-shaped positioning plates (5) are arranged on the left side surface and the right side surface of the C-shaped channel steel (17), the L-shaped positioning plates (5) are connected with the C-shaped pillars (1) through first mounting studs (2), the, l type couple (20) joint is in the inside of draw-in groove (4), and the middle part that corresponds C type pillar (1) that sets up of two preceding back all is equipped with fixed column (8), first spliced pole (9) and second spliced pole (14) from supreme down in proper order, and the left surface that is located left first spliced pole (9) is equipped with signboard (11).

2. The high-level heavy-duty storage rack according to claim 1, wherein: fastening studs are arranged on the front surface and the rear surface of the fixing column (8), one ends, far away from the fixing column (8), of the fastening studs are arranged in holes in the lower sides of the front surface and the rear surface of the C-shaped support column (1), and fastening nuts (6) are connected to the outer sides of the fastening studs in a threaded mode.

3. The high-level heavy-duty storage rack according to claim 1, wherein: the C-shaped channel steel (17) upper surface that corresponds the setting around two all is equipped with places board (3), places board (3) and is connected with C-shaped channel steel (17) through L type connecting plate (16).

4. The high-level heavy-duty storage rack according to claim 1, wherein: first spliced pole (9) and second spliced pole (14) all are connected with C type pillar (1) through third installation double-screw bolt (13), and the side surface that two first spliced poles (9) correspond is equipped with first locating piece (18), and the side surface of second spliced pole (14) phase separation is equipped with second locating piece (19), and third installation double-screw bolt (13) pass the hole of placing of second locating piece (19) side surface.

5. The high-level heavy-duty storage rack according to claim 1, wherein: the left side surface and the right side surface of the C-shaped support column (1) are respectively provided with a reinforcing plate (10), and the reinforcing plates (10) are connected with the upper surface of the mounting plate (15).
