Abstract

The utility model discloses a new type of umbrella with waterproof fabric, which solves the problem that in rainy days, after people use the umbrella, when they put the umbrella away and enter the shopping mall, store or car, the rainwater carried on the umbrella cannot flow out in time, thus causing the shopping mall, store The problem of rain pollution in buildings and other buildings, and the separation of the protective cover of the umbrella from the umbrella, which is particularly easy to lose and cannot protect the umbrella, thus easily causing the problem of wear and tear of the umbrella surface. The pipe is connected with the umbrella rib, and the umbrella cloth with the waterproof function of the utility model, the rainwater falls on the umbrella and flows down rapidly, and the umbrella cannot be soaked. , Store and carry freely, the umbrella handle is installed with a protective cover that can be retracted automatically. When the umbrella is not in use, wrap the umbrella with the protective cover to protect the umbrella cloth from damage.

Description

A new type of umbrella with waterproof fabric

technical field

The utility model relates to the technical field of umbrellas, in particular to a novel umbrella with waterproof fabrics.

Background technique

Umbrellas are widely used and necessary daily necessities for the general public at present. They have a wide range of uses. The main function is to ensure that people travel in rainy days; in sunny days when the sun is like fire, to prevent people from being burned by ultraviolet rays It consists of a retractable or folded rib and an umbrella cloth covering the rib. It has a simple structure and is easy to use and carry. At present, popular umbrellas on the market are generally divided into two categories: one is the rib that can be folded in two or three. Umbrellas are short in length, which is convenient for storage and carrying; one type is umbrellas whose ribs cannot be folded, and the ribs can be freely retracted along the umbrella stand. Generally, the length is long, which is inconvenient to carry and store. Both types of umbrellas on the market have a common feature. The problem, especially in rainy days, when people use umbrellas, put them away and enter shopping malls, shops or cars, the rainwater carried on the umbrellas cannot flow out in time, which will cause rainwater contamination in shopping malls, shops and other buildings and rooms, and also lead to car damage. Due to the large amount of rain carried by the umbrella, the electronic equipment is damp, which affects the safe use of the electronic equipment, and the protective cover of the umbrella is separated from the umbrella, which is particularly easy to lose and cannot protect the umbrella, which easily causes the problem of wear and tear of the umbrella surface.

Therefore, how to design a new type of umbrella with waterproof fabric has become our current problem to be solved.

Utility model content

In view of the above situation, in order to overcome the defects of the prior art, the present utility model provides a new type of umbrella with waterproof fabric, which effectively solves the problem that in rainy days, after people use the umbrella, they put away the umbrella and enter the shopping mall, shop or car. The rainwater carried on the umbrella cannot flow out in time, which leads to the problem of rainwater contamination in shopping malls, shops and other building rooms, and the separation of the protective cover of the umbrella from the umbrella, which is particularly easy to lose and cannot protect the umbrella, which easily causes the problem of wear and tear of the umbrella surface.

In order to achieve the above purpose, the utility model provides the following technical solutions: including an umbrella frame, the middle part of one end of the umbrella frame is connected with an umbrella rib through a sliding sleeve, the upper part of the umbrella frame is installed with a stop pin at one side of the sliding sleeve, and the umbrella An umbrella cloth is fixed on one side of the bone, an umbrella handle is installed on the other end of the umbrella frame, and a fixed rope is installed on the top side of the umbrella cloth. The umbrella handle includes a cylinder, a cavity, a button, a spring, a protective cover, a telescopic rope, a fastening ring, Pull bar and rubber layer, a cavity is opened inside the cylinder, a button is embedded on one side of the cylinder, a spring is installed inside the cavity at one side of the button, a protective cover is installed inside the cavity, and one side of the protective cover is evenly installed with In the telescopic rope, one end of the protective sleeve is provided with a fastening ring, one side of the fastening ring is fixed with a pull strip, and the outer side of the cylinder is fixed with a rubber layer.

Preferably, the umbrella cloth includes a non-woven fabric, a waterproof layer, a film and a reflective coating, a waterproof layer is fixed on the outside of the non-woven fabric, a film is fixed on the side of the waterproof layer away from the non-woven fabric, and a reflective coating is fixed on the outside of the film.

Preferably, one end of the umbrella stand is connected with the inside of the umbrella handle by threads, and the other end of the umbrella stand is provided with a rain-proof sheet.

Preferably, a through hole is opened on one side of the umbrella handle, and a lanyard is installed inside the through hole.

Preferably, one end of the fixing rope is fixed with a female buckle, and the other end of the fixing rope is fixed with a male buckle.

The utility model has the umbrella cloth with waterproof function, the rainwater falls on the umbrella and flows down quickly, and the umbrella cannot be soaked. When the user arrives at the shopping mall, store or car, the umbrella is put away, the umbrella is dry, and the rainwater does not flow, and the umbrella can be stored and carried freely. The umbrella handle is installed with an automatically retractable protective cover. When the umbrella is not in use, wrap the umbrella with the protective cover to protect the umbrella cloth from damage.

Description of drawings

The accompanying drawings are used to provide a further understanding of the present invention, and constitute a part of the specification, and are used to explain the present invention together with the embodiments of the present invention, and do not constitute a limitation to the present invention. In the attached image:

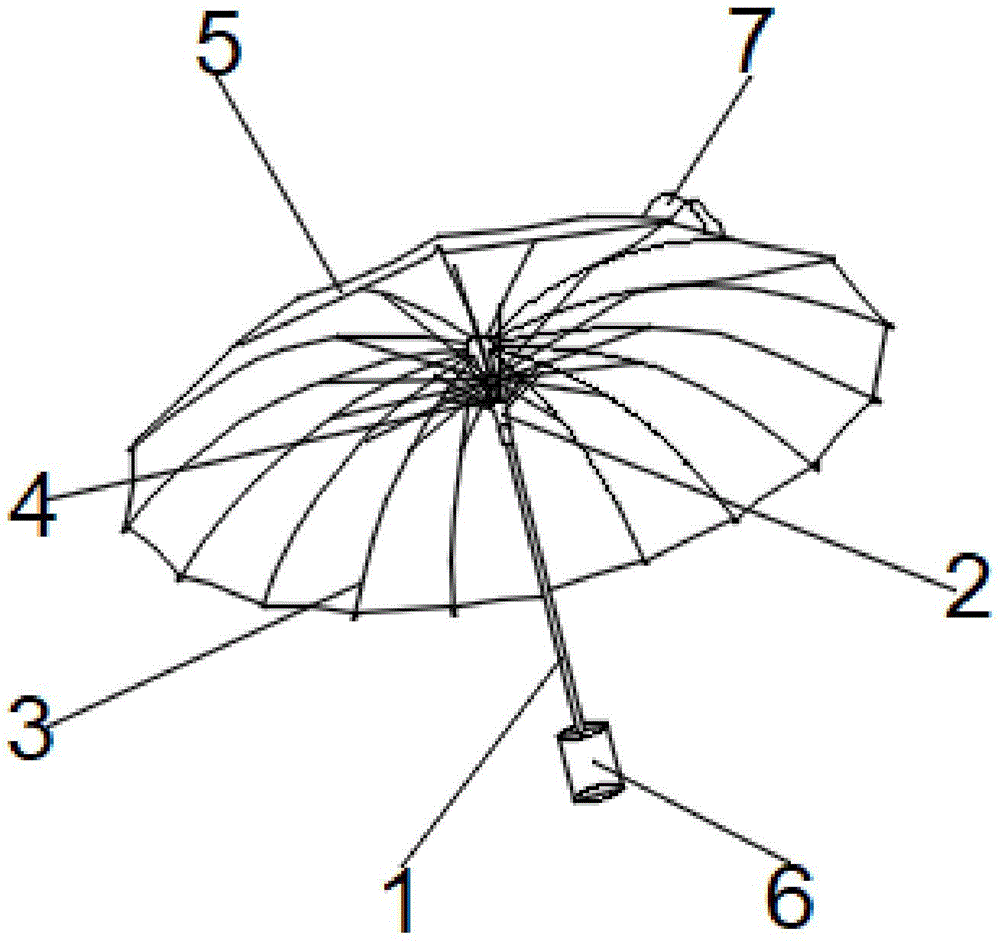

Fig. 1 is the overall structure schematic diagram of the present utility model;

Fig. 2 is the structural representation of the umbrella handle of the present utility model;

Figure 3 is a schematic diagram of the structure of the umbrella cloth of the present invention.

Detailed ways

The specific embodiments of the present utility model will be further described in detail below with reference to the accompanying drawings 1-3.

Embodiment 1, as shown in FIG. 1, the present utility model includes an umbrella frame 1, the middle part of one end of the umbrella frame 1 is connected with an umbrella rib 3 through a sliding sleeve 2, and the sliding sleeve 2 connects the umbrella frame 1 and the umbrella rib 3, The tube 2 realizes the retraction of the umbrella rib 3, and the upper part of the umbrella frame 1 is installed with a stop pin 4 at one side of the sliding sleeve 2, and the stop pin 4 clamps the sliding sleeve 2 and fixes the sliding sleeve 2, so that the Umbrella rib 3 can be propped up and opened, umbrella cloth 5 is fixed on one side of umbrella rib 3, umbrella cloth 5 is fixed on umbrella rib 3, umbrella cloth 5 is opened to protect from rain, and the other end of umbrella stand 1 is installed with umbrella handle 6, The umbrella stand 1 is relatively thin and not easy to hold by hand, the umbrella handle 6 is easy to hold the umbrella by hand, and the top side of the umbrella cloth 5 is installed with a fixed rope 7.

Embodiment 2, on the basis of Embodiment 1, as shown in Figure 2, the umbrella handle 6 includes a cylinder 61, a cavity 62, a button 63, a spring 64, a protective cover 65, a telescopic rope 66, a fastening ring 67, a pull Strip 68 and rubber layer 69, a cavity 62 is opened inside the cylinder 61, the cavity 62 in the cylinder 61 stores the protective sleeve 65, a button 63 is embedded on one side of the cylinder 61, and the interior of the cavity 62 is located on one side of the button 63 A spring 64 is installed at the end, a protective sleeve 65 is installed inside the cavity 62, a telescopic rope 66 is evenly installed on one side of the protective sleeve 65, a fastening ring 67 is installed on one end of the protective sleeve 65, and a pull bar 68 is fixed on one side of the fastening ring 67 , press the button 63, under the action of the spring 64, the protective cover 65 and the fastening ring 67 move up, pull the pull bar 68 to pull out the fastening ring 67, wrap the umbrella with the protective cover 65, and then tighten the The ring 67 is fixed. When the umbrella is used, the button 63 is pressed. Under the action of the spring 64 and the telescopic rope 66, the protective cover 65 is contracted inside the cavity 62. The outer side of the cylinder 61 is fixed with a rubber layer 69. The friction force of the rubber layer 69 is relatively high. It's big and soft, so it's easy to hold.

Embodiment 3, on the basis of Embodiment 1, as shown in Figure 3, the umbrella cloth 5 includes a non-woven fabric 51, a waterproof layer 52, a film 53 and a reflective coating 54, and the outer side of the non-woven fabric 51 is fixed with a waterproof layer 52, The waterproof layer 52 is fixed with a film 53 on the side away from the non-woven fabric 51. The non-woven fabric 51, the waterproof layer 52 and the film 53 together form a waterproof surface. In this way, when the umbrella is used in rainy days, the rainwater falls on the umbrella and flows down quickly, like rainwater falling. Like the lotus leaf, the umbrella cannot be soaked. When the user arrives at the shopping mall, store or car, put away the umbrella. The umbrella is dry and does not flow rainwater. A reflective coating 54 is fixed, and when the umbrella is used at night, the reflective coating 54 on the umbrella surface reflects light, preventing cars from walking on the road from being invisible and accidents.

Embodiment 4, on the basis of Embodiment 1, one end of the umbrella stand 1 is connected with the inside of the umbrella handle 6 through threads, and the thread is convenient for installing the umbrella handle 6, and the other end of the umbrella stand 1 is installed with a rain-proof sheet, which can prevent the top of the umbrella. water leakage.

Embodiment 5, on the basis of Embodiment 1, a through hole is opened on one side of the umbrella handle 6, and a lanyard is installed inside the through hole. With the lanyard, it is convenient to hang the umbrella on the wall or other hooks.

Embodiment 6, on the basis of Embodiment 1, one end of the fixing rope 7 is fixed with a female buckle, and the other end of the fixing rope 7 is fixed with a male buckle. Install together and put the umbrella away.

Working principle: When the utility model is used, the sliding sleeve 2 connects the umbrella frame 1 and the umbrella rib 3, and the umbrella rib 3 is retracted and retracted through the sliding sleeve 2, and the stop pin 4 is stuck on the sliding sleeve 2, and the sliding sleeve is fixed. Sleeve 2, so that the umbrella rib 3 can be held open, the umbrella cloth 5 is fixed on the umbrella rib 3, the umbrella cloth 5 is opened to the function of blocking rain, the non-woven fabric 51, the waterproof layer 52 and the film 53 together form a waterproof surface, so that , When using an umbrella in rainy days, the rain falls on the umbrella and flows down quickly, just like the rain falling on the lotus leaf, the umbrella cannot be soaked, when the user arrives at the shopping mall, store or car, put away the umbrella, the umbrella is dry and does not flow rain , Store and carry freely, will not stain shopping malls, shops and cars, when the umbrella is used at night, the reflective coating 54 on the umbrella surface is reflective, preventing cars from walking on the road from being invisible and accidents. The umbrella stand 1 is relatively thin and inconvenient to hold , the umbrella handle 6 is easy to hold the umbrella by hand, the cavity 62 in the cylindrical body 61 stores the protective cover 65, press the button 63, under the action of the spring 64, the protective cover 65 and the fastening ring 67 move up, pulling the pull bar 68 Pull out the fastening ring 67, wrap and open the umbrella with the protective cover 65, and then fix it with the fastening ring 67. When using the umbrella, press the button 63, under the action of the spring 64 and the telescopic rope 66, the protective cover 65 shrinks Inside the cavity 62, the rubber layer 69 has a relatively large friction force and is relatively soft, which is easy to hold by hand.

Compared with the prior art, the utility model has the following advantages: 1) the umbrella cloth with waterproof function, the rainwater falls on the umbrella and flows down quickly, and the umbrella cannot be soaked. The umbrella is dry and free from rain, and can be stored and carried freely; 2) The umbrella handle is installed with a protective cover that can be automatically retracted. When the umbrella is not in use, wrap the umbrella with the protective cover to protect the umbrella cloth from damage.

Finally, it should be noted that the above are only the preferred embodiments of the present invention, and are not intended to limit the present invention. , it is still possible to modify the technical solutions described in the foregoing embodiments, or perform equivalent replacements to some of the technical features. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present invention shall be included in the protection scope of the present invention.

Claims (5)

1. A novel umbrella with waterproof fabric, comprising an umbrella stand (1), characterized in that: the middle part of one end of the umbrella stand (1) is connected with an umbrella rib (3) through a sliding sleeve (2), and the umbrella stand (1) ) A stop pin (4) is installed on the upper part of the sliding sleeve (2), an umbrella cloth (5) is fixed on one side of the umbrella rib (3), and an umbrella handle (6) is installed on the other end of the umbrella frame (1). ), a fixed rope (7) is installed on the top side of the umbrella cloth (5), and the umbrella handle (6) includes a cylinder (61), a cavity (62), a button (63), a spring (64), a protective cover (65), the telescopic cord (66), the fastening ring (67), the brace (68) and the rubber layer (69), a cavity (62) is opened inside the cylinder (61), and one side of the cylinder (61) A button (63) is embedded, a spring (64) is installed inside the cavity (62) at one side of the button (63), a protective cover (65) is installed inside the cavity (62), and one side of the protective cover (65) is installed A telescopic rope (66) is evenly installed, a fastening ring (67) is installed at one end of the protective sleeve (65), a tension strip (68) is fixed on one side of the fastening ring (67), and a rubber layer is fixed on the outer side of the cylinder (61). (69). 2. The novel umbrella with waterproof fabric according to claim 1, wherein the umbrella fabric (5) comprises a non-woven fabric (51), a waterproof layer (52), a film (53) and a reflective coating layer (54), a waterproof layer (52) is fixed on the outside of the non-woven fabric (51), a film (53) is fixed on the side of the waterproof layer (52) away from the non-woven fabric (51), and a reflective coating is fixed on the outside of the film (53). layer (54). 3. A new type of umbrella with waterproof fabric according to claim 1, characterized in that: one end of the umbrella stand (1) is connected with the inside of the umbrella handle (6) by threads, and the other end of the umbrella stand (1) is installed with a Rain flakes. 4 . The new umbrella with waterproof fabric according to claim 1 , wherein a through hole is opened on one side of the umbrella handle ( 6 ), and a lanyard is installed inside the through hole. 5 . 5. A new type of umbrella with waterproof fabric according to claim 1, characterized in that: one end of the fixing rope (7) is fixed with a female buckle, and the other end of the fixing rope (7) is fixed with a male buckle.
