CN211747195U - Multifunctional patient examination clothes - Google Patents

Abstract

The utility model discloses a multi-functional inspection patient suit, comprising a patient suit top, a patient suit bottom is arranged at the bottom of the patient suit top, sleeves are fixedly connected to the tops of both sides of the patient suit top, and the patient suit top is provided with sleeves. The inner cavity is provided with breast pads, and the number of the breast pads is two, which are evenly distributed on both sides of the inner cavity of the patient's clothes. By arranging the upper part of the patient's clothes, the lower part of the patient's clothes, the sleeves and the breast pads, the utility model can well cover the protruding part of the female nipple, can well protect the privacy of the patient and ensure the physical and mental health of the patient, and is convenient for inspection. The combined use of the antibacterial moisture-absorbing layer, the flexible layer, the heat-resistant layer, the cotton layer and the non-woven layer can increase the functionality of the entire patient gown, and solve the problem that the existing patient gowns cannot protect the privacy of female patients well. The multifunctional examination patient uniform has the advantages of protecting the privacy of female patients and is worthy of promotion.

Description

Multifunctional examination patient uniform

technical field

The utility model relates to the technical field of patient clothing, in particular to a multifunctional examination patient clothing.

Background technique

Patient clothing, as the name suggests, is the clothing worn by the patients who are hospitalized in the hospital. It is uniformly distributed by the hospital. It is a common phenomenon in most hospitals that the patient clothing is overaged. In order to save costs, the hospital only considers ensuring that the patient clothing is sterile, and ignores it. Influence on the patient's psychology, the patient's clothes are generally blue and white. The reason why these two colors and this pattern are chosen is because blue is a cool color, which has a calming effect, and the vertical stripes have a stable visual effect. , sedative effect, the two together also have the effect of calming and stabilizing emotions, which can reduce the patient's feeling of irritability and is conducive to the recovery of the disease. Psychologists believe that the quality of the patient's clothes is important in the patient's recovery and treatment process. It's not the key factor, but sick people are weak and will be more sensitive and more easily injured. Even if they wear the best-looking clothes as patient clothes, they will feel ashamed of the disease, not to mention the worn-out patient clothes. Wearing them on them will generate even greater negative emotions, which will inevitably affect the emotional state of hospitalized patients. Hospitals should try their best to put on comfortable and neat patient clothes for patients, which will help patients’ physical and mental recovery. When doing MRI or CT, you have to take off your underwear, so female patients are full of fear, anxiety, and shyness, which cannot protect the patient's privacy and ensure the patient's physical and mental health, and is inconvenient for examination.

Utility model content

Aiming at the deficiencies of the prior art, the utility model provides a multifunctional examination patient clothing, which has the advantages of protecting the privacy of female patients and the like, and solves the problem that the existing examination patient clothing cannot well protect the privacy of female patients.

In order to achieve the above purpose, the present utility model provides the following technical solutions: a multi-functional inspection patient suit, including a patient suit top, the bottom of the patient suit top is provided with a patient suit bottom, and the tops of both sides of the patient suit top are fixedly connected There are sleeves, the inner cavity of the patient suit top is provided with breast pads, the number of the breast pads is two, and they are evenly distributed on both sides of the inner cavity of the patient suit top, and the front side of the breast pad is connected to the patient suit top. The inner wall of the antibacterial and hygroscopic layer is fixedly connected to the inner wall of the patient's clothing, and the upper garment of the patient's clothes includes an antibacterial moisture-absorbing layer, a flexible layer is fixedly connected to the surface of the antibacterial moisture-absorbing layer, a heat-resistant layer is fixedly connected to the surface of the flexible layer, and the surface of the heat-resistant layer is fixedly connected. There is a cotton cloth layer, and a non-woven fabric layer is fixedly connected to the surface of the cotton cloth layer.

Preferably, pockets are fixedly connected to the surface of the top of the patient suit, the number of the pockets is two, and the pockets are evenly distributed on both sides of the front surface of the top of the patient suit.

Preferably, an adhesive patch is fixedly connected to the top on the right side of the front surface of the top surface of the patient suit, the surface of the adhesive patch is adhered with a label, and the connection between the surface of the adhesive patch and the label is fixedly connected by a Velcro .

Preferably, a button is fixedly connected to the front surface of the top of the patient suit, and an opening for use with the button is opened on the front surface of the top surface of the patient suit and located on the left side of the button.

Preferably, patterns are arranged on the surface of the top of the patient's suit and the surface of the bottom of the patient's suit, and the material of the antibacterial and moisture-absorbing layer is made of bamboo charcoal fiber material.

Preferably, the material of the flexible layer is made of kapok fiber material, and the material of the heat-resistant layer is made of mulberry silk material.

Preferably, the material of the cotton cloth layer is made of cotton cloth material, and the material of the non-woven fabric layer is made of non-woven fabric material.

Preferably, the height of the breast pad is the same as the height of the female breast, and the material of the breast pad is silica gel.

Compared with the prior art, the beneficial effects of the present utility model are as follows:

1. The utility model can cover the female nipple bulge well, protect the patient's privacy, ensure the patient's physical and mental health, and facilitate inspection by setting the patient's clothing top, the patient's clothing bottom, sleeves and breast pads. By setting the antibacterial moisture-absorbing layer, the flexible layer, the heat-resistant layer, the cotton layer and the non-woven layer, the functionality of the entire patient suit can be increased, which solves the problem that the existing examination patient suit cannot protect the privacy of female patients well. The problem is that the multi-functional examination patient uniform has the advantages of protecting the privacy of female patients and is worthy of promotion.

2. The utility model can block the female nipple bulge by setting the breast pad. By setting the pocket, it is convenient for the patient to store some items. The label can be easily fixed at the adhesive patch, the button can be easily used by arranging the opening, the button and the opening can be arranged to seal the top of the patient's clothing, the pattern can be arranged, and the decoration can be achieved, and the antibacterial function can be arranged. Moisture-absorbing layer, bamboo charcoal fiber is made of bamboo as raw material, and adopts the new calcination process and new technology of pure oxygen high temperature and nitrogen barrier delay, which makes the natural micropores of bamboo charcoal more refined and honeycomb, and then combined with honeycomb micropores. It is made by melt spinning of polyester modified chips with a trend of pore structure. This unique fiber structure design has the characteristics of moisture absorption and ventilation, antibacterial and antibacterial, warm in winter and cool in summer, green and environmental protection, etc., which can increase the antibacterial, Moisture absorption and breathability, by setting a flexible layer, kapok fiber is the fruit fiber of several plants in the kapok family of the order Mallow. It is the thinnest, lightest, highest hollow, and warmest fiber material. It has the characteristics of water permeability, non-thermal conductivity, warmth retention and strong hygroscopicity, which can increase the flexibility and hygroscopicity of the entire patient clothing. By setting a heat-resistant layer, mulberry silk is a natural animal protein fiber and the most important raw material for silk weaving. It is smooth and soft. It is rich in luster, feels warm in winter and cool in summer, has a unique silk noise phenomenon when rubbed, has good extensibility, good heat resistance, and increases the heat resistance of patient clothing. By setting the cotton layer, the advantages of cotton It is easy to keep warm, soft and close to the body, hygroscopic and breathable, and increases the breathability of the entire patient suit. It has the characteristics of non-toxic, non-irritating, rich colors, low price, and recyclability.

Description of drawings

The drawings described herein are used to provide further understanding of the present application and constitute a part of the present application. The schematic embodiments and descriptions of the present application are used to explain the present application and do not constitute an improper limitation of the present application. In the attached image:

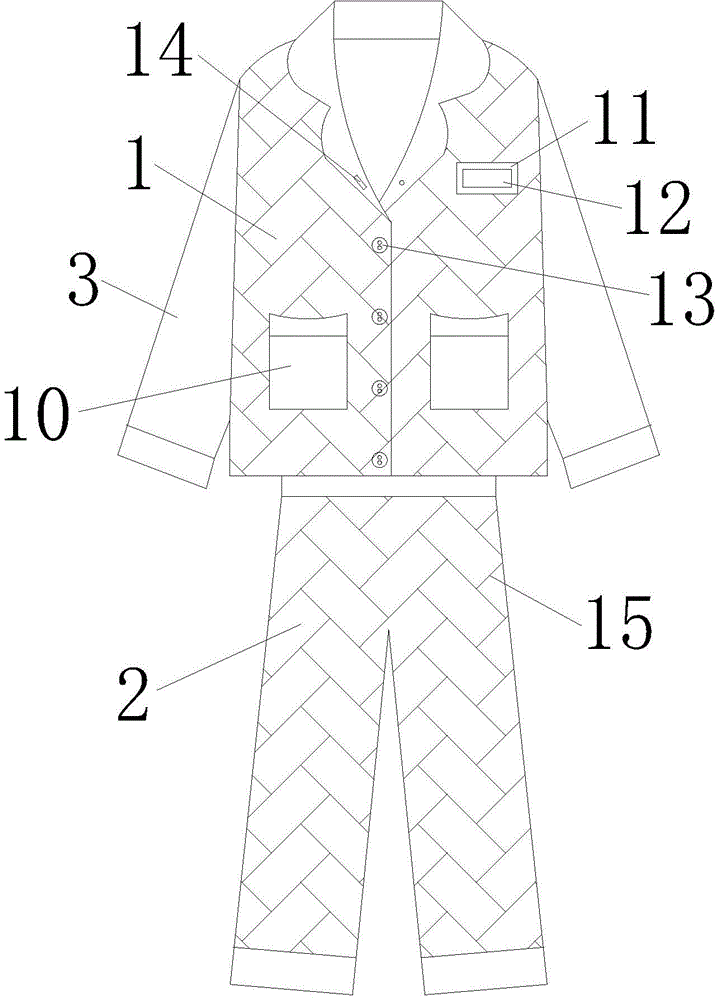

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the rear view sectional view of the utility model patient suit jacket;

FIG. 3 is a schematic diagram of the composition structure of the patient clothing top of the present invention.

In the picture: 1. The top of the patient's clothes; 2. The bottom of the patient's clothes; 3. The sleeves; 4. The breast pad; 5. The antibacterial and moisture-absorbing layer; 6. The flexible layer; 7. The heat-resistant layer; Textile layer; 10, pocket; 11, adhesive patch; 12, label; 13, button; 14, opening; 15, pattern.

Detailed ways

Several embodiments of the present invention will be disclosed in the following figures. For the sake of clarity, many practical details will be described together in the following description. It should be understood, however, that these practical details should not be used to limit the invention. That is, in some embodiments of the present invention, these practical details are unnecessary. In addition, for the purpose of simplifying the drawings, some well-known structures and components are shown in a simple schematic manner in the drawings.

In addition, the descriptions such as “first”, “second”, etc. in the present invention are only for the purpose of description, and do not refer to the meaning of order or sequence, nor are they used to limit the present invention, which is only for the purpose of The components or operations described in the same technical terms are only distinguished, and should not be understood as indicating or implying their relative importance or implying the quantity of the indicated technical features. Thus, a feature delimited with "first", "second" may expressly or implicitly include at least one of that feature. In addition, the technical solutions between the various embodiments can be combined with each other, but must be based on the realization by those of ordinary skill in the art. When the combination of technical solutions is contradictory or cannot be realized, it should be considered that the combination of such technical solutions does not exist. , is not within the scope of protection required by the present utility model.

Please refer to FIG. 1 , FIG. 2 and FIG. 3 , the multifunctional examination patient uniform of the present invention includes a patient uniform top 1 , a patient uniform bottom 2 is provided at the bottom of the patient uniform top 1 , and the patient uniform top 1 is provided on both sides of the patient uniform top 1 . The tops are fixedly connected with sleeves 3, and the inner cavity of the patient suit top 1 is provided with breast pads 4. The number of breast pads 4 is two, which are evenly distributed on both sides of the inner cavity of the patient suit top 1, and the front side of the breast pads 4. It is fixedly connected with the inner wall of the patient clothes top 1. The patient clothes top 1 includes an antibacterial moisture-absorbing layer 5, the surface of the antibacterial moisture-absorbing layer 5 is fixedly connected with a flexible layer 6, and the surface of the flexible layer 6 is fixedly connected with a heat-resistant layer 7, and the heat-resistant layer 7 A cotton cloth layer 8 is fixedly connected to the surface of the cotton cloth layer 8, a non-woven fabric layer 9 is fixedly connected to the surface of the cotton cloth layer 8, and a pocket 10 is fixedly connected to the surface of the patient clothes top 1. The number of the pockets 10 is two, and evenly distributed on the patient clothes top 1 On both sides of the front surface, the top right side of the front surface of the patient suit jacket 1 is fixedly connected with an adhesive sheet 11, the surface of the adhesive sheet 11 is adhered with a label 12, and the connection between the surface of the adhesive sheet 11 and the label 12 passes through. Velcro is fixedly connected, the front surface of the patient suit top 1 is fixedly connected with a button 13, the front surface of the patient suit top 1 and located on the left side of the button 13 is provided with an opening 14 for use with the button 13, the surface of the patient suit top 1 and The surface of the patient clothing bottom 2 is provided with patterns 15, the material of the antibacterial moisture-absorbing layer 5 is made of bamboo charcoal fiber material, the material of the flexible layer 6 is made of kapok fiber material, and the material of the heat-resistant layer 7 is made of mulberry silk material. , the material of the cotton cloth layer 8 is made of cotton cloth material, the material of the non-woven cloth layer 9 is made of non-woven cloth material, the height of the breast pad 4 is the same as the height of the female breast, the material of the breast pad 4 is silicone, and the breast pad 4 is made of silicone. The pad 4 can play the role of shielding the female nipple bulge.

Please refer to FIG. 1 , by providing the pocket 10 , it is convenient for the patient to store some items, by providing the adhesive patch 11 , the fixing of the label 12 can be facilitated, and by providing the Velcro, the label 12 can be easily fixed at the adhesive patch 11 By arranging the opening 14, the button 13 can be conveniently used; by arranging the button 13 and the opening 14, it can play the role of closing the top 1 of the patient uniform; by arranging the pattern 15, it can play the role of decoration.

Please refer to Fig. 3. By setting the antibacterial and moisture-absorbing layer 5, bamboo charcoal fiber is made of bamboo as raw material, and adopts the new calcination process and new technology of pure oxygen high temperature and nitrogen blocking delay, so that the micropores inherent in bamboo charcoal are more refined. And honeycomb, and then melt-spun with polyester modified chips with the trend of honeycomb microporous structure. This unique fiber structure design has the advantages of moisture absorption and breathability, antibacterial and antibacterial, warm in winter and cool in summer, green Environmental protection and other characteristics can increase the antibacterial, moisture absorption and air permeability of the patient clothing. By setting the flexible layer 6, the kapok fiber is the fruit fiber of several plants in the kapok family of the order Mallow, and it is the thinnest, lightest, the highest hollowness and the most The warm fiber material has the characteristics of mildew resistance, lightness, water impermeability, non-thermal conductivity, warmth retention, and strong hygroscopicity, which can increase the flexibility and hygroscopicity of the entire patient suit. By setting the heat-resistant layer 7, mulberry silk is a natural animal protein. Fiber is the most important raw material for silk weaving. It is smooth, soft, and lustrous. It feels warm in winter and cool in summer. It has a unique silk noise phenomenon when rubbed. It has good extensibility and good heat resistance. By setting the cotton cloth layer 8, the advantages of the cotton cloth are easy to keep warm, soft and close to the body, hygroscopic and breathable, which increases the breathability of the entire patient suit. By setting the non-woven layer 9, the non-woven fabric has moisture-proof properties. , breathable, flexible, light in weight, non-combustible, easy to decompose, non-toxic and non-irritating, rich in color, low in price, recyclable and other characteristics, can increase the strength of the entire patient clothing, and also has the functions of moisture-proof and breathable.

Please refer to Fig. 1, Fig. 2 and Fig. 3. By setting the top 1, bottom 2, sleeves 3 and breast pads 4 of the patient's uniform, the bulge of the female nipple can be well covered and protected. The patient's privacy and the physical and mental health of the patient are ensured, and the inspection is convenient. By setting the antibacterial moisture-absorbing layer 5, the flexible layer 6, the heat-resistant layer 7, the cotton layer 8 and the non-woven layer 9, the functionality of the entire patient suit can be increased. The problem that the existing examination patient clothing cannot well protect the privacy of female patients is solved, and the multifunctional examination patient clothing has the advantages of protecting the privacy of female patients and the like, and is worthy of promotion.

When using the present invention, the breast pad 4 can play the role of covering the female nipple bulge, the pocket 10 can facilitate the patient to store some items, the sticker 11 can facilitate the fixing of the label 12, and the Velcro can facilitate the fixing of the label 12 At the adhesive sheet 11, the opening 14 can facilitate the use of the button 13, the button 13 and the opening 14 can play the role of closing the patient's shirt 1, the pattern 15 can play a decorative role, and the bamboo charcoal fiber in the antibacterial moisture-absorbing layer 5 is made of Moso bamboo is used as raw material, and the new calcination process and new technology of pure oxygen high temperature and nitrogen barrier delay are adopted to make the micropores inherent in bamboo charcoal more refined and honeycomb, and then modified with polyester with the trend of honeycomb microporous structure. This unique fiber structure design has the characteristics of moisture absorption and ventilation, antibacterial and antibacterial, warm in winter and cool in summer, green and environmental protection, etc., and increases the antibacterial, moisture absorption and breathability of patient clothing. The flexible layer 6 The kapok fiber is the fruit fiber of several plants in the kapok family of the order Mallow. It is the thinnest, lightest, hollowest, and warmest fiber material. The mulberry silk in the heat-resistant layer 7 is a natural animal protein fiber, which is the most important raw material for silk weaving. It is smooth, soft, and lustrous. It is warm in winter and cool in summer. It has a unique silky sound when rubbing, has good extensibility, and good heat resistance. The advantages of cotton in the cotton layer 8 are easy to keep warm, soft and close to the body, hygroscopic, and breathable. The breathable performance of the entire patient suit, the non-woven fabric in the non-woven fabric layer 9 is moisture-proof, breathable, flexible, lightweight, non-combustible, easy to decompose, non-toxic and non-irritating, rich in color, low in price, recyclable, etc. It can increase the strength of the entire patient suit, and also has the functions of moisture-proof and breathable.

The above descriptions are merely embodiments of the present invention, and are not intended to limit the present invention. For those skilled in the art, various modifications and changes can be made to the present invention. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present invention shall be included within the scope of the claims of the present invention.

Claims (8)

1. Multi-functional inspection patient's gown, including patient's gown jacket (1), its characterized in that: the utility model discloses a patient's clothing, including patient's clothing jacket (1), the bottom of patient's clothing jacket (1) is provided with patient's clothing lower garment (2), the equal fixedly connected with sleeve in top (3) of patient's clothing jacket (1) both sides, the inner chamber of patient's clothing jacket (1) is provided with breast pad (4), the quantity of breast pad (4) is two, and evenly distributed in the both sides of patient's clothing jacket (1) inner chamber, the front side of breast pad (4) and the inner wall fixed connection of patient's clothing jacket (1), patient's clothing jacket (1) is including antibiotic moisture absorption layer (5), the fixed surface of antibiotic moisture absorption layer (5) is connected with flexible layer (6), the fixed surface of flexible layer (6) is connected with heat-resistant layer (7), the fixed surface of heat-resistant layer (7) is connected with cotton layer (8), the fixed surface of cotton layer (8) is connected with non-woven fabrics.

2. The multifunctional examination patient garment of claim 1, wherein: the surface of the patient coat (1) is fixedly connected with two pockets (10), and the two pockets (10) are uniformly distributed on two sides of the front surface of the patient coat (1).

3. The multifunctional examination patient garment of claim 1, wherein: the top on the right side of the front surface of the coat (1) of the patient garment is fixedly connected with a sticking piece (11), a label (12) is adhered to the surface of the sticking piece (11), and the joint of the surface of the sticking piece (11) and the label (12) is fixedly connected through a magic tape.

4. The multifunctional examination patient garment of claim 1, wherein: the front surface of the patient coat (1) is fixedly connected with a button (13), and an opening (14) matched with the button (13) for use is formed in the front surface of the patient coat (1) and positioned on the left side of the button (13).

5. The multifunctional examination patient garment of claim 1, wherein: the surface of the patient clothes upper garment (1) and the surface of the patient clothes lower garment (2) are both provided with patterns (15), and the antibacterial moisture absorption layer (5) is made of bamboo charcoal fiber materials.

6. The multifunctional examination patient garment of claim 1, wherein: the material of flexible layer (6) is made by kapok fiber material, the material of heat-resistant layer (7) is made by mulberry silk material.

7. The multifunctional examination patient garment of claim 1, wherein: the material of cotton layer (8) is made by the cotton material, the material of non-woven fabrics layer (9) is made by the non-woven fabrics material.

8. The multifunctional examination patient garment of claim 1, wherein: the height of the breast pad (4) is the same as that of the female breast, and the breast pad (4) is made of silica gel.
