Abstract

The utility model provides a household garlic peeling device, which comprises a cup body, an upper cover, a chassis, a rotating rod and a plurality of helical blades. The interior of the cup body is hollow with an inner cavity, the top has an opening, and a plurality of suction cups are fixed on the bottom surface of the cup body; The upper cover and the top of the cup body are movably matched and pressed, the chassis is correspondingly fixed at the bottom of the inner cavity of the cup body, the lower end of the rotating rod penetrates the chassis and is rotatably connected with the bottom of the inner cavity of the cup body, the upper end of the rotating rod penetrates and protrudes from the top of the upper cover, and the spiral blades are spaced apart The rotation is fixed on the outer peripheral surface of the lower part of the rotating rod, and the softness of the spiral blade gradually decreases from top to bottom. The utility model has a simple and reasonable structure design, the cup body is fixed with the table top by the suction cup, and the fixing is convenient, and the garlic skin is removed by the friction force generated on the surface of the garlic clove by the relative rotation of the base plate and the spiral blade, the garlic peeling process is stable and convenient, and the peeling can be realized conveniently and quickly. Garlic operation, and the garlic clove damage is less in the process of peeling garlic.

Description

A household garlic peeling device

technical field

The utility model relates to the technical field of daily necessities, in particular to a household garlic peeling device.

Background technique

Garlic is a common edible and medicinal plant in daily life. Garlic cloves are the nutrient storage and reproductive organs of garlic. When eating, it is usually necessary to peel off the garlic skin on the garlic cloves. In daily operations, it is usually to peel off the garlic directly, or use a knife to flatten and then remove the skin of the garlic. The process of peeling the garlic is time-consuming and laborious. At the same time, the juice and irritating gas produced by the garlic head will cause certain irritation to the human body during the process of peeling the garlic and peeling the garlic. . Existing garlic peeling devices, such as the household kitchen multipurpose garlic peeling machine provided by CN203619293U and a garlic peeling machine provided by CN102210547B, are all designed garlic peeling wheels, and the peeling operation is performed by friction between the garlic cloves and the garlic cloves. In the process of rubbing the garlic cloves against each other, it is easy to cause the garlic cloves to squeeze each other too much, and the garlic cloves are damaged. At the same time, the structure of the existing garlic peeling device is relatively complicated, and the production cost is relatively high.

Utility model content

The technical problem to be solved by the utility model is: in order to overcome the deficiencies of the prior art, the utility model provides a household garlic peeling device with simple structure design, low production cost and convenient and quick garlic peeling process.

The technical scheme adopted by the utility model to solve the technical problem is: a household garlic peeling device, comprising a cup body, an upper cover, a chassis, a rotating rod and a number of spiral blades, the cup body is hollow with an inner cavity, and the top has a opening, a number of suction cups are fixed on the bottom surface of the cup body; the upper cover and the top of the cup body are movably matched and pressed, the bottom plate is correspondingly fixed at the bottom of the inner cavity of the cup body, and the lower end of the rotating rod penetrates through The chassis is rotatably connected with the bottom of the inner cavity of the cup, the upper end of the rotating rod penetrates and protrudes from the top of the upper cover, the spiral blades are fixed on the outer peripheral surface of the lower part of the rotating rod at intervals, and the spiral blades are gradually soft from top to bottom. decrease.

Preferably, in order to facilitate the observation of the progress of peeling garlic, the cup body is made of transparent material.

Further, the spiral blades and the chassis are all made of silicone material.

Further, in order to facilitate the rotation of the rotating rod, the top of the rotating rod is fixed with a rocker for manual rotation, one end of the rocker is fixed to the top of the rotating rod, and the other end is rotatably connected with a rotating handle.

Further, in order to facilitate the rotation of the rotating rod stably along its center line and provide a fulcrum for the lower bottom surface of the rotating rod, the bottom of the inner cavity of the cup body has a rotating support point protruding from the rotating connection position of the lower end of the rotating rod, The bottom of the inner cavity of the cup body is provided with an annular insertion groove concave circumferentially corresponding to the rotation support point, the lower bottom surface of the rotation rod corresponding to the rotation support point has a rotation hole for the rotation support point to fit into, and the lower bottom surface of the rotation rod also corresponds to the rotation support point. The annular socket fitting has a protruding socket ring.

Preferably, the angle of the helical blade is determined with the change of the inclination angle of the tangent plane, and the number of the helical angle may preferably be 40°˜60°.

In the above scheme, the friction between the spiral blade and the chassis is cleverly used, and the spiral blade and the chassis are rotated relative to each other by rotating the spiral blade. Peeled from the garlic cloves by the spiral blades and the chassis.

The beneficial effect of the utility model is that the household garlic peeling device provided by the utility model has a simple and reasonable structure design, the cup body is fixed with the table top by the suction cup, and the fixing is convenient, and the friction on the surface of the garlic clove is caused by the relative rotation of the chassis and the spiral blade. The garlic peel can be removed by force, the garlic peeling process is stable and convenient, the garlic peeling operation can be realized conveniently and quickly, and the garlic cloves are less damaged during the garlic peeling process.

Description of drawings

The present utility model will be further described below in conjunction with the accompanying drawings and embodiments.

FIG. 1 is a schematic structural diagram of the preferred embodiment of the present invention.

Figure 2 is a top view of the preferred embodiment of the present invention.

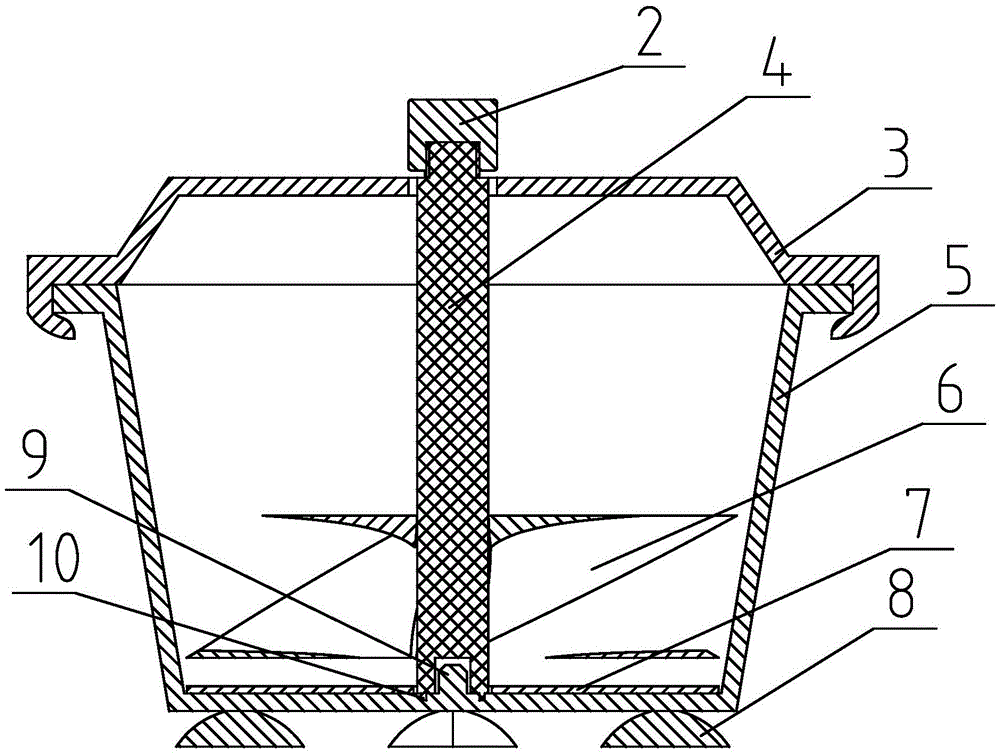

FIG. 3 is a cross-sectional view of A-A in FIG. 2 .

In the figure 1. Rotating handle 2, rocker 3, upper cover 4, rotating rod 5, cup body 6, spiral blade 7, chassis 8, suction cup 9, rotating support point 10, plug ring.

Detailed ways

The present utility model will now be described in further detail in conjunction with the accompanying drawings. These drawings are all simplified schematic diagrams, and only illustrate the basic structure of the present invention in a schematic manner, so they only show the structures related to the present invention.

A household garlic peeling device as shown in FIGS. 1 to 3 is the preferred embodiment of the present invention, including a cup body 5 , an upper cover 3 , a chassis 7 , a rotating rod 4 and several spiral blades 6 . The inside of the cup body 5 is hollow with an inner cavity, and the top has an opening, and a plurality of suction cups 8 are fixed on the bottom surface of the cup body 5 . In actual design, in order to bear the force evenly, four suction cups 8 evenly distributed on the bottom surface of the cup body 5 may be preferably designed. At the same time, in order to facilitate the observation of the progress of peeling garlic, the cup body 5 is made of transparent material.

The upper cover 3 and the top of the cup body 5 are movably matched and pressed. In the design, the upper cover 3 and the top of the cup body 5 can be designed as a snap-on structure that can be opened and closed. When peeling the garlic, open the upper cover 3 and put in the garlic cloves, close the upper cover 3 and continue the operation, so as to avoid the irritating gas and juice generated during the garlic peeling process from scattering and splashing and affecting the human body.

The chassis 7 is correspondingly fixed on the bottom of the inner cavity of the cup body 5 , and the lower end of the rotating rod 4 penetrates the chassis 7 and is rotatably connected to the bottom of the inner cavity of the cup body 5 . In order to facilitate the stable rotation of the rotating rod 4 along its center line, a fulcrum is provided for the lower bottom surface of the rotating rod 4, and the bottom of the inner cavity of the cup body 5 has a rotating support point protruding from the rotating connection position of the lower end of the rotating rod 4 9. The bottom of the inner cavity of the cup body 5 has an annular insertion groove concave downwards at 9 circumferences corresponding to the rotation support point, and the lower bottom surface of the rotation rod 4 corresponds to the rotation support point 9 with a rotation hole for the rotation support point 9 to be embedded. , the lower bottom surface of the rotating rod 4 is also matched with a protruding plug ring 10 corresponding to the annular plug groove.

The upper end of the rotating rod 4 penetrates and protrudes from the top of the upper cover 3 . In order to facilitate the rotation of the rotating rod 4, the top of the rotating rod 4 is fixed with a rocker 2 for manual rotation. One end of the rocker 2 is fixed to the top of the rotating rod 4, and the other end is rotatably connected with a rotating handle 1. .

The helical blades 6 are rotatably fixed on the outer peripheral surface of the lower part of the rotating rod 4 at intervals. The spiral blades 6 and the chassis 7 are both made of silica gel material. The degree of softness of the spiral blade 6 is gradually reduced from top to bottom, so as to obtain a good buffer effect, and at the same time, the pressure of the contact surfaces at both ends of the garlic clove is changed, and finally the purpose of gradually increasing the friction force is achieved. The angle of the helical blade 6 is determined by the change of the inclination angle of the tangent plane, and the number of the helical angle may preferably be 40°˜60°. The function of the spiral blade 6 and the chassis 7 made of silicone material is to increase friction. The chassis 7 is fixed at the bottom of the cup body 5, and when the rotating rod 4 rotates and drives the spiral blade 6 to rotate, the garlic clove garlic skin rubs between the spiral blade 6 and the chassis 7, the outer wall that contacts the spiral blade 6 and the garlic skin that contacts the chassis 7. There is a reverse friction force on the surface, which makes the garlic peel off. The silicone material at the lowest end of the spiral blade 6 is relatively soft, and the critical condition for the softness is that when the spiral blade 6 rotates, the friction between the spiral blade 6 and the chassis 7 can make the garlic skin peel off from the garlic clove.

Work steps:

1. Open the top cover 3;

2. Put the broken garlic cloves into the cup body 5;

3. Close the upper cover 3 and install the rocker 2 on the rotating rod 4;

4. Turn the joystick 2 clockwise;

5. Rotate for a certain time, the garlic skin of the garlic clove is peeled off by the spiral blade 6 and the chassis 7;

6. The work of peeling garlic is completed.

The thus designed household garlic peeling device has simple and reasonable structure design, low production cost and good market prospect. The cup body 5 is fixed to the desktop by the suction cup 8, which is convenient to fix, and skillfully utilizes the friction force between the spiral blade 6 and the chassis 7, and uses the friction force generated on the surface of the garlic clove to remove the garlic skin by the relative rotation of the chassis 7 and the spiral blade 6. By rotating the screw blade 6, relative rotation occurs between the screw blade 6 and the chassis 7. After the garlic skin of the garlic clove rubs against the screw blade 6 and the chassis 7, the garlic skin is peeled off from the garlic clove by the screw blade 6 and the chassis 7. The garlic peeling process is stable and convenient, and the garlic peeling operation can be realized conveniently and quickly. Compared with the common method of peeling garlic which relies on mutual squeezing of garlic cloves, this scheme does not require squeezing between garlic cloves, the damage to the garlic cloves is small, the peeled garlic cloves are more complete, and the loss of juice is reduced.

Taking the above ideal embodiment according to the present invention as inspiration, through the above description, relevant staff can make various changes and modifications without departing from the technical idea of the present invention. The technical scope of the present utility model is not limited to the content in the description, and its technical scope must be determined according to the scope of the claims.

Claims (6)

1. A household garlic peeling device is characterized in that: comprising a cup body (5), an upper cover (3), a chassis (7), a rotating rod (4) and several helical blades (6), the cup body ( 5) The interior is hollow with an inner cavity, and the top has an opening. A number of suction cups (8) are fixed on the bottom surface of the cup body (5); , the chassis (7) is correspondingly fixed at the bottom of the inner cavity of the cup body (5), the lower end of the rotating rod (4) penetrates the chassis (7) and is rotatably connected with the bottom of the inner cavity of the cup body (5), and the rotating rod (4) The upper end penetrates and protrudes from the top of the upper cover (3), the helical blade (6) is fixed on the outer peripheral surface of the lower part of the rotating rod (4) by rotation at intervals, and the helical blade (6) goes from top to bottom The degree of softness gradually decreases. 2. A household garlic peeling device according to claim 1, characterized in that: the cup body (5) is made of transparent material. 3. A household garlic peeling device as claimed in claim 1, characterized in that: the spiral blade (6) and the chassis (7) are both made of silica gel material. 4. A household garlic peeling device as claimed in claim 1, characterized in that: a rocker (2) for manual rotation is fixed on the top of the rotating rod (4), and one end of the rocker (2) is fixed. A rotating handle (1) is fixed on the top of the rotating rod (4), and the other end is rotatably connected. 5. A household garlic peeling device as claimed in claim 1, characterized in that: the bottom of the inner cavity of the cup body (5) protrudes with a rotating support point ( 9), the bottom of the inner cavity of the cup body (5) corresponding to the rotation support point (9) circumferentially concavely has an annular insertion groove, and the lower bottom surface of the rotation rod (4) corresponding to the rotation support point (9) has a The rotating support point (9) is matched with the embedded rotating hole, and the lower bottom surface of the rotating rod (4) is also matched with a protruding inserting ring (10) corresponding to the annular inserting groove. 6. A household garlic peeling device according to claim 1, characterized in that: the helical angle of the helical blade (6) is 40° to 60°.
