Abstract

The utility model relates to the technical field of electric motor, and disclose mine electromechanical device motor with heat radiation structure, rotate the rotor shaft of connection inside the organism including the organism and through first fixing base and second fixing base, the outside of organism is fixed to have cup jointed the shell, and the organism lateral surface is provided with and is located the inboard copper pipe of shell, the rotor shaft extends the outside one end cover of second fixing base and is equipped with the water pump of fixed mounting on the second fixing base, and the rotor shaft extends the outside one end fixed cover of water pump and is equipped with the flabellum, one side of organism is through the dead lever fixedly connected with heat dissipation case that is located second fixing base both sides. This motor for mine electromechanical device with heat radiation structure can make the heat that the coil produced in time scatter and disappear through set up the radiating groove in the outside of organism, avoids the heat gathering, utilizes the copper pipe can in time absorb the heat of running out simultaneously, carries out the heat transfer through the inside coolant liquid of copper pipe and cools down, improves the radiating effect of motor.

Description

Mine electromechanical device motor with heat radiation structure
Technical Field
The utility model relates to the technical field of motors, specifically be motor for mine electromechanical device with heat radiation structure.
Background
When mining, electromechanical equipment is required to be installed for conveying, wherein the electromechanical equipment mainly uses a motor as a driving force, and the motor needs to operate for a long time, so that the requirement on the heat dissipation performance of the motor is high.
Present partial motor adopts forced air cooling and water-cooling mode to dispel the heat to the motor, because the dust in the mine operation environment is more, require than higher to the leakproofness of motor, adopt the forced air cooling mode to dispel the heat and can lead to the heat that the inside coil of motor produced can not in time scatter and disappear, the radiating effect of motor is relatively poor, and when adopting water-cooling mode to dispel the heat to the motor, the circulation of rivers need additionally to increase drive power drive water pump and fan and carry and cool down moisture respectively with the cooling, the energy is more wasted.
SUMMERY OF THE UTILITY MODEL
The utility model provides a not enough to the background art, the utility model provides a motor for mine electromechanical device with heat radiation structure has solved the problem that above-mentioned background art provided.
The utility model provides a following technical scheme: the motor with the heat dissipation structure for the mining electromechanical equipment comprises a machine body and a rotor shaft which is rotatably connected inside the machine body through a first fixed seat and a second fixed seat, wherein the outer side of the machine body is fixedly sleeved with a shell, the outer side of the machine body is provided with a copper pipe positioned at the inner side of the shell, one end of the rotor shaft extending out of the second fixed seat is sleeved with a water pump fixedly arranged on the second fixed seat, and the end of the rotor shaft extending out of the water pump is fixedly sleeved with fan blades, one side of the machine body is fixedly connected with a heat dissipation box through fixing rods positioned at the two sides of the second fixing seat, the top of the heat dissipation box is communicated with the top of the water pump through a first connecting pipe, and one side of the heat dissipation box is communicated with the top end of the copper pipe extending out of the machine body through a second connecting pipe, and the bottom of the water pump is communicated with the bottom end of the copper pipe extending out of the machine body through a third connecting pipe.
Preferably, the outer side surface of the machine body is provided with a heat dissipation groove.
Preferably, the copper pipe and the heat dissipation box are both filled with cooling liquid.
Preferably, the sealing plugs are filled in the inner parts of the machine body, which are positioned at the two ends of the copper pipe.
Preferably, the number of the fixing rods is two, and the two fixing rods are symmetrically distributed on two sides of the second fixing seat.
The utility model discloses possess following beneficial effect:
1. this motor for mine electromechanical device with heat radiation structure can make the heat that the coil produced in time scatter and disappear through set up the radiating groove in the outside of organism, avoids the heat gathering, utilizes the copper pipe can in time absorb the heat of running out simultaneously, carries out the heat transfer through the inside coolant liquid of copper pipe and cools down, improves the radiating effect of motor.
2. This motor for mine electromechanical device with heat radiation structure uses through the cooperation of rotor shaft, water pump, flabellum and dead lever for the motor can directly drive water pump and flabellum and rotate under the drive of self, realizes the transport and the cooling to the coolant liquid simultaneously, and this motor needn't additionally increase drive power drive water pump and flabellum, and the comparison energy saving.
Drawings

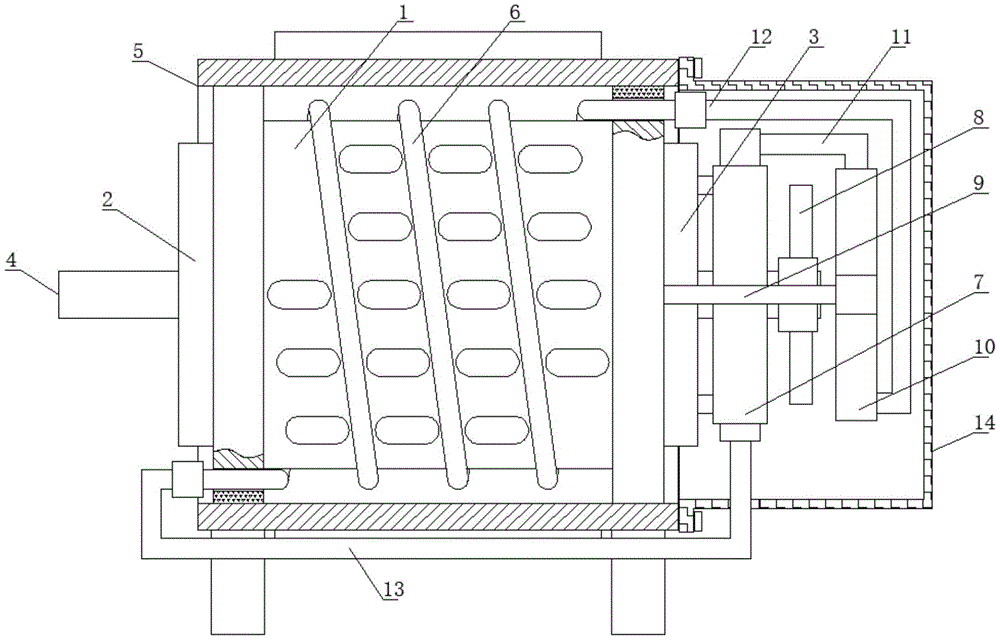

FIG. 1 is a schematic structural view of the present invention;
fig. 2 is a schematic side view of the structure of the present invention.
In the figure: 1. a body; 2. a first fixed seat; 3. a second fixed seat; 4. a rotor shaft; 5. a housing; 6. a copper pipe; 7. a water pump; 8. a fan blade; 9. fixing the rod; 10. a heat dissipation box; 11. a first connecting pipe; 12. a second connecting pipe; 13. and a third connecting pipe.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
The embodiment of the utility model provides an in the attached drawing: the different types of hatching in the figures are not given the national standards, do not require the material of the elements, and distinguish between cross-sectional views of the elements in the figures.
Referring to fig. 1-2, a motor for mining electromechanical equipment with a heat dissipation structure includes a machine body 1 and a rotor shaft 4 rotatably connected to the interior of the machine body 1 through a first fixing seat 2 and a second fixing seat 3, a housing 5 is fixedly sleeved on the outer side of the machine body 1, a copper pipe 6 is disposed on the outer side of the machine body 1 and located on the inner side of the housing 5, a water pump 7 fixedly mounted on the second fixing seat 3 is sleeved on one end of the rotor shaft 4 extending out of the second fixing seat 3, a fan blade 8 is fixedly sleeved on one end of the rotor shaft 4 extending out of the water pump 7, a heat dissipation box 10 is fixedly connected to one side of the machine body 1 through a fixing rod 9 located on the two sides of the second fixing seat 3, the top of the heat dissipation box 10 is communicated with the top of the water pump 7 through a first connecting pipe 11, and one side of the heat, the bottom of the water pump 7 is communicated with the bottom end of the copper pipe 6 extending out of the machine body 1 through a third connecting pipe 13.
Wherein, the outer side of the machine body 1 is provided with a heat dissipation groove.
Wherein, the inside of copper pipe 6 and heat dissipation case 10 all is equipped with the coolant liquid, utilizes the coolant liquid can in time absorb the heat of conducting to on the copper pipe 6, improves thermal dissipation efficiency.
Wherein, the inside packing that organism 1 is located 6 both ends of copper pipe has the sealing plug, utilizes the sealing plug can prevent that the dust from carrying out the inside of motor, influences the normal drive of motor.
Wherein, the quantity of dead lever 9 is two, and two dead levers 9 symmetric distribution utilize dead lever 9 to carry out spacing fixed to heat dissipation case 10 in the both sides of second fixing base 3, and heat dissipation case 10 produces when preventing motor drive rocks, causes to produce between heat dissipation case 10 and first connecting pipe 11 and the second connecting pipe 12 not hard up, causes the coolant liquid to run off.
When the motor works, the rotor shaft 4 is switched on to rotate, the rotor shaft 4 rotates and simultaneously drives the water pump 7 and the fan blades 8 to rotate, heat generated by rotation of the rotor shaft 4 is dissipated through the radiating grooves, the dissipated heat is conducted and absorbed through the copper pipes 6, meanwhile, the heat absorbed by the copper pipes 6 is transferred to cooling liquid, the cooling liquid is driven by the water pump 7 to circularly flow, and when the cooling liquid flows into the radiating box 10, the cooling liquid in the radiating box 10 is cooled by the fan blades 8.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims (5)

1. Motor for mine electromechanical device with heat radiation structure, including organism (1) and rotate rotor shaft (4) of connection in organism (1) inside through first fixing base (2) and second fixing base (3), its characterized in that: a shell (5) is fixedly sleeved on the outer side of the machine body (1), a copper pipe (6) positioned on the inner side of the shell (5) is arranged on the outer side surface of the machine body (1), one end of the rotor shaft (4) extending out of the second fixed seat (3) is sleeved with a water pump (7) fixedly arranged on the second fixed seat (3), and one end of the rotor shaft (4) extending out of the water pump (7) is fixedly sleeved with a fan blade (8), one side of the machine body (1) is fixedly connected with a heat dissipation box (10) through fixing rods (9) positioned at the two sides of the second fixing seat (3), the top of the heat dissipation box (10) is communicated with the top of the water pump (7) through a first connecting pipe (11), one side of the heat dissipation box (10) is communicated with the top end of the copper pipe (6) extending out of the machine body (1) through a second connecting pipe (12), the bottom of the water pump (7) is communicated with the bottom end of the copper pipe (6) extending out of the machine body (1) through a third connecting pipe (13).
2. The motor for mining electromechanical equipment having a heat dissipation structure according to claim 1, characterized in that: the outer side surface of the machine body (1) is provided with a heat dissipation groove.
3. The motor for mining electromechanical equipment having a heat dissipation structure according to claim 1, characterized in that: and cooling liquid is contained in the copper pipe (6) and the heat dissipation box (10).
4. The motor for mining electromechanical equipment having a heat dissipation structure according to claim 1, characterized in that: the sealing plugs are filled in the machine body (1) at the two ends of the copper pipe (6).
5. The motor for mining electromechanical equipment having a heat dissipation structure according to claim 1, characterized in that: the number of the fixing rods (9) is two, and the two fixing rods (9) are symmetrically distributed on two sides of the second fixing seat (3).
