CN211739646U - Defrosting plate for refrigerator - Google Patents

Abstract

The utility model discloses a defrosting plate for a refrigerator, which relates to the technical field of refrigerators. The utility model comprises a refrigerator box, an evaporator compartment is divided into the inside of the refrigerator box by a partition plate; a plurality of air outlets are opened on the top and side of the partition plate, and the bottom end of the partition plate and the refrigerator box body form a return air outlet; the evaporator compartment; A fan, an evaporator and a defrosting heater are installed in sequence from top to bottom; a defrosting plate is fixedly installed on the side of the evaporator bin away from the partition; heat pipe. The utility model transmits the cold energy generated by the evaporator or the heat generated by the defrosting heater to the upper space of the evaporator bin during refrigeration or when the evaporator is defrosted through the defrosting plate and the heat conducting pipe; Improve the defrosting efficiency of the air-cooled refrigerator; and avoid the problem of a sharp rise in the temperature of the compartment.

Description

A kind of defrosting plate for refrigerator

technical field

The utility model belongs to the technical field of refrigerators, in particular to a defrosting plate for refrigerators.

Background technique

The air-cooled refrigerator solves the problem that the direct-cooled refrigerator needs artificial defrosting, but the air-cooled refrigerator needs the evaporator to defrost, and the defrosting time generally takes 20 to 40 minutes, which will cause the temperature of the compartment to rise.

After the defrosting of the air-cooled refrigerator is completed, there will be a certain amount of waste hot air on the top of the evaporator compartment. After the cooling fan is started, this part of the waste heat will be directly blown into the compartment, which will further increase the temperature of the already warmed compartment. The temperature fluctuation of the compartment is enlarged; therefore, a defrosting plate for a refrigerator is urgently needed to solve this problem.

Utility model content

The purpose of this utility model is to provide a defrosting plate for refrigerators, through the defrosting plate and the heat conduction pipe, the cooling capacity generated by the evaporator or the heat generated by the defrosting heater is transferred to the evaporator during refrigeration or when the evaporator is defrosted. It solves the problem of uneven heating of the evaporator when defrosting the existing air-cooled refrigerator, resulting in a long defrosting time and a sharp rise in the temperature of the compartment caused by the residual waste heat during cooling.

In order to solve the above-mentioned technical problems, the utility model is realized through the following technical solutions:

The utility model relates to a defrosting plate for a refrigerator, which comprises a refrigerator box body, an evaporator compartment is partitioned in the inside of the refrigerator box body by a partition plate; The bottom end of the refrigerator and the refrigerator box form a return air outlet; the evaporator bin is sequentially installed with a fan, an evaporator and a defrosting heater from top to bottom;

A defrosting plate is fixedly installed on the side of the evaporator bin away from the partition plate; and a number of vertically downward heat-conducting pipes are fixedly installed on the side of the defrosting plate close to the evaporator.

Further, the size of the defrosting plate is adapted to the side surface of the evaporator bin.

Further, the defrosting plate is fixedly installed on the top of the back of the evaporator bin.

The utility model has the following beneficial effects:

1. When the utility model defrosts the evaporator through the defrosting plate and the heat conducting pipe, the heat generated by the defrosting heater is rapidly conducted to the upper end of the evaporator, so that the evaporator is evenly heated, and the phenomenon that the upper part of the evaporator is cooled and the lower part is heated is avoided. occurs, improving the defrosting efficiency of the evaporator.

2. The utility model transfers the cooling capacity generated by the evaporator to the upper space of the evaporator bin during refrigeration through the defrosting plate and the heat conducting pipe, and absorbs the waste heat generated by the defrosting heater; it avoids the waste heat being blown after the fan is started. into the compartment, resulting in a rapid increase in the temperature of the compartment.

Of course, any product implementing the present invention does not necessarily need to simultaneously achieve all of the above-mentioned advantages.

Description of drawings

In order to illustrate the technical solutions of the embodiments of the present invention more clearly, the following briefly introduces the accompanying drawings used in the description of the embodiments. Obviously, the accompanying drawings in the following description are only some embodiments of the present invention. For those of ordinary skill in the art, other drawings can also be obtained from these drawings without creative effort.

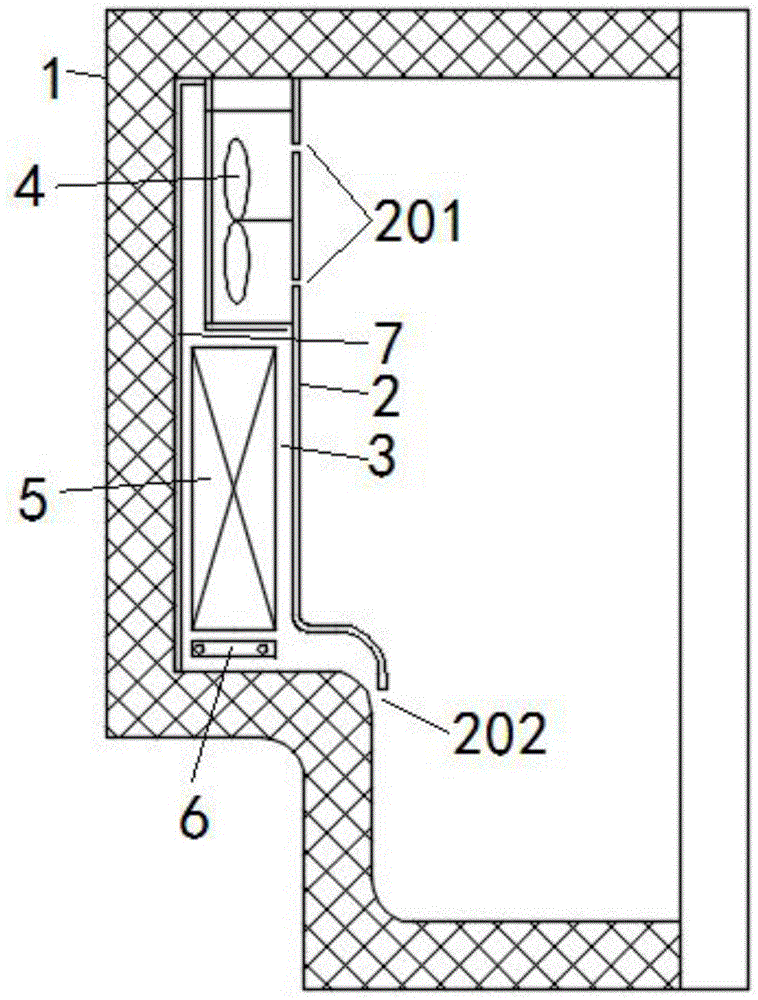

1 is a schematic diagram of the interior installation of a defrosting plate of the present invention in a refrigerator box;

Fig. 2 is the structural representation of the defrosting plate of the utility model;

In the accompanying drawings, the list of components represented by each number is as follows:

1-refrigerator box, 2-partition, 3-evaporator bin, 4-fan, 5-evaporator, 6-defrost heater, 7-defrost plate, 701-heat pipe, 201-air outlet, 202 -Return air outlet.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

In the description of the present invention, it should be understood that the terms "close", "open", "lower", "upper", "inside", "side", etc. indicate orientation or positional relationships, and are only for the convenience of describing the present invention. The utility model and the simplified description, rather than indicating or implying that the components or elements referred to must have a particular orientation, be constructed and operate in a particular orientation, should not be construed as limiting the invention.

As shown in Figures 1-2, the utility model is a defrosting plate for a refrigerator, comprising a refrigerator box 1, and an evaporator compartment 3 is separated from the inside of the refrigerator box 1 by a partition 2; There are several air outlets 201, and the bottom end of the partition 2 and the refrigerator box 1 form a return air outlet 202; the evaporator compartment 3 is sequentially installed with a fan 4, an evaporator 5 and a defrosting heater 6 from top to bottom;

A defrosting plate 7 is fixedly installed on the side of the evaporator bin 3 away from the partition plate 2; a number of vertically downward heat-conducting pipes 701 are fixedly installed on the side of the defrosting plate 7 close to the evaporator 5; The regular or irregular concave-convex structure is designed on the top to enhance the heat exchange effect; in order to save costs, the heat transfer pipe 701 will not be installed on the defrost plate 7; but this effect is not as high as the heat or cold heat transfer effect of the heat pipe 701 installed .

The size of the defrosting plate 7 is adapted to the side of the evaporator compartment 3; the defrosting plate 7 is a rectangle or a diamond shape, and the specific shape and structure are selected according to the actual use requirements; the defrosting plate 7 and the back top liner of the evaporator compartment 3 Adhere to each other and completely cover the space position of the back and top of the evaporator bin 3, that is, the defrost plate 7 is fixedly installed on the top of the back of the evaporator bin 3; the gravity direction of the heat pipe 701 is the vertical direction, and the heat pipe 701 can speed up Realize the transfer of heat and cold in the vertical direction.

When the evaporator is defrosting, the defrosting plate 7 and the heat transfer pipe 701 can quickly conduct heat or transfer the heat generated by the bottom defrosting heater 6 to the upper end or top of the evaporator 5, so that the evaporator 5 is heated evenly and avoids the need for the evaporator to be heated. 5. The phenomenon of upper cooling and lower heating occurs; effectively improving the defrosting efficiency of evaporator 5 and air-cooled refrigerators;

After defrosting, the evaporator 5 starts to cool first, and the fan 4 starts with a delay; The waste heat remaining in the upper space of the evaporator bin 3 avoids the problem that the waste heat is blown into the compartment after the fan 4 is started, resulting in a rapid rise in the temperature of the compartment.

In the description of this specification, description with reference to the terms "one embodiment", "example", "specific example", etc. means that a specific feature, structure, material or characteristic described in connection with the embodiment or example is included in the present invention. in at least one embodiment or example. In this specification, schematic representations of the above terms do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.

The preferred embodiments of the present invention disclosed above are only used to help illustrate the present invention. The preferred embodiments do not describe all the details, nor do they limit the invention to only the described embodiments. Obviously, many modifications and variations are possible in light of the content of this specification. This specification selects and specifically describes these embodiments in order to better explain the principle and practical application of the present invention, so that those skilled in the art can well understand and utilize the present invention. The present invention is limited only by the claims and their full scope and equivalents.

Claims (3)

1. A defrosting plate for a refrigerator comprises a refrigerator body (1), wherein an evaporator bin (3) is separated from the interior of the refrigerator body (1) through a partition plate (2); a plurality of air outlets (201) are formed in the side face of the top of the partition plate (2), and an air return opening (202) is formed between the bottom end of the partition plate (2) and the refrigerator body (1); the evaporator bin (3) is sequentially provided with a fan (4), an evaporator (5) and a defrosting heater (6) from top to bottom; the method is characterized in that:

a defrosting plate (7) is fixedly arranged on the side surface of the evaporator bin (3) far away from the partition plate (2); and a plurality of vertically downward heat conducting pipes (701) are fixedly arranged on the side surface of the defrosting plate (7) close to the evaporator (5).

2. A defrosting plate for a refrigerator according to claim 1 characterized in that the size of the defrosting plate (7) is adapted to the side of the evaporator bin (3).

3. A defrosting plate for a refrigerator according to claim 1 characterized in that the defrosting plate (7) is fixedly installed on the top of the back of the evaporator bin (3).
