Abstract

The utility model relates to the technical field of low-light energy street lamps, and discloses a high-performance low-light energy street lamp with multi-angle light emission, which solves the problem that the street lamps currently used use commercial power to provide electric energy, the construction cost is high, and the electricity consumption is huge. The street lights are generally fixed in one place and cannot be effectively used for mobile use. They include a base. The four corners of the base are installed with moving legs and support legs. The top of the base is fixedly installed with a main pole. A secondary pole is movably installed on the top of the main pole, a bearing is fixedly installed on the top of the auxiliary pole, a support pole is fixedly installed on the top of the bearing, and a wind turbine is installed on the top of the support pole; this multi-angle light-emitting high-performance low-light energy street light can The use of solar energy and wind energy for power generation can effectively achieve environmental protection, and the construction cost is low and the electricity consumption is small. Stablize.

Description

A high-performance low-light energy street light with multi-angle lighting

technical field

The utility model belongs to the technical field of low-light street lamps, in particular to a high-performance low-light energy street lamp with multi-angle lighting.

Background technique

Low-light street light refers to an independent distributed power supply system, which is not subject to geographical restrictions, and is not affected by local power installations. It does not consume mains electricity, is environmentally friendly and saves energy, and has good comprehensive economic benefits. It is especially convenient to add solar street lights to the roads that have been built. Especially in the application of road lights, outdoor billboards, and bus stops far away from the power grid, its economic benefits are more obvious, and it is in line with the planning of urban development.

The street lamps currently used use mains electricity to provide electricity, which has high construction cost and huge power consumption. At the same time, the current street lamps are generally fixed in one place and cannot be used effectively. Therefore, according to the current situation, it is necessary to carry out Improve.

SUMMARY OF THE INVENTION

In view of the above situation, in order to overcome the defects of the prior art, the utility model provides a high-performance low-light energy street lamp with multi-angle light emission, which effectively solves the problem that the street lamp currently used uses the mains to provide electric energy, the construction cost is high, and the electricity consumption is high. At the same time, the current street lights are generally fixed in one place and cannot be effectively used for mobile use.

In order to achieve the above purpose, the present invention provides the following technical solutions: a high-performance low-light energy street lamp with multi-angle lighting, including a base, four corners of the base are installed with moving legs and support legs, the top of the base is The main pole is fixedly installed, the auxiliary pole is movably installed on the top of the main pole, the bearing is fixedly installed on the top of the auxiliary pole, the support pole is fixedly installed on the top of the bearing, the wind generator is installed on the top of the support pole, and the upper part of the auxiliary pole is provided with Installation slot, both sides of the top of the installation slot are movably installed with lighting bodies, the tops of the two lighting bodies are installed with solar power panels, and both sides of the bottom of the installation slot are installed with adjustment mechanisms. One side of the bottom of the lighting body is movably connected, a cavity is opened inside the base, and a battery is installed inside the cavity. Connected, stabilizer bars are installed on both sides of the lower part of the main pole.

Preferably, each of the four moving legs includes a first screw rod, a first turntable and a support foot, the first turntable and the support foot are fixedly installed on both ends of the first screw rod, and the four first screw rods are respectively screwed on the base of the base. at the four corners.

Preferably, the four support legs comprise a second screw rod, a second turntable and a universal wheel, the four second screw rods are respectively screwed to the four corners of the base, the second turntable is fixedly installed on one end of the second screw rod, the universal wheel is The direction wheel is movably installed on the other end of the second screw.

Preferably, the stabilizer bar includes a first internally threaded pipe, a first threaded shaft and a fixing foot, the first threaded shaft is threadedly connected inside the first internally threaded pipe, and one end of the first internally threaded pipe is movable with the surface of the main rod connected, the fixed foot is movably installed on the other end of the first threaded shaft.

Preferably, there are moving grooves on both sides of the surface of the auxiliary rod, a rack is fixedly installed on one side of the inner cavity of the auxiliary rod, the upper part of the inner cavity of the main rod is movably installed with a rotating shaft through the two moving grooves, and the middle part of the rotating shaft is installed. A gear is fixedly installed, the gear meshes with the rack, a first motor is fixedly installed on the upper part of the surface of the main rod, the output end of the first motor is fixedly connected with one end of the rotating shaft, and the first motor and the battery are electrically connected by wires.

Preferably, both of the two adjusting mechanisms include a second motor, a second threaded shaft and a second internally threaded pipe, the second motor is movably installed at the bottom of the installation slot through a movable shaft, and one end of the second threaded shaft is connected to the second motor The output end of the second inner threaded pipe is fixedly connected, one end of the second inner threaded pipe is movably connected to one side of the bottom of the illuminating lamp body, and the other end of the second threaded shaft is threadedly connected inside the second inner threaded pipe.

Compared with the prior art, the beneficial effects of the present utility model are:

1. During operation, the multi-angle light-emitting high-performance low-light energy street light can use solar energy and wind energy to generate electricity by being provided with a base, a wind turbine, an installation slot, a solar power panel, an adjustment mechanism, a cavity and a battery. , can effectively achieve the effect of environmental protection, and the construction cost is low, and the power consumption is small; when it is sunny, the battery can be charged by the solar power panel, and when it is charged by the solar power panel, the two adjustment mechanisms can be used. The angle of the two lighting bodies is adjusted so that it drives the two solar panels to maintain an effective irradiation angle with the sunlight. At night, the two lighting bodies can be adjusted by two adjustment mechanisms (in the cavity). There is a controller and program programming installed inside the device), when it is cloudy or rainy, the battery is charged through the wind generator;

2. By being provided with moving legs, supporting legs, main poles, auxiliary poles, stabilizer poles, moving slots, racks, rotating shafts, gears and the first motor, this multi-angle light-emitting high-performance low-light energy street light can be effectively carried out. Adjust and move, and can effectively maintain stability; when the street light needs to be moved, firstly, by starting the first motor, the auxiliary rod is retracted to the inside of the main rod through the rack and gear, and then the stabilizer rod is adjusted and retracted, and finally Rotate the moving leg and the supporting leg so that the moving leg is in contact with the ground, so that the bottom of the supporting leg is far away from the ground, so that the street light can be moved effectively.

Description of drawings

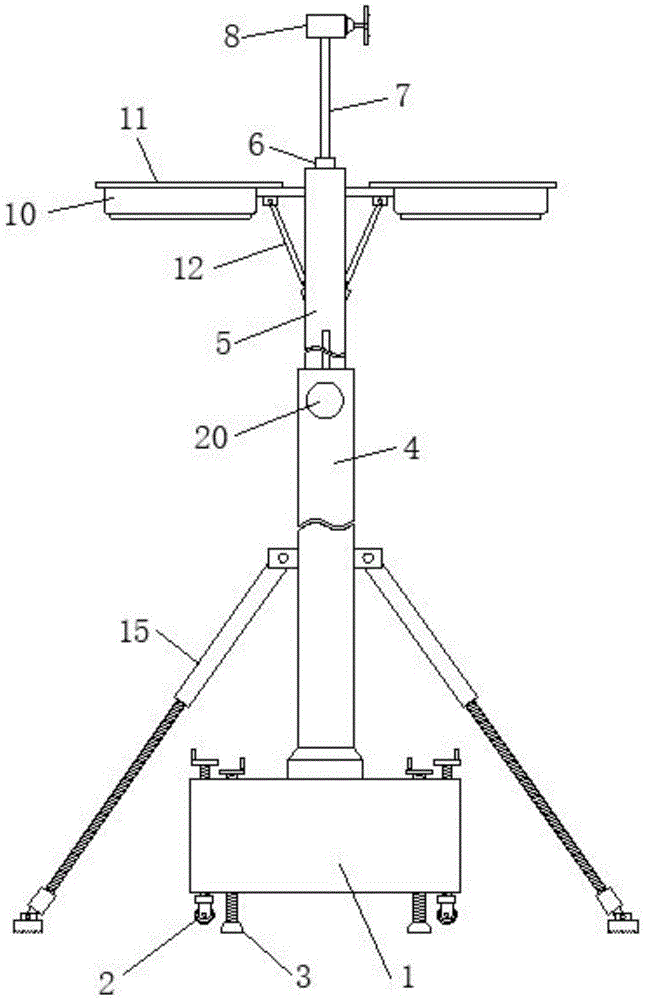

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the sectional structure schematic diagram of the base of the present invention;

Fig. 3 is the partial cross-sectional structural schematic diagram of the main rod and the auxiliary rod of the present invention;

FIG. 4 is a schematic view of the upper cross-sectional structure of the auxiliary rod of the present invention.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. For example; based on the embodiments of the present invention, all other embodiments obtained by persons of ordinary skill in the art without creative work shall fall within the protection scope of the present invention.

Embodiment 1, as shown in Figure 1, Figure 2, Figure 3 and Figure 4, the utility model includes a base 1, the four corners of the base 1 are installed with moving legs 2 and support legs 3, the top of the base 1 is fixed The main rod 4 is installed, the top of the main rod 4 is movably installed with the auxiliary rod 5, the top of the auxiliary rod 5 is fixedly installed with a bearing 6, the top of the bearing 6 is fixedly installed with a support rod 7, and the top of the support rod 7 is installed with a wind turbine 8. An installation slot 9 is provided on the upper part of the auxiliary rod 5. The two sides of the top of the installation slot 9 are movably installed with lighting lamp bodies 10, and the tops of the two lighting lamp bodies 10 are installed with solar power panels 11. The installation of the solar panel 11 and the solar power generation panel 11 enables it to provide power to the street lamp. Both sides of the bottom of the installation slot 9 are installed with an adjustment mechanism 12. The setting of the adjusting mechanism 12 can effectively adjust the angle of the lamp body 10 . The base 1 is provided with a cavity 13 , and a battery 14 is installed inside the cavity 13 . The installation of the battery 14 can effectively store electricity. , the wind generator 8 , the lighting body 10 , the solar power generation panel 11 and the adjustment mechanism 12 are all electrically connected with the battery 14 through wires, and the lower sides of the main pole 4 are installed with stabilizer bars 15 .

Embodiment 2, on the basis of Embodiment 1, as shown in FIG. 2 , the four moving legs 2 each include a first screw rod, a first turntable and a support foot, and the first turntable and the support foot are fixedly installed on two sides of the first screw rod. The four first screws are respectively screwed to the four corners of the base 1, and the first screws, the first turntable and the supporting feet can effectively move the street light.

Embodiment 3, on the basis of Embodiment 1, as shown in FIG. 2 , the four support legs 3 include a second screw rod, a second turntable and a universal wheel, and the four second screw rods are respectively screwed to the four corners of the base 1 . The second turntable is fixedly installed at one end of the second screw rod, and the universal wheel is movably installed at the other end of the second screw rod. support.

Embodiment 4, on the basis of Embodiment 1, as shown in FIG. 2 , the stabilizer bar 15 includes a first inner threaded pipe, a first threaded shaft and a fixing foot, and the first threaded shaft is threadedly connected inside the first inner threaded pipe. , one end of the first inner threaded pipe is movably connected to the surface of the main rod 4, and the fixing foot is movably installed on the other end of the first threaded shaft. Street lights can be effectively kept stable when in use.

Embodiment 5, on the basis of Embodiment 1, as shown in Figures 1 and 3, there are moving grooves 16 on both sides of the surface of the auxiliary rod 5, and a rack 17 is fixedly installed on one side of the inner cavity of the auxiliary rod 5. , the upper part of the inner cavity of the main rod 4 is movably installed with a rotating shaft 18 through two moving grooves 16, the middle part of the rotating shaft 18 is fixedly installed with a gear 19, the gear 19 is meshed with the rack 17, and the upper part of the surface of the main rod 4 is fixedly installed with a first The motor 20, the output end of the first motor 20 is fixedly connected to one end of the rotating shaft 18, the first motor 20 and the battery 14 are electrically connected by wires, and the first motor 20 and the battery 14 are electrically connected through the moving slot 16, the rack 17, the rotating shaft 18, the gear 19 and the first The arrangement of the motor 20 enables the sub-rod 5 to effectively move up and down.

Embodiment 6, on the basis of Embodiment 1, as shown in FIG. 4 , the two adjusting mechanisms 12 each include a second motor 1201 , a second threaded shaft 1202 and a second internally threaded pipe 1203 , and the second motor 1201 passes through the movable shaft. It is movably installed at the bottom of the installation slot 9, one end of the second threaded shaft 1202 is fixedly connected to the output end of the second motor 1201, one end of the second inner threaded pipe 1203 is movably connected to one side of the bottom of the lighting body 10, and the first The other end of the two threaded shafts 1202 is threadedly connected to the inside of the second internally threaded pipe 1203 , and through the arrangement of the second motor 1201 , the second threaded shaft 1202 and the second internally threaded pipe 1203 , it can stably and effectively connect to the lamp body 10 . Make adjustments.

In this embodiment, the second motor 1201 adopts a ZA-68KTYZ forward-reverse motor, and the first motor 20 adopts a 6M200GU-C forward-reverse motor.

Working principle: when it is sunny, the battery 14 can be charged by the solar power generation panel 11, and when the solar power generation panel 11 is charged, the angle of the two lighting lamp bodies 10 can be adjusted by the two adjustment mechanisms 12, so that the It drives the two solar power panels 11 to maintain an effective irradiation angle with the sunlight, and at night, the two illuminating lamp bodies 10 can be adjusted by the two adjusting mechanisms 12 (a controller and a controller are installed inside the cavity 13 ). Program programming), when it is cloudy or rainy, the battery 14 is charged by the wind generator 8; when the street light needs to be moved, firstly by starting the first motor 20, the auxiliary rod 5 is retracted through the rack 17 and the gear 19 Go to the inside of the main pole 4, then adjust and shrink the stabilizer bar 15, and finally rotate the moving leg 2 and the supporting leg 3 respectively, so that the moving leg 2 is in contact with the ground, so that the bottom of the supporting leg 3 is far away from the ground, so that the street light can be effectively adjusted. make a move.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. The utility model provides a luminous high performance micro-light energy street lamp of multi-angle, includes the base, its characterized in that: the solar lighting lamp comprises a base, moving legs and supporting legs are mounted at four corners of the base, a main rod is fixedly mounted at the top of the base, auxiliary rods are movably mounted at the top of the main rod, bearings are fixedly mounted at the tops of the auxiliary rods, supporting rods are fixedly mounted at the tops of the bearings, a wind driven generator is mounted at the top of each supporting rod, a mounting groove is formed in the upper portion of each auxiliary rod, lighting lamp bodies are movably mounted on two sides of the top of the mounting groove, solar power generation plates are mounted at the tops of the two lighting lamp bodies, adjusting mechanisms are mounted on two sides of the bottom of the mounting groove, one side of the top of each adjusting mechanism is movably connected with one side of the bottom of each lighting lamp body, solar panel and adjustment mechanism all are connected through the wire electrical property with the battery, and the stabilizer bar is all installed to the both sides of mobile jib lower part.

2. The multi-angle luminous high-performance micro-light energy street lamp according to claim 1, characterized in that: four the removal leg all includes first screw rod, first carousel and supporting legs, and first carousel and supporting legs fixed mounting are at the both ends of first screw rod, and four first screw rod threaded connection are in the four corners department of base respectively.

3. The multi-angle luminous high-performance micro-light energy street lamp according to claim 1, characterized in that: four the supporting leg includes second screw rod, second carousel and universal wheel, and four second screw rod threaded connection are in the four corners department of base respectively, second carousel fixed mounting in the one end of second screw rod, and universal wheel movable mounting is at the other end of second screw rod.

4. The multi-angle luminous high-performance micro-light energy street lamp according to claim 1, characterized in that: the stabilizer bar comprises a first internal thread pipe, a first threaded shaft and a fixed foot, the first threaded shaft is in threaded connection with the inside of the first internal thread pipe, one end of the first internal thread pipe is movably connected with the surface of the main rod, and the fixed foot is movably arranged at the other end of the first threaded shaft.

5. The multi-angle luminous high-performance micro-light energy street lamp according to claim 1, characterized in that: the utility model discloses a movable shaft of a crane, including the surface of mobile jib, the surface of mobile jib has a movable groove when both sides on auxiliary rod surface are all seted up, and one side fixed mounting of auxiliary rod inner chamber has the rack, and there is the pivot on the upper portion of mobile jib inner chamber through two movable groove movable mounting, and the middle part fixed mounting of pivot has the gear, and the gear meshes with the rack mutually, and the upper portion fixed mounting on mobile jib surface has first motor, and the output of first motor is connected with the one end stationary phase of pivot, and first motor is connected.

6. The multi-angle luminous high-performance micro-light energy street lamp according to claim 1, characterized in that: two adjustment mechanism all includes second motor, second threaded shaft and second internal thread pipe, and the second motor passes through loose axle movable mounting in the bottom of mounting groove, and the one end of second threaded shaft is fixed with the output of second motor to be connected, and the one end of second internal thread pipe is connected with one side activity of illumination lamp body bottom, and the other end threaded connection of second threaded shaft is in the inside of second internal thread pipe.
