Abstract

The utility model relates to the technical field of textile fabrics, and discloses a nylon antibacterial fabric, which comprises a fabric base layer, an antibacterial layer is fixedly installed at the bottom of the fabric base layer, a sweat-absorbing layer is fixedly installed at the bottom of the antibacterial layer, and the sweat-absorbing layer is fixedly installed at the bottom of the fabric base layer. An evenly distributed moisture absorption bag is fixedly installed inside the layer, an antistatic layer is fixedly installed at the bottom of the sweat-absorbing layer, and a skin-friendly layer is fixedly installed at the bottom of the antistatic layer. In the utility model, a sunscreen layer is fixedly installed on the top of the health layer, so that the fabric has anti-ultraviolet sunscreen ability, thereby avoiding the damage of ultraviolet rays to the human body. At the same time of a certain waterproof ability, it is relatively breathable and comfortable to wear. By spraying a composite wear-resistant coating on the top of the waterproof and breathable layer, the fabric is relatively wear-resistant and durable, and the durability of the fabric is relatively good, so that the fabric can achieve a relatively antibacterial effect. Good advantage.

Description

A kind of nylon antibacterial fabric

technical field

The utility model relates to the technical field of textile fabrics, in particular to a nylon antibacterial fabric.

Background technique

Fabric is the material used to make clothing. As one of the three elements of clothing, fabric can not only interpret the style and characteristics of clothing, but also directly affect the color and shape of clothing. With each passing day, but in general, high-quality, high-end fabrics are mostly comfortable to wear, sweat-absorbent, breathable, drape and stiff, visually noble, and soft to the touch.

With the continuous improvement of people's living standards, people's requirements for clothing performance continue to increase, and more and more people pay attention to the health and durability of the fabrics used to make clothing. At present, the nylon spun antibacterial fabrics on the market have the advantage of wearing comfort. However, in actual use, the antibacterial properties of the fabric are relatively poor, which will affect human health. For this reason, we propose a nylon antibacterial fabric to solve the above problems.

Utility model content

(1) Technical problems solved

In view of the deficiencies of the prior art, the utility model provides a nylon antibacterial fabric, which has the advantages of relatively good antibacterial effect and the like, and solves the problem that the antibacterial properties of the fabric are relatively poor, thereby affecting human health.

(2) Technical solutions

In order to achieve the above purpose of relatively good antibacterial effect, the utility model provides the following technical scheme: a nylon antibacterial fabric, comprising a fabric base layer, an antibacterial layer is fixedly installed at the bottom of the fabric base layer, and the bottom of the antibacterial layer is fixed The sweat-absorbing layer is installed, the inside of the sweat-absorbing layer is fixedly installed with a uniformly distributed moisture absorption bag, the bottom of the sweat-absorbing layer is fixedly installed with an anti-static layer, and the bottom of the anti-static layer is fixedly installed with a skin-friendly layer. The bottom of the skin layer is fixedly installed with a skin-friendly adsorption bag, the top of the fabric base layer is fixedly installed with a health layer, the interior of the health layer is fixedly installed with evenly distributed health care blocks, and the top of the health layer is fixedly installed with a sunscreen layer, The top of the sunscreen layer is connected with a waterproof and breathable layer, and the top of the waterproof and breathable layer is sprayed with a composite wear-resistant coating.

Preferably, support fibers are woven inside the fabric base layer, and the support fibers are composed of polyurethane fibers.

Preferably, the sweat absorbing layer is made of pure cotton material, and the moisture absorbing bag is made of super absorbent resin.

Preferably, the skin-friendly layer is composed of viscose fiber fabric, and the healthy layer is woven from pure natural plant fabric.

Preferably, the sunscreen layer is made of polyester fiber, and the health block is made of bamboo fiber.

(3) Beneficial effects

Compared with the prior art, the utility model provides a nylon antibacterial fabric, which has the following beneficial effects:

1. This nylon antibacterial fabric is fixed with an antibacterial layer at the bottom of the fabric base layer. The antibacterial layer makes the fabric have antibacterial effect, so that the fabric is always kept clean and not easy to breed bacteria and viruses, and a sweat absorbing layer is fixed at the bottom of the antibacterial layer. , so that when the sweat reaches the sweat-absorbing layer, the sweat-absorbing layer has an adsorption effect on sweat, and the inside of the sweat-absorbing layer is fixedly installed with moisture-absorbing bags arranged at equal distances, which increases the sweat-absorbing effect of the sweat-absorbing layer. The electrostatic layer makes the fabric have anti-static effect, making the fabric relatively comfortable to wear, conductive and resistant to static electricity. By fixing the skin-friendly layer at the bottom of the anti-static layer, the skin-friendly layer is relatively soft and comfortable after contacting the skin. , so that the wearing loudness of the fabric is comfortable and suitable for sensitive skin. By fixing and installing the evenly distributed skin-friendly adsorption bag at the bottom of the skin-friendly layer, the comfort of the skin-friendly layer is increased, so as to realize that the fabric is relatively comfortable to wear. The purpose is to make the fabric relatively natural and healthy by fixedly installing the health layer on the top of the base layer of the fabric, and evenly distributed health care blocks are fixedly installed inside the health layer, so that the fabric has a certain health care effect, so that when wearing the fabric, it has a certain health care effect. A certain health care effect, by fixing the sunscreen layer on the top of the health layer, the fabric has anti-ultraviolet sunscreen ability, thus avoiding the damage of ultraviolet rays to the human body. While it has a certain waterproof ability, it is relatively breathable and comfortable to wear. By spraying a composite wear-resistant coating on the top of the waterproof and breathable layer, the fabric is relatively wear-resistant and durable, making the fabric relatively durable, and then making the fabric relatively antibacterial effect. better advantage.

2. The nylon antibacterial fabric is made up of supporting fibers by setting the interior of the fabric base layer, and the supporting fibers are composed of polyurethane fibers. Polyurethane fibers are the main components of the spandex fabric, so that the fabric feels smooth and has excellent gloss. , good elasticity and good cost performance, so that the fabric is soft and smooth while having relatively good durability and good gloss.

3. The nylon antibacterial fabric is made of pure cotton by setting the sweat-absorbing layer, so that the fabric is relatively comfortable to wear, and the high water-absorbing resin composition has a strong water-absorbing effect, so that the sweat-absorbing effect of the sweat-absorbing layer is relatively strong. the practicality of the fabric.

4. The nylon antibacterial fabric is composed of viscose fiber fabric by setting the skin-friendly layer. The hygroscopicity of the viscose fiber fabric meets the physiological requirements of human skin, and is smooth and cool, breathable, antistatic, anti-ultraviolet, and colorful. Good color fastness and other characteristics, and the healthy layer is woven from pure natural plant fabrics, so that the healthy layer has a pure natural health effect, making the fabric relatively healthy.

5. The nylon antibacterial fabric is made of polyester fiber by setting the sunscreen layer to prevent ultraviolet rays from passing through the fabric to damage human skin, and is less affected by water immersion and washing, and the sunscreen function can be maintained for a long time. By setting skin-friendly adsorption The bag is composited with bamboo fiber fabric, so that the skin-friendly adsorption bag can keep cool while being skin-friendly, thus increasing the comfort of the fabric.

Description of drawings

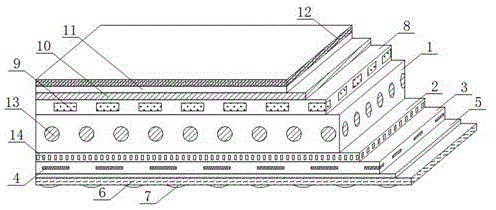

Fig. 1 is the structural representation of the utility model;

2 is a schematic top view of the connection structure between the fabric base layer and the supporting fibers of the present invention.

Description of the labels in the figure:

1. Fabric base layer; 2. Antibacterial layer; 3. Sweat-absorbing layer; 4. Moisture adsorption bag; 5. Anti-static layer; 6. Skin-friendly layer; 7. Skin-friendly adsorption bag; 8. Health layer; 9. Health care block; 10. Sunscreen layer; 11. Waterproof and breathable layer; 12. Composite wear-resistant coating; 13. Support fiber.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to Fig. 1-2, a nylon antibacterial fabric includes a fabric base layer 1, an antibacterial layer 2 is fixedly installed at the bottom of the fabric base layer 1, a sweat-absorbing layer 3 is fixedly installed at the bottom of the antibacterial layer 2, and the inner part of the sweat-absorbing layer 3 is fixedly installed There is a uniformly distributed moisture adsorption bag 4, an anti-static layer 5 is fixedly installed at the bottom of the sweat-absorbing layer 3, a skin-friendly layer 6 is fixedly installed at the bottom of the anti-static layer 5, and a skin-friendly adsorption bag 7 is fixedly installed at the bottom of the skin-friendly layer 6. , the top of the fabric base layer 1 is fixedly installed with a health layer 8, the interior of the health layer 8 is fixedly installed with evenly distributed health care blocks 9, the top of the health layer 8 is fixedly installed with a sunscreen layer 10, and the top of the sunscreen layer 10 is connected with a waterproof breathable layer 11 , the top of the waterproof and breathable layer 11 is sprayed with a composite wear-resistant coating 12, and an antibacterial layer 2 is fixedly installed at the bottom of the fabric base layer 1. The antibacterial layer 2 makes the fabric have an antibacterial effect, so that the fabric is always kept clean and not easy to breed bacteria and viruses. A sweat-absorbing layer 3 is fixedly installed at the bottom of the antibacterial layer 2, so that when the sweat reaches the sweat-absorbing layer 3, the sweat-absorbing layer 3 has an adsorption effect on sweat, and the inside of the sweat-absorbing layer 3 is fixedly installed with equidistantly arranged moisture absorption bags 4, increasing the In order to achieve the sweat absorption effect of the sweat-absorbing layer 3, the bottom of the sweat-absorbing layer 3 is fixedly installed with an anti-static layer 5, so that the fabric has an anti-static effect, making the fabric relatively comfortable to wear, and has conductivity and resistance to static electricity. The bottom of 5 is fixedly installed with a skin-friendly layer 6. After the skin-friendly layer 6 is in contact with the skin, it is relatively soft and comfortable, so that the wearing loudness of the fabric is comfortable and suitable for sensitive skin. The skin-friendly adsorption bag 7 increases the comfort of the skin-friendly layer 6, thereby realizing the purpose of relatively comfortable wearing of the fabric. By fixing the health layer 8 on the top of the fabric base layer 1, the fabric is relatively natural, healthy and healthy. The interior of the layer 8 is fixedly installed with evenly distributed health care blocks 9, so that the fabric has a certain health care effect, so that when the fabric is worn, it has a certain health care effect. It has anti-ultraviolet sunscreen ability, thus avoiding the damage of ultraviolet rays to the human body. By fixing the waterproof and breathable layer 11 on the top of the sunscreen layer 10, the fabric has a certain waterproof ability and is relatively breathable and comfortable to wear. The top of the layer 11 is sprayed with a composite wear-resistant coating 12, which makes the fabric relatively wear-resistant and durable, and makes the fabric relatively durable, thereby enabling the fabric to achieve the advantage of relatively better antibacterial effect.

Further, support fibers 13 are woven inside the fabric base layer 1, the support fibers 13 are composed of polyurethane fibers, and the interior of the fabric base layer 1 is composed of support fibers 13, and the support fibers 13 are composed of polyurethane fibers, and the polyurethane fibers are Spandex is the main component of the fabric, so that the fabric has a smooth hand, excellent gloss, good elasticity, and good cost performance, so that the fabric has relatively good durability while being soft, smooth and glossy.

Further, the sweat-absorbing layer 3 is made of pure cotton material, and the moisture absorption bag 4 is made of high water-absorbing resin. Therefore, the sweat-absorbing effect of the sweat-absorbing layer 3 is relatively strong, which increases the practicability of the fabric.

Further, the skin-friendly layer 6 is composed of viscose fiber fabric, and the healthy layer 8 is woven from pure natural plant fabric. Physiological requirements, it has the characteristics of smooth and cool, breathable, anti-static, anti-ultraviolet, brilliant color, good color fastness, etc., and the health layer 8 is woven from pure natural plant fabrics, so that the health layer 8 has a pure natural health effect. Makes the fabric relatively healthy.

Further, the sunscreen layer 10 is made of polyester fiber material, and the health care block 9 is made of bamboo fiber fabric. The impact of the absorbent is small, and the sunscreen function can be maintained for a long time. By setting the skin-friendly adsorption bag 7 made of bamboo fiber fabric, the skin-friendly adsorption bag 7 can keep cool while being skin-friendly, thereby increasing the comfort of the fabric.

Working principle: The antibacterial layer 2 is fixedly installed at the bottom of the fabric base layer 1, and the antibacterial layer 2 makes the fabric have antibacterial effect, so that the fabric is always kept clean and not easy to breed bacteria and viruses. When the sweat reaches the sweat-absorbing layer 3, the sweat-absorbing layer 3 has an adsorption effect on sweat, and the moisture-absorbing bags 4 arranged at equal distances are fixedly installed inside the sweat-absorbing layer 3, which increases the sweat-absorbing effect of the sweat-absorbing layer 3. An anti-static layer 5 is fixedly installed at the bottom, so that the fabric has an anti-static effect, making the fabric relatively comfortable to wear, and has conductivity and resistance to static electricity. After the layer 6 is in contact with the skin, it is relatively soft and comfortable, so that the wearing loudness of the fabric is comfortable and suitable for sensitive skin to wear. The comfort of the fabric can be improved, so as to realize the purpose of wearing relatively comfortable fabrics. By fixing the health layer 8 on the top of the fabric base layer 1, the fabric is relatively natural and healthy, and the inside of the health layer 8 is fixedly installed with evenly distributed health care blocks 9 , so that the fabric has a certain health care effect, so that when the fabric is worn, it has a certain health care effect, and the sunscreen layer 10 is fixedly installed on the top of the health layer 8, so that the fabric has anti-ultraviolet sunscreen ability, thereby avoiding ultraviolet rays to the human body. To prevent damage, the waterproof and breathable layer 11 is fixedly installed on the top of the sunscreen layer 10, so that the fabric has a certain waterproof ability and is relatively breathable and comfortable to wear. The fabric is relatively wear-resistant and durable, and the durability of the fabric is relatively good, so that the fabric has the advantage of relatively good antibacterial effect, and solves the problem that the antibacterial property of the fabric is relatively insufficient, thereby affecting human health.

It should be noted that, in this document, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply any relationship between these entities or operations. any such actual relationship or sequence exists. Moreover, the terms "comprising", "comprising" or any other variation thereof are intended to encompass a non-exclusive inclusion such that a process, method, article or device that includes a list of elements includes not only those elements, but also includes not explicitly listed or other elements inherent to such a process, method, article or apparatus. Without further limitation, an element qualified by the phrase "comprising a..." does not preclude the presence of additional identical elements in a process, method, article or apparatus that includes the element.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (5)

1. A nylon antibacterial fabric, comprising a fabric base layer (1), characterized in that: an antibacterial layer (2) is fixedly installed at the bottom of the fabric base layer (1), and the bottom of the antibacterial layer (2) is fixedly installed A sweat-absorbing layer (3), an evenly distributed moisture absorption bag (4) is fixedly installed inside the sweat-absorbing layer (3), an antistatic layer (5) is fixedly installed at the bottom of the sweat-absorbing layer (3), A skin-friendly layer (6) is fixedly installed at the bottom of the electrostatic layer (5), a skin-friendly adsorption bag (7) is fixedly installed at the bottom of the skin-friendly layer (6), and a top of the fabric base layer (1) is fixedly installed with a skin-friendly adsorption bag (7). A health layer (8), the interior of the health layer (8) is fixedly installed with evenly distributed health care blocks (9), the top of the health layer (8) is fixedly installed with a sunscreen layer (10), the sunscreen layer (10) ) is connected with a waterproof and breathable layer (11), and the top of the waterproof and breathable layer (11) is sprayed with a composite wear-resistant coating (12). 2 . The antibacterial nylon fabric according to claim 1 , wherein a support fiber ( 13 ) is woven inside the fabric base layer ( 1 ), and the support fiber ( 13 ) is composed of polyurethane fibers. 3 . . 3 . The antibacterial nylon fabric according to claim 1 , wherein the sweat-absorbing layer ( 3 ) is made of pure cotton material, and the moisture absorption bag ( 4 ) is made of high water-absorbing resin. 4 . 4. A nylon antibacterial fabric according to claim 1, characterized in that: the skin-friendly layer (6) is made of viscose fiber fabric, and the health layer (8) is woven from a pure natural plant fabric. to make. 5 . The antibacterial nylon fabric according to claim 1 , wherein the sunscreen layer ( 10 ) is made of polyester fiber material, and the skin-friendly adsorption bag ( 7 ) is composited with bamboo fiber fabric. 6 . to make.
