Abstract

The utility model belongs to the technical field of machinery, in particular to a device for extruding and leveling a plastic solar panel. Aiming at the problem that the plastic products are not fixed during the extrusion process, causing damage to the plastic products, the following scheme is proposed, which includes a frame, and the One side of the frame is rotatably connected with a first handle, one end of the first handle is fixedly connected with one end of the first threaded rod, the other end of the first threaded rod is rotatably connected to the inner wall of one side of the frame, and the outer side of the first threaded rod The threaded sleeve is provided with a splint, the two inner walls of the rack are fixedly connected with horizontally arranged placement plates, the top side of the splint extends to the top of the placement plate, the top inner wall of the rack is provided with slide rails, and the slide rails are slidably connected with The slider, the bottom of the slider is fixedly installed with a motor. The utility model has a simple structure, during the extrusion process, the plastic products are fixed, so as to prevent damage to the plastic products during the extrusion process, save time and effort, and greatly improve the work efficiency.

Description

A device for extruding and leveling plastic solar panels

technical field

The utility model relates to the technical field of machinery, in particular to a device for extruding and leveling a plastic solar panel.

Background technique

Plastic products are a general term for daily, industrial and other articles processed with plastic as the main raw material. Including plastic as raw material injection molding, blister and other products of all processes. Plastic is a kind of plastic synthetic polymer material. Generally, plastic products need to be flattened during processing. Most of the traditional flattening devices directly extrude plastic products. This method is easy to cause damage to the products, and in In the process of flattening, because no fixing measures are taken to the plastic products, it is easy to cause damage to the products.

The traditional extrusion leveling device is easy to cause damage to the product, so we propose a plastic solar panel extrusion leveling device to solve the above problem.

Utility model content

The purpose of the utility model is to solve the shortcoming that the plastic products are not fixed during the extrusion process, resulting in damage to the plastic products, and proposes a plastic solar panel extrusion leveling device.

In order to achieve the above-mentioned purpose, the utility model adopts the following technical solutions:

A device for extruding and leveling plastic solar panels, comprising a frame, one side of the frame is rotatably connected with a first handle, one end of the first handle is fixedly connected with one end of a first threaded rod, and the other end of the first threaded rod is rotatably connected On the inner wall of one side of the rack, the outer threaded sleeve of the first threaded rod is provided with a splint, the inner walls on both sides of the rack are fixedly connected with horizontally arranged placement plates, the top side of the splint extends above the placement plate, the rack There is a sliding rail on the top inner wall of the sliding rail, a sliding block is slidably connected to the sliding rail, a motor is fixedly installed at the bottom of the sliding block, a second threaded rod is fixedly connected to the output shaft of the motor, and a hollow shaft is fixedly connected to the bottom of the sliding block. A connecting rod is slidably connected inside the hollow shaft, a pressure plate is rotatably connected to the bottom end of the second threaded rod, a second handle is rotatably connected to the bottom end of the connecting rod and the pressure plate is fixedly connected to one side of the frame, and one end of the second handle is fixedly connected There is one end of the third threaded rod, and the other end of the third threaded rod is rotatably connected to the inner wall of one side of the frame.

Preferably, the four corners of the bottom of the frame are fixedly connected with legs, and the bottoms of the legs are fixedly installed with universal wheels to facilitate the movement of the device.

Preferably, the inner wall of one side of the frame is fixedly connected with the outer ring of the bearing, and the inner ring of the bearing is fixedly sleeved with the first handle, so that the first handle can be rotatably connected to the predicted inner wall of the frame.

Preferably, the outer side of the first threaded rod is provided with an external thread, the outer side of the clamping plate is provided with an inner thread, and the outer thread is engaged with the inner thread, so that the rotation of the first threaded rod drives the clamping plate to move.

Preferably, the outer threaded sleeve of the second threaded rod is provided with a threaded sleeve, and one side of the threaded sleeve is fixedly connected with the connecting rod, so that the second threaded rod rotates and drives the threaded sleeve to move downward.

Preferably, the outer side of the third threaded rod is threadedly connected with the hollow shaft, and the hollow shaft moves left and right on the slide rail through the slider, so as to facilitate the slider to move the pressure plate left and right.

In the utility model, the extrusion and leveling device of the plastic solar panel, by starting the motor, the motor drives the second threaded rod to rotate, so that the threaded sleeve threaded on the outside of the second threaded rod moves downward, and the threaded sleeve is threaded downward. One side is fixedly connected with the connecting rod, the connecting rod is slidably connected with the hollow shaft, and the bottom end of the connecting rod is fixedly connected with the pressing plate, thereby driving the pressing plate to press down the plastic solar panel.

Turn the second handle, the second handle drives the hollow shaft to move left and right, and the top of the hollow shaft is fixedly connected with the slider, thereby driving the slider to move left and right, thereby driving the pressure plate to move left and right on the plastic solar panel, so as to fully squeeze the plastic solar panel. ;

The utility model has a simple structure, and during the extrusion process, the plastic products are fixed, so as to prevent damage to the plastic products during the extrusion process, save time and effort, and greatly improve the work efficiency.

Description of drawings

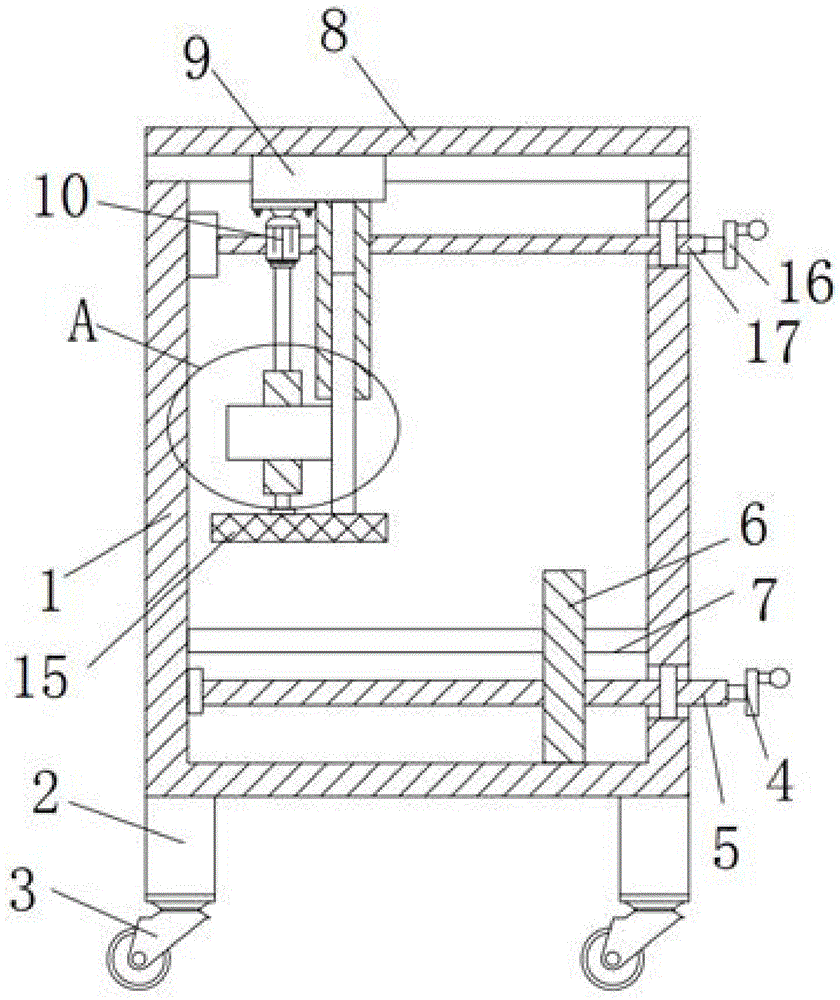

Fig. 1 is the structural representation of a kind of plastic solar panel extrusion leveling device proposed by the utility model;

FIG. 2 is a schematic structural diagram of part A of a plastic solar panel extrusion and leveling device proposed by the utility model.

In the figure: 1. Rack; 2. Outrigger; 3. Universal wheel; 4. First handle; 5. First threaded rod; 6. Plywood; 7. Placing plate; 8. Slide rail; 9. Slider; 10, motor; 11, second threaded rod; 12, threaded sleeve; 13, connecting rod; 14, hollow shaft; 15, pressure plate; 16, second handle; 17, third threaded rod.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example.

1-2, a plastic solar panel extrusion and leveling device includes a frame 1, a first handle 4 is rotatably connected to one side of the frame 1, and one end of the first handle 4 is fixedly connected to one end of a first threaded rod 5, The other end of the first threaded rod 5 is rotatably connected to the inner wall of one side of the frame 1, the outer threaded sleeve of the first threaded rod 5 is provided with a clamp plate 6, and the inner walls on both sides of the frame 1 are fixedly connected with horizontally arranged placement plates 7. The top side of the splint 6 extends to the top of the placing plate 7, the top inner wall of the rack 1 is provided with a slide rail 8, the slide rail 8 is slidably connected with a slider 9, and the bottom of the slider 9 is fixedly installed with a motor 10, A second threaded rod 11 is fixedly connected to the output shaft of the motor 10, a hollow shaft 14 is fixedly connected to the bottom of the slider 9, a connecting rod 13 is slidably connected to the inside of the hollow shaft 14, and the bottom end of the second threaded rod 11 is rotatably connected to a The pressing plate 15, the bottom end of the connecting rod 13 and the pressing plate 15 are fixedly connected to one side of the frame 1 and are rotatably connected with a second handle 16, one end of the second handle 16 is fixedly connected with one end of a third threaded rod 17, and the third threaded rod 17 The other end is rotatably connected to the inner wall of one side of the rack 1.

The four corners of the bottom of the frame 1 are fixedly connected with the outriggers 2, the bottom of the outriggers 2 are fixedly installed with the universal wheel 3, the inner wall of one side of the frame 1 is fixedly connected with the outer ring of the bearing, and the inner ring of the bearing is connected with the first A handle 4 is fixedly sleeved, the outer side of the first threaded rod 5 is provided with an outer thread, the outer side of the clamp plate 6 is provided with an inner thread, the outer thread is engaged with the inner thread, and the outer thread of the second threaded rod 11 is provided with a threaded sleeve 12 . , One side of the threaded sleeve 12 is fixedly connected with the connecting rod 13, the outer side of the third threaded rod 17 is threadedly connected with the hollow shaft 14, and the hollow shaft 14 moves left and right on the slide rail 8 through the slider 9.

In the present invention, the plastic solar panel is placed on the placing plate 7, the first handle 4 is rotated, the first handle 4 drives the plywood 6 to move to the left until the plywood 6 clamps the plastic solar panel, and the motor 10 is started, and the motor 10 drives the second The threaded rod 11 rotates, so that the threaded sleeve 12 threaded on the outside of the second threaded rod 11 moves downward, one side of the threaded sleeve 12 is fixedly connected with the connecting rod 13, the connecting rod 13 is slidably connected with the hollow shaft 14, and the connecting rod 13 The bottom end is fixedly connected with the pressing plate 15, thereby driving the pressing plate 15 to press down the plastic solar panel, and then turning the second handle 16, the second handle 16 drives the hollow shaft 14 to move left and right, and the top of the hollow shaft 14 is fixedly connected with the slider 9 , thereby driving the slider 9 to move left and right, thereby driving the pressing plate 15 to move left and right on the plastic solar panel, so as to better extrude the plastic solar panel. The utility model has a simple structure. The plastic products are damaged during the extrusion process, which saves time and effort, and greatly improves the work efficiency.

Claims (6)

1. The utility model provides a plastics sunshine board extrusion device that levels, which comprises a frame (1), a serial communication port, one side of frame (1) is rotated and is connected with first in command (4), the one end fixedly connected with one end of first threaded rod (5) of first in command (4), the other end of first threaded rod (5) is rotated and is connected on one side inner wall of frame (1), the outside screw thread cover of first threaded rod (5) is equipped with splint (6), place board (7) that the level set up is fixedly connected with on the both sides inner wall of frame (1), the top side of splint (6) extends to the top of placing board (7), be equipped with slide rail (8) on the top inner wall of frame (1), sliding connection has slider (9) on slide rail (8), the bottom fixed mounting of slider (9) has motor (10), fixedly connected with second threaded rod (11) on the output shaft of motor (10), the bottom fixedly connected with hollow shaft (14) of slider (9), the inside sliding connection of hollow shaft (14) has connecting rod (13), the bottom of second threaded rod (11) is rotated and is connected with clamp plate (15), the bottom of connecting rod (13) is rotated with one side of clamp plate (15) fixed connection frame (1) and is connected with second handle (16), the one end fixedly connected with third threaded rod (17) of second handle (16) one end, the other end of third threaded rod (17) is rotated and is connected on one side inner wall of frame (1).

2. The plastic sunlight plate extruding and leveling device according to claim 1, wherein four corners of the bottom of the frame (1) are fixedly connected with supporting legs (2), and universal wheels (3) are fixedly mounted at the bottoms of the supporting legs (2).

3. The plastic sunlight plate extruding and leveling device as claimed in claim 1, wherein an outer ring of a bearing is fixedly connected to an inner wall of one side of the rack (1), and an inner ring of the bearing is fixedly sleeved with the first handle (4).

4. The plastic solar panel extrusion leveling device as claimed in claim 1, wherein the first threaded rod (5) is provided with an external thread on the outside and the clamping plate (6) is provided with an internal thread on the outside, the external thread engaging with the internal thread.

5. The plastic solar panel extrusion leveling device according to claim 1, wherein the outer thread sleeve of the second threaded rod (11) is provided with a thread sleeve (12), and one side of the thread sleeve (12) is fixedly connected with the connecting rod (13).

6. The plastic solar panel extrusion leveling device according to claim 1, wherein the outer side of the third threaded rod (17) is in threaded connection with a hollow shaft (14), and the hollow shaft (14) moves left and right on the slide rail (8) through a slide block (9).
