CN211729344U - A production device for conductive tape - Google Patents

Abstract

The utility model discloses a production device for conductive adhesive tape, which belongs to the technical field of conductive adhesive tape production. , Squeegee roller, fifth motor and first shaft, when the conductive cloth is glued, it will pass through the gap between the fixed roller and the scraper roller. At this time, the user starts the fifth motor through the console, and the fifth motor works to drive the first When a rotating shaft rotates, the rotation of the first rotating shaft drives the rubber squeegee roller to rotate, and the rubber squeegee roller rotates to flatten the glue on the conductive cloth. Since the distance between the fixed roller and the rubber squeegee roller is fixed, the smoothness of the glue can be ensured. The scraping roller can also scrape off the excess glue to avoid a large amount of glue in some parts of the conductive cloth, so that the glue on the conductive cloth can be attached to the tape relatively smoothly, and it can prevent the conductive cloth from denting after lamination or bumps to ensure that the conductive tape can be used normally.

Description

A production device for conductive tape

technical field

The utility model relates to the technical field of production of conductive adhesive tapes, in particular to a production device of conductive adhesive tapes.

Background technique

Conductive tape is a kind of metal foil or conductive cloth with high conductive adhesive. The conductive adhesive and conductive substrate form a complete conductor, which can be bonded to any metal surface to complete the electrical lap and the electrical sealing of the gap. ; Shielding conductive tape is an economical and convenient shielding material, and the production device is used to produce conductive tape.

The existing conductive tape production device sticks the conductive cloth on the tape through super glue, but because most of the devices are used to glue the conductive cloth, it is difficult to ensure the smoothness of the glue after the conductive cloth is glued. , so that the conductive cloth may not be adhered to the tape evenly, which may cause the position of the tape to be recessed or raised, and affect the normal use of the conductive tape; at the same time, the production device will also cut the conductive tape, but due to the cutting More debris will be generated, and the debris will fall directly on the workbench, which makes it inconvenient for the user to clean it, and the cleaning process is more troublesome, which will increase the user's burden and waste more time for the user. .

Utility model content

The purpose of the utility model is to provide a production device for conductive tape, which solves the problem that the glue after gluing the conductive cloth of the existing conductive tape production device in the above-mentioned background technology is easy to be uneven and inconvenient for the user to carry out the scraps on the workbench. Clean up the collection of issues.

In order to achieve the above purpose, the present invention provides the following technical solutions: a production device for conductive tape, comprising a workbench, a support frame is fixed on the top of the workbench, and a plastic storage box is installed on one side of the top of the support frame, The top of the rubber storage box is connected with a feeding pipe, and the bottom of the rubber storage box is connected with an infusion pipe running through the support frame. Solenoid valve, a second support seat is fixed on the other side of the top of the plastic storage box, a second motor is installed on the outer surface of the second support seat, and the output end of the second motor is sleeved with an outlet through the drive shaft. A material roller, a fixed roller is installed on the outer surface of the support frame, a fifth motor is installed on the back of the support frame, and the output end of the fifth motor is sleeved with a rubber scraping roller through the first rotating shaft. A first support seat is fixed on both sides of the first support seat, a first motor is installed on the outer surface of the first support seat, and the output end of the first motor is sleeved with a transmission roller through a drive shaft, and the top of the table is another A third support seat, a fourth support seat and a collection box are respectively fixed on one side, two third motors are installed on the outer surface of the third support seat, and the output end of the third motor is sleeved with a drive shaft. Squeeze roller, a fourth motor is installed on the outer surface of the fourth support base, the output end of the fourth motor is sleeved with a rotating roller through the drive shaft, and the outer surface of the rotating roller has three cutting discs, so Both sides of the collection box are provided with material guide ports, the upper sides of both sides of the collection box are fixed with material guide plates, and a discharge port is opened under one side of the collection box. The inside of the collection box is fixed with a discharge plate, the inside of the collection box is connected with a baffle plate through the second rotating shaft, and one side of the baffle plate is connected with a pull rod extending to the outside of the collection box through a hinge. A spring is fixed under the inside of the box, and one end of the spring is connected with one side of the baffle plate.

Preferably, the collecting box is located directly below the cutting disc, and the top of the collecting box is smooth.

Preferably, the material guide plate is located below the material guide port, and one side of the material guide plate is inclined downward along the direction of the material guide port.

Preferably, one side of the discharge plate is inclined downward along the direction of the discharge port, and the top of the discharge plate is smooth.

Preferably, the bottom of the baffle plate is in contact with the discharge plate, and the baffle plate is rotatably connected to the collecting box through the second rotating shaft.

Preferably, the squeegee roller is located below the material spray nozzle, and the distance between the squeegee roller and the fixed roller is fixed.

Preferably, an operating table is installed on the outer surface of the work table, and the operating table is electrically connected to the first motor, the second motor, the third motor, the fourth motor and the fifth motor, respectively.

Compared with the prior art, the beneficial effect of the present utility model is that: the production device of the conductive tape is provided with a fixed roller, a rubber scraping roller, a fifth motor and a first rotating shaft. After passing through the gap between the fixed roller and the rubber squeegee roller, the user starts the fifth motor through the console, the fifth motor works to drive the first shaft to rotate, the first shaft rotates to drive the rubber squeegee roller to rotate, and the rubber squeegee roller rotates to rotate the conductive cloth. The glue on the squeegee is flattened, and since the distance between the fixed roller and the rubber squeegee roller is fixed, the flatness of the glue can be ensured, and the squeegee roller can also scrape off the excess glue to avoid the amount of glue in some parts of the conductive cloth. more, so that the glue on the conductive cloth can be flatly attached to the tape, and it can prevent the conductive cloth from being dented or raised after bonding, ensuring that the conductive tape can be used normally; Plate, material guide, tie rod, discharge plate, spring, baffle plate and second shaft, when the cutting disc is cutting the conductive tape, the debris will fall to the guide plate or collector through the cutting opening on the tape. On the material box, the debris will fall to the material guide plate through the collection box, and slide into the material guide port through the material guide plate, and then slide into the collection box through the material guide port, so as to accumulate in the discharge material. so that the subsequent staff can clean the debris in the collection box, and when the debris needs to be cleaned, the user can push the pull rod, the pull rod moves to stretch the spring, and the baffle plate rotates through the second shaft, Therefore, a large gap is created between the baffle plate and the discharge plate, so that the debris can slide from the discharge plate to the discharge port, and it is convenient for the user to quickly clean and collect the debris, so as to avoid the debris covering the work. The problem of inconvenient cleaning on the table reduces the burden on the user and saves the user's time. After the debris is cleaned, the user releases the lever, and the spring recovers and stretches, thereby driving the stopper The plate is reset so that the collection box can re-collect the debris.

Description of drawings

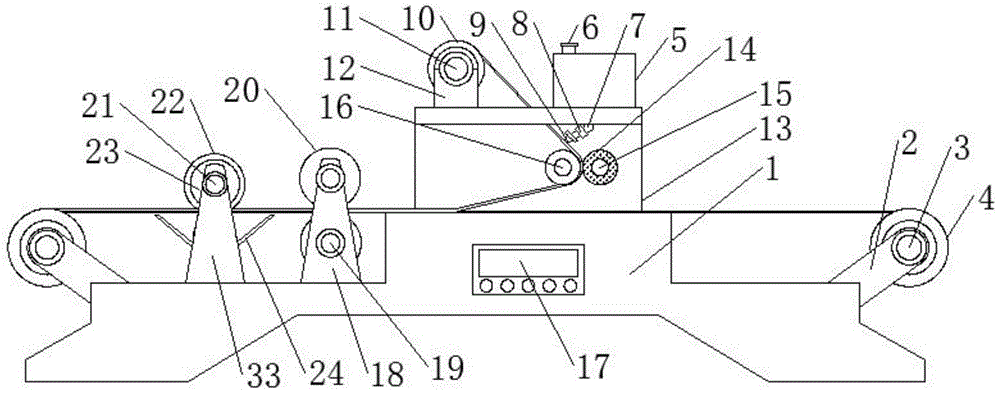

Fig. 1 is the front structure schematic diagram of the utility model;

2 is a schematic diagram of the front section of the workbench of the present utility model;

3 is a schematic diagram of the enlarged structure of the utility model A;

Fig. 4 is the partial structure schematic diagram of the collecting box of the present utility model;

5 is a schematic diagram of the partial structure of the back of the support frame of the present invention;

FIG. 6 is a schematic diagram of the partial structure of the rotating roller of the present invention.

In the figure: 1. Workbench; 2. First support seat; 3. First motor; 4. Transfer roller; 5. Glue storage box; 6. Feeding pipe; 7. Infusion pipe; Nozzle; 10, Discharge roller; 11, Second motor; 12, Second support seat; 13, Support frame; 14, Squeegee roller; 15, First shaft; 16, Fixed roller; 17, Operating table; 18, the third support seat; 19, the third motor; 20, the squeeze roller; 21, the fourth motor; 22, the cutting disc; 23, the rotating roller; 24, the material guide plate; ; 27, the second shaft; 28, the material guide; 29, the baffle plate; 30, the discharge plate; 31, the spring; 32, the discharge port; 33, the fourth support seat; 34, the fifth motor.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

In the present utility model, unless otherwise expressly specified and limited, the terms "arrangement", "installation", "connection", "connection", "fixation", "socket connection", etc. should be understood in a broad sense, for example, It can be a fixed connection, a detachable connection, or an integral body; it can be a mechanical connection or an electrical connection; it can be a direct connection or an indirect connection through an intermediate medium, and it can be the internal connection of two components or two. For the interaction relationship between the elements, those of ordinary skill in the art can understand the specific meanings of the above terms in the present invention according to specific situations.

1-6, the present utility model provides a technical solution: a production device for conductive tape, comprising a workbench 1, a first support base 2, a first motor 3, a transmission roller 4, a glue storage box 5, a feeder Feed tube 6, infusion tube 7, solenoid valve 8, spray nozzle 9, discharge roller 10, second motor 11, second support seat 12, support frame 13, rubber squeegee roller 14, first shaft 15, fixed roller 16 , operation table 17, third support base 18, third motor 19, squeeze roller 20, fourth motor 21, cutting disc 22, rotating roller 23, material guide plate 24, collecting box 25, pull rod 26, second rotating shaft 27. Material guide port 28, baffle plate 29, discharge plate 30, spring 31, discharge port 32, fourth support seat 33 and fifth motor 34, the top of worktable 1 is fixed with support frame 13, support frame 13 A rubber storage box 5 is installed on the top side of the rubber storage box 5, the top of the rubber storage box 5 is connected with a feeding pipe 6, and the bottom of the rubber storage box 5 is connected with an infusion pipe 7 that runs through the support frame 13, and one end of the infusion pipe 7 is installed with a spray material The nozzle 9, the solenoid valve 8 is installed on the outer surface of the infusion tube 7, the second support seat 12 is fixed on the other side of the top of the glue storage box 5, and the second motor 11 is installed on the outer surface of the second support seat 12. The second motor The output end of 11 is sleeved with the discharge roller 10 through the drive shaft, the fixed roller 16 is installed on the outer surface of the support frame 13, the fifth motor 34 is installed on the back of the support frame 13, and the output end of the fifth motor 34 passes through the first rotating shaft. 15 The rubber scraping roller 14 is sleeved, the first support base 2 is fixed on both sides of the worktable 1, the first motor 3 is installed on the outer surface of the first support base 2, and the output end of the first motor 3 passes through the drive shaft sleeve. The transfer roller 4 is connected, the other side of the top of the table 1 is respectively fixed with a third support seat 18, a fourth support seat 33 and a collecting box 25, and two third motors 19 are installed on the outer surface of the third support seat 18 , the output end of the third motor 19 is sleeved with the squeezing roller 20 through the drive shaft, the fourth motor 21 is installed on the outer surface of the fourth support base 33, and the output end of the fourth motor 21 is sleeved through the drive shaft with the rotating roller 23 , the outer surface of the rotating roller 23 has three inherent cutting discs 22, both sides of the collection box 25 are provided with material guide ports 28, and the upper sides of the collection box 25 are fixed with material guide plates 24. A discharge port 32 is opened below one side, a discharge plate 30 is fixed inside the collecting box 25, the inside of the collecting box 25 is connected with a baffle plate 29 through the second rotating shaft 27, and one side of the baffle plate 29 is connected by a hinge A pull rod 26 extending to the outside of the collecting box 25 is connected, a spring 31 is fixed under the inside of the collecting box 25, and one end of the spring 31 is connected with one side of the baffle plate 29, and the spring 31 can make the baffle plate 29 fast Reset to save the reset time of the baffle plate 29 .

Please refer to Fig. 1, Fig. 2, Fig. 3, Fig. 4 and Fig. 6, the collecting box 25 is located just below the cutting disc 22, and the top of the collecting box 25 is smooth, so that the collecting box 25 can collect the waste generated during the cutting process. debris, and prevent debris from accumulating on the top of the collection box 25; the material guide plate 24 is located below the material guide port 28, and one side of the material guide plate 24 is inclined downward along the direction of the material guide port 28, so that the guide plate 24 is The chips on the material plate 24 can be slid into the inside of the collecting box 25 through the material guide port 28 .

2-4, one side of the discharge plate 30 is inclined downward along the direction of the discharge port 32, and the top of the discharge plate 30 is smooth, so that the chips can be discharged through the discharge plate 30 and the discharge port 32 ; The bottom of the baffle plate 29 is in contact with the discharge plate 30, and the baffle plate 29 is rotatably connected to the collection box 25 through the second shaft 27 to prevent debris from sliding out of the discharge plate 30.

Please refer to Fig. 1, Fig. 2 and Fig. 5, the squeegee roller 14 is located below the material spray nozzle 9, and the distance between the squeegee roller 14 and the fixed roller 16 is fixed; so that the squeegee roller 14 can flatten the conductive cloth glue, and can scrape the excess glue; the outer surface of the workbench 1 is equipped with an operating table 17, and the operating table 17 is respectively connected with the first motor 3, the second motor 11, the third motor 19, the fourth motor 21 and the first motor The five motors 34 are electrically connected, so that the user can turn on or off the first motor 3 , the second motor 11 , the third motor 19 , the fourth motor 21 and the fifth motor 34 through the console 17 .

Working principle: First, the user puts the adhesive tape on one conveying roller 4, and wraps one end of the adhesive tape on the other conveying roller 4, then the user adds the glue into the glue storage box 5 through the feeding pipe 6, and Put the conductive cloth on the discharge roller 10, and pass one end of the conductive cloth through the gap between the support frame 13, the fixed roller 16 and the rubber squeegee roller 14, and glue it on the top of the tape by glue, and then the user can pass the operating table. 17 Start the first motor 3, the second motor 11, the third motor 19, the fourth motor 21, the fifth motor 34 and the solenoid valve 8, the first motor 3 works to drive the transfer roller 4 to rotate, thereby conveying the tape, and The second motor 11 rotates to drive the discharge roller 10 to rotate, so as to convey the conductive cloth, and the glue in the glue storage box 5 flows into the spray nozzle 9 through the infusion pipe 7, and the glue is sprayed to the conductive cloth through the material spray nozzle 9. The fifth motor 34 works to drive the first rotating shaft 15 to rotate, the first rotating shaft 15 rotates to drive the rubber squeegee roller 14 to rotate, and the rubber squeegee roller 14 rotates to flatten the glue on the conductive cloth. The distance between the glue rollers 14 is fixed to ensure the smoothness of the glue, and the glue scraping roller 14 can also scrape off the excess glue, and the conductive cloth and the tape will pass through the squeezing roller 20 after being attached, and because the third motor 19 The work will drive the squeezing roller 20 to rotate, the squeezing roller 20 rotates to flatten the conductive tape, and then the fourth motor 21 works to drive the rotating roller 23 to rotate, the rotating roller 23 rotates to drive the cutting disc 22 to rotate, and the cutting disc 22 rotates to rotate The conductive tape is cut, and another conveying roller 4 rewinds the cut conductive tape, and when the cutting disc 22 cuts the conductive tape, the chips will fall to the guide plate through the cutting opening on the tape. 24 or the collecting box 25, and the debris will fall on the guide plate 24 through the collecting box 25, and slide into the guide port 28 through the guide plate 24, and then slide into the collecting port 28 through the material guide port 28. In the material box 25, it accumulates on the discharge plate 30, and when the debris needs to be cleaned, the user can push the pull rod 26, the pull rod 26 moves to stretch the spring 31, and at the same time make the baffle plate 29 pass the second rotating shaft 27 Rotate, so that there is a large gap between the baffle plate 29 and the discharge plate 30, so that the debris slides from the discharge plate 30 to the discharge port 32, and after the debris is cleaned, the user releases the pull rod 26 At this time, the spring 31 recovers its elasticity and stretches, thereby driving the baffle plate 29 to reset, so that the collection box 25 can collect debris again.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (7)

1. The utility model provides a production device of conductive adhesive tape, includes workstation (1), its characterized in that: the top of the workbench (1) is fixed with a support frame (13), a glue storage box (5) is installed on one side of the top of the support frame (13), the top of the glue storage box (5) is connected with an inlet pipe (6), the bottom of the glue storage box (5) is connected with a liquid conveying pipe (7) penetrating through the support frame (13), a material spraying nozzle (9) is installed at one end of the liquid conveying pipe (7), an electromagnetic valve (8) is installed on the outer surface of the liquid conveying pipe (7), a second support seat (12) is fixed on the other side of the top of the glue storage box (5), a second motor (11) is installed on the outer surface of the second support seat (12), a discharge roller (10) is sleeved at the output end of the second motor (11) through a drive shaft, a fixing roller (16) is installed on the outer surface of the support frame (13), and a fifth motor (34, the output end of the fifth motor (34) is sleeved with a rubber scraping roller (14) through a first rotating shaft (15), the two sides of the workbench (1) are respectively fixed with a first supporting seat (2), the outer surface of the first supporting seat (2) is provided with a first motor (3), the output end of the first motor (3) is sleeved with a transmission roller (4) through a driving shaft, the other side of the top of the workbench (1) is respectively fixed with a third supporting seat (18), a fourth supporting seat (33) and a material collecting box (25), the outer surface of the third supporting seat (18) is provided with two third motors (19), the output end of each third motor (19) is sleeved with an extrusion roller (20) through a driving shaft, the outer surface of the fourth supporting seat (33) is provided with a fourth motor (21), the output end of the fourth motor (21) is sleeved with a rotating roller (23) through a driving shaft, the intrinsic three cutting dish (22) of surface of rotatory roller (23), guide mouth (28) have all been seted up to the both sides of gathering workbin (25), the both sides top of gathering workbin (25) all is fixed with stock guide (24), discharge gate (32) have been seted up to one side below of gathering workbin (25), the inside of gathering workbin (25) is fixed with ejection of compact board (30), the inside of gathering workbin (25) is connected with striker plate (29) through second pivot (27), there is pull rod (26) that extends to gathering workbin (25) outside one side of striker plate (29) through hinged joint, the inside below of gathering workbin (25) is fixed with spring (31), just the one end of spring (31) is connected with one side of striker plate (29).

2. The apparatus for producing an electrically conductive adhesive tape according to claim 1, wherein: the material collecting box (25) is located right below the cutting disc (22), and the top of the material collecting box (25) is smooth.

3. The apparatus for producing an electrically conductive adhesive tape according to claim 1, wherein: the material guide plate (24) is positioned below the material guide opening (28), and one side of the material guide plate (24) inclines downwards along the direction of the material guide opening (28).

4. The apparatus for producing an electrically conductive adhesive tape according to claim 1, wherein: one side of the discharging plate (30) inclines downwards along the direction of the discharging hole (32), and the top of the discharging plate (30) is smooth.

5. The apparatus for producing an electrically conductive adhesive tape according to claim 1, wherein: the bottom of striker plate (29) contacts with ejection of compact board (30), just striker plate (29) are connected with collection workbin (25) rotation through second pivot (27).

6. The apparatus for producing an electrically conductive adhesive tape according to claim 1, wherein: the glue scraping roller (14) is positioned below the material spraying nozzle (9), and the distance between the glue scraping roller (14) and the fixed roller (16) is fixed.

7. The apparatus for producing an electrically conductive adhesive tape according to claim 1, wherein: the outer surface mounting of workstation (1) has operation panel (17), just operation panel (17) respectively with first motor (3), second motor (11), third motor (19), fourth motor (21) and fifth motor (34) electric connection.
