Abstract

The utility model discloses an animal husbandry breeding house with an automatic feeding function, which comprises a foundation, a breeding house, a material trough, a feeding room and a material gathering mechanism. A fixed table is fixed on one side of the inside of the house, a feeding trough is fixed inside the breeding house on one side of the fixed table, and feeding pipes with equal spacing are fixed on the inner wall of the breeding house above, and the inside of the feeding trough is provided with A material gathering mechanism, a feeding chamber is fixed on the top of the foundation on one side of the breeding house, a motor is fixed on one side of the top of the feeding chamber, and a feeding pond is fixed on the top of the foundation on one side of the feeding chamber, and the culture An open-air stocking area is fixed at the top of the foundation on the side of the house away from the feeding room. The utility model not only realizes the automatic feeding function of the livestock breeding house, realizes the automatic concentration function of the feed, but also reduces the labor burden when spraying disinfectant water.

Description

A livestock breeding house with automatic feeding function

technical field

The utility model relates to the technical field of animal husbandry, in particular to an animal husbandry breeding house with an automatic feeding function.

Background technique

As a big agricultural country in my country, the animal husbandry industry is relatively prosperous. Among them, the animal husbandry breeding house is the basic link in the animal husbandry industry, and it is also a necessary facility. It plays an important role in the animal husbandry industry. With the continuous development of the animal husbandry industry, The structure of animal husbandry houses is also constantly changing and improving towards automation.

There are many kinds of such livestock breeding houses on the market today, which can basically meet the needs of practitioners in the industry, but there are still some shortcomings. The specific problems are as follows:

(1) The existing animal husbandry houses usually need to manually add feed to the feed trough frequently when in use, which is very inconvenient to operate, and the feed is easy to breed bacteria, so there are certain shortcomings;

(2) In the existing livestock breeding houses, when there is not much feed left in the feed trough, the feed is usually scattered, which brings inconvenience to the animals, so there is room for improvement;

(3) The existing livestock breeding houses are usually prone to breed a large number of bacteria when they are in use, which is not conducive to the healthy growth of animals, and the labor of spraying disinfectant by manpower is large, which increases the labor burden of managers.

Utility model content

The purpose of this utility model is to provide a kind of animal husbandry breeding house with automatic feeding function, so as to solve the problem of inconvenient operation of feed supply, inconvenience of feeding scattered feed and large workload of manpower disinfectant when the animal husbandry breeding house is in use. The problem.

In order to achieve the above purpose, the utility model provides the following technical scheme: a kind of animal husbandry breeding house with automatic feeding function, comprising a foundation, a breeding house, a feeding trough, a feeding room and a material gathering mechanism, one side of the top of the foundation is The breeding house is fixed, and one side of the inside of the breeding house is fixed with a fixed table, the inside of the breeding house on one side of the fixed table is fixed with a feeding trough, and the inner wall of the above breeding house is fixed with equal-spaced feeding pipes , and the inside of the trough is provided with a gathering mechanism, the two side walls of the top of the breeding house are inlaid with ventilation windows, the top of the foundation on one side of the breeding house is fixed with a feeding chamber, and the top of the feeding chamber is A motor is fixed on one side of the feeding chamber, and the output end of the motor is fixed with a rotating shaft through a coupling, a feeding pool is fixed on the top of the foundation on one side of the feeding chamber, the feeding pool is connected with the feeding chamber, and the interior of the feeding pool is fixed There is a material guiding slope, the top of the foundation on the side away from the feeding room of the breeding house is fixed with an open-air stocking area, and a door body is installed on the outer wall of the breeding house at the position of the open-air stocking area, and one side of the breeding house is A control panel is fixed on the outer wall of the control panel, and the output end of the single-chip microcomputer inside the control panel is electrically connected with the input end of the motor.

Preferably, the top of the inside of the breeding house is provided with a conveying pipe, and the bottom end of the conveying pipe is equipped with equally spaced nozzles, and both ends of the conveying pipe are fixed with connecting rods, and one end of the connecting rod is connected to the breeding house. The inner wall is fixedly connected, which is convenient for spraying disinfectant water inside the breeding house.

Preferably, drainage channels are arranged at the bottoms of the breeding houses on both sides of the fixed platform, and filter plates are fixed at the tops of the drainage channels to facilitate filtering and exporting of sewage.

Preferably, a feeding pump is fixed on the top of the feeding chamber, and the input end of the feeding pump extends to the bottom of the feeding chamber through a pipeline, and the output end of the feeding pump is communicated with the feeding pipe through a pipeline, and the two sides of the feeding chamber are connected with each other. The inner wall of the machine is fixed with equal-spaced ultraviolet germicidal lamps for automatic feeding work.

Preferably, a movable bottom plate, a lifting cable and a winding roller are sequentially arranged inside the material gathering mechanism, a movable bottom plate is arranged at the bottom of the material trough, and one side of the movable bottom plate is hinged with the material trough, which is used for the retraction of the lifting cable. Volume work.

Preferably, a winding roller is hinged on the inner wall of the breeding house above the movable bottom plate, one end of the winding roller is fixedly connected with the rotating shaft, and a lifting cable is wound on the outer wall of the winding roller, and the bottom end of the lifting cable extends to The inside of the trough is fixedly connected with the movable bottom plate, which is used for the lifting of the movable bottom plate.

Compared with the prior art, the beneficial effect of the utility model is: the animal husbandry breeding house with automatic feeding function not only realizes the automatic feeding function of the animal husbandry breeding house, reduces the breeding of bacteria in the feed, and realizes the automatic feeding of the feed. Concentrate functions, improve the convenience for animals to eat, and reduce the labor burden when spraying disinfectant;

(1) The feed is placed inside the feeding pool by being provided with a feeding room, a feeding pool, a feeding inclined table, a feeding pump, an ultraviolet germicidal lamp and a feeding pipe. Under the inclination of the feeding inclined table, the feed enters the Inside the feeding chamber, ultraviolet germicidal lamps sterilize the feed, and the feeding pump extracts the feed inside the feeding chamber and conveys it to the interior of the feeding trough through the feeding pipe, which realizes the automatic feeding function of the livestock breeding house and reduces the amount of feed. the growth of internal bacteria;

(2) By providing a movable bottom plate, a lifting cable and a winding roller, the motor drives the winding roller to rotate through the rotating shaft, and the lifting cable lifts one side of the movable bottom plate under the rotation of the winding roller, so that the movable bottom plate forms a certain shape. The inclined angle of the feed is concentrated to one side of the inside of the trough, thereby realizing the automatic concentration function of the feed and improving the convenience of animals when eating;

(3) The external disinfection water is introduced into the interior of the conveying pipe by being provided with a conveying pipe, a nozzle, a connecting rod, a drainage channel and a filter plate. It is filtered into the inside of the drainage channel and discharged, thereby reducing the labor burden when spraying disinfectant water and improving work efficiency.

Description of drawings

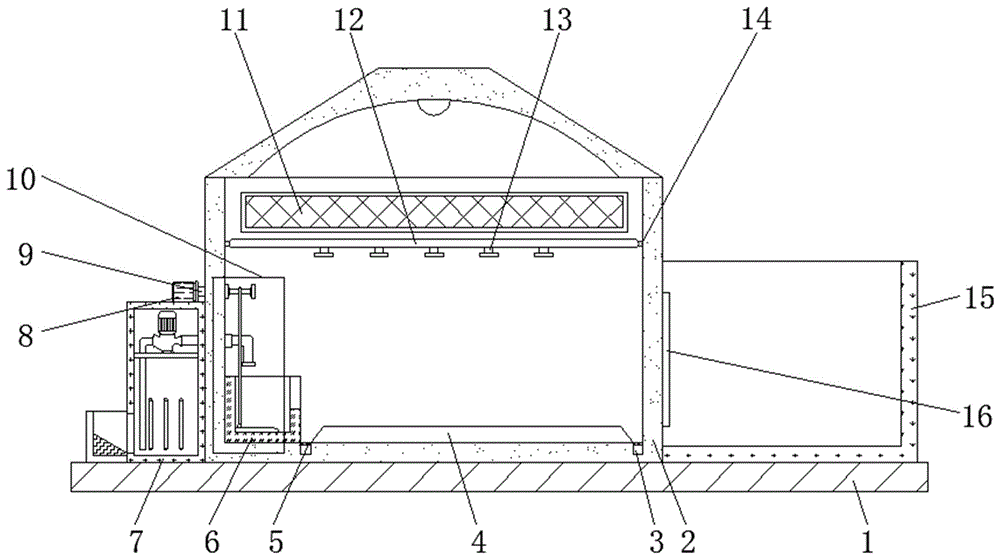

Fig. 1 is the front view sectional structure schematic diagram of a kind of animal husbandry breeding house with automatic feeding function of the present utility model;

Fig. 2 is a kind of cross-sectional enlarged structural schematic diagram of the feeding room of the animal husbandry breeding house with automatic feeding function of the present utility model;

Fig. 3 is the front view structure schematic diagram of a kind of animal husbandry breeding house with automatic feeding function of the present invention;

Fig. 4 is an enlarged structural schematic diagram of a material aggregation mechanism of a livestock breeding house with automatic feeding function of the present invention.

In the picture: 1. Foundation; 2. Breeding house; 3. Drainage channel; 4. Fixed table; 5. Filter plate; 6. Feed trough; 7. Feeding room; 8. Motor; 9. Rotating shaft; 10. Poly Feeding mechanism; 1001, movable bottom plate; 1002, lifting cable; 1003, winding roller; 11, ventilation window; 12, conveying pipe; 13, spray head; 14, connecting rod; 15, outdoor stocking area; 16, door body; 17 , feeding pool; 18, guide ramp; 19, feeding pump; 20, ultraviolet germicidal lamp; 21, control panel; 22, feeding pipe.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to Figures 1-4, an embodiment provided by the present utility model: an animal husbandry breeding house with automatic feeding function, comprising a foundation 1, a breeding house body 2, a feeding trough 6, a feeding chamber 7 and a material gathering mechanism 10. A breeding house 2 is fixed on one side of the top of the foundation 1, and a fixing platform 4 is fixed on one side of the interior of the breeding house 2;

The top inside the breeding house 2 is provided with a conveying pipe 12, and the bottom end of the conveying pipe 12 is equipped with equally spaced nozzles 13, and both ends of the conveying pipe 12 are fixed with connecting rods 14, and one end of the connecting rod 14 is connected with the culture. The inner wall of the house body 2 is fixedly connected, which is convenient for spraying disinfectant water on the inside of the aquaculture house body 2;

The bottom of the breeding house 2 on both sides of the fixed platform 4 is provided with a drainage channel 3, and the top of the drainage channel 3 is fixed with a filter plate 5, which is convenient for filtering and exporting sewage;

A feeding trough 6 is fixed inside the breeding house 2 on one side of the fixed platform 4, and feeding pipes 22 with equal spacing are fixed on the inner wall of the breeding house 2 above, and a feeding mechanism 10 is arranged inside the feeding trough 6;

A movable bottom plate 1001, a lifting cable 1002 and a winding roller 1003 are sequentially arranged inside the gathering mechanism 10. A movable bottom plate 1001 is provided at the bottom of the material chute 6, and one side of the movable bottom plate 1001 is hinged with the material chute 6. The movable bottom plate 1001 A winding roller 1003 is hinged on the inner wall of the breeding house 2 above, one end of the winding roller 1003 is fixedly connected with the rotating shaft 9, and a lifting cable 1002 is wound on the outer wall of the winding roller 1003, and the bottom end of the lifting cable 1002 extends to The inside of the trough 6 is fixedly connected with the movable bottom plate 1001;

When the amount of feed inside the trough 6 is small and relatively dispersed, the control panel 21 is operated to control the motor 8 to work, and the motor 8 drives the winding roller 1003 to rotate through the rotating shaft 9 , and the lifting cable 1002 rotates on the winding roller 1003. One side of the movable bottom plate 1001 is lifted downward, so that the movable bottom plate 1001 forms a certain inclination angle, so that the feed is concentrated to one side of the inside of the trough 6, thereby realizing the automatic concentration function of the feed, and improving the convenience of animals when eating;

The two side walls of the top of the breeding house 2 are inlaid with ventilation windows 11, the top of the foundation 1 on one side of the breeding house 2 is fixed with a feeding chamber 7, and one side of the top of the feeding chamber 7 is fixed with a motor 8. The model of 8 can be Y112M-2, and the output end of the motor 8 is fixed with a rotating shaft 9 through a coupling, and a feeding pool 17 is fixed on the top of the foundation 1 on one side of the feeding chamber 7, and the feeding pool 17 is communicated with the feeding chamber 7 , and the inside of the feeding pool 17 is fixed with a guide ramp 18;

The top of the feeding chamber 7 is fixed with a feeding pump 19. The model of the feeding pump 19 can be 150QJ20-54/9. The input end of the feeding pump 19 is electrically connected to the output end of the single chip inside the control panel 21, and the The input end extends to the bottom of the feeding chamber 7 through the pipeline, the output end of the feeding pump 19 is communicated with the feeding pipe 22 through the pipeline, and the inner walls on both sides of the feeding chamber 7 are fixed with equidistant ultraviolet germicidal lamps 20. The model of the ultraviolet germicidal lamp 20 can be FR-XZY30-3, and the input end of the ultraviolet germicidal lamp 20 is electrically connected with the output end of the single-chip microcomputer inside the control panel 21 for automatic feeding work;

The top of the foundation 1 on the side of the breeding house 2 away from the feeding room 7 is fixed with an open-air stocking area 15, and a door body 16 is installed on the outer wall of the breeding house 2 at the position of the open-air stocking area 15, and the outer wall on the side of the breeding house 2 A control panel 21 is fixed thereon, the model of the control panel 21 can be DL203, and the output end of the single chip inside the control panel 21 is electrically connected with the input end of the motor 8 .

Working principle: When using, the staff first put the feed into the inside of the feeding tank 17, and under the inclination of the feeding inclined table 18, the feed enters the interior of the feeding chamber 7. At this time, the control panel 21 is operated to make it The feeding pump 19 and the ultraviolet germicidal lamp 20 are respectively controlled to work, the ultraviolet germicidal lamp 20 sterilizes the feed, and the feeding pump 19 extracts the feed inside the feeding chamber 7 and transports it to the interior of the feeding trough 6 through the feeding pipe 22 to realize animal husbandry. The automatic feeding function of the shed can reduce the breeding of bacteria in the feed. Then, when the amount of feed in the trough 6 is small and relatively scattered, the control panel 21 is operated to control the motor 8 to work, and the motor 8 is driven by the rotating shaft 9. The winding roller 1003 rotates, and the lifting cable 1002 lifts one side of the movable bottom plate 1001 under the rotation of the winding roller 1003, so that the movable bottom plate 1001 forms a certain inclination angle, so that the feed is concentrated to one side inside the trough 6, Therefore, the automatic concentration function of the feed is realized, and the convenience of the animals is improved. Finally, the staff opens the door body 16 and drives the animals to the inside of the open-air stocking area 15, and then introduces the external disinfection water into the inside of the conveying pipe 12. , the spray head 13 evenly sprays the disinfection water in the interior of the breeding house 2, and the waste water enters the interior of the drainage channel 3 under the filtration of the filter plate 5 and is discharged, thereby reducing the labor burden when spraying the disinfection water, and completing the automatic feeding Functional livestock farm work.

It will be apparent to those skilled in the art that the present invention is not limited to the details of the above-described exemplary embodiments, and that the present invention may be implemented in other specific forms without departing from the spirit or essential characteristics of the present invention. Therefore, the embodiments are to be considered in all respects as exemplary and not restrictive, and the scope of the present invention is defined by the appended claims rather than the foregoing description, and it is therefore intended that the All changes within the meaning and range of the required equivalents are embraced within the present invention. Any reference signs in the claims shall not be construed as limiting the involved claim.

Claims (6)

1. The utility model provides a livestock-raising house with automatic feed function, includes ground (1), breeds the house body (2), silo (6), feed chamber (7) and gathers material mechanism (10), its characterized in that: one side of the top end of the foundation (1) is fixed with a breeding house body (2), one side of the interior of the breeding house body (2) is fixed with a fixed table (4), a trough (6) is fixed in the interior of the breeding house body (2) on one side of the fixed table (4), feeding pipes (22) with equal intervals are fixed on the inner wall of the breeding house body (2) above the trough, a material gathering mechanism (10) is arranged in the trough (6), ventilating windows (11) are inlaid in two side walls of the top of the breeding house body (2), a feeding chamber (7) is fixed at the top end of the foundation (1) on one side of the breeding house body (2), a motor (8) is fixed at one side of the top end of the feeding chamber (7), a rotating shaft (9) is fixed at the output end of the motor (8) through a coupler, a feeding pool (17) is fixed at the top end of the foundation (1) on one side of the feeding chamber (7), and the feeding pool (17) is communicated with, and the inside in reinforced pond (17) is fixed with guide sloping platform (18), breed house body (2) and keep away from ground (1) top of feed room (7) one side and be fixed with open-air stocking area (15), and install a body (16) on the breed house body (2) outer wall of open-air stocking area (15) position department, be fixed with control panel (21) on the outer wall of breed house body (2) one side, and the output of the inside singlechip of control panel (21) and the input electric connection of motor (8).

2. An animal husbandry shed with automatic feeding function according to claim 1, characterized in that: breed the inside top of house body (2) and be provided with conveyer pipe (12), and the bottom of conveyer pipe (12) all installs equidistant shower nozzle (13) to the both ends of conveyer pipe (12) all are fixed with connecting rod (14), the one end of connecting rod (14) and the inner wall fixed connection who breeds the house body (2).

3. An animal husbandry shed with automatic feeding function according to claim 1, characterized in that: the bottom of the breeding house body (2) at two sides of the fixed platform (4) is provided with a drainage channel (3), and the top end of the drainage channel (3) is fixed with a filter plate (5).

4. An animal husbandry shed with automatic feeding function according to claim 1, characterized in that: the top of feed chamber (7) is fixed with feed pump (19), and the input of feed pump (19) extends to the bottom of feed chamber (7) through the pipeline, and the output of feed pump (19) is linked together through pipeline and conveying pipe (22) to all be fixed with equidistant sterilamp (20) on the inner wall of feed chamber (7) both sides.

5. An animal husbandry shed with automatic feeding function according to claim 1, characterized in that: the inside of gathering material mechanism (10) is provided with movable bottom plate (1001), lifting cable (1002) and wind-up roll (1003) in proper order, the bottom of silo (6) is provided with movable bottom plate (1001), and one side of movable bottom plate (1001) is articulated mutually with silo (6).

6. An animal husbandry shed with automatic feeding function according to claim 5, characterized in that: articulated on the breed house body (2) inner wall of activity bottom plate (1001) top have wind-up roll (1003), the one end and pivot (9) fixed connection of wind-up roll (1003), and the winding has lifting cable (1002) on the outer wall of wind-up roll (1003) to the bottom of lifting cable (1002) extends to the inside of silo (6) and with activity bottom plate (1001) fixed connection.
