Abstract

The utility model relates to an auxiliary antenna mounting bracket, which is characterized in that: it comprises a bracket main body, a main body mounting seat, a load-bearing frame module and an auxiliary plate module; The bolts are connected to the auxiliary installation frame, so that the installation personnel do not need to carry the installation bolts themselves, which is convenient for the installation operation of the antenna, and also improves the operation safety of the installation personnel; the auxiliary installation frame of the antenna in the utility model is equipped with an auxiliary plate The module is convenient for the corresponding position adjustment according to the actual situation when the antenna is installed; the installation efficiency is improved.

Description

An antenna auxiliary mount

technical field

The utility model relates to the field of antenna auxiliary brackets, in particular to an antenna auxiliary installation bracket.

Background technique

The general antenna mounting bracket is bolted when installing the antenna. Therefore, when installing the antenna at a high place, the installer needs to carry the mounting bolts with him; this makes it very inconvenient to install the antenna; in addition, when the antenna is installed Sometimes, the installation position of the antenna needs to be adjusted according to the actual situation; and the conventional mounting frame does not have an auxiliary adjustment plate structure, which is inconvenient to adjust and install the position of the antenna.

Utility model content

The technical problem to be solved by the present invention is to provide an auxiliary antenna mounting frame, which can solve the problem that the general antenna auxiliary installation frame does not have mounting bolts, which needs to be carried by the installation personnel, which is inconvenient to operate; The adjustable auxiliary frame is inconvenient to adjust the antenna installation position.

In order to solve the above-mentioned technical problems, the technical scheme of the present invention is: an auxiliary antenna mounting frame, the innovation of which is that it includes a support main body, a main body mounting seat, a load-bearing frame module and an auxiliary board module;

The cross section of the bracket body along the width direction is a U-shaped groove structure, and the bracket body is provided with a number of light-weight through grooves and a number of bolt installation holes along the extension direction; the bracket body is provided with bolt installation holes. The sides of the position are connected with bolt lanyards and the bolt lanyards are provided with connecting bolts; the main body mounting seat is in a U-shaped structure, the main body mounting seat is arranged on the back of the middle position of the main body bracket, and the opening direction of the main body mounting seat is the same as that of the main body mounting seat. The direction of the notch of the main body of the bracket is opposite; the side edge of the main body mounting seat is connected with a chain and the other end of the chain is provided with a connecting bolt;

The load-bearing frame module includes a first load-bearing frame module and a second load-bearing frame module; the first load-bearing frame module is arranged at one end of the bracket body; the first load-bearing frame module includes a pair of first load-bearing units, and the pair The first load-bearing unit is located on both sides of the end of the main body of the bracket and is connected to the main body of the bracket by bolts; the second load-bearing frame module includes a pair of load-bearing frames, and one of the load-bearing frames is located between the main body mounting seat and the first load-bearing frame module. The other load-bearing frame is located at the other end of the bracket main body; the load-bearing frame includes a connecting bottom plate and a U-shaped hanging plate; the connecting bottom plate is arranged on the back of the bracket main body and is connected with the bolt mounting holes on the bracket main body through bolts; The U-shaped hanging plate spans the main body of the bracket and the two ends are respectively connected on the connecting bottom plate;

The auxiliary board module is provided with an assembly hole which is matched with the bolt installation hole on the bracket main body; the auxiliary board module is connected with installation bolts through a bolt lanyard.

Further, the first load-bearing unit includes a connecting side plate, a supporting transverse plate and a side mounting plate; the connecting side plate is perpendicular to one end of the supporting transverse plate, and the side mounting plate is perpendicular to the other end of the supporting transverse plate; The connecting side plate is parallel to the side mounting plate; the connecting side plate is connected to the side edge of the bracket main body by bolts; the connecting hole is opened on the supporting transverse plate, and the two sides of the extending direction of the supporting transverse plate are on the same side Bending; the side mounting plate has a rectangular structure, and one pair of corners of the side mounting plate is respectively provided with a bolt hole.

Further, the auxiliary board module includes an auxiliary board for angle connection, an auxiliary board for vertical connection and an auxiliary board for translational connection; the auxiliary board for angle connection includes a pair of parallel boards and a bearing board connecting the pair of parallel boards and supporting The included angle between the plate and the parallel plate is an obtuse angle, one of the parallel plates is connected to the main body of the bracket, and the other parallel plate is used to install the antenna; the vertical connection auxiliary plate includes a pair of vertical plates and a load bearing connected between the vertical plates The vertical plates are parallel to each other and the vertical plates are vertically connected to the two ends of the bearing plate respectively; the translational connection auxiliary plate includes a connecting plate body, and one end of the connecting plate body is bent to the outside to form a bending end, and The bending end is provided with bolt holes, and the connecting plate body is provided with bolt holes connected with the main body of the bracket.

The advantages of the present utility model are:

1) In this utility model, bolts are connected to the auxiliary mounting frame by arranging bolt lanyards and chains on the main body of the bracket and the main body mounting seat, so that the installation personnel do not need to carry the mounting bolts themselves, which is convenient for the installation operation of the antenna, and also improves the installation. The operation safety of personnel is improved; the antenna auxiliary mounting frame in the utility model is equipped with an auxiliary board module, which facilitates the corresponding position adjustment according to the actual situation when the antenna is installed, and improves the installation efficiency.

Description of drawings

The present utility model will be described in further detail below with reference to the accompanying drawings and specific embodiments.

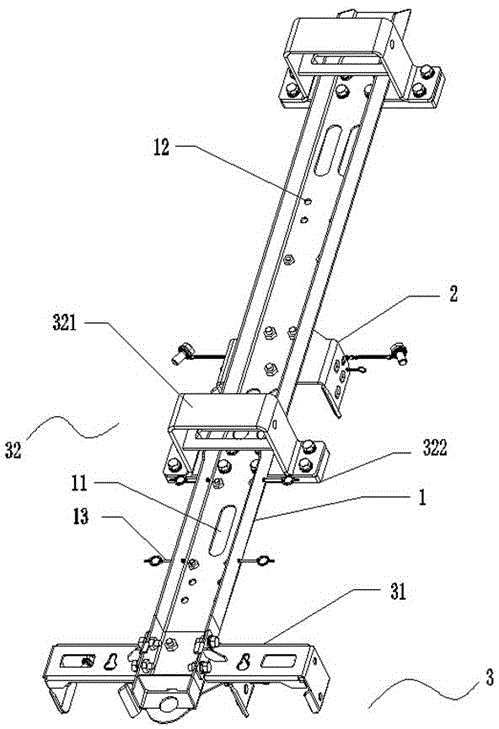

FIG. 1 is a schematic diagram of the assembly structure of an antenna auxiliary mounting frame of the present invention.

FIG. 2 is a schematic structural diagram of a first load-bearing unit of an antenna auxiliary mounting frame according to the present invention.

FIG. 3 is a structural diagram of an angle-connected auxiliary board in an auxiliary board module of an antenna auxiliary mounting frame of the present invention.

4 is a structural diagram of a vertical connection auxiliary board in an auxiliary board module of an antenna auxiliary mounting frame of the present invention.

5 is a structural diagram of a translational connection auxiliary board in an auxiliary board module of an antenna auxiliary mounting frame of the present invention.

Detailed ways

The following embodiments can make those skilled in the art understand the present invention more comprehensively, but do not limit the present invention to the scope of the described embodiments.

As shown in FIG. 1 to FIG. 5 , an antenna auxiliary mounting frame includes a bracket main body 1 , a main body mounting base 2 , a load-bearing frame module 3 and an auxiliary board module 4 .

The cross section of the bracket body 1 along the width direction is in a U-shaped groove structure. The bracket body 1 is provided with a number of light-weight through grooves 11 and a number of bolt mounting holes 12 along the extending direction; the bracket body 1 is provided with bolt mounting holes. The sides of the bracket are connected with bolt lanyards and the bolt lanyard 13 is provided with connecting bolts; the main body mounting seat 2 has a U-shaped structure, the main body mounting seat 2 is arranged on the back of the middle position of the main body bracket, and the opening direction of the main body mounting seat is the same as that of the main body of the bracket. The direction of the notch is opposite; the side of the main body mounting seat 2 is connected with a chain 21 and the other end of the chain is provided with a connecting bolt.

The load-bearing frame module 3 includes a first load-bearing frame module 31 and a second load-bearing frame module 32; the first load-bearing frame module 31 is arranged at one end of the bracket main body; the first load-bearing frame module 31 includes a pair of first load-bearing units, and the pair of first load-bearing frame modules A load-bearing unit is located on both sides of the end of the bracket main body 1 and is connected to the bracket main body 1 by bolts; the second load-bearing frame module 32 includes a pair of load-bearing frames, and one of the load-bearing frames is located between the main body mounting base and the first load-bearing frame module. The other load-bearing frame is located at the other end of the bracket main body; the load-bearing frame includes a connecting bottom plate 321 and a U-shaped hanging plate 322; the connecting bottom plate 321 is arranged on the back of the bracket main body 1 and is connected with the bolt mounting holes on the bracket main body 1 through bolts; The U-shaped hanging plate 322 spans the bracket main body 1 and two ends are respectively connected to the connecting bottom plate 321 .

The first load-bearing unit includes a connecting side plate 311, a supporting transverse plate 312 and a side mounting plate 313; the connecting side plate 311 is perpendicular to one end of the supporting transverse plate 312, and the side mounting plate 313 is perpendicular to the other end of the supporting transverse plate 312; the connecting side plate 311 is parallel to the side mounting plate 313; the connecting side plate 311 is connected to the side of the bracket main body 1 by bolts; the supporting horizontal plate 312 is provided with a connecting hole, and the two sides of the extending direction of the supporting horizontal plate 312 are bent to the same side ; The side mounting plate 313 has a rectangular structure and a pair of corners on the side mounting plate 313 are respectively provided with a bolt hole.

The auxiliary board module 4 is provided with assembly holes that match with the bolt mounting holes on the bracket main body; the auxiliary board module 4 is connected with mounting bolts through bolt lanyards; the auxiliary board module 4 includes an angle connection auxiliary board 41 and a vertical connection auxiliary board 42 and translational connection auxiliary plate 43; Angle connection auxiliary plate 41 includes a pair of parallel plates 411 and a carrier plate 412 connecting the pair of parallel plates and the included angle between the carrier plate 412 and the parallel plate 411 is an obtuse angle, one of which is parallel The board 411 is connected with the main body 1 of the bracket, and another parallel board 412 is used for installing the antenna; the vertical connection auxiliary board 42 includes a pair of vertical boards 421 and a load-bearing board 422 connected between the vertical boards 421; the vertical boards 421 are parallel to each other and The vertical plates 421 are vertically connected to the two ends of the bearing plate 422 respectively; the translational connection auxiliary plate 43 includes a connecting plate body, and one end of the connecting plate body is bent to the outside to form a bending end 431 , and the bending end 431 is provided with a connecting plate body. Bolt holes, the connecting plate body is provided with bolt holes connected with the main body of the bracket.

It should be understood by those skilled in the art that the present invention is not limited by the above-mentioned embodiments. The above-mentioned embodiments and descriptions only illustrate the principles of the present invention. Without departing from the spirit and scope of the present invention, the present invention The new model will also have various changes and improvements, which all fall within the scope of the claimed invention. The claimed scope of the present invention is defined by the appended claims and their equivalents.

Claims (3)

1. An auxiliary antenna mounting frame, characterized in that: comprising a bracket main body, a main body mounting seat, a load-bearing frame module and an auxiliary board module; The cross section of the bracket body along the width direction is a U-shaped groove structure, and the bracket body is provided with a number of light-weight through grooves and a number of bolt installation holes along the extension direction; the bracket body is provided with bolt installation holes. The sides of the position are connected with bolt lanyards and the bolt lanyards are provided with connecting bolts; the main body mounting seat is in a U-shaped structure, the main body mounting seat is arranged on the back of the middle position of the main body bracket, and the opening direction of the main body mounting seat is the same as that of the main body mounting seat. The direction of the notch of the main body of the bracket is opposite; the side edge of the main body mounting seat is connected with a chain and the other end of the chain is provided with a connecting bolt; The load-bearing frame module includes a first load-bearing frame module and a second load-bearing frame module; the first load-bearing frame module is arranged at one end of the bracket body; the first load-bearing frame module includes a pair of first load-bearing units, and the pair The first load-bearing unit is located on both sides of the end of the main body of the bracket and is connected to the main body of the bracket by bolts; the second load-bearing frame module includes a pair of load-bearing frames, and one of the load-bearing frames is located between the main body mounting seat and the first load-bearing frame module. The other load-bearing frame is located at the other end of the bracket main body; the load-bearing frame includes a connecting bottom plate and a U-shaped hanging plate; the connecting bottom plate is arranged on the back of the bracket main body and is connected with the bolt mounting holes on the bracket main body through bolts; The U-shaped hanging plate spans the main body of the bracket and the two ends are respectively connected on the connecting bottom plate; The auxiliary board module is provided with an assembly hole which is matched with the bolt installation hole on the bracket main body; the auxiliary board module is connected with installation bolts through a bolt lanyard. 2 . The antenna auxiliary mounting frame according to claim 1 , wherein the first load-bearing unit comprises a connecting side plate, a supporting transverse plate and a side mounting plate; one end of the connecting side plate and the supporting transverse plate is 2 . Vertical, the side mounting plate is perpendicular to the other end of the supporting horizontal plate; the connecting side plate is parallel to the side mounting plate; the connecting side plate is connected to the side of the bracket main body by bolts; There are connecting holes, and the two sides of the supporting transverse plate in the extending direction are bent to the same side; the side mounting plate has a rectangular structure, and one pair of corners of the side mounting plate is respectively provided with a bolt hole. 3 . The auxiliary antenna mounting frame according to claim 1 , wherein the auxiliary board module comprises an auxiliary board for included angle connection, an auxiliary board for vertical connection and an auxiliary board for translational connection; the auxiliary board for included angle connection includes A pair of parallel plates and a bearing plate connecting the pair of parallel plates, and the included angle between the bearing plates and the parallel plates is an obtuse angle, one of the parallel plates is connected to the main body of the bracket, and the other parallel plate is used to install the antenna; the vertical The connecting auxiliary plate includes a pair of vertical plates and a bearing plate connected between the vertical plates; the vertical plates are parallel to each other and the vertical plates are respectively vertically connected to both ends of the bearing plate; the translational connection auxiliary plate includes a connecting plate body , and one end of the connecting plate body is bent to the outside to form a bending end, and the bending end is provided with a bolt hole, and the connecting plate body is provided with a bolt hole connected with the main body of the bracket.
