Abstract

The utility model discloses a building curtain wall, which comprises a column connected with a building and a beam connected with the column, and a glass bracket fixed with the beam to support a glass component, the beam is provided with a T-shaped groove, and the glass bracket is It includes: a support plate with one end supported under the glass assembly, a hook edge vertically arranged on the other end of the support plate and abutting with the upper inner wall of the T-shaped groove near the opening, and arranged below the support plate to form a The bracket of the triangular structure is arranged in the middle of the vertical side of the bracket and the clamping edge of the bracket is respectively clamped in the opening of the T-shaped groove. The utility model has the advantages of simple structure, convenient processing and high installation efficiency.

Description

Glass component support structure and building curtain wall

technical field

The utility model relates to a building curtain wall, in particular to a convenient-installed glass component support structure in the building curtain wall.

Background technique

At present, with the continuous improvement of people's requirements for the appearance of buildings and their functional requirements, glass curtain walls are an important structural form for building exterior wall devices. Building curtain walls have the characteristics of fast construction, light structural quality and easy maintenance. Therefore, the building curtain wall has become a necessary part of modern large buildings and an important symbol of modern, beautiful, livable, energy-saving, low-carbon and safe urban buildings, and has been widely used in today's buildings.

At present, the glass holder used to support the glass plate in the component-type curtain wall is generally connected to the curtain wall column by means of bolts, which is inconvenient to install and has low efficiency. There is a problem of inconvenient maintenance.

Utility model content

In order to solve the technical problems in the prior art, the utility model proposes a glass component support structure and a building curtain wall.

The glass component support structure proposed by the utility model includes a beam and a glass holder fixed with the beam for supporting the glass component, the beam is provided with a T-shaped groove, and the glass holder includes: one end supported on the glass The support plate below the assembly is vertically arranged at the other end of the support plate and the hook edge abutting the upper inner wall of the T-shaped slot near the opening is arranged under the support plate and forms a triangular structure with the bracket, which is arranged at the bottom of the support plate. The middle part of the vertical edge of the bracket and the support plate are respectively clamped to the clamping edge in the opening of the T-shaped slot.

Preferably, the glass holder is an integral molding structure.

Preferably, the glass holder is supported below the glass assembly.

Preferably, a buffer pad for preventing hard contact is provided on the contact surface of the glass holder and the glass assembly.

The building curtain wall proposed by the present utility model includes uprights, and the glass component support structure described in the above technical solution fixedly connected with the uprights.

Further, the glass assembly includes a square-shaped glass attachment frame, and the glass is pasted on the glass attachment frame.

Further, the upper end surface and the lower end surface of the glass attachment frame are provided with installation grooves whose opening directions are perpendicular to the plane where the glass is located, and two adjacent glass assemblies in the vertical direction are abutted on two glass panels through at least one glass panel pressing block. The side wall of the installation slot is fixedly connected with the beam or the upright column by means of screws.

Further, the glass is adhered to the glass attachment frame through structural adhesive.

Further, the upper end of the lower column of the two vertically adjacent columns is fixedly connected to the building and is provided with a core sleeve, and the lower end of the upper column is sleeved on the core sleeve so that the height can be adjusted.

Further, the beams between the two parallel columns are connected to the columns through corner yards to form at least one frame-shaped curtain wall unit, and each of the glass assemblies is installed in each curtain wall unit.

The utility model improves the structure of the glass holder, the glass holder is plug-and-play, and the structure is firm and stable, which saves the tedious operation during installation, makes the installation more convenient, and is also very convenient for maintenance, so that the installation efficiency of the building curtain wall is higher. . In addition, the structure of the glass holder is an integral molding structure, and the processing is also more convenient and simple.

Description of drawings

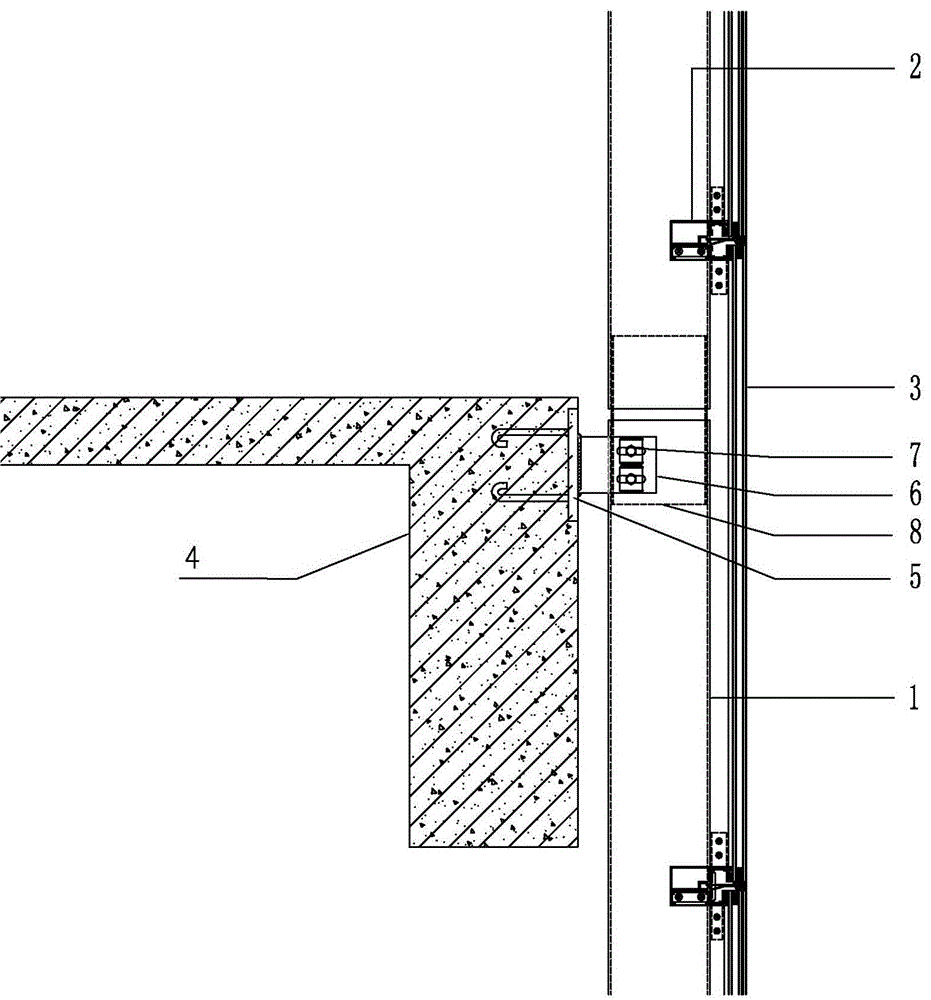

Fig. 1 is the overall cross-sectional structure schematic diagram of the utility model;

Fig. 2 is the first partial cross-sectional schematic diagram of the utility model;

3 is a cross-sectional view of the glass holder of the present invention.

FIG. 4 is a second partial cross-sectional schematic diagram of the present invention.

Reference numerals: 1, column, 2, beam, 3, glass assembly, 4, building, 5, embedded part, 6, steel connector, 7, connecting bolt, 8, core sleeve, 9, glass holder, 10 , Glass panel pressing block, 11, Screw, 21, T-slot, 31, Glass with frame, 32, Glass (glass panel), 33, Double-sided tape, 34, Structural adhesive, 91, Pallet, 92, Hook , 93, bracket, 94, snap edge.

Detailed ways

In order to make the purpose, technical solutions and advantages of the present utility model clearer, the present utility model will be described in detail below with reference to the accompanying drawings and embodiments. It should be understood that the following specific embodiments are only used to explain the present invention and do not limit the present invention.

As shown in FIG. 1 and FIG. 2 , the main components of the building curtain wall of the present invention include upright columns 1 , beams 2 and glass components 3 . The column is a structure in the vertical direction, and the beam is a structure in the horizontal direction. Among the two adjacent columns in the vertical direction, the upper end of the column located below is fixedly connected to the building 4, specifically through the steel connector 6 and the connecting bolt. 7. The embedded part 5 or the rear embedded part is connected with the civil structure of the building, and the upper end of the lower column is provided with a core sleeve 8, and the lower end of the upper column 1 is hollow, and can be slid up and down to be sleeved on the core sleeve 8, The height can be adjusted to meet the asynchronous deformation needs of the curtain wall and the building structure. One or more beams 2 are arranged between the two parallel column structures, and the two ends of the beam 2 are connected with the two parallel column structures through the corner code, so that the column 1 and the beam 2 perpendicular to it form one or more beams. Curtain wall unit, each glass component 3 is installed in a curtain wall unit.

The glass assembly 3 specifically includes a square-shaped glass frame 31 and a glass 32 pasted on the glass frame. In one embodiment, the glass 32 (also referred to as a glass panel) is passed through a double-sided adhesive 33 and/or a structural adhesive 34 It is pasted on the glass attachment frame, and the gap between the adjacent glass components is filled with the sealant 35 . Since the area of the glass panel is usually large, the ability of the glass panel and the glass attachment frame to withstand fatigue stress will be poor through structural adhesives. Therefore, a glass holder 9 needs to be provided under the glass assembly for support.

As shown in Figure 2 and Figure 3, the present utility model improves the structure of the glass holder 9, the glass holder 9 is installed and fixed on the beam 2, and the beam of the present utility model is provided with a T-shaped groove 21, that is, the opening diameter is smaller than For the groove with the inner diameter of the groove, the glass holder 9 is an integrally formed member with the structure of a supporting plate 91 , a hook edge 92 , a bracket 93 and a clamping edge 94 . The support plate 91 is supported under the glass assembly 3. Specifically, the position of the support plate 91 is set below the glass assembly 3, and the hook edge is arranged at one end of the support plate close to the beam 2. The hook edge 92 is perpendicular to the support plate 91, and the hook edge 92 extends into The inside of the T-shaped groove 21 is in contact with the upper inner wall of the T-shaped groove 21 near the opening. The bracket 93 and the supporting plate 91 form a stable triangular structure. The supporting plate 91 is one of the right-angled sides of the right-angled triangle. The bracket 93 has Another right-angled side, the middle of the right-angled side is provided with a clamping edge 94 , and the clamping edge 94 and the support plate 91 are respectively clamped in the opening of the T-shaped slot 21 . When installing, extend the hook into the T-shaped groove and hook the T-shaped groove to form a stable support structure. When the glass component is placed on the pallet, a downward force is generated on the pallet, the hook edge hooks the T-shaped groove of the beam, and the support plate and the clamping edge are stuck at the opening of the T-shaped groove, and the triangular structure is pressed on the beam. , forming a stable glass component support system.

In order to avoid rigid contact between the glass component and the supporting plate, a buffer pad, such as a rigid rubber gasket, etc., is provided on the contact surface of the glass supporting member and the glass and/or the glass frame.

As shown in FIG. 4 , the upper end surface and the lower end surface of the glass attachment frame 31 are provided with installation grooves whose opening directions are perpendicular to the plane where the glass panel is located, and two adjacent glass assemblies in the vertical direction can pass through at least one glass panel pressing block. 10 (when a plurality of glass panel pressing blocks are arranged in the horizontal direction) abut on the side walls of the two installation slots, and then fixedly connect with the beam or the vertical column by screws 11 .

The above descriptions are only specific embodiments of the present invention. It should be pointed out that any modifications, equivalent replacements and changes made within the spirit and framework of the concept of the present invention should be included within the protection scope of the present invention.

Claims (10)

1. The utility model provides a glass assembly bearing structure, includes the crossbeam, holds in the palm the piece with the fixed glass that is used for supporting glass assembly of crossbeam, its characterized in that, be equipped with the T-slot on the crossbeam, glass holds in the palm the piece and includes: the glass component comprises a support plate, a hook edge, a bracket and a clamping edge, wherein one end of the support plate is supported below the glass component, the hook edge is vertically arranged at the other end of the support plate and is abutted to the inner wall of the upper side of the T-shaped groove close to the opening, the bracket is arranged below the support plate and forms a triangular structure with the support plate, and the clamping edge is arranged in the middle of the vertical edge of the bracket and is respectively clamped with the support plate in the opening of the T-.

2. The glass assembly support structure of claim 1, wherein the glass carrier is a one-piece structure.

3. The glass assembly support structure of claim 1, wherein the glass carrier is supported below the glass assembly.

4. The glass assembly support structure of claim 1, wherein a cushion for preventing hard contact is provided on a contact surface of the glass holder with the glass assembly.

5. An architectural curtain wall comprising a post, the glass assembly support structure of any of claims 1 through 4 fixedly attached to the post.

6. The architectural curtain wall of claim 5 wherein the glass subassembly comprises a pane of glass attachment frame, glass adhered to the pane of glass attachment frame.

7. The building curtain wall as claimed in claim 6, wherein the upper end surface and the lower end surface of the glass auxiliary frame are provided with mounting grooves with openings perpendicular to the plane of the glass, and two glass assemblies adjacent in the vertical direction are abutted against the side walls of the two mounting grooves through at least one glass panel pressing block and are fixedly connected with the cross beam or the upright post through screws.

8. The building curtain wall of claim 6, wherein the glass is adhered to the glass attachment frame by a structural adhesive.

9. The building curtain wall as claimed in claim 5, wherein the upper ends of the lower vertical columns of the two vertically adjacent vertical columns are fixedly connected with the building and provided with core sleeves, and the lower ends of the upper vertical columns are sleeved on the core sleeves in a height-adjustable manner.

10. The building curtain wall as claimed in claim 5, wherein the cross beam between two parallel uprights is connected to the uprights by means of corner connectors to form at least one square frame-shaped curtain wall unit, and each of the glass assemblies is mounted in a respective curtain wall unit.
