Abstract

The utility model discloses a cooking utensil. The cooking utensil includes a pot body, a cover body, a display assembly, a first joint portion and a second joint portion; the display assembly includes a main body and a display screen arranged on the main body, and the main body is arranged on one of the pot body and the cover body; the first The joint part is arranged on the body; the second joint part is arranged on the other of the pot body and the cover body, and the second joint part and the first joint part are correspondingly arranged; the display assembly is movable between the locking position and the cover opening position It is arranged so that the first engaging part engages the second engaging part to lock the cover body, or the first engaging part leaves the second engaging part to open the cover body. Therefore, the user moves the display assembly to open the cover easily, and the display assembly has both the function of displaying cooking parameters and the function of opening the cover, and the cooking appliance has a simple structure and low cost.

Description

cooking utensils

technical field

The utility model relates to the technical field of cooking utensils.

Background technique

The existing cooking utensils include a cover body, a pot body, a button for opening the cover and a display screen. The cover body can be opened and closed to the pot body, so as to form a cooking space between the pot body and the cover body. When the user presses the lid opening button, the lid body covering the pot body can be opened. The display screen is used to display cooking parameters (eg, cooking mode, cooking time, and cooking status) of the cooking appliance to the user. The size of the opening button is small (slightly larger than the diameter size of the largest finger of an adult), and the pressing operation is inconvenient. In addition, the lid opening button and the display screen are independent parts, and the number of parts of the cooking utensil is high, and the cost is high.

Therefore, there is a need to provide a cooking appliance that at least partially solves the above-mentioned problems.

Utility model content

A series of concepts in simplified form have been introduced in the Summary of the Invention, which are described in further detail in the Detailed Description. The utility model content part of the present utility model is not intended to attempt to limit the key features and necessary technical features of the claimed technical solution, nor does it mean to attempt to determine the protection scope of the claimed technical solution.

In order to at least partially solve the above problems, the utility model discloses a cooking utensil, the cooking utensil comprises: a pot body; space; a display assembly, the display assembly includes a main body and a display screen arranged on the main body, the main body is arranged on one of the pot body and the cover body; a first joint part, the first joint part is arranged on the main body; the second joint part, The second engaging portion is provided on the other of the pot body and the lid body, and the second engaging portion is correspondingly provided with the first engaging portion; wherein, the display assembly is movably arranged between the locking position and the lid-opening position to enable the first engaging portion to be moved. An engaging portion engages with the second engaging portion to lock the cover, or the first engaging portion leaves the second engaging portion to open the cover.

According to the cooking appliance of the present invention, the display assembly is movably disposed between the locking position and the lid-opening position, so that the first engaging portion engages the second engaging portion, or the first engaging portion separates from the second engaging portion, thereby Open or lock the cover, so that the user moves the display assembly to open the cover easily; and the display assembly has the function of displaying cooking parameters and the function of opening the cover at the same time. The appliance has a simple structure and low cost.

Optionally, the display assembly is disposed at the front end of the pot body, and the second joint portion is located in the cover body. Therefore, it is convenient for the user to observe the content displayed on the display screen of the display assembly from the front end of the pot body during use; the second joint portion is not easily damaged by accidental collision by the user.

Optionally, the first joint portion is located above the middle plate assembly of the pot body. Therefore, there is no need to provide a space for avoiding the first joint portion on the middle plate assembly, and the structure of the pot body is simple.

Optionally, the outer side of the pot body is provided with a mounting protrusion extending horizontally outward, and the body is connected to the mounting protrusion. Therefore, the annular area enclosed by the protruding ribs provides space for the movement of the display assembly, and the installation of the protrusions can reduce the space of the pot body.

Optionally, the upper end of the body is pivotally connected to the pot body to allow the display assembly to move between the locking position and the lid-opening position. Therefore, the structure of the pot body is simple.

Optionally, the first joint portion includes two horizontal portions spaced apart, and a vertical portion connected to both horizontal portions, the longer one of the two horizontal portions is located below the shorter one and connected to the The main body, the vertical part is located at the end of the first joint part away from the main body, the lower end of the cover body extends horizontally inward to form the second joint part, when the display assembly is in the locking position, the second joint part extends into the two sides of the first joint part. between the horizontal sections. Thus, the structures of the first engaging portion and the second engaging portion are simple.

Optionally, the outer surface of the display screen is inclined from top to bottom in a direction away from the pot body. Therefore, it is convenient for the user to view the content displayed on the display screen.

Optionally, the cooking utensil further includes a return spring connected to the body to apply a force to the body to bias the display assembly toward the locking position. Thereby, the display assembly is automatically biased towards the locked position.

Optionally, the first engaging portion and the body are integrally formed, and/or the second engaging portion and the cover body are integrally formed. Therefore, the first joint part and the body are integrally formed, the number of parts of the display assembly is small, and the installation is convenient; the second joint part and the cover body are integrally formed, the number of parts of the cover body is small, and the installation is convenient.

Optionally, the display assembly includes two first joints. Therefore, the connection between the lid body and the pot body is firm.

Description of drawings

The following drawings of embodiments of the present invention are incorporated herein as a part of the present invention for understanding of the present invention. The accompanying drawings illustrate the embodiments of the present invention and their description, which are used to explain the principles of the present invention. In the attached drawings,

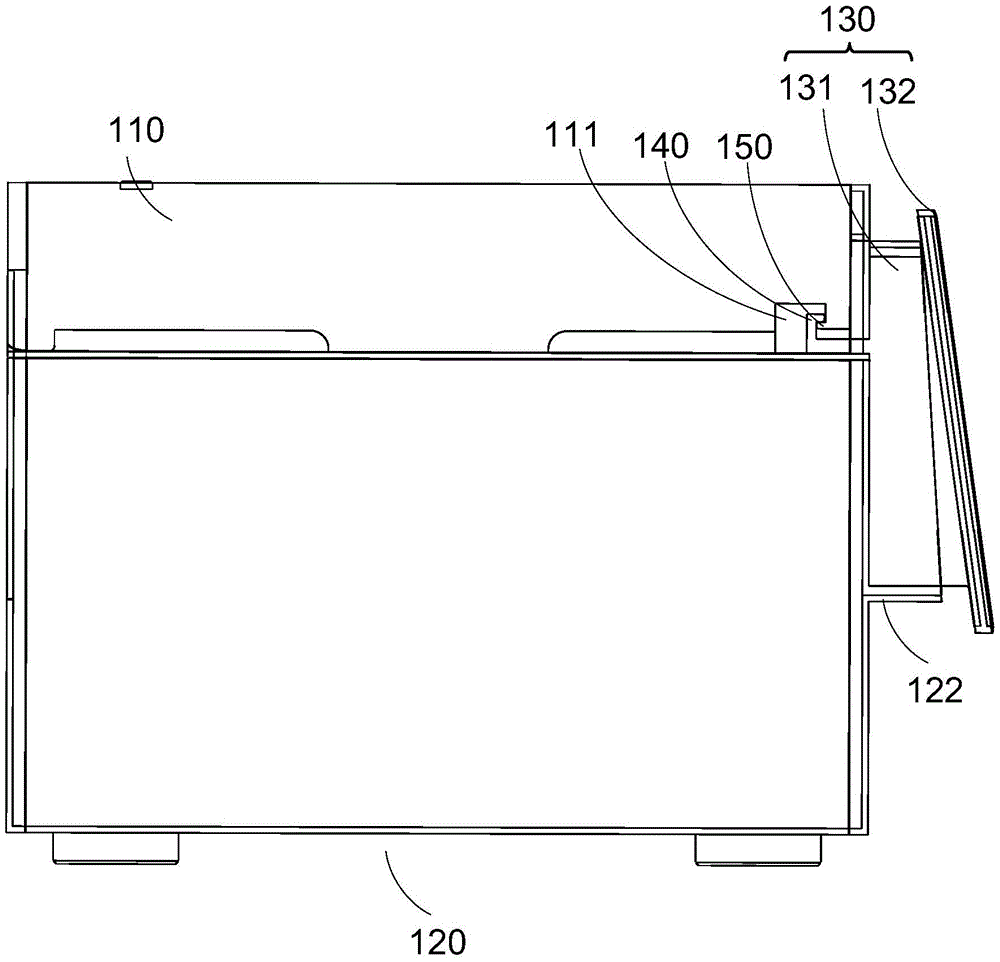

1 is a front view of a cooking appliance according to a preferred embodiment of the present invention;

Fig. 2 is the top view of Fig. 1;

Figure 3 is a side view of Figure 1 (wherein the display assembly is in a locked position);

FIG. 4 is a side view of FIG. 1 (with the display assembly in the uncovered position); and

FIG. 5 is a side view of FIG. 1 (wherein, the cover body is in the open position, and the display assembly is in the open cover position).

Description of reference numbers:

110: Cover 111: Space to Avoid

120: Pot body 121: Middle plate assembly

122: Mounting bumps 130: Display assembly

131: Body 132: Display

140: first joint portion 141: first horizontal portion

142: Second horizontal part 143: Vertical part

150: Second joint

Detailed ways

In the following description, numerous specific details are set forth in order to provide a more thorough understanding of the present invention. It will be apparent, however, to one skilled in the art that embodiments of the invention may be practiced without one or more of these details. In other instances, in order to avoid confusion with the embodiments of the present invention, some technical features known in the art are not described.

For a thorough understanding of the embodiments of the present invention, detailed structures will be presented in the following description. Obviously, the implementation of the embodiments of the present invention is not limited to the specific details familiar to those skilled in the art. The preferred embodiments of the present invention are described in detail as follows, however, the present invention may have other embodiments in addition to these detailed descriptions.

Hereinafter, the cooking utensil which concerns on preferable embodiment of this invention is demonstrated. It can be understood that the cooking appliance according to the present invention may be an electromagnetically heated electric rice cooker, an electric pressure cooker, an electric stew pot or other electric heating appliances. In addition to the function of cooking rice, the cooking appliance according to the present invention can also have various functions such as cooking porridge.

The cooking appliance mainly includes a pot body 120 and a cover body 110 . The pot body 120 has a cylindrical inner pot storage portion, and the inner pot can be freely put into the inner pot storage portion or taken out from the inner pot storage portion, so as to facilitate cleaning of the inner pot. The upper surface of the inner pot has a circular opening for holding the material to be heated, such as rice, soup, etc., into the inner pot. The cover body 110 is pivotally connected to the pot body 120 in an openable and closable manner for covering the pot body 120 . In this way, the lid body 110 has an opening position and a lid closing position for covering the pot body. When the cover body 110 is covered on the pot body 120, a cooking space is formed between the cover body 110 and the inner pot. When the lid 110 is in the open position, food can be added to the inner pot.

A cover return spring is also arranged between the cover body 110 and the pot body 120 . The cover body return spring applies a force to the cover body 110 to open it.

As shown in FIG. 1 to FIG. 5 , the front end (the right end in FIG. 3 ) of the outer shell of the pot body 120 extends horizontally toward the right side in FIG. 3 to form a rib. The rib encloses an annular area. The rib constitutes the mounting protrusion 122 . The display assembly 130 described later may be mounted on the mounting protrusion 122 . The outer shell of the pot body 120 is provided with a horizontally extending through hole at the rib. The first engaging portion 140 , which will be described later, may pass through the through hole, so as to extend above the middle plate assembly 121 of the pot body 120 from the area surrounded by the protruding ribs. Therefore, the annular area enclosed by the protruding ribs provides space for the movement of the display assembly 130 , and the arrangement of the installation protrusions 122 can reduce the space of the pot body 120 .

In this embodiment, the cooking appliance further includes a display assembly 130 . The display assembly 130 includes a body 131 and a display screen 132 . The main body 131 is disposed in the annular area enclosed by the above-mentioned protruding ribs. The front end of the main body 131 (the right end of the main body 131 in FIG. 3 ) is provided with a display screen 132 . The display screen 132 may be a liquid crystal display screen. The liquid crystal display can be attached to the front end of the main body 131 . The display screen 132 is used to display cooking parameters (eg, cooking mode, cooking time, and cooking status) to the user. The display screen 132 is located outside the annular area surrounded by the ribs. The outer surface of the display screen 132 away from the pot body 120 is an inclined plane. Its outer surface (the surface away from the main body 131 ) is inclined from top to bottom toward the direction away from the pot body 120 . Therefore, it is convenient for the user to view the content displayed on the display screen 132 . The display assembly 130 is disposed at the front end of the pot body 120, so that the user can observe the content displayed on the display screen 132 of the display assembly 130 from the front end of the pot body 120 during use.

The rear end of the body 131 (the left end of the body 131 in FIG. 3 ) is provided with a first engaging portion 140 . The shape of the cross section of the first engaging portion 140 in the direction of FIG. 3 (the cross section is substantially parallel to the paper plane of the graph shown in FIG. 3 ) may be a J-shaped structure. The J-shaped structure may include two horizontal portions and one vertical portion 143 . The two horizontal portions include a first horizontal portion 141 and a second horizontal portion 142 . The first horizontal portion 141 is located above the second horizontal portion 142 in the height direction of the cooking appliance. In the horizontal direction, the size of the first horizontal portion 141 is smaller than that of the second horizontal portion 142 . The vertical portion 143 connects the first horizontal portion 141 and the second horizontal portion 142 . The vertical portion 143 is located at the rear end of the first horizontal portion 141 (the left end of the horizontal portion in FIG. 3 ). The right end of the second horizontal portion 142 passes through the above-mentioned through hole. The right end of the second horizontal portion 142 is connected to the left end of the main body 131 . Therefore, the arrangement of the J-shaped structure of the first engaging portion 140 makes the structure of the first engaging portion 140 simple.

Preferably, the first engaging portion 140 and the body 131 are integrally formed. Therefore, the number of parts of the display assembly 130 is small, and the installation is convenient. It can be understood that, in the embodiment not shown, the first joint portion 140 and the body 131 are two different parts. At this time, the first engaging portion 140 and the body 131 are connected.

Preferably, in the left-right direction of FIG. 1 , each body 131 is provided with two first engaging portions 140 at intervals. Thus, the two first engaging parts 140 hook with the cover body 110 to lock the cover body 110 . The connection between the cover body 110 and the pot body 120 is firm.

As shown in FIG. 2 , the first joint portion 140 of the display assembly 130 is located above the middle plate assembly 121 of the pot body 120 . Therefore, there is no need to provide a space for avoiding the first joint portion 140 on the middle plate assembly 121, and the structure of the pot body 120 is simple.

In this embodiment, the upper end of the body 131 of the display assembly 130 can be pivotally connected to the above-mentioned protruding ribs. In this way, the display assembly 130 can rotate around the pivotal connection position between the display assembly 130 and the rib, thereby driving the first joint portion 140 to move. The size of the annular area enclosed by the above-mentioned rib is set corresponding to the size of the body 131, so that the rib can limit the rotation of the body 131, so that the display assembly 130 is in the locked position (the position of the assembly 130 is shown in FIG. 3) and the open position. cover position (where assembly 130 is shown in FIG. 4 ). In this way, when the display assembly 130 is in the locking position, the first engaging portion 140 hooks the second engaging portion 150 to engage with the second engaging portion 150 , thereby locking the cover 110 . At this time, the cover 110 is closed on the on the pot body 120 . When the display assembly 130 is in the cover-opening position, the first engaging portion 140 is separated from the second engaging portion 150, and the cover body 110 is opened under the action of the cover body return spring. Therefore, the upper end of the main body 131 is pivotally connected to the above-mentioned protruding ribs, and the structure of the pot body 120 is simple.

In this embodiment, the cooking appliance further includes a display return spring (not shown). The return spring is shown connecting the body 131 and the pot body 120 . The display return spring applies a force to the body 131 that biases the display assembly 130 toward the locked position. Thus, under the action of the display return spring, the display assembly 130 is automatically biased toward the locked position.

Continuing to refer to FIGS. 3 to 5 , the lower end of the cover body 110 is provided with an avoidance space 111 that avoids the first engaging portion 140 . A second engaging portion 150 is provided in the escape space 111 of the cover body 110 . The second engaging portion 150 is arranged horizontally. The front end of the second engaging part 150 (the right end of the second engaging part 150 in FIG. 3 ) is connected to the front end of the cover body 110 (the right end of the cover body 110 in FIG. 3 ). The second engaging portion 150 is connected to the lower end of the portion of the cover body 110 that surrounds the avoidance space 111 . In this way, the structure of the second joint portion 150 is simple and the processing is convenient. It can be understood that the first engaging portion and the second engaging portion can also be other structures, as long as it can be achieved that when the display assembly is in the locking position, the first engaging portion engages the second engaging portion; when the display assembly is in the opening position, the first engaging portion It is sufficient that the first joint part is separated from the second joint part.

In this embodiment, the second engaging portion 150 is located in the avoidance space 111 of the cover body 110 , and the second engaging portion 150 is not easily damaged by accidental collision by a user.

Preferably, in the left-right direction of FIG. 1 , each cover body 110 is provided with two avoidance spaces 111 at intervals. A second engaging portion 150 is disposed in each avoidance space 111 . The two first engaging portions 140 and the two second engaging portions 150 are provided in a one-to-one correspondence. Thereby, the two second engaging portions 150 are hooked to the corresponding first engaging portions 140 . The connection between the cover body 110 and the pot body 120 is firm.

Preferably, the second engaging part 150 and the cover body 110 may be an integral molding structure. Therefore, the number of parts of the cover body 110 is small, and the installation is convenient.

In this embodiment, when the cover body 110 is in the open position, the cover body 110 is made to cover the pot body 120 , and the second engaging portion 150 pushes the first engaging portion 140 to move the display assembly 130 from the locking position to the opening of the cover. At this time, the main body 131 is turned over to move the lower end of the main body 131 toward the direction close to the pot body 120; during this process, the second engaging portion 150 moves to the position where the opening of the J-shaped structure of the first engaging portion 140 is located, Under the action of the display return spring, the display assembly 130 moves from the opening position to the locking position. At this time, the main body 131 is turned over to move the lower end of the main body 131 away from the pot body 120 , and the second engaging portion 150 extends into the second joint portion 150 . Between the first horizontal portion 141 and the second horizontal portion 142 of an engaging portion 140 , the first engaging portion 140 hooks the second engaging portion 150 .

When the cover body 110 is locked, pressing the display screen 132 of the display assembly 130 can make the main body 131 rotate, thereby moving the display assembly 130 from the locking position to the cover opening position, and the first engaging portion 140 leaves the second engaging portion 150 , at this time, the cover body 110 is opened under the action of the cover body return spring. After the first engaging portion 140 leaves the second engaging portion 150, the display assembly 130 moves under the action of the display return spring, so that the display assembly 130 moves from the cover-opening position to the locking position. Since the size of the display assembly 130 is large (approximately the same as or larger than the size of an adult's palm), the operation of pressing the display assembly 130 is convenient and simple.

In the embodiment not shown, the display assembly 130 may also be disposed on the cover body 110 , and in this case, the second engaging portion 150 is disposed on the pot body 120 . When the cover body 110 rotates, the display assembly 130 rotates together with the cover body 110 .

In this embodiment, the display assembly 130 is movably disposed, so that the first engaging portion 140 moves between the locking position and the cover opening position, thereby opening or locking the cover body 110, so that the user presses the display assembly 130 to open the cover The operation of the body 110 is simple; and the display assembly 130 has the function of displaying cooking parameters and the function of opening the cover body 110 at the same time, the cooking utensil does not need to be provided with a lid opening button, and the cooking utensil has a simple structure and low cost.

Unless otherwise defined, technical and scientific terms used herein have the same meaning as commonly understood by one of ordinary skill in the technical field of the present invention. The terms used herein are for the purpose of describing specific implementations, and are not intended to limit the present invention. Terms such as "component" appearing herein can refer to either a single part or a combination of parts. Terms such as "installed", "provided" and the like appearing herein can mean either the direct attachment of one component to another component or the attachment of one component to another component through an intermediate piece. A feature described herein in one embodiment may be applied to another embodiment alone or in combination with other features, unless the feature is not applicable in the other embodiment or stated otherwise.

The present invention has been described by the above-mentioned embodiments, but it should be understood that the above-mentioned embodiments are only for the purpose of illustration and description, and are not intended to limit the present invention to the scope of the described embodiments. It can be understood by those skilled in the art that, according to the teachings of the present invention, more variations and modifications can be made, and these variations and modifications all fall within the protection scope of the present invention.

Claims (10)

1. A cooking utensil, characterized in that the cooking utensil comprises: pot body (120); a cover body (110), the cover body (110) can be opened and closed to the pot body (120), so as to form a cooking space between the pot body (120) and the cover body (110); A display assembly (130), the display assembly (130) comprising a main body (131) and a display screen (132) arranged on the main body (131), the main body (131) being arranged on the pot body (120) and on one of the cover bodies (110); a first engaging portion (140), the first engaging portion (140) is provided on the body (131); A second engaging portion (150) provided on the other of the pot body (120) and the lid body (110), the second engaging portion (150) and The first joint portion (140) is correspondingly arranged; Wherein, the display assembly (130) is movably arranged between a locking position and an opening position, so that the first engaging portion (140) engages with the second engaging portion (150), so as to lock the The cover body (110), or the first joint portion (140) is separated from the second joint portion (150), so as to open the cover body (110). 2. The cooking utensil according to claim 1, wherein the display assembly (130) is disposed at the front end of the pot body (120), and the second engaging portion (150) is located at the cover body (150). 110). 3. The cooking appliance according to claim 2, wherein the first joint portion (140) is located above the middle plate assembly (121) of the pot body (120). 4. The cooking utensil according to claim 2, wherein the outer side of the pot body (120) is provided with a mounting protrusion (122) extending horizontally outward, and the main body (131) is connected to the mounting protrusion (122) Raised (122). 5. The cooking utensil according to claim 2, wherein the upper end of the main body (131) is pivotally connected to the pot body (120), so that the display assembly (130) is locked in the lock position and the uncapped position. 6. The cooking utensil according to claim 2, characterized in that, the first joint part (140) comprises two horizontal parts arranged at intervals, and a vertical part (140) connected to both of the horizontal parts 143), the longer one of the two horizontal parts is located below the shorter one and connected to the body (131), the vertical part (143) is located away from the first joint part (140) One end of the body (131) and the lower end of the cover (110) extend horizontally inward to form the second joint (150). When the display assembly (130) is in the locking position, the The second joint portion (150) extends between the two horizontal portions of the first joint portion (140). 7. The cooking utensil according to claim 1, wherein the outer surface of the display screen (132) is inclined from top to bottom in a direction away from the pot body (120). 8. The cooking utensil according to claim 1, characterized in that, the cooking utensil further comprises a return spring, and the return spring is connected to the body (131), so as to apply a force to the body (131) to make the display The force by which the assembly (130) is biased toward the locked position. 9. The cooking utensil according to claim 1, wherein the first engaging portion (140) and the body (131) are integrally formed, and/or The second joint portion (150) and the cover body (110) are integrally formed. 10. The cooking appliance according to claim 1, wherein the display assembly (130) comprises two of the first joints (140).
