CN211686797U - A conveyor system for ceramic tile adobe warehouse - Google Patents

Abstract

The utility model discloses and provides a transportation system for a storage bin for tiles and bricks, which comprises a plurality of first linear conveying mechanisms, a plurality of storage racks which are equal in number to the first linear conveying mechanisms and correspond one-to-one, and a second linear conveying mechanism. A linear conveying mechanism and at least one positioning plate, each of the first linear conveying mechanism has two conveyor belts, a plurality of storage racks are respectively arranged on the right side of the corresponding first linear conveying mechanism, the storage rack includes two brackets, the bracket All are arranged along the left and right directions, the second linear transmission mechanism is arranged between the plurality of first linear transmission mechanisms and the plurality of storage racks, and is connected with the second linear transmission mechanism in a driving manner, and the upper end of the positioning plate can slide left and right. The moving trolley is provided with a moving plate horizontally above the moving trolley, and the moving plate is drive-connected with a lifting mechanism arranged on the trolley body. The utility model provides a transportation system for a storage bin for tile adobes, which can significantly improve the transportation speed of tile adobes.

Description

A transport system for a tiled adobe storage silo

technical field

The utility model relates to the field of conveying equipment. More specifically, the utility model relates to a transportation system for a storage bin for tile adobes.

Background technique

In the tile adobe warehouse, the tile adobe is generally transported to the tile adobe warehouse manually by driving forklifts and other equipment, and then the tile adobe warehouse is stored on the shelf. Because the area of the general tile and adobe storage warehouse is not very large, when multiple forklifts work at the same time, they will affect each other's actions, and the efficiency of single-vehicle operation is too low.

Utility model content

The purpose of the present utility model is to provide a transportation system for a storage bin for tile adobes, which can significantly improve the transportation speed of tile adobes.

In order to achieve these objects and other advantages in accordance with the present invention, there is provided a transport system for a storage bin for tile blanks, comprising a plurality of first linear conveying mechanisms, equal in number to the first linear conveying mechanisms A corresponding plurality of storage racks, a second linear conveying mechanism and at least one positioning plate, a plurality of the first linear conveying mechanisms are arranged at intervals in the front and rear, and each of the first linear conveying mechanisms has two lines along the left and right sides. A conveyor belt that is conveyed in a direction and arranged at intervals in the front and rear, a plurality of the storage racks are respectively arranged on the right side of the corresponding first linear conveying mechanism, and the storage rack includes two elongated brackets arranged at intervals in the front and rear , the brackets are arranged in the left-right direction, and the upper end thereof is higher than the upper end of the conveyor belt, and the second linear transmission mechanism is arranged between a plurality of first linear transmission mechanisms and a plurality of the storage racks, so The positioning plate is arranged above the second linear transmission mechanism in the left-right direction, and is connected with the second linear transmission mechanism in a driving connection. The upper end of the positioning plate can slide left and right. A moving plate is provided horizontally, and the moving plate is connected with the lifting mechanism arranged on the mobile trolley. The lifting mechanism drives the moving plate to move upward until its upper end is higher than the upper end of the bracket, or moves downward. Until its upper end is flush with the upper end of the conveyor belt, the second linear conveying mechanism can drive the positioning plate and the moving trolley at the upper end to move to any one of the first linear conveying mechanisms and the corresponding moving trolley in the front-rear direction. between the storage racks, and the moving trolley can move to the left between the two conveyor belts or move to the right between the two brackets.

Preferably, in the transportation system for a storage bin for ceramic tiles, two first guide rails are provided at left and right intervals between the two conveyor belts of the first linear conveying mechanism. The first guide rails are arranged along the left and right directions, and two second guide rails are arranged at a left and right interval between the two brackets of the storage rack, and the second guide rails are arranged along the left and right directions. Two third guide rails are arranged at intervals, and the third guide rails are arranged along the left and right directions. The second linear transmission mechanism drives the positioning plate to move to any one of the first linear transmission mechanisms and the corresponding Between the storage racks, the left ends of the two third guide rails are respectively connected with the right ends of the two first guide rails, and the right ends thereof are respectively connected with the left ends of the two second guide rails, and the third guide rails are connected with the corresponding first guide rails. A linear guide rail is formed with the second guide rail, and the moving trolley is slidably arranged on the two linear guide rails.

Preferably, in the transportation system for a storage silo for ceramic tiles, the lifting mechanism includes a plurality of telescopic cylinders, the plurality of telescopic cylinders are arranged at intervals, and the cylinder bodies of the telescopic cylinders are all connected to the The mobile trolley is connected, and its telescopic rod is vertically upward and connected with the lower end of the moving plate.

Preferably, in the transportation system for a storage bin for ceramic tiles, a plurality of the positioning plates are provided.

The transportation system of the present invention provides a movable second linear conveying mechanism between a plurality of first linear conveying mechanisms and a plurality of storage racks, and selectively connects one of the first linear conveying mechanisms with a corresponding storage rack. The racks are connected, so that the tile blanks on the first linear conveying mechanism are quickly transported to the corresponding storage racks for storage.

Other advantages, objects, and features of the present invention will be manifested in part by the description below, and in part will be understood by those skilled in the art from the study and practice of the present invention.

Description of drawings

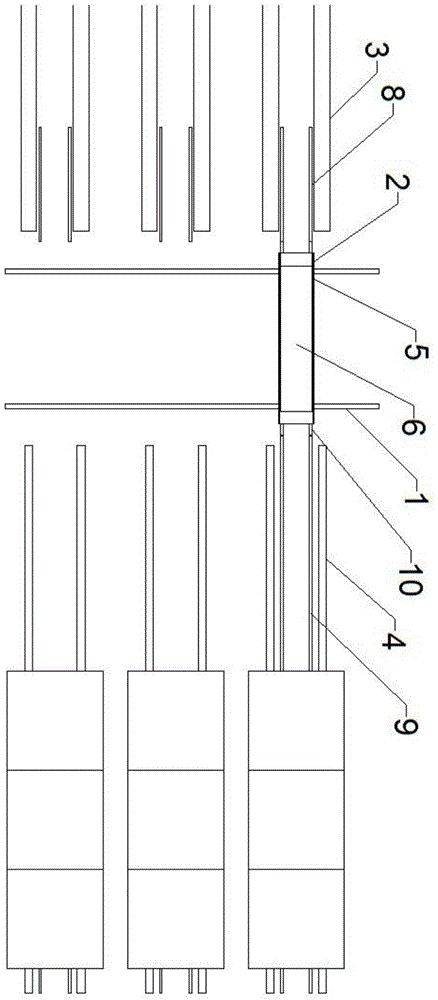

Fig. 1 is the top view of the transportation system described in the utility model;

FIG. 2 is a schematic side view of the transportation system according to the present invention.

Detailed ways

The present utility model will be further described in detail below with reference to the accompanying drawings, so that those skilled in the art can refer to the text of the description to implement it accordingly.

It should be noted that in the description of the present invention, the terms "horizontal", "longitudinal", "upper", "lower", "front", "rear", "left", "right" and "vertical" , "horizontal", "top", "bottom", "inside", "outside" and other indications of orientation or positional relationship are based on the orientation or positional relationship shown in the accompanying drawings, only for the convenience of describing the present utility model and simplifying the description , does not indicate or imply that the indicated device or element must have a specific orientation, be constructed and operate in a specific orientation, and therefore cannot be construed as a limitation on the present invention.

As shown in FIG. 1-FIG. 2, an embodiment of the present invention provides a transportation system for a storage bin for tile blanks, including a plurality of first linear conveying mechanisms, the number of which is equal to that of the first linear conveying mechanisms One-to-one correspondence of a plurality of storage racks, a second linear conveying mechanism 1 and at least one positioning plate 2, a plurality of the first linear conveying mechanisms are arranged at intervals in the front and rear, and each of the first linear conveying mechanisms has two The conveyor belts 3 are all conveyed in the left and right directions and are arranged at intervals in the front and rear, and a plurality of the storage racks are respectively arranged on the right side of the corresponding first linear conveying mechanism. A strip-shaped bracket 4, the brackets 4 are arranged in the left-right direction, and the upper end of the bracket 4 is higher than the upper end of the conveyor belt 3, and the second linear conveying mechanism 1 is arranged in a plurality of first linear conveying mechanisms and a plurality of all the other. Between the storage racks, the positioning plate 2 is arranged above the second linear transmission mechanism 1 along the left-right direction, and is connected with the second linear transmission mechanism 1 in a driving connection, and the upper end of the positioning plate 2 can slide left and right. There is a moving trolley 5, and a moving plate 6 is horizontally arranged above the moving trolley 5. The moving plate 6 is connected with a lifting mechanism arranged on the moving trolley 5, and the lifting mechanism drives the moving plate. 6 Move upward until its upper end is higher than the upper end of the bracket 4, or move downward until its upper end is flush with the upper end of the conveyor belt 3, the second linear conveying mechanism 1 can drive the positioning plate 2 and its upper end The moving trolley 5 moves between any one of the first linear conveying mechanisms and the corresponding storage racks along the front-rear direction, and the moving trolley 5 can move leftwards to one of the two conveyor belts 3 Move to the right between the two brackets 4 from time to time.

In the above embodiment, the tile blanks are transported to the second linear conveying mechanism 1 through a plurality of first linear conveying mechanisms. The first linear conveying mechanism has two conveyor belts 3 that are both conveyed in the left and right directions and are arranged at intervals in the front and rear. 3 Using the existing belt-type conveying mechanism, the two conveying belts 3 rotate synchronously, thereby driving the tile blanks to move stably in the first linear conveying mechanism, and the second linear conveying mechanism 1 can also use the existing orbital linear moving mechanism; The trolley 5 adopts the prior art. When the second linear conveying mechanism 1 drives the positioning plate 2 and the moving trolley 5 at the upper end to move between any first linear conveying mechanism and the corresponding storage rack in the front-rear direction, the lifting mechanism Drive the moving plate 6 to move downward until its upper end is flush with the upper end of the conveyor belt 3, and the moving trolley 5 moves to the left on the positioning plate 2, and makes its left end move between the two conveyor belts 3, so that the upper part of the two conveyor belts 3 The tile adobe will move horizontally to the upper end of the moving trolley 5, and then the moving trolley 5 will move rightward with the tile adobe at its upper end to the second linear conveying mechanism 1, at this time, the lifting mechanism drives the moving plate 6 and its upper end. The tile adobe moves upward until the upper end of the moving plate 6 is higher than the upper end of the bracket 4, and then the moving trolley 5 continues to move the tile adobe with its upper end to the right between the two brackets 4 of the storage rack. 5 After reaching the target position, the lifting mechanism drives the moving plate 6 to move downward until the upper end of the moving plate 6 is flush with the upper end of the conveyor belt 3. At this time, the tile blank will fall on the two brackets 4 of the storage rack, and the moving trolley 5 Then drive the moving plate 6 to move to the left to start the next round of work.

Preferably, as another embodiment of the present invention, two first guide rails 8 are provided at left and right intervals between the two conveyor belts 3 of the first linear conveying mechanism. The left and right directions are arranged, and two second guide rails 9 are arranged at the left and right intervals between the two brackets 4 of the storage rack, and the second guide rails 9 are arranged along the left and right directions. There are two third guide rails 10, the third guide rails 10 are arranged along the left and right direction, the second linear transmission mechanism 1 drives the positioning plate 2 to move to any of the first linear transmission mechanisms and the corresponding Between the storage racks, the left ends of the two third guide rails 10 are connected with the right ends of the two first guide rails 8 respectively, and the right ends thereof are connected with the left ends of the two second guide rails 9 respectively. 10 and its corresponding first guide rail 8 and second guide rail 9 form a linear guide rail, and the moving trolley 5 is slidably arranged on the two linear guide rails.

In the above-mentioned embodiment, in order to realize that moving the second linear conveying mechanism 1 drives the positioning plate 2 and the moving cart 5 at the upper end to move between any first linear conveying mechanism and the corresponding storage rack in the front-rear direction, the moving cart is moved. 5. It can be moved to the left between the two conveyor belts 3 or to the right between the two brackets 4. Two first guide rails 8 are arranged at the left and right intervals between the two conveyor belts 3 of the first linear conveying mechanism. Two second guide rails 9 are provided at left and right intervals between the two brackets 4 of the storage rack. The second linear transmission mechanism 1 drives the positioning plate 2 to move to any one of the first linear transmission mechanisms and the corresponding storage rack. In time, the left ends of the two third guide rails 10 are connected with the right ends of the two first guide rails 8 respectively, and the right ends thereof are connected with the left ends of the two second guide rails 9 respectively, so that the two third guide rails 10 and their corresponding first guide rails 8 and the second guide rail 9 form a linear guide rail, through which the moving trolley 5 can move to the left between the two conveyor belts 3 or to the right between the two brackets 4 through the linear rail.

Preferably, as another embodiment of the present invention, the lifting mechanism includes a plurality of telescopic cylinders 11 , the plurality of telescopic cylinders 11 are arranged at intervals, and the cylinder bodies of the telescopic cylinders 11 are all connected to the mobile trolley 5 , The telescopic rod is vertically upward and connected with the lower end of the moving plate 6 .

In the above embodiment, the telescopic rods of the plurality of telescopic cylinders 11 are raised and lowered synchronously to drive the moving plate 6 to move up and down.

Preferably, as another embodiment of the present invention, a plurality of the positioning plates 2 are provided.

In the above-mentioned embodiment, when a plurality of first linear conveying mechanisms are working at the same time, multiple positioning plates 2 are provided, so that there are multiple corresponding moving trolleys 5, which speeds up the storage of the first linear conveying mechanism and its corresponding storage. The conveying speed of the tile bricks between the racks can improve the working efficiency of the whole system.

Although the embodiments of the present invention have been disclosed as above, they are not limited to the applications listed in the description and the embodiments, and can be applied to various fields suitable for the present invention. For those skilled in the art, Additional modifications may readily be implemented, therefore the invention is not limited to the specific details and embodiments shown and described herein without departing from the general concept defined by the appended claims and the scope of equivalents.

Claims (4)

1. A transportation system for a storage bin of ceramic tile green bricks is characterized by comprising a plurality of first linear conveying mechanisms, a plurality of storage racks, a second linear conveying mechanism (1) and at least one positioning plate (2), wherein the number of the storage racks is equal to that of the first linear conveying mechanisms, the storage racks correspond to the first linear conveying mechanisms one by one, the first linear conveying mechanisms are arranged at intervals in the front-back direction, each first linear conveying mechanism is provided with two conveying belts (3) which are conveyed along the left-right direction and are arranged at intervals in the front-back direction, the plurality of the storage racks are respectively arranged on the right side of the corresponding first linear conveying mechanisms, each storage rack comprises two long strip-shaped supports (4) which are arranged at intervals in the front-back direction, the supports (4) are arranged along the left-right direction, the upper ends of the supports are higher than the upper ends of the conveying belts (3), and the second linear conveying mechanism (1) is arranged between the plurality of first linear conveying mechanisms, the positioning plate (2) is arranged above the second linear conveying mechanism (1) along the left-right direction and is in transmission connection with the second linear conveying mechanism (1), a movable trolley (5) is arranged at the upper end of the positioning plate (2) in a left-right sliding manner, a movable plate (6) is horizontally arranged above the movable trolley (5), the movable plate (6) is in transmission connection with a lifting mechanism arranged on the movable trolley (5), the lifting mechanism drives the movable plate (6) to move upwards until the upper end of the movable plate is higher than the upper end of the support (4) or move downwards until the upper end of the movable plate is flush with the upper end of the conveyor belt (3), the second linear conveying mechanism (1) can drive the positioning plate (2) and the movable trolley (5) at the upper end of the positioning plate to move between any first linear conveying mechanism and the corresponding storage rack along the front-back direction, and the moving trolley (5) can move leftwards to be between the two conveyor belts (3) or rightwards to be between the two brackets (4).

2. A transportation system for storage bins of tile adobe as claimed in claim 1, wherein two first guide rails (8) are arranged between the two conveyor belts (3) of the first linear conveyor mechanism at intervals left and right, the first guide rails (8) are arranged along left and right directions, two second guide rails (9) are arranged between the two brackets (4) of the storage bins at intervals left and right, the second guide rails (9) are arranged along left and right directions, two third guide rails (10) are arranged on the positioning plate (2) at intervals front and back, the third guide rails (10) are arranged along left and right directions, the second linear conveyor mechanism (1) drives the positioning plate (2) to move between any one of the first linear conveyor mechanisms and the corresponding storage bin, the left ends of the two third guide rails (10) are respectively communicated with the right ends of the two first guide rails (8), the right ends of the two linear guide rails are respectively communicated with the left ends of the two second guide rails (9), the third guide rail (10) and the corresponding first guide rail (8) and second guide rail (9) form a linear guide rail, and the movable trolley (5) is arranged on the two linear guide rails in a sliding manner.

3. A system for transporting unfired ceramic tiles from a storage silo according to claim 2, wherein the lifting mechanism comprises a plurality of telescopic cylinders (11), the plurality of telescopic cylinders (11) are arranged at intervals, the cylinders of the telescopic cylinders (11) are connected with the movable trolley (5), and the telescopic rods of the telescopic cylinders are arranged vertically upwards and connected with the lower end of the movable plate (6).

4. A system for the transport of green ceramic tiles from a storage silo according to any one of the claims 1 to 3, characterized in that the positioning plate (2) is provided in plurality.
