Abstract

The utility model discloses a model making tool for industrial design. The upper end side wall is fixedly connected with a placing table, the upper end side wall of the placing table is fixedly connected with a flexible bracket, the side wall of the flexible bracket is fixedly connected with a lighting lamp, and the upper end side wall of the work table is provided with a receiving slot , the two side walls of the storage slot are connected with a mesh plate by snap connection, a storage box is slidably connected in the storage slot, the storage box penetrates the side walls of the storage slot and is fixedly connected with a handle, and the workbench The four corners of the lower end side wall are fixedly connected with four legs. The utility model quickly collects the falling residue during grinding, which is convenient for subsequent processing. In addition, the lighting lamp provides light, which facilitates the comparison of the original product and the model, and improves the accuracy of model making. In addition, the file is placed in the return frame for easy retrieval. use.

Description

A model making tool for industrial design

technical field

The utility model relates to the technical field of industrial design, in particular to a model making tool for industrial design.

Background technique

Model making is a commonly used method in industrial design. The model made according to a certain proportion of the product can not only provide the specific functions and parameters of the design, which is convenient for later changes, but also has a low cost and is more convenient to make. The model needs to be finely polished during production to ensure that it is close to the product, such as a mouse.

In the prior art, when grinding the model, multiple files need to be used, and it is very troublesome to use the files each time, and when comparing with the product, if the manufacturer cannot see clearly, the production process will be delayed. In addition, During the grinding process, a lot of residues will fall on the workbench, which is not only inconvenient to collect, but also affects the production process. For this reason, we propose a model making tool for industrial design to solve the above problems.

Utility model content

The purpose of the utility model is to solve the problem that in the prior art, when grinding the model, multiple files need to be used, and it is very troublesome to use the files each time, and when comparing with the product, if the manufacturer cannot see clearly, it will be delayed. In the production process, and in the grinding process, a lot of residues will fall on the workbench, which is not only inconvenient to collect, but also affects the production process. Therefore, a model-making tool for industrial design is proposed.

In order to achieve the above-mentioned purpose, the utility model adopts the following technical solutions:

A model making tool for industrial design, comprising a workbench, the upper end side wall of the workbench is fixedly connected with a reshape frame, the return shape frame is provided with a plurality of files, and the upper end side wall of the workbench is fixedly connected There is a placing table, the upper end side wall of the placing table is fixedly connected with a flexible bracket, the side wall of the flexible bracket is fixedly connected with a lighting lamp, the upper end side wall of the work table is provided with a receiving groove, the receiving groove A mesh plate is snap-connected between the two side walls of the storage slot, a storage box is slidably connected in the storage slot, the storage box runs through the side wall of the storage slot and is fixedly connected with a handle, and the four corners of the lower side wall of the workbench The fixed connection has four legs.

Preferably, a plurality of openings are formed on the upper end side wall of the return frame, and a plurality of arc grooves are formed on the inner wall of the lower end of the return frame. against the wall.

Preferably, an installation cavity is opened in the placing table, the inner wall of the installation cavity is fixedly connected with a drive motor, and the inner wall of the installation cavity is rotatably connected with a worm matched with the output shaft of the drive motor through a rotating shaft. A rotating rod is rotatably connected to the inner wall of the lower end through a rotating shaft. The rotating rod is fixedly sleeved with a worm wheel matched with the worm.

Preferably, the upper end side wall of the worktable is connected with a strip brush by clamping.

Preferably, a plurality of support blocks are fixedly connected to the side walls of the receiving groove, and the upper end side walls of the support blocks are abutted against the lower end side walls of the screen plate.

Compared with the prior art, the beneficial effects of the present utility model are:

1. The file is restricted by the return frame, which is convenient to use. At the same time, during the grinding process, the stencil can be used to quickly collect the residue generated by grinding, and the residue can be dropped into the storage box for easy collection and processing. In addition, the polished product Place the original item on the placing table, and compare it easily under the action of the lighting lamp, so as to ensure the accuracy of the model making;

2. Through the opening and arc groove, the file can be more easily limited to ensure that the file can be stably placed in the return frame. In addition, the drive motor is used to drive the turntable to rotate, and then the original product is placed on the turntable, which is convenient for time Observing the shape of the original product, in turn, allows workers to make models more accurately.

Description of drawings

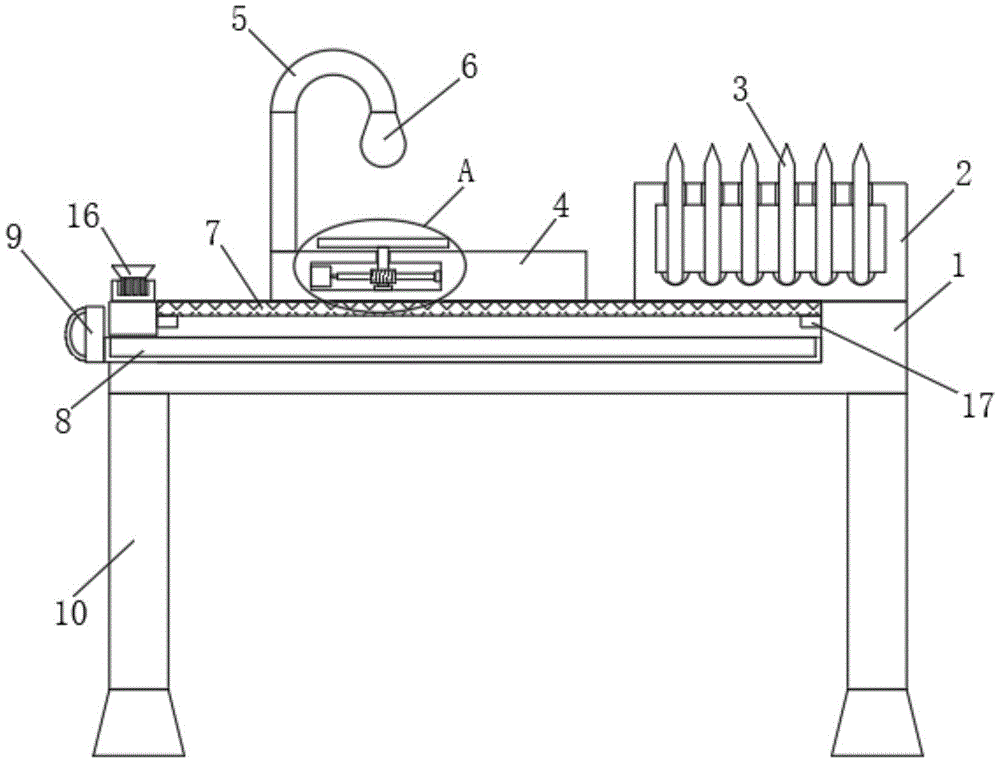

Fig. 1 is the structural representation of a kind of industrial design model making tool proposed by the utility model;

FIG. 2 is a schematic diagram of the structure at A in FIG. 1 .

In the picture: 1 worktable, 2 back-shaped frames, 3 files, 4 placement tables, 5 flexible brackets, 6 lighting lamps, 7 mesh panels, 8 storage boxes, 9 handles, 10 legs, 11 drive motors, 12 worms, 13 Rods, 14 Worm Gears, 15 Turntables, 16 Strip Brushes, 17 Support Blocks.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example.

1-2, a model making tool for industrial design, including a workbench 1, the upper end side wall of the workbench 1 is snap-connected with a strip brush 16, through the strip brush 16, the residue on the screen plate 7 can be quickly removed The brush is dropped into the storage box 8, the upper end side wall of the worktable 1 is fixedly connected with the return form frame 2, the upper end side wall of the return form frame 2 is provided with a plurality of openings, and the lower end inner wall of the return form frame 2 is provided with a plurality of arcs A plurality of files 3 respectively penetrate through a plurality of openings and are in contact with the side walls of the arc-shaped grooves. The openings and the arc-shaped grooves can more easily limit the position of the files 3, ensuring that the files 3 can be stably placed in the return frame In 2, a plurality of files 3 are arranged in the return frame 2, a placement table 4 is fixedly connected to the upper end side wall of the work table 1, and an installation cavity is opened in the placement table 4;

The inner wall of the installation cavity is fixedly connected with the drive motor 11, the inner wall of the installation cavity is rotatably connected with a worm 12 matched with the output shaft of the drive motor 11 through the rotating shaft, and the inner wall of the lower end of the installation cavity is rotatably connected with a rotating rod 13 through the rotating shaft. The fixed sleeve is provided with a worm wheel 14 that matches the worm 12, the upper end side wall of the rotating rod 13 penetrates the upper end inner wall of the installation cavity and is fixedly connected with a turntable 15, and the upper end side wall of the placing table 4 is fixedly connected with a flexible bracket 5, which is a flexible bracket. The side wall of 5 is fixedly connected with the lighting lamp 6, the upper end side wall of the workbench 1 is provided with a receiving groove, and the side wall of the receiving groove is fixedly connected with a plurality of support blocks 17, and the upper end side wall of the support block 17 is connected with the lower end of the screen plate 7. The side walls are against each other, and the mesh plate 7 can be easily taken out from the storage slot for cleaning through the support block 17. The mesh plate 7 is connected between the side walls on both sides of the storage slot, and the storage box 8 is slidably connected in the storage slot. The storage box 8 runs through the side wall of the storage slot and is fixedly connected with a handle 9. The four corners of the lower end side wall of the workbench 1 are fixedly connected with four legs 10, which play a good supporting role for the workbench 1 and ensure that the workbench 1 will not shaking.

When making a model of the present invention, the original product can be placed on the placing table 4, and the worm 12 can be driven by the driving motor 11 to rotate. The original product can be rotated slowly, so that the model maker can observe the shape of the original product at all angles at any time, thereby improving the accuracy of model making. The difference between the original product and the model improves the accuracy of production, and the position of the lighting lamp 6 can be changed with the bending of the flexible bracket 5 to achieve lighting from all directions and improve the lighting effect. The file 3 can be easily accessed through the return frame 2, and the residue generated during the grinding process can be dropped into the storage box 8 through the screen plate 7, which is convenient for subsequent collection and processing, and has a simple structure and strong practicability.

The above are only the preferred specific embodiments of the present invention, but the protection scope of the present invention is not limited to this. Equivalent replacement or modification of the new technical solution and its utility model concept shall be included within the protection scope of the present utility model.

Claims (5)

1. A model making tool for industrial design, comprising a workbench (1), characterized in that the upper end side wall of the workbench (1) is fixedly connected with a return frame (2), and the return frame (2) ) is provided with a plurality of files (3), the upper end side wall of the work table (1) is fixedly connected with a placing table (4), and the upper end side wall of the placing table (4) is fixedly connected with a flexible bracket (5). ), the side wall of the flexible bracket (5) is fixedly connected with the lighting lamp (6), the upper end side wall of the worktable (1) is provided with a receiving groove, and the two side walls of the receiving groove are clamped between A mesh plate (7) is connected continuously, a storage box (8) is slidably connected in the storage slot, the storage box (8) penetrates the side wall of the storage slot and is fixedly connected with a handle (9), and the workbench ( 1) Four legs (10) are fixedly connected to the four corners of the lower end side wall. 2. A model making tool for industrial design according to claim 1, characterized in that, the upper end side wall of the forming frame (2) is provided with a plurality of openings, and the inner wall of the lower end of the forming frame (2) is provided with a plurality of openings. A plurality of arc-shaped grooves are opened, and a plurality of the files (3) respectively pass through the plurality of openings and abut against the side walls of the arc-shaped grooves. 3. A model making tool for industrial design according to claim 1, wherein an installation cavity is opened in the placement table (4), and a drive motor (11) is fixedly connected to the inner wall of the installation cavity, The inner wall of the installation cavity is rotatably connected with a worm (12) matched with the output shaft of the drive motor (11) through the rotating shaft, and the inner wall of the lower end of the installation cavity is rotatably connected with a rotating rod (13) through the rotating shaft, and the rotating rod ( 13) The upper fixed sleeve is provided with a worm wheel (14) matching the worm (12), the upper end side wall of the rotating rod (13) penetrates the upper end inner wall of the installation cavity and is fixedly connected with a turntable (15). 4 . The model making tool for industrial design according to claim 1 , wherein a strip brush ( 16 ) is snap-connected to the upper end side wall of the workbench ( 1 ). 5 . 5. A model making tool for industrial design according to claim 1, characterized in that a plurality of support blocks (17) are fixedly connected to the side walls of the receiving groove, and the upper end side of the support block (17) The wall abuts against the lower end side wall of the screen plate (7).
