Abstract

The embodiments of the present utility model relate to the technical field of medical supplies, in particular to a hangable automatic cleaning sputum cup, comprising a cup body, the cup body comprising a cup bottom, a cup body and a cup lid, and the cup bottom is provided with a motor and a Stirring blade, the motor is connected through the connecting shaft. The hanging automatic cleaning sputum cup provided by the utility model can realize the function of automatically cleaning the inner side of the cup body, which is not only convenient for patients to use, but also more hygienic and safe. It can be reused and is suitable for use in hospitals or at home.

Description

Hangable self-cleaning sputum cup

technical field

The embodiment of the utility model relates to the technical field of medical supplies, in particular to a hangable automatic cleaning sputum cup.

Background technique

At present, patients with respiratory diseases usually spit sputum into an open spittoon or toilet paper. The open spittoon makes the sputum leak out, and the bacteria in the sputum can easily pollute the environment and cause disease transmission; spit in the toilet paper The ward environment is affected, and some patients need to be treated at home for a long time after discharge.

The traditional sputum container is a spittoon. When people spit the sputum into the spittoon, because the sputum does not have a self-cleaning function, the sputum remains for a period of time. During this period, the bacteria and harmful substances in the sputum It is easy to volatilize and spread. At the same time, the spittoon can only be cleaned manually. The sealed cup needs to be cleaned and disinfected after use. The operation is very troublesome, time-consuming and labor-intensive, and increases the workload of patients and medical staff.

Utility model content

The purpose of the utility model is to provide a hangable automatic cleaning sputum cup in view of the above-mentioned defects in the prior art.

In order to realize the above-mentioned purpose of the utility model, the utility model adopts the following technical solutions:

A hangable automatic cleaning sputum cup includes a cup body, the cup body includes a cup bottom, a cup body and a cup cover, the cup bottom is provided with a motor and a stirring blade, and the motor is connected by a connecting shaft.

The working principle is as follows: the patient spit sputum into the body of the cup body, when it needs to be cleaned, cover the lid of the cup, start the switch, the motor drives the stirring blade to rotate, and drives the water flow to wash the viscous sputum inside the body of the cup body, making it consistent with the cup. The body is separated and melted into the water for easy pouring.

In addition, the utility model also provides the following subsidiary technical solutions:

Preferably, a hanging device is also provided on the cup body.

Preferably, the hanging device is a hanging rope or a hanging hook. The hanging rope or the hanging hook can make the cup body hang on the side of the bed or the table, which is more convenient to use.

Preferably, the side of the cup body is further provided with a handle, and the handle is provided with a lid switch of the lid. When in use, as long as the cup lid switch is pressed, the cup lid can be opened with one key, so that the lid opening action can be operated with one hand, which is more convenient.

Preferably, the mouth of the cup body is wider than the cup body.

Preferably, the bottom of the cup body is provided with an anti-skid layer.

Preferably, the cup body is made of transparent material and is provided with scales. The patient can observe the color and volume of sputum at any time.

Preferably, an openable and closable shield is provided on the outside of the cup body. The use of the openable and closable cover allows the patient to cover the sputum after observing the color and volume of the sputum, which is more beautiful.

Preferably, the side of the cup body is provided with a water outlet hole.

Compared with the prior art, the advantage of the present utility model is:

1. The hanging type automatic cleaning sputum cup provided by the utility model, by adding water to the cup body, uses the motor to drive the stirring blade to rotate, thereby driving the water flow to clean the cup body, and can realize the function of automatically cleaning the inner side of the cup body, which is not only convenient It is more hygienic and safe for patients to use, it can be reused, and it is suitable for use in hospitals or at home.

2. The hanging automatic cleaning sputum cup provided by the utility model is provided with a hanging device, which can be hung around at any time during use, which is convenient for use, and can also be hung on the body for use when going out. Before use, you can also put disinfectant, etc. into the cup body in advance to avoid bacterial reproduction and reduce sputum sticking to the inside of the cup body.

3. The hanging type automatic cleaning sputum cup provided by the utility model has the advantages of reasonable design, simple structure, small volume, convenient use and more clean and hygienic.

Description of drawings

In order to illustrate the technical solutions of the embodiments of the present invention more clearly, the following briefly introduces the accompanying drawings required in the description of the embodiments or related technologies. Obviously, the accompanying drawings in the following description only relate to the present invention. Some embodiments are not limitations of the present invention.

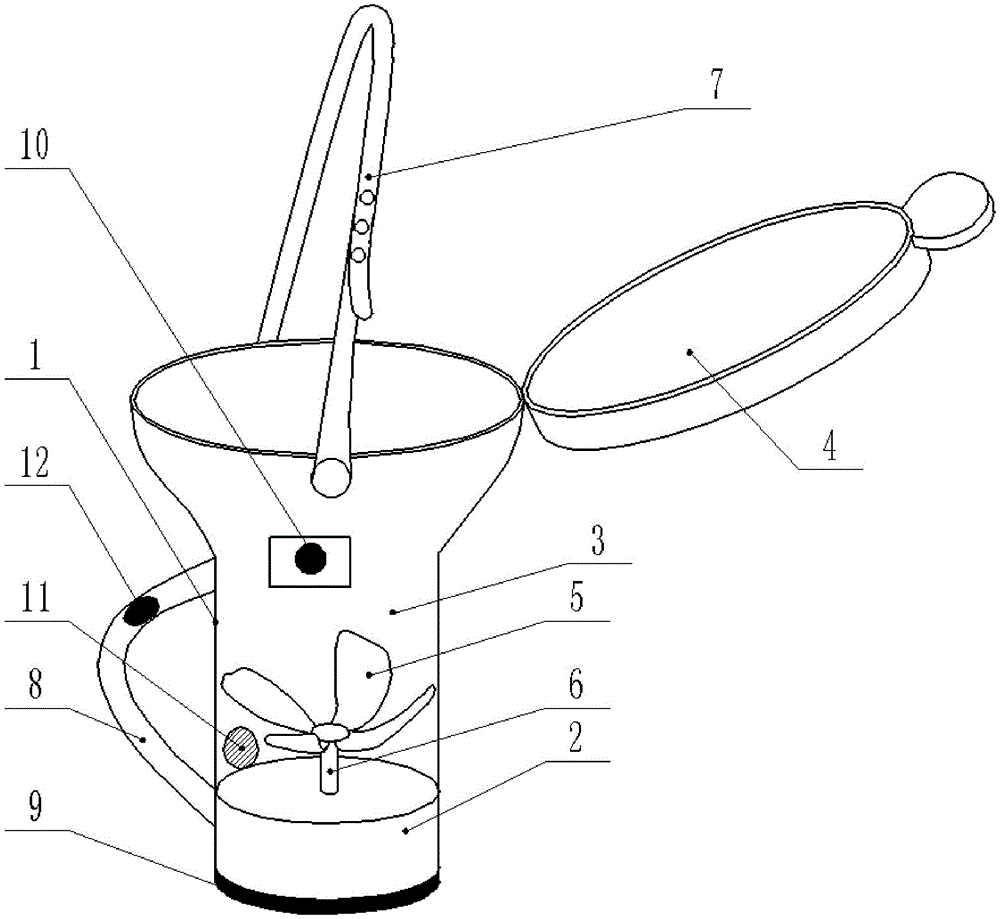

Fig. 1 is the structural representation of Embodiment 1 of the present utility model;

Among them, the above symbols and their corresponding component names are as follows:

Cup body 1, cup bottom 2, cup body 3, cup lid 4, stirring blade 5, connecting shaft 6, hanging rope 7, handle 8, anti-skid layer 9, switch 10, water outlet 11, cup lid switch 12.

Detailed ways

In order to more clearly understand the above objects, features and advantages of the present invention, the technical solutions of the present invention are further described in non-limiting detail below in conjunction with the accompanying drawings and specific embodiments.

Example 1

See Figure 1, the hanging type automatic cleaning sputum cup, including the cup body 1, the cup body 1 includes the cup bottom 2, the cup body 3 and the cup cover 4, the bottom of the cup is provided with a motor and a stirring blade 5, and the motor passes through the connecting shaft 6 connect.

The working principle is as follows: the patient spit sputum into the cup body 1, and when it needs to be cleaned, cover the cup cover 4, turn on the switch 10, the motor drives the stirring blade to rotate, and drives the water flow to wash the viscous sputum inside the cup body 1. It is separated from the main body 1 of the cup body and merged into the water, so as to facilitate pouring out.

The cup body 1 is also provided with a hanging device.

In this embodiment, the hanging device is a hanging rope 7 . The hanging rope 7 can make the cup body 1 hang on the side of the bed or the table, which is more convenient to use.

A handle 8 is also provided on the side of the cup body 1, and a lid switch 12 of the lid is provided on the handle. When in use, as long as the lid switch 12 is pressed, the lid can be opened with one key, so that the lid opening action can be operated with one hand, which is more convenient.

The mouth of the cup body 1 is wider than the cup body 2 .

The bottom of the cup body 1 is provided with an anti-skid layer 9 .

The cup body 3 is made of transparent material and is provided with scales. The patient can observe the color and volume of sputum at any time.

The outer side of the cup body 3 is provided with a cover that can be opened and closed. The use of the openable and closable cover allows the patient to cover the sputum after observing the color and volume of the sputum, which is more beautiful.

The side of the cup body 1 is provided with a water outlet hole 11 .

It should be pointed out that the above-mentioned preferred embodiment is only to illustrate the technical concept and characteristics of the present utility model, and its purpose is to enable those who are familiar with this technology to understand the content of the present utility model and implement accordingly, and cannot limit the present utility model with this. The scope of protection of the utility model. All equivalent changes or modifications made according to the spirit of the present invention shall be included within the protection scope of the present invention.

Claims (8)

1. Suspended automatic cleaning sputum cup is characterized in that: comprising a cup body, the cup body comprises a cup bottom, a cup body and a cup lid, the cup bottom is provided with a motor and a stirring piece, and the motor is connected by The shaft is connected, and the cup body is also provided with a hanging device. 2 . The hangable automatic cleaning sputum cup according to claim 1 , wherein the hanging device is a hanging rope or a hanging hook. 3 . 3 . The hangable automatic cleaning sputum cup according to claim 1 , wherein the side of the cup body is further provided with a handle, and the handle is provided with a one-button lid switch for the lid. 4 . 4 . The hangable automatic cleaning sputum cup according to claim 1 , wherein the mouth of the cup body is wider than the cup body. 5 . 5 . The hangable automatic cleaning sputum cup according to claim 1 , wherein the bottom of the cup body is provided with a non-slip layer. 6 . 6 . The hangable automatic cleaning sputum cup according to claim 1 , wherein the cup body is made of transparent material and is provided with scales. 7 . 7 . The hangable self-cleaning sputum cup according to claim 1 , wherein an openable and closable shield is provided on the outside of the cup body. 8 . 8 . The hangable self-cleaning sputum cup according to claim 1 , wherein a water outlet hole is provided on the side of the cup body. 9 .
