Abstract

The utility model relates to the technical field of medical equipment, and discloses an eye mask fixing device for ophthalmic surgery, comprising an eye mask holder, an outer end of the eye mask holder is connected with a fixing rubber band, The fixing base is fixedly connected with the screw, the fixing rubber band includes a fixing rubber band main body, and the middle end of the fixing rubber band main body is embedded and connected by a set of the same connection links. The main body of the fixing rubber band and the main body of the eye mask holder of the utility model are both made of a rubber material, which can better fit the user's head, and can reduce the injury of the user and improve the comfort, and the eye mask is fixed. The main body of the device and the detachable shielding plate are connected by a fixed screw plate and can be freely disassembled. The light shielding plate can also be freely pulled out and put in, which is convenient for observation. Entire goggle holder.

Description

An eye mask fixing device for ophthalmic surgery

technical field

The utility model relates to the technical field of medical equipment, in particular to an eye mask fixing device for ophthalmic surgery.

Background technique

Most of the eye masks used in eye surgery are easy to fall off, so eye mask fixing devices have appeared in the society, but ordinary fixing devices will cause unnecessary streaks and injuries to the head if worn for a long time, and ordinary fixing devices want to observe the condition of the eyes It can only be removed, which will cause unnecessary trouble to the user and be susceptible to infection.

Because the ordinary fixation device will bring unnecessary streaks and injuries to the head for a long time, the comfort is not high, and the ordinary fixation device can only be removed to observe the eye condition, which will cause unnecessary trouble to the user. It is easy to be infected, and it is more troublesome to observe the condition of the eyes. Therefore, those skilled in the art provide an eye mask fixing device for ophthalmic surgery to solve the above-mentioned problems in the background art.

SUMMARY OF THE INVENTION

The purpose of the present invention is to provide an eye mask fixing device for ophthalmic surgery, so as to solve the problems raised in the above-mentioned background art.

To achieve the above object, the utility model provides the following technical solutions:

An eye mask fixing device for ophthalmic surgery comprises an eye mask holder, an outer end of the eye mask holder is connected with a fixing rubber band, the outer bottom end of the eye mask holder is fixed and connected with a fixing base with screws, and the fixing rubber The belt includes a fixed rubber belt main body, the middle end of the fixed rubber belt main body is embedded and connected by a set of the same connecting links, and both ends of the fixed rubber belt main body are fixedly connected with a buckle.

As a further solution of the present invention: the eyecup holder includes a main body of the eyecup holder, both ends of the rear side of the main body of the eyecup holder are provided with snap grooves, and both ends of the outer side of the main body of the eyecup holder are fixedly connected There is a fixing screw plate, one side of the connecting rubber ring is fixedly connected to the outer side of the eye mask holder body, and a detachable shielding plate is fixedly connected to the other side of the connecting rubber ring.

As a further solution of the present invention, a transparent plate is fixedly connected to the outer side of the detachable shielding plate, and a light shielding plate is embedded and connected to the top of the detachable shielding plate.

As a further solution of the present invention: the fixed base includes a fixed base body, the middle end of the fixed base body is fixedly connected with a telescopic support column, and one end of the top of the fixed base body close to the telescopic support column is provided with a set of connecting screw grooves .

As a further solution of the present invention: the outer side of the bottom end of the fixed base body is rotatably connected to one side of a rotating steel column, the other side of the rotating steel column is rotatably connected to a base plate, and the top of the base plate is provided with Set screw slot.

As a further solution of the present invention, the main body of the fixing rubber band and the main body of the eyecup holder are both made of a rubber material.

Compared with the prior art, the beneficial effects of the present utility model:

The main body of the fixing rubber band and the main body of the eye mask holder of the utility model are both made of a rubber material, which can better fit the user's head, and can reduce the injury of the user and improve the comfort, and the eye mask is fixed. The main body of the device and the detachable shielding plate are connected by a fixed screw plate and can be freely disassembled. The light shielding plate can also be freely pulled out and put in, which is convenient for observation. Entire goggle holder.

Description of drawings

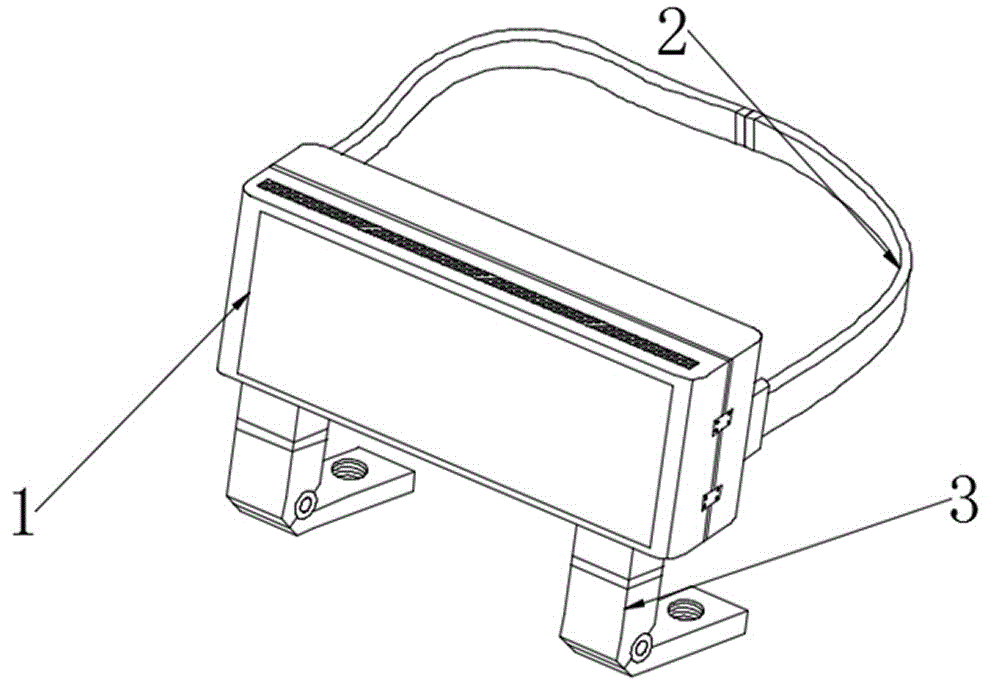

1 is a schematic structural diagram of an eye mask fixing device for ophthalmic surgery;

Fig. 2 is a kind of structural schematic diagram of the eye mask holder in the eye mask fixing device for ophthalmic surgery;

3 is a schematic structural diagram of a fixed rubber band in an eye mask fixing device for ophthalmic surgery;

FIG. 4 is a schematic structural diagram of a fixing base in an eye mask fixing device for ophthalmic surgery.

In the figure: 1. Eye mask holder; 10. Eye mask holder main body; 11. Removable shielding plate; 12. Transparent plate; 13. Light shielding plate; 14. Connecting rubber ring; 15. Buckle slot; 16. Fixing screw plate ;2. Fixed rubber belt; 20. Fixed rubber belt body; 21. Buckle; 22. Connecting tie; 3. Fixed base; 30. Fixed base body; 31. Telescopic support column; 32. Rotating steel column; 33. Base plate; 34, fixing screw slot; 35, connecting screw slot.

Detailed ways

Referring to FIGS. 1 to 4 , in an embodiment of the present invention, an eye mask fixing device for ophthalmic surgery includes an eye mask holder 1 , an outer end of the eye mask holder 1 is connected with a fixing rubber band 2 , and the outer side of the eye mask holder 1 is connected The bottom end is fixedly connected with a fixed base 3 by screws. The fixed rubber belt 2 includes a fixed rubber belt main body 20. The middle end of the fixed rubber belt main body 20 is embedded and connected by a set of identical connecting links 22. Both ends of the fixed rubber belt main body 20 are connected. A buckle 21 is fixedly connected.

In FIG. 2 : the eyecup holder 1 includes an eyecup holder main body 10 , both ends of the rear side of the eyecup holder main body 10 are provided with snap grooves 15 , and both outer ends of the eyecup holder main body 10 are fixedly connected with fixing screw plates 16. The outer side of the eye mask holder main body 10 is fixedly connected with one side of the connecting rubber ring 14, and the other side of the connecting rubber ring 14 is fixedly connected with a detachable shielding plate 11. eye condition.

In Fig. 2: a transparent plate 12 is fixedly connected to the outer side of the detachable shielding plate 11, and a light shielding plate 13 is embedded and connected to the top of the detachable shielding plate 11. The light shielding plate 13 can be freely pulled out and put in to facilitate the observation of the user's eye condition .

In FIG. 4: the fixed base 3 includes a fixed base main body 30, the middle end of the fixed base main body 30 is fixedly connected with a telescopic support column 31, and one end of the fixed base main body 30 close to the telescopic support column 31 is provided with a set of connecting screw grooves 35 for connecting The screw slot 35 enables the fixing base body 30 to be connected with the eyecup holder body 10 .

In Fig. 4: the outer side of the bottom end of the fixed base body 30 is rotatably connected to one side of the rotating steel column 32, the other side of the rotating steel column 32 is rotatably connected to a base plate 33, and the top of the base plate 33 is provided with a fixed screw slot 34, The fixing screw slot 34 is more capable of fixing the entire eyecup fixing device.

In FIG. 1 , the fixing rubber band main body 20 and the eyecup holder main body 10 are both made of a rubber material, which can protect the user's head and reduce injury.

The working principle of the utility model: firstly insert the buckle 21 into the buckle groove 15, connect the fixing rubber band main body 20 and the eye mask holder main body 10, then connect the connecting link 22, and then fix the eye mask with the fixing screw plate 16 The main body 10 is fixedly connected with the detachable shielding plate 11. After the fixing screw slot 34 is used to fix the fixing base body 30 on the seat by screws, the connecting screw slot 35 on the fixing base body 30 is connected to the eyecup holder body by screws. 10. Finally, put the fixing rubber band 2 on the user's head, so as to fix the entire eye mask fixing device on the user's eyes, so as to achieve the function of fixing the eye mask.

The above are only the preferred specific embodiments of the present invention, but the protection scope of the present invention is not limited to this. The technical solution of the utility model and its utility model concept are equivalently replaced or changed, and should be covered within the protection scope of the present utility model.

Claims (6)

1. The utility model provides an eye-shade fixing device that ophthalmic surgery used, includes eye-shade fixer (1), its characterized in that, the outside one end of eye-shade fixer (1) is connected with solid fixed rubber area (2), screw fixedly connected with unable adjustment base (3) are used to the outside bottom of eye-shade fixer (1), gu fixed rubber area (2) are including solid fixed rubber area main part (20), the middle-end of solid fixed rubber area main part (20) is connected by a set of the same connection tie (22) embedding, the equal fixedly connected with buckle (21) in both ends of solid fixed rubber area main part (20).

2. The eyeshade fixing device for ophthalmologic operation according to claim 1, characterized in that the eyeshade holder (1) comprises an eyeshade holder body (10), both ends of the rear side of the eyeshade holder body (10) are provided with snap grooves (15), and both ends of the outer side of the eyeshade holder body (10) are fixedly connected with fixing screw plates (16), one side of the connecting rubber ring (14) is fixedly connected to the outer side of the eyeshade holder body (10), and the other side of the connecting rubber ring (14) is fixedly connected with a detachable shielding plate (11).

3. The ocular shield fixing device for ophthalmologic operation according to claim 2, characterized in that a transparent plate (12) is fixedly connected to the outer side of the detachable shielding plate (11), and a light barrier (13) is embedded and connected to the top end of the detachable shielding plate (11).

4. The eyeshade fixing device for ophthalmologic operation, according to claim 1, characterized in that the fixing base (3) comprises a fixing base body (30), the middle end of the fixing base body (30) is fixedly connected with a telescopic supporting column (31), and one end of the top end of the fixing base body (30) near the telescopic supporting column (31) is provided with a set of connecting screw grooves (35).

5. The eyeshade fixing device for ophthalmologic operation according to claim 4, characterized in that the bottom outer side of the fixing base main body (30) is rotatably connected with one side of a rotary steel column (32), the other side of the rotary steel column (32) is rotatably connected with a base plate (33), and the top end of the base plate (33) is provided with a fixing screw groove (34).

6. The eyeshade fixing device for ophthalmologic operation according to claim 1, characterized in that the fixing rubber band main body (20) and the eyeshade holder main body (10) are both members of a rubber material.
