Abstract

The utility model discloses a handle processing integrated equipment, which comprises a frame, a workbench is installed on the frame, a guide rail is arranged on the top of the workbench, and a sliding table is movably connected to the top of the guide rail. A first air cylinder is installed on the bottom of the sliding table, a second air cylinder is installed on the top of the sliding table, a movable splint is fixedly connected to the output shaft of the second air cylinder, and a fixed splint is arranged on one side of the movable splint, so The fixed splint is welded on the top of the sliding table. Put the parts in the limit grooves on the fixed splint, open the second cylinder to drive the movable splint to fix the parts, the first motor drives the drill bit to rotate to drill the parts, and after the drilling is completed, the first cylinder drives the slide table Moving, the second motor drives the grinding head to rotate to grind the parts. After the grinding is completed, the sliding table and the movable splint are reset, so that the processing of the handle parts is integrated, drilling and grinding are carried out at the same time, and the processing efficiency is improved.

Description

A handle processing integrated equipment

technical field

The utility model relates to the technical field of mechanical equipment, in particular to a handle processing integrated equipment.

Background technique

The cabinet is an appliance for storing clothes, documents, etc., square or rectangular, generally made of wood or iron. The cabinet is a kind of rectangular furniture with a taller shape and can store items. The cabinet is provided with a handle for opening the cabinet door. use. The handle includes a mounting seat and a handle. When processing the mounting seat, the mounting seat needs to be drilled and ground. Currently, drilling and grinding are mostly processed separately, which slows down the processing efficiency.

Utility model content

The purpose of this utility model is to provide a handle processing integrated equipment, the parts are placed in the limit grooves on the fixed splint, the second air cylinder is opened to drive the movable splint to fix the parts, and then the hydraulic cylinder is opened to drive the drill bit to move downward, When the first motor drives the drill bit to rotate, the parts are drilled. After the drilling is completed, the first cylinder drives the slide table to move, thereby driving the parts to move, and the second motor drives the grinding head to rotate to grind the parts, and the grinding is completed. After that, the sliding table and movable splint are reset, and the parts are dropped from the discharge port into the collecting box for collection. The above work flow is repeated to integrate the processing of the handle parts, and the drilling and grinding are carried out at the same time to improve the processing efficiency.

In order to achieve the above purpose, the present invention provides the following technical solutions: an integrated handle processing equipment, including a frame, a workbench is installed on the frame, a guide rail is provided on the top of the workbench, and the top of the guide rail is provided with a guide rail. A sliding table is movably connected, the bottom of the sliding table is installed with a first air cylinder, the first air cylinder is installed on the top of the worktable, a second air cylinder is installed on the top of the sliding table, and the output shaft of the second air cylinder is installed A movable splint is fixedly connected on the upper part, one side of the movable splint is provided with a fixed splint, and the fixed splint is welded on the top of the sliding table;

A support rod is welded on the top of the worktable, a cross rod is installed on one side of the support rod, a hydraulic cylinder is installed on the bottom of the cross rod through bolts, and a box is installed on the output shaft of the hydraulic cylinder, so the The inside of the box is provided with a first motor, the output shaft of the first motor is connected with a gearbox, and the output shaft of the gearbox is provided with a drill bit;

The top of the frame is welded with a bracket, one side of the bracket is welded with a sleeve, the inside of the sleeve is rotatably connected with a rotating shaft through a bearing, the lower end of the rotating shaft is installed with a grinding head, and the upper end of the rotating shaft is provided with a rotating shaft. There is a drive unit.

Preferably, the driving device includes a mounting plate welded on the bracket, a second motor is mounted on the mounting plate through bolts, a first pulley is keyed on the output shaft of the second motor, and the first pulley is A second pulley is connected through a V-belt drive, and the second pulley is keyed to the upper end of the rotating shaft.

Preferably, a support frame is welded on one side of the frame, and a storage box is arranged on the support frame.

Preferably, a discharge port is provided on the top of the sliding table, and a collecting box is provided below the discharge port.

Preferably, a return switch for controlling the first cylinder is installed on the other side of the workbench.

Preferably, the top of the fixed splint is provided with a limiting groove.

Compared with the prior art, the beneficial effects of the present utility model are:

The utility model is mainly composed of a worktable, a sliding table, a movable splint, a fixed splint, a drill bit, a grinding head and other components. The second air cylinder drives the movable splint to fix the parts, and then the hydraulic cylinder is turned on to drive the drill bit to move downward. The parts are drilled while the first motor drives the drill bit to rotate. After the drilling is completed, the first air cylinder drives the slide table to move. , thereby driving the parts to move, the second motor drives the grinding head to rotate, and grinds the parts. After the grinding is completed, the sliding table and the movable splint are reset, and the parts are dropped from the discharge port into the collecting box for collection. Repeat the above workflow, The processing of handle parts is integrated, drilling and grinding are carried out at the same time, and the processing efficiency is improved.

Description of drawings

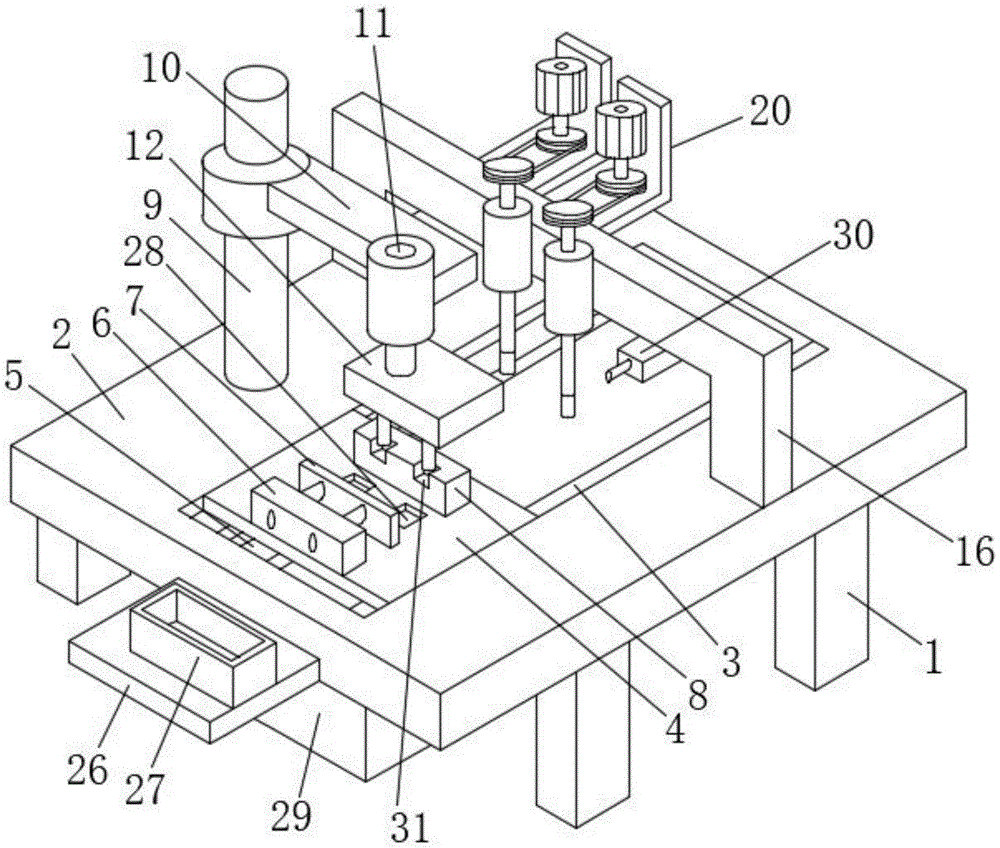

Fig. 1 is the structural representation of the utility model;

2 is a schematic structural diagram of a drive device of the present invention;

FIG. 3 is a schematic cross-sectional structure diagram of the box body of the present invention.

In the figure: 1. Rack; 2. Workbench; 3. Guide rail; 4. Sliding table; 5. First cylinder; 6. Second cylinder; 7. Movable splint; 8. Fixed splint; , cross bar; 11, hydraulic cylinder; 12, box body; 13, first motor; 14, gearbox; 15, drill bit; 16, bracket; 17, casing; 18, shaft; 19, grinding head; 20, drive device; 21, mounting plate; 22, second motor; 23, first pulley; 24, V-belt; 25, second pulley; 26, support frame; 27, storage box; 28, discharge port; 29, collection material box; 30, return switch; 31, limit groove.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to FIGS. 1 to 3 , the present invention provides a technical solution: an integrated handle processing equipment, comprising a frame 1, a worktable 2 is installed on the frame 1, and the worktable 2 is provided with an opening, It is convenient for discharging, the sliding table 4 is vacated in the opening, the top of the worktable 2 is provided with a guide rail 3, and the guide rails 3 are provided with two groups, which are distributed on both sides of the opening on the top of the worktable 2, and the top of the guide rail 3 is arranged on both sides of the opening. A sliding table 4 is movably connected, a first cylinder 5 is installed at the bottom of the sliding table 4, the first cylinder 5 is installed on the top of the workbench 2, and a second cylinder 6 is installed on the top of the sliding table 4, so the The output shaft of the second air cylinder 6 is fixedly connected with a movable splint 7, one side of the movable splint 7 is provided with a fixed splint 8, and the fixed splint 8 is welded on the top of the sliding table 4, and the A limit slot 31 is provided on the top to facilitate the placement of parts. A return switch 30 for controlling the first cylinder 5 is installed on the other side of the worktable 2. After the sliding table 4 touches the return switch 30, the first cylinder 5 Drive the sliding table 4 to return;

The top of the workbench 2 is welded with a support rod 9 , one side of the support rod 9 is installed with a cross bar 10 , the bottom of the cross rod 10 is installed with a hydraulic cylinder 11 through bolts, and the output shaft of the hydraulic cylinder 11 is installed. A box body 12 is installed on the box body 12 , a first motor 13 is arranged inside the box body 12 , a gearbox 14 is connected to the output shaft of the first motor 13 , and a drill bit 15 is arranged on the output shaft of the gearbox 14 ;

A bracket 16 is welded on the top of the frame 1, a sleeve 17 is welded on one side of the bracket 16, and a rotating shaft 18 is rotatably connected to the inside of the sleeve 17 through a bearing, and a grinding head is installed on the lower end of the rotating shaft 18 19. The upper end of the rotating shaft 18 is provided with a driving device 20. The driving device 20 includes a mounting plate 21 welded on the bracket 16, a second motor 22 is mounted on the mounting plate 21 through bolts, and a first pulley 23 is keyed on the output shaft of the second motor 22, so the The first pulley 23 is connected to a second pulley 25 through a V-belt 24 , and the second pulley 25 is keyed to the upper end of the rotating shaft 18 .

A support frame 26 is welded on one side of the frame 1, and a material storage box 27 is arranged on the support frame 26, and the material storage box 27 is convenient for placing the parts to be processed. A discharge port 28 is provided on the top of the sliding table 4 , and the discharge port 28 is convenient for the discharge of the processed parts. When the sliding table 4 is returned, the inertial parts will pass from the limit groove 31 on the top of the fixed splint 8 . A collection box 29 is arranged below the discharge port 28 to collect the processed parts.

Working principle: When drilling the parts of the handle, place the parts in the limit groove 31 on the fixed splint 8, open the second cylinder 6 to drive the movable splint 7 to fix the parts, and then open the hydraulic cylinder 11 to drive The drill bit 15 moves downward, and the first motor 13 drives the drill bit 15 to rotate while drilling the parts. After the drilling is completed, the first cylinder 5 drives the slide table 4 to move, thereby driving the parts to move, and the second motor 22 drives The grinding head 19 rotates to grind the parts. After the grinding is completed, the sliding table 4 and the movable splint 7 are reset, and the parts fall into the collecting box 19 from the discharge port 28 for collection. The above work flow is repeated to make the processing of the handle parts. Integrated, drilling and grinding are carried out at the same time to improve processing efficiency.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. An integrated device for handle processing, comprising a rack, characterized in that: a workbench is installed on the rack, a guide rail is provided on the top of the workbench, and a sliding table is movably connected to the top of the guide rail, so A first air cylinder is installed on the bottom of the sliding table, the first air cylinder is installed on the top of the worktable, a second air cylinder is installed on the top of the sliding table, and a movable splint is fixedly connected to the output shaft of the second air cylinder, One side of the movable splint is provided with a fixed splint, and the fixed splint is welded on the top of the sliding table; A support rod is welded on the top of the worktable, a cross rod is installed on one side of the support rod, a hydraulic cylinder is installed on the bottom of the cross rod through bolts, and a box is installed on the output shaft of the hydraulic cylinder, so the The inside of the box is provided with a first motor, the output shaft of the first motor is connected with a gearbox, and the output shaft of the gearbox is provided with a drill bit; The top of the frame is welded with a bracket, one side of the bracket is welded with a sleeve, the inside of the sleeve is rotatably connected with a rotating shaft through a bearing, the lower end of the rotating shaft is installed with a grinding head, and the upper end of the rotating shaft is provided with a rotating shaft. There is a drive unit. 2 . The integrated handle processing equipment according to claim 1 , wherein the driving device comprises a mounting plate welded on the bracket, the second motor is mounted on the mounting plate through bolts, and the first motor is threaded. 3 . A first pulley is keyed on the output shafts of the two motors, the first pulley is connected with a second pulley through a V-belt drive, and the second pulley is keyed on the upper end of the rotating shaft. 3 . The integrated handle processing equipment according to claim 1 , wherein a support frame is welded on one side of the frame, and a material storage box is arranged on the support frame. 4 . 4 . The integrated handle processing equipment according to claim 1 , wherein a discharge port is provided on the top of the sliding table, and a collection box is provided below the discharge port. 5 . 5 . The integrated handle processing equipment according to claim 1 , wherein a return switch for controlling the first air cylinder is installed on the other side of the worktable. 6 . 6 . The integrated handle processing equipment according to claim 1 , wherein a limiting groove is defined on the top of the fixed splint. 7 .
