Abstract

The utility model discloses a feed processing and stirring device, which comprises a box body, a feed box is fixedly connected to the left side of the box body, a first motor is fixedly connected to the top of the feed box, and the bottom of a rotating shaft of the first motor is fixedly connected. The end penetrates into the inner cavity of the feeding box and is fixedly connected with a first rotating rod, the bottom end of the first rotating rod is movably connected with the inner wall of the feeding box, and the surface of the first rotating rod is fixedly connected with a conveying blade, The bottom of the left side of the feeding box is connected with a feeding pipe, and the top of the left side of the box body is provided with a feeding square hole. The utility model has the advantages of easy feeding and uniform stirring, and solves the problem of the existing feed processing and stirring device. During the use process, the feed is usually put in from the top of the equipment, which is time-consuming and labor-intensive, and is inconvenient for people to use. Single, the stirring rod cannot move up and down, resulting in uneven mixing of the feed and reducing the applicability of the stirring device.

Description

Feed processing mixer

technical field

The utility model relates to the technical field of feed processing, in particular to a feed processing stirring device.

Background technique

Feed is a general term for the food of animals raised by all people. In a narrow sense, general feed mainly refers to the food of animals raised in agriculture or animal husbandry, including soybean, soybean meal, corn, fish meal, amino acid, miscellaneous meal, whey powder, More than ten varieties of feed raw materials such as oil, meat and bone meal, grains, feed additives, etc.

The existing feed processing and stirring devices usually put the feed from the top of the equipment during use, which is time-consuming and labor-intensive, and is inconvenient for people to use. Moreover, due to the single structure, the stirring rod cannot move up and down, resulting in uneven mixing of the feed. Reduced applicability of stirring device.

Utility model content

The purpose of the utility model is to provide a feed processing and stirring device, which has the advantages of easy feeding and uniform stirring, and solves the problem of the existing feed processing and stirring device. During the use process, the feed is usually put in from the top of the equipment, which is time-consuming and labor-intensive. It is inconvenient for people to use, and because of the single structure, the stirring rod cannot move up and down, resulting in uneven mixing of the feed and reducing the applicability of the stirring device.

In order to achieve the above purpose, the present utility model provides the following technical solutions: a feed processing and stirring device includes a box body, a feed box is fixedly connected to the left side of the box body, and a first motor is fixedly connected to the top of the feed box, The bottom end of the first motor rotating shaft penetrates into the inner cavity of the feeding box and is fixedly connected with a first rotating rod, the bottom end of the first rotating rod is movably connected with the inner wall of the feeding box, and the first rotating rod The surface of the box is fixedly connected with a conveying blade, the bottom of the left side of the feeding box is connected with a feeding pipe, the top of the left side of the box is provided with a feeding square hole, and both sides of the top of the box are fixedly connected with a feeding pipe. Electric telescopic rod, the top of the electric telescopic rod is fixedly connected with a fixed plate, the bottom of the fixed plate is fixedly connected with a second motor, and the bottom end of the second motor shaft penetrates into the inner cavity of the box and is fixedly connected with a The second rotating rod, the bottom of the surface of the second rotating rod is fixedly connected with a stirring rod, the inner cavity of the box is fixedly connected with a partition plate, and the partition plate is located at the bottom of the stirring rod, and two parts of the inner cavity of the box are fixedly connected The sides are fixedly connected with a deflector, the bottom of the deflector is fixedly connected with the baffle, the inner cavity of the baffle is movably connected with a movable plate, and the bottom of the right side of the box is fixedly connected with a third motor, The left end of the rotating shaft of the third motor penetrates the box body and the partition plate in sequence and is fixedly connected with a threaded rod. The left end of the threaded rod penetrates the movable plate and is threadedly connected to the movable plate. The top of the partition plate is provided with a blanking square hole , the right side of the inner cavity of the partition plate is provided with a sealing groove, the sealing groove is located on the left side of the blanking square hole, the left side of the movable plate extends to the inner cavity of the sealing groove, and the top of the box inner cavity is provided with a sealing groove. The right side is fixedly connected with a water outlet pipe, the bottom of the water outlet pipe is connected with a water spray cover, the top of the right side of the box body is provided with a water filling pipe, and the left end of the water filling pipe penetrates into the inner cavity of the box body and is connected with the outlet pipe. The water pipes are connected.

Preferably, a material receiving box is placed at the bottom of the inner cavity of the box, and the material receiving box is located at the bottom of the unloading square hole.

Preferably, support blocks are fixedly connected to the four corners of the bottom of the box body, and observation windows are fixedly connected to the top of the front side of the box body.

Preferably, the number of the stirring rods is several, and the stirring rods are arranged at equal distances.

Preferably, the top and bottom of the movable plate are fixedly connected with guide blocks, the top and bottom of the inner cavity of the partition plate are both provided with guide grooves, and the guide block extends to the guide groove on the side away from the movable plate The inner cavity of the guide block is movably connected with the guide groove.

Preferably, a box door is movably connected to the bottom of the front side of the box body through a hinge, and a handle is fixedly connected to the front side of the box door.

Preferably, a controller is fixedly connected to the left side of the front side of the box body, and the controller is electrically connected to the first motor, the electric telescopic rod, the second motor and the third motor respectively.

Compared with the prior art, the beneficial effects of the present utility model are as follows:

1. The utility model adopts the box body, the feeding box, the first motor, the first rotating rod, the conveying blade, the feeding pipe, the feeding square hole, the electric telescopic rod, the fixed plate, the second motor, the second rotating rod, The combination of stirring rod, baffle and deflector has the advantages of easy feeding and uniform stirring, which solves the problem of the existing feed processing and stirring device. During the use process, the feed is usually put on the top of the equipment, which is time-consuming and laborious. , it is inconvenient for people to use, and due to the single structure, the stirring rod cannot move up and down, resulting in uneven mixing of the feed and reducing the applicability of the stirring device.

2. The utility model facilitates feeding the feed by setting the feeding box, the first motor, the first rotating rod and the conveying blade. By setting the electric telescopic rod and the fixed plate, the stirring rod can move up and down, and the feed is evenly stirred. , By setting the partition, the feed can be blocked, mixed for a long time, and the mixing effect can be improved. By setting the deflector and the feeding square hole, the mixed feed can be easily discharged. The feed is sprinkled evenly, which is convenient for the stirring of the feed. By setting the receiving box, it is convenient to collect the stirred feed. By setting the guide groove and the guide block, the movable plate can move more smoothly from left to right. Pick and place the bin.

Description of drawings

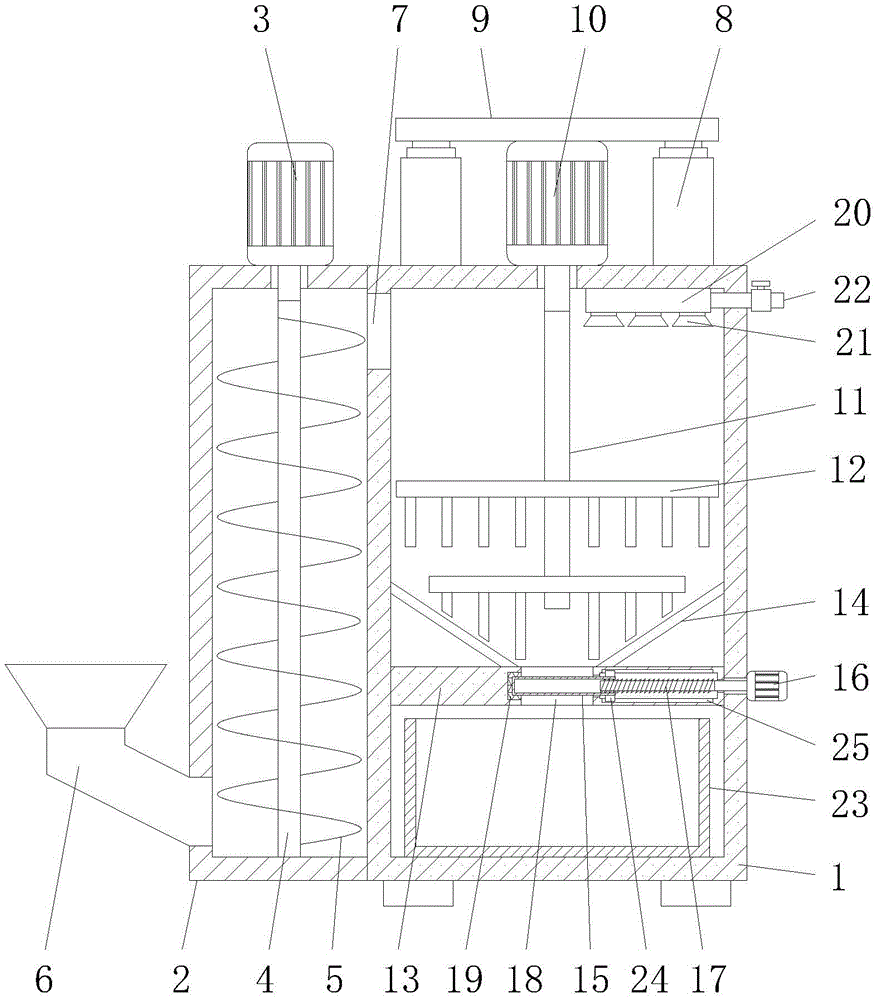

Fig. 1 is the structural sectional schematic diagram of the present utility model;

Fig. 2 is the front view schematic diagram of the structure of the utility model;

FIG. 3 is a left side view of the structure of the utility model.

In the picture: 1 box, 2 feeding box, 3 first motor, 4 first rotating rod, 5 conveying blade, 6 feeding pipe, 7 feeding square hole, 8 electric telescopic rod, 9 fixing plate, 10 second Motor, 11 second rotating rod, 12 stirring rod, 13 partition plate, 14 deflector, 15 movable plate, 16 third motor, 17 threaded rod, 18 blanking square hole, 19 sealing groove, 20 water outlet pipe, 21 spray Water cover, 22 water pipe, 23 material receiving box, 24 guide block, 25 guide groove, 26 box door, 27 controller.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

In the description of the utility model, it should be noted that the terms "upper", "lower", "inner", "outer", "front end", "rear end", "two ends", "one end" and "the other end" The orientation or positional relationship indicated by etc. is based on the orientation or positional relationship shown in the accompanying drawings, which is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the referred device or element must have a specific orientation, with a specific orientation. Therefore, it should not be construed as a limitation on the present invention. Furthermore, the terms "first" and "second" are used for descriptive purposes only and should not be construed to indicate or imply relative importance.

In the description of the utility model, it should be noted that, unless otherwise expressly specified and limited, the terms "installed", "provided with", "connected", etc., should be understood in a broad sense, for example, "connected" may be a fixed connection It can also be a detachable connection or an integral connection; it can be a mechanical connection or an electrical connection; it can be a direct connection, or an indirect connection through an intermediate medium, or the internal communication between the two components. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations.

The box body 1, the feeding box 2, the first motor 3, the first rotating rod 4, the conveying blade 5, the feeding pipe 6, the feeding square hole 7, the electric telescopic rod 8, the fixing plate 9, the second Motor 10, second rotating rod 11, stirring rod 12, baffle 13, deflector 14, movable plate 15, third motor 16, threaded rod 17, blanking square hole 18, sealing groove 19, water outlet pipe 20, spray The components of the water cover 21, the water adding pipe 22, the material receiving box 23, the guide block 24, the guide groove 25, the box door 26 and the controller 27 are all common standard components or components known to those skilled in the art, and their structures and principles are the same It can be known by technical personnel through technical manuals or through routine experimental methods.

Please refer to Figure 1-3. The feed processing and stirring device includes a box 1. A receiving box 23 is placed at the bottom of the inner cavity of the box 1. The receiving box 23 is located at the bottom of the unloading square hole 18. By setting the receiving box 23 The four corners of the bottom of the box 1 are fixedly connected with support blocks, the top of the front side of the box 1 is fixedly connected with an observation window, and the bottom of the front side of the box 1 is movably connected with a box door through hinges 26. The front side of the box door 26 is fixedly connected with a handle. By setting the box door 26, it is convenient to pick and place the material box 23. The left side of the front side of the box body 1 is fixedly connected with a controller 27, and the controller 27 is respectively connected with the first one. The motor 3 , the electric telescopic rod 8 , the second motor 10 and the third motor 16 are electrically connected. The left side of the box body 1 is fixedly connected to the feed box 2 , and the top of the feed box 2 is fixedly connected to the first motor 3 . The bottom end of the rotating shaft of a motor 3 penetrates into the inner cavity of the feeding box 2 and is fixedly connected with a first rotating rod 4. The bottom end of the first rotating rod 4 is movably connected with the inner wall of the feeding box 2. The surface is fixedly connected with a conveying blade 5. By setting the feeding box 2, the first motor 3, the first rotating rod 4 and the conveying blade 5, it is convenient to transport the feed. The bottom of the left side of the feeding box 2 is connected with a feeding pipe 6. , the top of the left side of the box body 1 is provided with a feeding square hole 7, the two sides of the top of the box body 1 are fixedly connected with an electric telescopic rod 8, and the top of the electric telescopic rod 8 is fixedly connected with a fixed plate 9. By setting the electric telescopic rod 8 and the fixing plate 9, so that the stirring rod 12 can move up and down, and the feed is evenly stirred. The bottom of the fixing plate 9 is fixedly connected with a second motor 10, and the bottom end of the rotating shaft of the second motor 10 penetrates to the inner cavity of the box body 1. A second rotating rod 11 is fixedly connected, and a stirring rod 12 is fixedly connected to the bottom of the surface of the second rotating rod 11. The number of stirring rods 12 is several, the stirring rods 12 are arranged at equal distances, and the inner cavity of the box body 1 is fixedly connected There is a partition plate 13. By setting the partition plate 13, the feed can be blocked, mixed for a long time, and the mixing effect can be improved. 14. The bottom of the guide plate 14 is fixedly connected with the partition plate 13, the inner cavity of the partition plate 13 is movably connected with the movable plate 15, the top and bottom of the movable plate 15 are fixedly connected with the guide block 24, and the right side of the inner cavity of the partition plate 13 is connected. Both the top and bottom of the guide groove 25 are provided with a guide groove 25. The side of the guide block 24 away from the movable plate 15 extends to the inner cavity of the guide groove 25. The guide block 24 is movably connected with the guide groove 25. By setting the guide groove 25 and the guide block 24, To make the movable plate 15 move more smoothly from left to right, a third motor 16 is fixedly connected to the bottom of the right side of the box body 1, and the left end of the rotating shaft of the third motor 16 penetrates the box body 1 and the partition plate 13 in turn and is fixedly connected with a threaded rod 17, The left end of the threaded rod 17 penetrates through the movable plate 15 and is threadedly connected with the movable plate 15. The top of the partition plate 13 is provided with a blanking square hole 18. By setting the deflector 14 and the blanking square hole 18, the mixed feed is easy to discharge , the right side of the inner cavity of the partition plate 13 is provided with a sealing groove 19, the sealing groove 19 is located on the left side of the blanking square hole 18, and the movable plate 1 The left side of 5 extends to the inner cavity of the sealing groove 19, the right side of the top of the inner cavity of the box body 1 is fixedly connected with a water outlet pipe 20, and the bottom of the water outlet pipe 20 is connected with a water spray cover 21. By arranging the water outlet pipe 20 and the water spray cover 21. The feed can be sprinkled evenly to facilitate the stirring of the feed. The top of the right side of the box body 1 is provided with a water filling pipe 22, and the left end of the water filling pipe 22 penetrates into the inner cavity of the box body 1 and communicates with the water outlet pipe 20. Through the box 1, the feeding box 2, the first motor 3, the first rotating rod 4, the conveying blade 5, the feeding pipe 6, the feeding square hole 7, the electric telescopic rod 8, the fixing plate 9, the second motor 10, The cooperation of the second rotating rod 11, the stirring rod 12, the baffle 13 and the deflector 14 has the advantages of easy feeding and uniform stirring, which solves the problem of the existing feed processing and stirring device. Putting the feed on the top is time-consuming and labor-intensive, inconvenient for people to use, and because of the single structure, the stirring rod cannot move up and down, resulting in uneven mixing of the feed and reducing the applicability of the stirring device.

When in use, connect to 220v industrial power, control the operation of the first motor 3 through the controller 27, the rotation shaft of the first motor 3 drives the first rotating rod 4 to rotate, and the first rotating rod 4 drives the conveying blade 5 to rotate, which will require processing. The feed is put into the feeding pipe 6, the feed is transported to the inner cavity of the box body 1 through the conveying blade 5 and the feeding square hole 7, and the second motor 10 is controlled by the controller 27 to operate, and the second motor 10 The rotating shaft drives the second rotating rod 11 rotates, the second rotating rod 11 drives the stirring rod 12 to rotate, stirs the feed, adds water through the water pipe 22, and the water pipe 22 supplies water to the water outlet pipe 20, and the water outlet pipe 20 sprinkles the feed through the water spray cover 21, The electric telescopic rod 8 is controlled by the controller 27 to extend, the electric telescopic rod 8 drives the fixed plate 9 to move upward, the fixed plate 9 drives the second motor 10 to move, the second motor 10 drives the second rotating rod 11 to move, and the second rotating rod 11 Drive the stirring rod 12 to move upward to mix the feed evenly. After the mixing is completed, the controller 27 controls the operation of the third motor 16. The rotation shaft of the third motor 16 drives the threaded rod 17 to rotate. The movable plate 15 moves to the right, and the feed falls into the inner cavity of the receiving box 23 through the unloading square hole 18 .

To sum up: the feed processing and stirring device, through the box 1, the feeding box 2, the first motor 3, the first rotating rod 4, the conveying blade 5, the feeding pipe 6, the feeding square hole 7, the electric telescopic rod 8. The cooperation of the fixed plate 9, the second motor 10, the second rotating rod 11, the stirring rod 12, the partition plate 13 and the deflector 14 solves the problem of the existing feed processing and stirring device. Putting the feed from the top of the equipment is time-consuming and labor-intensive, and is inconvenient for people to use. Moreover, due to the single structure, the stirring rod cannot move up and down, resulting in uneven mixing of the feed and reducing the applicability of the stirring device.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (7)

1. Feed processing agitating unit, including box (1), its characterized in that: the feeding box is characterized in that a feeding box (2) is fixedly connected to the left side of the box body (1), a first motor (3) is fixedly connected to the top of the feeding box (2), the bottom of a rotating shaft of the first motor (3) penetrates through an inner cavity of the feeding box (2) and is fixedly connected with a first rotating rod (4), the bottom of the first rotating rod (4) is movably connected with the inner wall of the feeding box (2), conveying blades (5) are fixedly connected to the surface of the first rotating rod (4), the left bottom of the feeding box (2) is communicated with an inlet pipe (6), a feeding square hole (7) is formed in the left top of the box body (1), electric telescopic rods (8) are fixedly connected to the two sides of the top of the box body (1), a fixing plate (9) is fixedly connected to the top of each electric telescopic rod (8), and a second motor (10) is fixedly connected to the bottom, the bottom of the rotating shaft of the second motor (10) penetrates through an inner cavity of the box body (1) and is fixedly connected with a second rotating rod (11), the bottom of the surface of the second rotating rod (11) is fixedly connected with a stirring rod (12), the inner cavity of the box body (1) is fixedly connected with a partition plate (13), the partition plate (13) is positioned at the bottom of the stirring rod (12), guide plates (14) are fixedly connected to the two sides of the inner cavity of the box body (1), the bottom of each guide plate (14) is fixedly connected with the partition plate (13), the inner cavity of each partition plate (13) is movably connected with a movable plate (15), a third motor (16) is fixedly connected to the bottom of the right side of the box body (1), the left end of the rotating shaft of the third motor (16) sequentially penetrates through the box body (1) and the partition plate (13) and is fixedly connected with a threaded rod (17), and the left end of the threaded rod (, unloading square hole (18) have been seted up at the top of baffle (13), seal groove (19) have been seted up on the right side of baffle (13) inner chamber, seal groove (19) are located the left side of unloading square hole (18), the left side of fly leaf (15) extends to the inner chamber of seal groove (19), the right side fixedly connected with outlet pipe (20) at box (1) inner chamber top, the bottom intercommunication of outlet pipe (20) has water spray cover (21), the top on box (1) right side is run through and is provided with filler pipe (22), the left end of filler pipe (22) runs through to the inner chamber of box (1) and is linked together with outlet pipe (20).

2. The feed processing mixing device of claim 1, wherein: a material receiving box (23) is placed at the bottom of the inner cavity of the box body (1), and the material receiving box (23) is located at the bottom of the blanking square hole (18).

3. The feed processing mixing device of claim 1, wherein: the four corners of the bottom of the box body (1) are fixedly connected with supporting blocks, and the top of the front side of the box body (1) is fixedly connected with an observation window.

4. The feed processing mixing device of claim 1, wherein: the number of the stirring rods (12) is a plurality, and the stirring rods (12) are arranged at equal intervals.

5. The feed processing mixing device of claim 1, wherein: the equal fixedly connected with guide block (24) in top and the bottom of fly leaf (15), guide way (25) have all been seted up to top and bottom on baffle (13) inner chamber right side, one side that fly leaf (15) were kept away from in guide block (24) extends to the inner chamber of guide way (25), guide block (24) and guide way (25) swing joint.

6. The feed processing mixing device of claim 1, wherein: the bottom of the front side of the box body (1) is movably connected with a box door (26) through a hinge, and the front side of the box door (26) is fixedly connected with a handle.

7. The feed processing mixing device of claim 1, wherein: the left side fixedly connected with controller (27) of box (1) front side, controller (27) respectively with first motor (3), electric telescopic handle (8), second motor (10) and third motor (16) electric connection.
