CN211658839U

CN211658839U - Drainage support is used in neurosurgery nursing

Info

Publication number: CN211658839U
Application number: CN201921220106.7U
Authority: CN
Inventors: 魏静静; 张静祎; 王亚会
Original assignee: Zhengzhou Childrens Hospital
Current assignee: Zhengzhou Childrens Hospital
Priority date: 2019-07-30
Filing date: 2019-07-30
Publication date: 2020-10-13
Anticipated expiration: 2029-07-30

Abstract

The utility model discloses a drainage support for neurosurgery nursing, including balanced even board, I-shaped end leg and vacuum chuck, the balanced even leg at the bottom of one side fixedly connected with I-shaped of board, the bottom fixedly connected with of I-shaped end leg is main puts a section of thick bamboo, main back fixedly connected with block rubber of putting a section of thick bamboo, one side fixedly connected with vacuum chuck of block rubber. This drainage support for neurosurgery nursing, setting through vacuum chuck and supplementary sucking disc, adsorb fixedly to the wall of being close to through vacuum chuck and supplementary sucking disc, can play the effect of supplementary connection to the device's fixed stay, the effectual medical personnel that have reduced when changing the medicine bag, the condition of rocking that causes the device, through the setting of interlude and ring, cup joint the centre gripping to the drainage tube surface that uses, with this local stable effect of guaranteeing the drainage tube, thereby the effectual mobility of shaking that reduces the drainage tube and produce, the condition of operation quality is influenced.

Description

Drainage support is used in neurosurgery nursing

Technical Field

The utility model relates to a surgical nursing support technical field specifically is a drainage support is used in neurosurgery nursing.

Background

Neurosurgery is a branch of surgery, and is a branch of surgery, which is mainly used for studying the nervous system of a human body by applying a unique neurosurgery research method on the basis of taking an operation as a main treatment means, and mainly treats diseases of the nervous system such as the brain, the spinal cord and the like caused by trauma.

In neurosurgery clinical care, often need carry out drainage work for patient, some serious patients need carry out the operation treatment, when doing the operation for patient, the peak that requires the drainage bottle is located fifteen centimetres departments more than the patient's duct, current neurosurgery's drainage support, support through the base mostly uses, however, there is the drainage support fixed insecure when the operation, lack external auxiliary connection, the drainage tube rocks easily simultaneously, inconvenient stable use who guarantees the drainage tube, influence the condition of operation quality easily, now make further improvement to the device of this aspect.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

The utility model provides a drainage support is used in neurosurgery nursing, to the not enough of prior art, the problem of proposing in the above-mentioned background art has been solved.

(II) technical scheme

In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: the utility model provides a drainage support for neurosurgery nursing, includes balanced even board, the leg is at the bottom of one side fixedly connected with I-shaped of balanced even board, the bottom fixedly connected with of the leg is mainly put and is worn a section of thick bamboo at the bottom of I-shaped, the back fixedly connected with block rubber of mainly putting a section of thick bamboo of wearing, one side fixedly connected with vacuum chuck of block rubber, the bottom swing joint that mainly puts a section of thick bamboo of wearing has the scale slide bar, one side fixedly connected with that mainly puts a section of thick bamboo extends the diaphragm, one side fixedly connected with that extends the diaphragm alternates and encircle, the inside that alternates and encircle is provided with the sponge circle.

Optionally, the bottom fixedly connected with medicine bottle couple of balanced even board, the quantity of medicine bottle couple is three, three medicine bottle couple parallel arrangement is in the bottom of balanced even board.

Optionally, the outer surface of the scale slide bar is connected with a storage cylinder in a sliding manner, and the bottom of the storage cylinder is fixedly connected with a placing base.

Optionally, the outer surface of the storage cylinder is in threaded connection with a clamp control bolt, and a pointer is arranged on the surface of the clamp control bolt.

Optionally, the back of the shelving base is fixedly connected with two auxiliary suckers, and an anti-collision block is arranged between the shelving base and the auxiliary suckers.

Optionally, the bottom of the shelving base is fixedly connected with a threaded leg, the outer surface of the threaded leg is in threaded connection with a supporting chassis, and the top of the supporting chassis is provided with a sleeving frame.

(III) advantageous effects

The utility model provides a drainage support is used in neurosurgery nursing possesses following beneficial effect:

1. this drainage support for neurosurgery nursing, through the setting of vacuum chuck and supplementary sucking disc, the scale slide bar is after adjusting appointed high numerical value, and before medical personnel hung drainage bag, it is fixed to adsorb the wall nearby through vacuum chuck and supplementary sucking disc, can play the effect of supplementary connection to the device's fixed stay, and the effectual medical personnel that have reduced when changing the medicine bag, the condition of rocking that causes the device.

2. This drainage support for neurosurgery nursing through the setting of interlude and ring, when drainage tube that the drainage bag connection was used downwards, through one side fixedly connected with that extends the diaphragm interlude and ring, can cup joint the centre gripping to the drainage tube surface that uses to this guarantees the local stable effect of drainage tube, thereby the effectual condition that shakes nature that has reduced the drainage tube production influences the operation quality.

Drawings

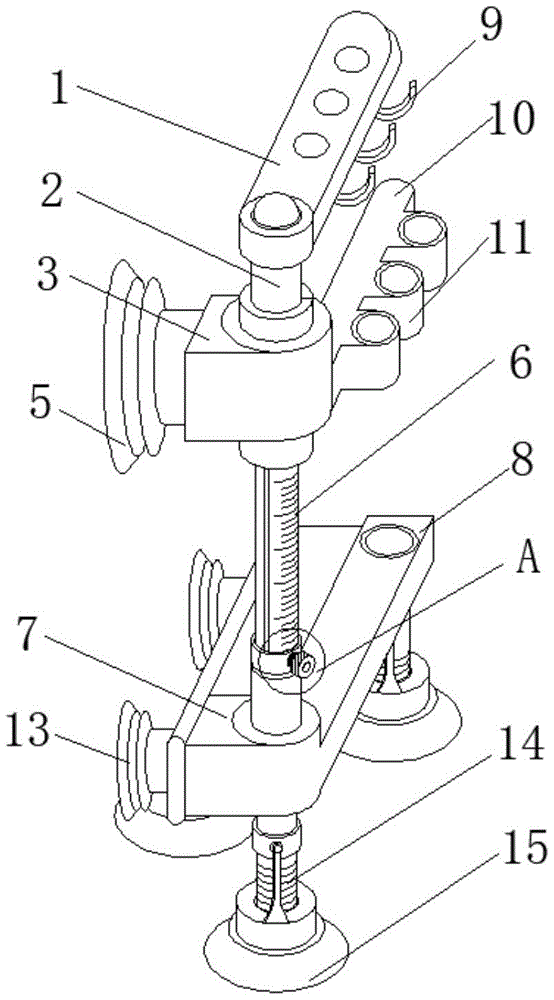

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is an enlarged schematic view of the structure at A of FIG. 1 according to the present invention;

FIG. 3 is a schematic view of the hook structure of the medicine bottle of the present invention;

fig. 4 is a schematic diagram of the rubber block structure of the present invention.

In the figure: 1. balancing the connecting plate; 2. an i-shaped bottom leg; 3. a main penetrating cylinder; 4. a rubber block; 5. a vacuum chuck; 6. a scale slide bar; 7. a storage cylinder; 8. placing a base; 9. a medicine bottle hook; 10. extending the transverse plate; 11. inserting and looping; 12. clamping the control bolt; 13. an auxiliary suction cup; 14. a threaded leg; 15. supporting the chassis.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.

Referring to fig. 1 to 4, the present invention provides a technical solution: a drainage support for neurosurgical care comprises a balance connecting plate 1, wherein the bottom of the balance connecting plate 1 is fixedly connected with three medicine bottle hooks 9, the number of the medicine bottle hooks 9 is three, the three medicine bottle hooks 9 are arranged at the bottom of the balance connecting plate 1 in parallel, the design positions of the three medicine bottle hooks 9 are different according to the spacing distance of the balance connecting plate 1, therefore, when a medical worker uses the drainage support, the drainage bag can be hung selectively, the application effect of the drainage support is more observable, one side of the balance connecting plate 1 is fixedly connected with an I-shaped bottom leg 2, the bottom of the I-shaped bottom leg 2 is fixedly connected with a main wearing cylinder 3, one side of the main wearing cylinder 3 is fixedly connected with an extension transverse plate 10, one side of the extension transverse plate 10 is fixedly connected with an insertion and loop 11, and a sponge ring is arranged inside the insertion and loop 11;

in order to effectively ensure the sleeving and fixing effect of the drainage tube in the inserting and combining ring 11, through the arrangement of the sponge ring, the drainage tube is sleeved in the inserting and combining ring 11, the sponge ring can play a role of flexibly wrapping the position of the drainage tube, so that the shaking range of the drainage tube is reduced, the back of the main inserting tube 3 is fixedly connected with a rubber block 4, one side of the rubber block 4 is fixedly connected with a vacuum chuck 5, the bottom of the main inserting tube 3 is movably connected with a scale slide rod 6, the outer surface of the scale slide rod 6 is slidably connected with a storage tube 7, the outer surface of the storage tube 7 is in threaded connection with a clamping bolt 12, and the surface of the clamping bolt 12 is provided with a pointer;

in order to effectively ensure the accuracy of medical staff when the scale slide bar 6 is adjusted, the setting of the pointer enables the scale slide bar 6 to be capable of pointing to the surface of the scale slide bar 6 in real time through the pointer as a reference under the condition of sliding adjustment, and further the accurate adjustment usability of the medical staff to the scale slide bar 6 is further improved, the bottom of the storage cylinder 7 is fixedly connected with a placing base 8, the position reserved at the top of the placing base 8 can be fully utilized by the medical staff for placing a standby medicine bag or other equipment, the back of the placing base 8 is fixedly connected with two auxiliary suckers 13, the number of the auxiliary suckers 13 is two, an anti-collision block is arranged between the placing base 8 and the auxiliary suckers 13, the bottom of the placing base 8 is fixedly connected with a threaded leg 14, the outer surface of the threaded leg 14 is in threaded connection with a supporting chassis 15, according to the required degree of, the use position accessible screw thread leg 14 of support chassis 15 is adjusted and is used for effectual improvement the device's whole multi-functional use, and the convenience is higher, and the top of supporting chassis 15 is provided with and cup joints the frame.

As an optimal technical solution of the utility model: the inside of medicine bottle couple 9 is provided with the protection and fills up for medicine bottle couple 9 is under the condition of long-term use, and the drainage bag hang hold can effectual reduction to the inside wearing and tearing condition of medicine bottle couple 9.

In summary, when the drainage support for neurosurgical care is used, the scale slide bar 6 is adjusted to a designated height value through the arrangement of the vacuum sucker 5 and the auxiliary sucker 13, before medical staff hang the drainage bag, the vacuum sucker 5 and the auxiliary sucker 13 are used for sucking and fixing the nearby wall surface, the auxiliary connection function can be realized on the fixed support of the device, the problem that when medical staff change the medicine bag is effectively reduced, when the drainage tube for connecting the drainage bag is used downwards under the shaking condition caused by the device through the arrangement of the inserting and combining ring 11, the inserting ring 11 is fixedly connected with one side of the extending transverse plate 10, so that the surface of the used drainage tube can be sleeved and clamped, the local stabilization effect of the drainage tube is ensured, so that the shaking property generated by the drainage tube is effectively reduced, and the condition of the operation quality is influenced.

The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims

1. The utility model provides a drainage support for neurosurgery nursing, includes balanced even board (1), its characterized in that: one side of the balance connecting plate (1) is fixedly connected with an I-shaped bottom leg (2), the bottom of the I-shaped bottom leg (2) is fixedly connected with a main penetrating tube (3), the back of the main penetrating tube (3) is fixedly connected with a rubber block (4), one side of the rubber block (4) is fixedly connected with a vacuum chuck (5), the bottom of the main penetrating tube (3) is movably connected with a scale slide bar (6), one side of the main penetrating tube (3) is fixedly connected with an extension transverse plate (10), one side of the extension transverse plate (10) is fixedly connected with a penetrating and looping ring (11), and a sponge loop is arranged inside the penetrating and looping ring (11).

2. The drainage stent for neurosurgical care according to claim 1, wherein: the bottom fixedly connected with medicine bottle couple (9) of balanced even board (1), the quantity of medicine bottle couple (9) is three, three medicine bottle couple (9) parallel arrangement is in the bottom of balanced even board (1).

3. The drainage stent for neurosurgical care according to claim 1, wherein: the outer surface of the scale sliding rod (6) is connected with a storage cylinder (7) in a sliding mode, and the bottom of the storage cylinder (7) is fixedly connected with a placing base (8).

4. The drainage stent for neurosurgical care according to claim 3, wherein: the outer surface of the storage cylinder (7) is in threaded connection with a clamping bolt (12), and a pointer is arranged on the surface of the clamping bolt (12).

5. The drainage stent for neurosurgical care according to claim 3, wherein: the back of the shelving base (8) is fixedly connected with two auxiliary suckers (13), and an anti-collision block is arranged between the shelving base (8) and the auxiliary suckers (13).

6. The drainage stent for neurosurgical care according to claim 3, wherein: the bottom of the placing base (8) is fixedly connected with a threaded leg (14), the outer surface of the threaded leg (14) is in threaded connection with a supporting chassis (15), and the top of the supporting chassis (15) is provided with a sleeving frame.
