Abstract

The utility model relates to the technical field of medicine, and discloses a clinical medical emergency aid device, comprising an outer warehouse, wheels are fixedly installed on the left and right sides of the bottom of the outer warehouse, and wheels are fixedly installed on the left and right sides of the outer warehouse. An electric push rod, a rubber pad is fixedly installed at the bottom of the electric push rod, a first slider is slidably connected to the bottom of the inner cavity of the outer warehouse, and a cloth item storage box is fixedly installed on the top of the first slider, so A hinge plate is fixedly installed on the left and right sides of the top of the cloth article storage box, the hinge plate is hinged with a dust-free cover plate through a hinge shaft, and a first pull ring is fixedly installed on the top of the dust-free cover plate. A second pull ring is fixedly installed on the front of the item storage box. The clinical medical emergency aid device achieves the purpose of being able to be disinfected and dustproof as a whole, so that the patient is less likely to cause wound infection when using the internal device, which greatly increases the safety of the auxiliary device.

Description

A clinical medical emergency aid device

technical field

The utility model relates to the technical field of medicine, in particular to a clinical medical emergency aid device.

Background technique

Clinical medicine is a science that studies the etiology, diagnosis, treatment and prognosis of diseases, improves the level of clinical treatment, and promotes human health.

In the course of clinical medicine, patients sometimes need first aid due to sudden emergencies. In the process of first aid, auxiliary devices containing various medical devices are often used to assist in the treatment of patients. The existing auxiliary devices on the market have The disadvantage of poor disinfection effect leads to the formation of various bacteria after the medical devices in the auxiliary device are stored for a long time. These bacteria are difficult to remove in the auxiliary device, so it is easy to cause wound infection to the patient when these devices are used, which greatly reduces the Safety of the auxiliary device, therefore, a clinical medical emergency auxiliary device is proposed to solve the above problems.

Utility model content

(1) Technical problems solved

In view of the deficiencies of the prior art, the utility model provides an auxiliary device for clinical medical first aid, which has the advantages of good disinfection effect, etc., and solves the shortcomings of the existing auxiliary devices in the market with poor disinfection effect, which leads to the medical equipment in the auxiliary device. After being stored for a long time, various bacteria will be produced, and these bacteria are difficult to remove in the auxiliary device, so it is easy to cause wound infection to the patient when these devices are used, which greatly reduces the safety of the auxiliary device.

(2) Technical solutions

In order to achieve the above purpose of good disinfection effect, the present utility model provides the following technical solutions: a clinical medical emergency aid device, comprising an outer warehouse, wheels are fixedly installed on the left and right sides of the bottom of the outer warehouse, and the left and right sides of the outer warehouse are fixedly installed with wheels. Electric push rods are fixedly installed on the sides, rubber pads are fixedly installed at the bottom of the electric push rods, a first slider is slidably connected to the bottom of the inner cavity of the outer compartment, and a cloth is fixedly installed on the top of the first slider. The article storage box, the left and right sides of the top of the cloth article storage box are fixedly installed with hinge plates, the hinge plates are hinged with a dust-free cover plate through a hinge shaft, and the top of the dust-free cover plate is fixedly installed with a first pull A second pull ring is fixedly installed on the front of the cloth article storage box, a heat insulating plate is fixedly installed on the inner side wall of the outer warehouse, and a sliding seat is fixedly installed on the left and right side walls of the inner cavity of the outer warehouse. The opposite sides of the sliding seat are movably connected with a second sliding block, a surgical instrument storage drawer is fixedly installed between the opposite sides of the second sliding block, and a third sliding block is fixedly installed on the front of the surgical instrument storage drawer. Pulling ring, the inner side wall of the outer compartment is fixedly installed with a ventilating connecting plate, the top of the ventilating connecting plate is fixedly installed with a water tank, and one end of the water tank is fixedly installed with one end running through the water tank and the outer compartment in turn and extending to the outside of the outer compartment The top of the outer compartment is fixedly installed with a heater, the bottom of the heater is fixedly installed with a heat-conducting pipe whose one end penetrates and extends to the inside of the outer compartment, and a movable door is movably installed on the front of the outer compartment.

Preferably, the number of the heat-conducting pipes is three, and the three heat-conducting pipes are equally spaced from left to right, and explosion-proof fans are fixedly installed on the left and right sides of the top of the inner cavity of the outer bin.

Preferably, a splash-proof water ring is fixedly installed on the top of the water tank, the shape of the splash-proof water ring is annular, and the water tank is a cylindrical shape with a hollow interior and a missing top.

Preferably, the top of the ventilating connecting plate is provided with several ventilating holes, and the surgical instrument storage drawer is a rectangle with a hollow interior and a missing top.

Preferably, the bottom of the inner cavity of the outer bin is provided with a first chute, and the first chute is adapted to the first slider.

Preferably, the opposite side of the sliding seat is provided with a second sliding groove, and the second sliding groove is adapted to the second sliding block.

(3) Beneficial effects

Compared with the prior art, the utility model provides a clinical medical emergency aid device, which has the following beneficial effects:

1. This clinical medical emergency aid device is used to introduce the disinfectant and water into the water tank through the aqueduct, and then start the heater to make the heat lead into the outer chamber through the heat-conducting pipe, and then the heat makes the disinfectant and the water boil and generate disinfection steam. When the explosion-proof fan is started, the steam flow is blown into the inside of the surgical instrument storage drawer through the ventilating connecting plate, and then the heat insulation plate is installed to prevent the excess heat from continuing to be transmitted downward. The medical instruments are effectively dust-proof, and the overall goal of disinfection and dust-proof is achieved, so that the patient is less likely to cause wound infection when using the internal instruments, which greatly increases the safety of the auxiliary device.

2. The clinical medical emergency aid device, by setting the sliding seat and the third pull ring, can pull out the surgical instrument storage drawer by directly pulling the third pull ring when the surgical instrument needs to be used, and directly use the internally sterilized tools. When it comes to medical supplies such as cloth medicines, directly open the movable door and pull the second pull ring to pull out the cloth storage box, and then pull the first pull ring to open the dust-free cover to take out the cloth medicines. The overall convenience is achieved. The purpose of taking out the medical device in the auxiliary device greatly increases the convenience of the auxiliary device.

Description of drawings

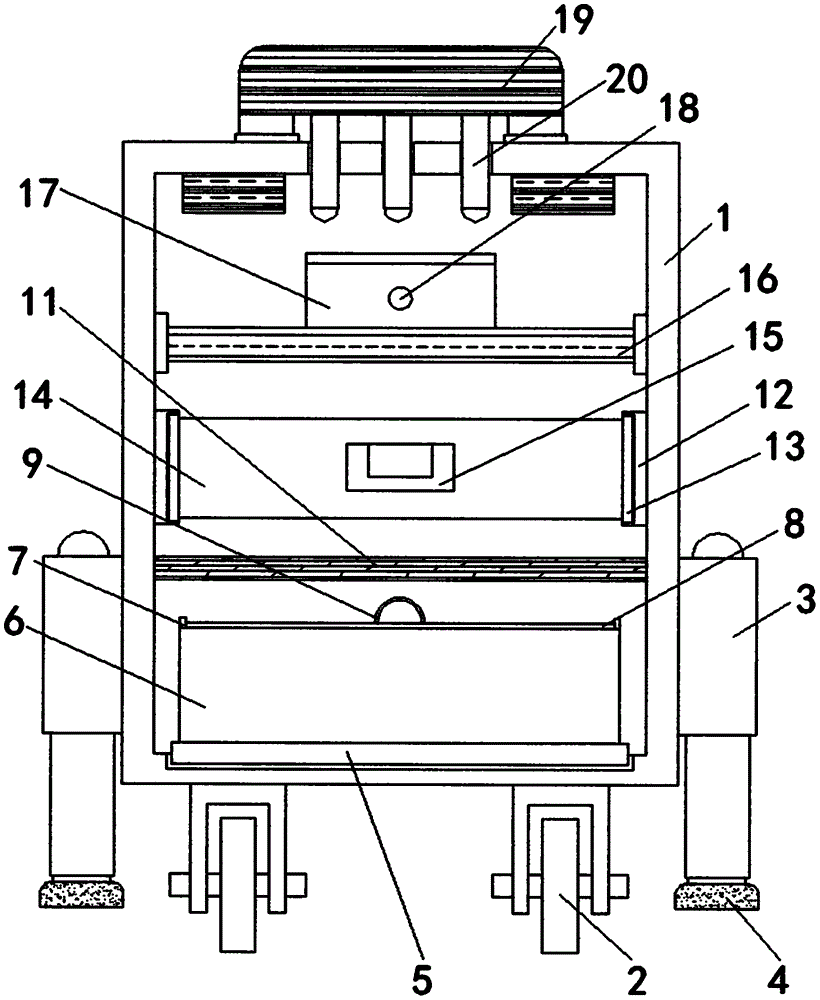

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the side view of the connection structure of the cloth article storage box and the dust-free cover plate of the utility model;

Fig. 3 is the appearance diagram of the utility model.

In the picture: 1 outer compartment, 2 wheels, 3 electric push rod, 4 rubber pad, 5 first slider, 6 cloth storage box, 7 hinge plate, 8 dust-free cover, 9 first pull ring, 10 second Pull ring, 11 heat insulation board, 12 slide seat, 13 second slider, 14 surgical instrument storage drawer, 15 third pull ring, 16 breathable connecting plate, 17 water tank, 18 water conduit, 19 heater, 20 heat conduction pipe, 21 active doors.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. For example, based on the embodiments of the present invention, all other implementations obtained by persons of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to FIGS. 1-3 , the present invention provides the following technical solutions: an auxiliary device for clinical medical first aid, comprising an outer warehouse 1 , wheels 2 are fixedly installed on the left and right sides of the bottom of the outer warehouse 1 , and the wheels 2 can make the auxiliary device convenient The electric push rod 3 is fixedly installed on the left and right sides of the outer compartment 1. The model of the electric push rod 3 can be XTL100, and the electric push rod 3 can push the rubber pad 4 downward to directly contact The bottom of the electric push rod 3 is fixedly installed with a rubber pad 4, the bottom of the inner cavity of the outer warehouse 1 is slidably connected with a first slider 5, and the bottom of the inner cavity of the outer warehouse 1 is provided with a first chute. The chute is adapted to the first sliding block 5, the top of the first sliding block 5 is fixedly installed with a cloth article storage box 6, and the left and right sides of the top of the cloth article storage box 6 are fixedly installed with hinge plates 7, and the hinge plates 7 pass through A dust-free cover 8 is hinged on the hinge shaft, a first pull ring 9 is fixedly installed on the top of the dust-free cover 8, a second pull ring 10 is fixedly installed on the front of the cloth storage box 6, and the inner side wall of the outer compartment 1 is fixedly installed There is a heat insulation board 11, and the left and right side walls of the inner cavity of the outer warehouse 1 are fixedly installed with a sliding seat 12, and the opposite side of the sliding seat 12 is movably connected with a second sliding block 13. Ring 15, when you need to use surgical instruments, directly pull the third pull ring 15 to pull out the surgical instrument storage drawer 14 and directly use the tools after internal sterilization. Pull the second pull ring 10 to pull out the cloth article storage box 6, and then pull the first pull ring 9 to open the dust-free cover 8 to take out the cloth medicine in it, which achieves the purpose of facilitating the removal of the medical equipment in the auxiliary device as a whole. The convenience of the auxiliary device is greatly increased. The opposite side of the sliding seat 12 is provided with a second sliding groove, the second sliding groove is adapted to the second sliding block 13, and the opposite sides of the second sliding block 13 are fixed A surgical instrument storage drawer 14 is installed, a third pull ring 15 is fixedly installed on the front of the surgical instrument storage drawer 14, and a ventilating connecting plate 16 is fixedly installed on the inner side wall of the outer bin 1. The top of the ventilating connecting plate 16 is provided with a number of several The surgical instrument storage drawer 14 is a rectangle with a hollow interior and a missing top, a water tank 17 is fixedly installed on the top of the ventilation connecting plate 16, and a splash-proof water ring is fixed on the top of the water tank 17, and the shape of the splash-proof water ring is annular The water tank 17 is a cylindrical shape with a hollow interior and a missing top. The inside of the water tank 17 is fixedly installed with an aqueduct 18 that runs through the water tank 17 and the outer warehouse 1 and extends to the outside of the outer warehouse 1 at one end. 18 is introduced into the water tank 17, and then the heater 19 is started to make the heat lead to the inside of the outer warehouse 1 through the heat pipe 20, and then the heat makes the disinfectant and the water body boil and generate disinfection steam, at this time, start the explosion-proof fan to let the steam flow through the ventilation connection plate 16. into the surgical instrument storage drawer 14, and then prevent excess heat from continuing to be transmitted downward by setting the heat insulation plate 11, and setting the dust-free cover plate 8 to make the cloth storage box 6 and other medical instruments that are easily contaminated with dust effectively dustproof, and the overall The purpose of disinfection and dustproof is achieved, so that the patient is less likely to cause wound infection when using the internal equipment, which greatly increases the safety of the auxiliary device. The top of the outer chamber 1 is fixedly installed with a heater 19, and the model of the heater 19 can be XTGD. , the bottom of the heater 19 is fixedly installed with a heat conduction pipe 20 which runs through and extends to the inside of the outer warehouse 1 at one end. Explosion-proof fans are fixedly installed on the left and right sides of the top of the cavity, and the model of the explosion-proof fan can be HYF, and a movable door 21 is movably installed on the front of the outer warehouse 1 .

To sum up, in this clinical medical emergency aid device, the disinfectant and the water body are introduced into the water tank 17 through the water conduit 18, and then the heater 19 is activated to make the heat lead into the outer chamber 1 through the heat transfer pipe 20, and then the heat makes the disinfectant and the water tank 1. The water body boils and produces sterilizing steam. At this time, the explosion-proof fan is started to let the steam flow through the ventilating connecting plate 16 and blowing into the interior of the surgical instrument storage drawer 14. Then, the heat insulation plate 11 is installed to prevent the excess heat from continuing to be transmitted downward, and the dust-free cover plate is installed. 8. The cloth storage box 6 and other medical instruments that are easily contaminated with dust are effectively dust-proof, and the purpose of disinfection and dust-proof is achieved as a whole, so that the patient is less likely to cause wound infection when using the internal instruments, which greatly increases the safety of the auxiliary device. , By setting the sliding seat 12 and the third pull ring 15, when the surgical instrument needs to be used, the third pull ring 15 can be directly pulled out to extract the surgical instrument storage drawer 14 and directly use the internally sterilized tools. For medical supplies, directly open the movable door 21 and pull the second pull ring 10 to pull out the cloth storage box 6, and then pull the first pull ring 9 to open the dust-free cover 8 to take out the cloth medicine in it. The purpose of facilitating the removal of the medical devices in the auxiliary device greatly increases the convenience of the auxiliary device, and solves the disadvantage that the existing auxiliary devices in the market have poor sterilization effect, resulting in the medical devices in the auxiliary device being stored for a long time. These bacteria are difficult to remove in the auxiliary device, so it is easy to cause wound infection to the patient when these devices are used, which greatly reduces the safety of the auxiliary device.

It should be noted that, in this document, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply any relationship between these entities or operations. There is no such actual relationship or order between the includes those elements, but also includes other elements not expressly listed, or that are inherent to such a process, method, article or apparatus, without further limitation, by the statement "including a . . . "Defining an element does not preclude the presence of additional identical elements in a process, method, article or apparatus comprising said element.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. A clinical medical emergency aid device, comprising an outer warehouse (1), characterized in that: the left and right sides of the bottom of the outer warehouse (1) are fixedly installed with wheels (2), and the outer An electric push rod (3) is fixedly installed on the left and right sides, a rubber pad (4) is fixedly installed at the bottom of the electric push rod (3), and a first sliding connection is slidably connected to the bottom of the inner cavity of the outer bin (1). Block (5), a cloth storage box (6) is fixedly installed on the top of the first slider (5), and hinge plates (7) are fixedly installed on the left and right sides of the top of the cloth storage box (6). , the hinge plate (7) is hinged with a dust-free cover plate (8) through a hinge shaft, a first pull ring (9) is fixedly installed on the top of the dust-free cover plate (8), and the cloth object storage box ( 6) A second pull ring (10) is fixedly installed on the front of the outer warehouse (1), a heat insulating plate (11) is fixedly installed on the inner side wall of the outer warehouse (1), and the left and right side walls of the inner cavity of the outer warehouse (1) are both A sliding seat (12) is fixedly installed, the opposite sides of the sliding seat (12) are movably connected with a second sliding block (13), and the opposite sides of the second sliding block (13) are fixedly installed with a second sliding block (13). A surgical instrument storage drawer (14), a third pull ring (15) is fixedly installed on the front of the surgical instrument storage drawer (14), and a ventilation connecting plate (16) is fixedly installed on the inner side wall of the outer warehouse (1), A water tank (17) is fixedly installed on the top of the breathable connecting plate (16), and one end of the water tank (17) is fixedly installed inside the water tank (17) and the outer compartment (1) in turn and extends to the outer compartment (1). An external water conduit (18), a heater (19) is fixedly installed at the top of the outer compartment (1), and a heater (19) is fixedly installed at the bottom of the heater (19) with one end running through and extending to the interior of the outer compartment (1). A heat transfer pipe (20) is provided, and a movable door (21) is movably installed on the front of the outer bin (1). 2. A clinical medical emergency aid device according to claim 1, characterized in that: the number of the heat conducting pipes (20) is three, and the three heat conducting pipes (20) are equidistant from left to right distribution, and explosion-proof fans are fixedly installed on the left and right sides of the top of the inner cavity of the outer warehouse (1). 3. A clinical medical emergency aid device according to claim 1, characterized in that: a splash-proof water ring is fixedly installed on the top of the water tank (17), and the splash-proof water ring has a ring shape, and the The water tank (17) is a cylindrical shape with a hollow interior and a missing top. 4. A clinical medical emergency aid device according to claim 1, characterized in that: the top of the ventilation connecting plate (16) is provided with several ventilation holes, and the surgical instrument storage drawer (14) A rectangle with a hollow interior and a missing top. 5. A clinical medical emergency aid device according to claim 1, characterized in that: the bottom of the inner cavity of the outer bin (1) is provided with a first chute, the first chute and the first slider (5) to match. 6. A clinical medical emergency aid device according to claim 1, characterized in that: the opposite side of the sliding seat (12) is provided with a second chute, the second chute and the second sliding Block (13) is adapted.
