CN211658246U - A kind of hemostatic fixation device after otolaryngology surgery - Google Patents

Abstract

The utility model relates to the field of medical devices, in particular to an ENT post-operative hemostasis fixing device, which comprises a hemostatic clip and a mouth holder. One end of the front part of the hemostatic clip is provided with a hemostatic cotton ball; There is a facial support cotton pad, the back of the hemostatic clip is provided with an adjusting screw, the adjusting screw is provided with an adjusting knob, the mouth holder is provided with a bite device, and the mouth holder is provided with a A fixing hole, one end of the hemostatic clip provided with a hemostatic cotton ball is connected to the mouth holder through the fixing hole. The utility model is a post-operative hemostasis fixing device for otolaryngology, which has the advantages of: effectively compressing the bleeding point, the pressure can be adjusted, and can be effectively fixed on the patient's mouth, which greatly facilitates the operation of medical staff and provides patients with Bring comfort.

Description

A kind of hemostatic fixation device after otolaryngology surgery

technical field

The utility model relates to the field of medical devices, in particular to a hemostasis fixing device for otolaryngology after surgery.

Background technique

Tonsillectomy is a common and basic procedure in otorhinolaryngology to treat tonsil diseases such as acute tonsillitis, peritonsillar abscess, keratosis tonsils, and tonsil tumors. Postoperative hemorrhage is a common complication. If the bleeding time is long, it can cause excessive blood loss, anemia or hemorrhagic shock, and even death. Therefore, even a small amount of bleeding needs to be paid enough attention. Now the common clinical treatment is to hold the hemostatic forceps by the medical staff and clamp the cotton ball to press out the bleeding point of the tonsillar recess. The medical staff needs to press hard and last for more than 15 minutes to stop the bleeding in time to prevent the continuous bleeding. Dangerous or secondary surgery. This operation is time-consuming and labor-intensive for medical staff, and the force applied is different, the hemostasis effect on the bleeding point is different, and it is easy to shift.

The Chinese patent with the publication number of CN106667541A discloses a hemostatic device for clamping and pressing after tonsillar surgery, including a compression hemostatic bulb wrapped with a hemostatic sponge that can extend into the tonsillar fossa in the mouth, and a support pad with adhesive glue placed on the cheek outside the mouth. , the hemostatic bulb and the support pad are connected by a V-shaped arm and are provided with an adjusting device that can adjust the clamping and pressing force. The hemostatic cell can be in the shape of a sphere or a rugby ball, and the hemostatic sponge wrapped on the hemostatic cell is a spongy or fibrous hemostatic material covered with a hemostatic yarn or a hemostatic drug on the surface. When primary or secondary bleeding occurs after tonsillectomy, place one end of the hemostatic bulb holding the hemostatic device into the tonsillar fossa to accurately compress the bleeding point, stick the support pad on the appropriate part of the cheek skin, and rotate the adjusting nut Or directly press the V-arm, adjust the clamping force and fix it properly. The clamped and compressed hemostatic device after tonsillectomy is convenient to use, has less trauma to the patient, less pain, and good hemostatic effect.

Because the hemostatic device of this technical solution is too long, it is only supported by a sticking support pad on the patient's face, which is not effectively fixed, and it is easy to fall off after a long time. Therefore, we propose a postoperative hemostasis and fixation device for ENT. to solve the above-mentioned problems.

SUMMARY OF THE INVENTION

In order to solve the above problems, the utility model provides a hemostasis fixing device after ENT surgery, which can effectively compress the bleeding point, and the pressure can be adjusted. Bring comfort to the patient.

In order to achieve the above purpose, the utility model provides a post-operative hemostasis fixation device for otolaryngology. One end is provided with a face support cotton pad, the rear part of the hemostatic clip is provided with an adjustment screw, the adjustment screw is provided with an adjustment knob, the mouth holder is provided with a bite device, and the mouth holder is provided with a bite device. A fixing hole is provided, and one end of the hemostatic clip provided with the hemostatic cotton ball is connected to the mouth holder through the fixing hole.

Preferably, the material of the bite device is elastic plastic.

Preferably, the outer periphery of the fixing hole is made of plastic material, and the middle is made of silicone material.

Because the utility model adopts the above-mentioned design scheme, the following beneficial effects can be obtained: 1. The size of the opening of the hemostatic clip can be adjusted by adjusting the screw, and then the pressure of the hemostatic cotton ball on the bleeding point can be adjusted to achieve the purpose of hemostasis; The working efficiency of medical staff; 3. The fixing hole of the mouth retainer is made of silicone material, which can effectively fix the hemostatic clip through friction, and it is not easy to fall off. Patients can choose more positions to improve comfort and reduce anxiety; 4. Mouth fixation The material of the device is elastic plastic, which is comfortable to support, and the patient can easily bite, avoiding the discomfort caused by opening the mouth for a long time, not easy to fatigue, and preventing the tongue from being bruised.

Description of drawings

The present utility model will be described in further detail below in conjunction with the accompanying drawings.

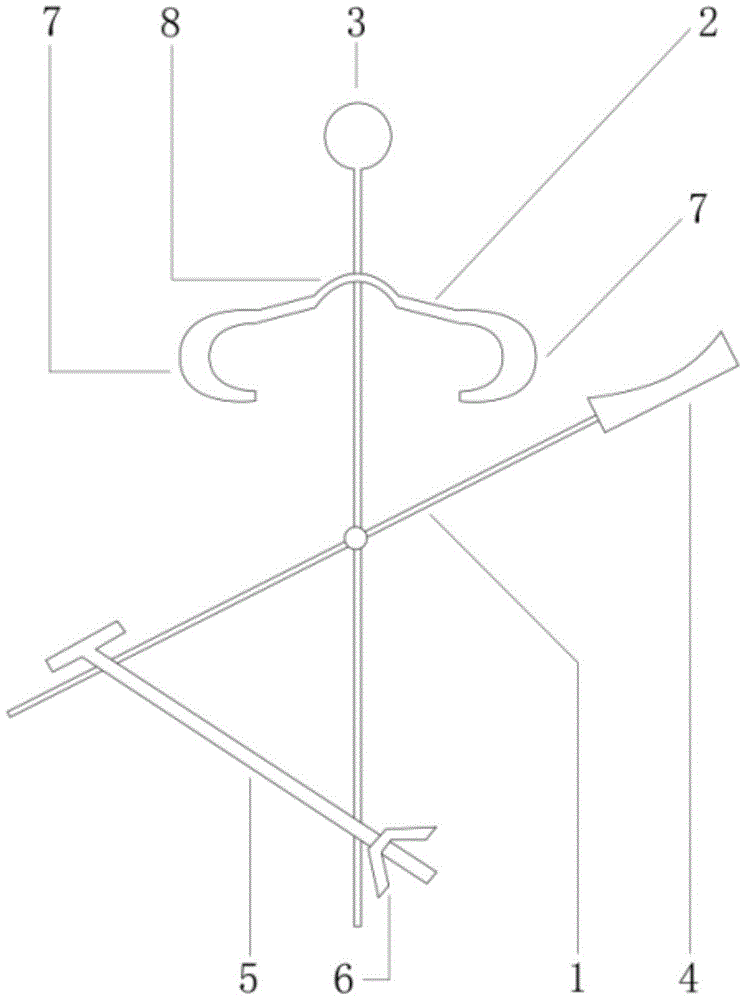

Accompanying drawing 1 is the structural schematic diagram of the present invention.

Figure 2 is a schematic structural diagram of the mouth holder of the present invention.

Figure 3 is a schematic diagram of the use of the present utility model.

In the figure, 1. Hemostatic clip, 2. Mouth retainer, 3. Hemostatic cotton ball, 4. Support cotton pad, 5. Adjusting screw, 6. Adjusting knob, 7. Bite, 8. Fixing hole.

Detailed ways

As shown in FIG. 1 , the preferred embodiment of the present utility model includes a hemostatic clip 1 and a mouth holder 2 , one end of the front part of the hemostatic clip 1 is provided with a hemostatic cotton ball 3 , and the other end of the front part is provided with a face support cotton pad 4 , the rear of the hemostatic clip 1 is provided with an adjustment screw 5, the adjustment screw 5 is provided with an adjustment knob 6, the mouth holder 2 is provided with a bite device 7, the mouth holder 2 is provided with a fixing hole 8, and the hemostatic clip 1 is provided with a hemostatic cotton ball One end of the 3 is connected to the mouth holder 2 through the fixing hole 8 .

Further, the material of the bite device 7 is elastic plastic.

Further, the periphery of the fixing hole 8 is made of plastic material, and the middle is made of silicone material.

The following will clearly describe the implementation process of the present utility model in conjunction with the schematic diagram 3 of the present utility model: the medical staff takes out the utility model, finds out the bleeding point under the condition of good lighting, compresses the bleeding point with the hemostatic cotton ball 3, and the patient bites the bleeding point with his teeth. Hold the mouth holder 2, and at the same time, the medical staff places the support cotton pad 4 on the patient's face at a suitable position, adjusts the hemostatic clip 1 to a suitable opening, and tightens the adjustment knob 6. After fixing, the patient can sit or lie down. If the bleeding point is felt loose, the medical staff can adjust the adjustment knob 6 at any time to improve the compression force of the hemostatic clip 1 .

The above descriptions are only preferred embodiments of the present invention, and are not intended to limit the present invention. For those skilled in the art, the present invention may have various modifications and changes. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present invention shall be included in the protection scope of the present invention.

Claims (3)

1. The utility model provides an otolaryngology branch of academic or vocational study postoperative hemostasis fixing device, includes hemostatic clamp (1) and mouth fixer (2), its characterized in that: hemostatic cotton balls (3) are arranged at one end of the front portion of the hemostatic clamp (1), a face supporting cotton pad (4) is arranged at the other end of the front portion of the hemostatic clamp, adjusting screws (5) are arranged at the rear portion of the hemostatic clamp (1), adjusting knobs (6) are arranged on the adjusting screws (5), an occluder (7) is arranged on the mouth fixer (2), fixing holes (8) are formed in the mouth fixer (2), and one end, provided with the hemostatic cotton balls (3), of the hemostatic clamp (1) is connected with the mouth fixer (2) through the fixing holes (8).

2. The post-operation hemostatic fixing device for otorhinolaryngology as claimed in claim 1, wherein: the articulator (7) is made of elastic plastic.

3. The post-operation hemostatic fixing device for otorhinolaryngology as claimed in claim 1, wherein: the periphery of the fixed hole (8) is made of plastic, and the middle of the fixed hole is made of silica gel.
