Abstract

The utility model discloses an automatic detection device for a PIN pin connector, in particular to the field of PIN pin connectors. A detection turntable is movably installed on the top, a detection card slot is opened on the top of the detection turntable, a fixed connection block is fixedly sleeved on the side of the worktable, and a connection frame is fixedly installed on the other side of the fixed connection block. By setting the automatic detection device in the utility model, the connector is generally placed on the assembly line, and then the detection personnel perform a single detection by the side, which not only consumes a lot of manpower, but also reduces the detection efficiency of the PIN pin connector. The automatic detection device will automatically perform multiple quick detections on the connector without manpower during the detection of the connector, which not only avoids the problem of factory efficiency, but also solves the problem of detection efficiency, thereby improving the detection efficiency of the connector.

Description

An automatic detection device for PIN pin connector

technical field

The utility model relates to the technical field of PIN pin connectors, and more particularly, the utility model relates to an automatic detection device for PIN pin connectors.

Background technique

Connectors are also called connectors, also known as connectors and sockets in China, and generally refer to electrical connectors, that is, devices that connect two active devices to transmit current or signals.

The current connectors are divided into low-frequency circular connectors, rectangular connectors, printed circuit connectors, RF coaxial connectors, and optical fiber connectors during production and use. One of them is a PIN pin connector, which is connected to the PIN pin. During the production and processing of the device, in order to make the quality of the factory high, the PIN pin connector is tested. In the factory, the connector is generally placed on the assembly line, and then the inspector performs a single inspection next to it, which not only consumes a lot of money. At the same time, the detection efficiency of the PIN pin connector will also be reduced, so that the factory efficiency of the connector is low.

In addition, when testing connectors, some factories use equipment to automatically test, but the existing testing equipment is expensive, large, inconvenient to move and place, and it is not easy to operate. The complex structure makes the machine more efficient. Low.

Therefore, there is an urgent need to provide an automatic detection device for a PIN pin connector with a simple structure and easy detection.

Utility model content

In order to overcome the above-mentioned defects of the prior art, an embodiment of the present invention provides an automatic detection device for a PIN pin connector. By setting the automatic detection device, the connector is generally placed on the assembly line, and then the detection personnel are next to it. Performing a single test will not only consume a lot of manpower, but also reduce the detection efficiency of the PIN pin connector. The automatic detection device will automatically perform multiple quick tests on the connector when the connector is tested without manpower to solve the problem. Problems raised in the background art above.

In order to achieve the above purpose, the present utility model provides the following technical solutions: an automatic detection device for a PIN pin connector, comprising a workbench and a connecting table, a connecting rod is movably installed on the top of the connecting table, and the A detection turntable is movably installed on the top, a detection card slot is opened on the top of the detection turntable, a fixed connection block is fixedly sleeved on the side of the worktable, and a connection frame is fixedly installed on the other side of the fixed connection block. Slide rails are fixedly installed on both sides of the frame, a sliding control block is slidably installed on the top of the connecting frame, a control panel is fixedly installed on the side of the sliding control block, and a connection display is fixedly installed on the other side of the sliding control block A detection display light is fixedly installed in the middle of the outer surface of the connection display block, a line connection port is fixedly connected to one side of the bottom of the connection display block, and an adjustment block is fixedly installed on the other side of the connection display block. The other side of the adjusting block is movably sleeved with a mounting clip.

In a preferred embodiment, a fixing column is fixedly installed in the middle of the inner cavity of the slide rail, and sliding teeth are fixedly installed on both sides of the fixing column.

In a preferred embodiment, sliding grooves are provided on both sides of the bottom surface of the sliding control block, and sliding helical teeth are fixedly installed on both sides inside the sliding groove.

In a preferred embodiment, a mounting bracket is fixedly installed on one side of the inner cavity of the adjustment block, a tension plate is fixedly installed in the middle of the mounting bracket, and a tension rod is movably connected to the top and bottom of the tension plate, A welding block is welded on the other side of the pull rod, a first rotating rod is movably connected to the side of the tension plate, a runner is movably installed on the other side of the first rotating rod, and the top of the runner is movable A second rotating rod is connected, and the top of the second rotating rod is movably sleeved with an adjusting rotating block.

In a preferred embodiment, a tension spring is fixedly installed in the middle of the inner cavity of the tension plate, a tension block is movably sleeved in the middle of the tension spring, and the top and bottom of the side of the tension block are fixedly connected There are stretch rods.

In a preferred embodiment, the top of the slide rail is fixedly installed inside the chute, and the size of the chute is adapted to the width of the slide rail.

In a preferred embodiment, the installation clip is fixedly installed on one side of the top of the detection turntable, and corresponds to the detection card slot.

In a preferred embodiment, the side of the welding block is welded on the other side of the mounting clip.

Technical effects and advantages of the present utility model:

1. The utility model sets up an automatic detection device, so that the connector is generally placed on the assembly line, and then the detection personnel perform a single detection by the side, which not only consumes a lot of manpower, but also reduces the detection of the PIN pin connector. Efficiency, the automatic detection device will automatically perform multiple rapid detections on the connector without manpower during the detection of the connector, which not only avoids the problem of factory efficiency, but also solves the problem of detection efficiency, thereby improving the detection efficiency of the connector;

2. The utility model makes the existing testing equipment high in cost, large in size, inconvenient to move and place, not easy to operate, and complicated in structure by setting a simple adjustment device, so the design of the testing equipment is simple. , easy to operate, using a simple adjustment device to install and detect different types of PIN pins, which not only avoids the problem of inconvenient operation of the machine, but also solves the problem of low machine use efficiency, which facilitates the detection of connectors and improves the use of the machine. efficiency.

Description of drawings

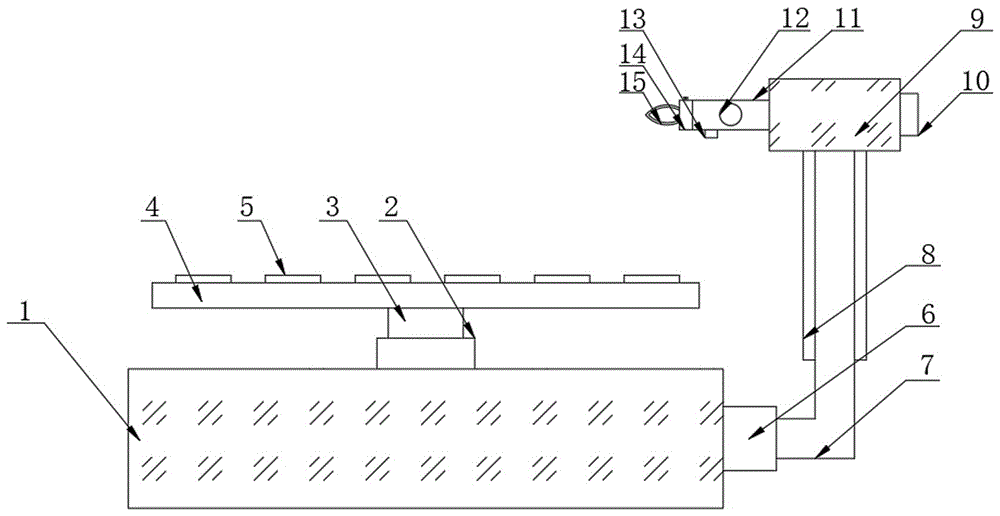

FIG. 1 is a schematic diagram of the overall structure of the present invention.

FIG. 2 is a schematic view of the inner cavity structure of the slide rail of the present invention.

3 is a schematic structural diagram of a sliding control block of the present invention.

FIG. 4 is a schematic diagram of the inner cavity structure of the adjusting block of the present invention.

FIG. 5 is a schematic diagram of the inner cavity structure of the tension plate of the present invention.

The reference signs are: 1. Workbench; 2. Connecting table; 3. Connecting lever; 4. Detection turntable; 5. Detection card slot; 6. Fixed connection block; 7. Connection frame; 8. Slide rail; 9. Sliding control block; 10. Control panel; 11. Connection display block; 12. Detection display light; 13. Line connection port; 14. Adjustment block; 15. Mounting clip; 81. Fixed column; slot; 92, sliding helical teeth; 141, mounting bracket; 142, tension plate; 143, pull rod; 144, welding block; 145, first rotating rod; 146, runner; 147, second rotating rod; 148, adjustment Rotating block; 1421, stretching spring; 1422, stretching block; 1423, stretching rod.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

As shown in the accompanying drawings 1-5, an automatic detection device for a PIN pin connector includes a workbench 1 and a connecting table 2. The top of the connecting table 2 is movably installed with a connecting rod 3, and the top of the connecting rod 3 is movably installed There is a detection turntable 4, the top of the detection turntable 4 is provided with a detection card slot 5, a fixed connection block 6 is fixedly sleeved on the side of the worktable 1, and a connection frame 7 is fixedly installed on the other side of the fixed connection block 6. A sliding rail 8 is fixedly installed on the side, a sliding control block 9 is slidably installed on the top of the connecting frame 7, a control panel 10 is fixedly installed on the side of the sliding control block 9, and a connection display block 11 is fixedly installed on the other side of the sliding control block 9. A detection display light 12 is fixedly installed in the middle of the outer surface of the connection display block 11 , a line connection port 13 is fixedly connected to one side of the bottom of the connection display block 11 , and an adjustment block 14 is fixedly installed on the other side of the connection display block 11 , and the adjustment block 14 The other side of the movable sleeve is provided with a mounting clip 15, a fixed column 81 is fixedly installed in the middle of the inner cavity of the slide rail 8, sliding teeth 82 are fixedly installed on both sides of the fixed column 81, and sliding grooves are opened on both sides of the bottom surface of the sliding control block 9 91. The sliding helical teeth 92 are fixedly installed on both sides of the inside of the chute 91, the mounting frame 141 is fixedly installed on one side of the inner cavity of the adjusting block 14, and the tension plate 142 is fixedly installed in the middle of the installation frame 141. A pull rod 143 is movably connected to the top and bottom, a welding block 144 is welded on the other side of the pull rod 143, a first rotating rod 145 is movably connected to the side of the tension plate 142, and a runner is movably installed on the other side of the first rotating rod 145 146, the top of the runner 146 is movably connected with a second rotating rod 147, the top of the second rotating rod 147 is movably sleeved with an adjusting rotating block 148, and a tension spring 1421 is fixedly installed in the middle of the inner cavity of the tension plate 142. The tension spring The middle part of the 1421 is movable with a stretch block 1422, the top and bottom of the side of the stretch block 1422 are fixedly connected with a stretch rod 1423, the top of the slide rail 8 is fixedly installed inside the chute 91, and the size of the chute 91 is the same The width of the slide rail 8 is adapted, the installation clip 15 is fixedly installed on one side of the top of the detection turntable 4 and corresponds to the detection card slot 5 , and the side of the welding block 144 is welded to the other side of the installation clip 15 .

As shown in FIG. 2 , a fixing column 81 is fixedly installed in the middle of the inner cavity of the slide rail 8 , and sliding teeth 82 are fixedly installed on both sides of the fixing column 81 .

The specific embodiment is as follows: by setting the sliding rail 8, the sliding control block 9 can be slid up and down using the fixed column 81;

As shown in FIG. 3 , sliding grooves 91 are provided on both sides of the bottom surface of the sliding control block 9 , and sliding helical teeth 92 are fixedly installed on both sides inside the sliding groove 91 .

The specific embodiment is: by arranging the sliding control block 9, using the sliding groove 91 to fit on the outside of the sliding rail 8, and then using the sliding of the sliding helical teeth 92 and the sliding teeth 82 to adjust the upper and lower heights of the sliding control block 9;

As shown in FIG. 4 , a mounting bracket 141 is fixedly installed on one side of the inner cavity of the adjusting block 14 , and a tension plate 142 is fixedly installed in the middle of the mounting bracket 141 . The other side of the 143 is welded with a welding block 144, the side of the tension plate 142 is movably connected with a first rotating rod 145, the other side of the first rotating rod 145 is movably installed with a runner 146, and the top of the runner 146 is movably connected with a The second rotating rod 147, the top of the second rotating rod 147 is movably sleeved with an adjusting rotating block 148.

The specific embodiment is as follows: by setting the adjusting block 14, when installing PIN needles of different sizes, the adjusting rotating block 148 is first rotated to drive the second rotating rod 147, the runner 146 and the first rotating rod 145 to rotate, thereby driving the tension plate 142. The work of the internal components finally drives the mounting clip 15 to clamp up and down;

As shown in FIG. 5 , a tension spring 1421 is fixedly installed in the middle of the inner cavity of the tension plate 142 , a tension block 1422 is movably set in the middle of the tension spring 1421 , and the top and bottom of the side of the tension block 1422 are fixedly connected with a tension block Extension rod 1423.

The specific embodiment is as follows: by setting the tension plate 142, when the first rotating rod 145 rotates, the tension rod 1423 is driven to rotate, so that the tension block 1422 is rotated, and then the tension spring 1421 is adjusted to pull up and down, thereby pulling the tension rod 143, so that the The mounting clip 15 is mobilized and clamped;

The working principle of the utility model:

The first step: first place the equipment in the designated place, and then install the various parts.

The second step: first place the PIN needle on the mounting clip 15. When installing PIN needles of different sizes, firstly rotate the adjusting rotating block 148 to drive the second rotating rod 147, the runner 146 and the first rotating rod 145 to rotate. When the rotating rod 145 rotates, it drives the stretching rod 1423 to rotate, so that the stretching block 1422 rotates, and then adjusts the stretching spring 1421 to pull up and down, thereby pulling the pulling rod 143, and finally driving the mounting clip 15 to clamp up and down. At the same time, when the machine is working, The sliding groove 91 is fitted on the outside of the sliding rail 8, and the sliding helical teeth 92 and the sliding teeth 82 are used to adjust the upper and lower heights of the sliding control block 9, thereby driving the PIN needle for detection. The rotation of 3 drives the rotation of the detection turntable 4, so as to quickly switch the connector on the detection card slot 5, so that the detector can detect quickly, and then use the line connection port 13 to connect the detection line. It is displayed by connecting the detection display light 12 on the display block 11, so that it is convenient to take out and replace.

The third step: first, after the inspection is completed, the connectors of different quality are classified and processed, and then the device is inspected and maintained regularly.

The last points to be noted are: First of all, in the description of this application, it should be noted that, unless otherwise specified and limited, the terms "installation", "connection" and "connection" should be understood in a broad sense, and may be mechanical connection. or electrical connection, or internal communication between two components, or direct connection, "up", "down", "left", "right", etc. are only used to indicate relative positional relationship, when the absolute position of the object being described changes, the relative positional relationship may change;

Secondly: in the drawings of the disclosed embodiments of the present invention, only the structures involved in the embodiments of the present invention are involved, and other structures may refer to the general design. In the case of no conflict, the same embodiment and different embodiments of the present invention can be mutually combination;

Finally: the above is only the preferred embodiment of the present utility model, and is not intended to limit the present utility model, all within the spirit and principle of the present utility model, any modification, equivalent replacement, improvement, etc. made, should include within the scope of protection of the present invention.

Claims (8)

1. An automatic detection device for a PIN pin connector, comprising a workbench (1) and a connecting table (2), characterized in that: a connecting rod (3) is movably installed on the top of the connecting table (2), so A detection turntable (4) is movably installed on the top of the connecting rod (3), a detection card slot (5) is opened on the top of the detection turntable (4), and a side fixed sleeve of the worktable (1) is provided with a fixed connection Block (6), a connecting frame (7) is fixedly installed on the other side of the fixed connecting block (6), a slide rail (8) is fixedly installed on both sides of the connecting frame (7), and the connecting frame ( 7) A sliding control block (9) is slidably installed on the top of the sliding control block (9), a control panel (10) is fixedly installed on the side of the sliding control block (9), and a connection display is fixedly installed on the other side of the sliding control block (9). Block (11), a detection display light (12) is fixedly installed in the middle of the outer surface of the connection display block (11), and a line connection port (13) is fixedly connected to one side of the bottom of the connection display block (11), so An adjustment block (14) is fixedly installed on the other side of the connection and display block (11), and a mounting clip (15) is movably sleeved on the other side of the adjustment block (14). 2. An automatic detection device for a PIN pin connector according to claim 1, characterized in that: a fixing column (81) is fixedly installed in the middle of the inner cavity of the slide rail (8), and the fixing column (81) ) are fixedly installed with sliding teeth (82). 3. An automatic detection device for a PIN pin connector according to claim 1, characterized in that: sliding grooves (91) are provided on both sides of the bottom surface of the sliding control block (9), and the sliding grooves (91) ) are fixedly installed with sliding helical teeth (92) on both sides. 4. An automatic detection device for a PIN pin connector according to claim 1, characterized in that: a mounting bracket (141) is fixedly installed on one side of the inner cavity of the adjustment block (14), and the mounting bracket ( A tension plate (142) is fixedly installed in the middle of the tension plate (141), a tension rod (143) is movably connected to the top and bottom of the tension plate (142), and a welding block (144) is welded on the other side of the tension rod (143). ), a first rotating rod (145) is movably connected to the side of the tension plate (142), and a runner (146) is movably installed on the other side of the first rotating rod (145). The top of 146) is movably connected with a second rotating rod (147), and the top of the second rotating rod (147) is movably sleeved with an adjusting rotating block (148). 5. An automatic detection device for a PIN pin connector according to claim 4, characterized in that: a tension spring (1421) is fixedly installed in the middle of the inner cavity of the tension plate (142), and the tension spring (1421) is A tension block (1422) is set in the middle of the spring (1421), and a tension rod (1423) is fixedly connected to the top and bottom of the side of the tension block (1422). 6. An automatic detection device for a PIN pin connector according to claim 3, characterized in that: the top of the slide rail (8) is fixedly installed inside the chute (91), and the chute (91) The size of the opening is adapted to the width of the slide rail (8). 7 . The automatic detection device for a PIN pin connector according to claim 1 , wherein the installation clip ( 15 ) is fixedly installed on one side of the top of the detection turntable ( 4 ), and is connected with the detection card slot ( 7 . 5) Correspondingly. 8 . The automatic detection device for a PIN pin connector according to claim 4 , wherein the side surface of the welding block ( 144 ) is welded to the other side of the mounting clip ( 15 ). 9 .
