Abstract

The utility model discloses a dust-free blackboard for ultrasonic cleaning, which is characterized in that it comprises a blackboard frame, a blackboard, and a dust removal device. Sliding up and down, guide rails are installed on the upper and lower sides of the blackboard frame, the dust removal device moves along the guide rails, a driving wheel is installed at the lower end of the dust removal device, the driving wheel is driven by a motor, and the upper end of the dust removal device is installed with a driving wheel. The driven wheel, the dust removal device is provided with an opening on one side close to the blackboard, air vents are provided on both sides of the opening, and an ultrasonic sounder is installed in the middle, the air vents on both sides are connected with the exhaust fan, and the exhaust fan is provided with a collector at the tail. dust bag. The utility model has the advantages of convenient use, low noise, and reduced physical harm to teachers.

Description

A dust-free blackboard cleaned by ultrasonic

technical field

The utility model relates to the field of teaching appliances, in particular to a dust-free blackboard cleaned by ultrasonic waves.

Background technique

Most of the blackboards we use now are half-up and down-drawable blackboards, which brings a certain convenience to cleaning the blackboard, but in practical applications, it is still very slow and laborious to wipe, and the chalk dust will be scattered everywhere. . First, it will affect the teacher's body, and second, it will affect the environment.

Utility model content

The purpose of this utility model is to provide a dust-free blackboard cleaned by ultrasonic waves, which is used to overcome the deficiencies of the prior art.

The above-mentioned technical purpose of the present utility model is achieved through the following technical solutions:

A dust-free blackboard for ultrasonic cleaning, comprising a blackboard frame, a blackboard, and a dust removal device, the blackboard is fixedly mounted on the blackboard frame, the blackboard is two pieces up and down, the blackboard can slide up and down, and the blackboard frame Guide rails are installed on the upper and lower sides, the dust removal device moves along the guide rails, and a driving wheel is installed at the lower end of the dust removal device, and the driving wheel is driven by a motor.

A driven wheel is installed on the upper end of the dust removal device, an opening is provided on one side of the dust removal device close to the blackboard, air outlets are arranged on both sides of the opening, and an ultrasonic sounder is installed in the middle, and the air outlets on both sides are connected with the exhaust fan, so The tail of the exhaust fan is provided with a dust bag.

Preferably, a brush block is provided around the opening of the dust removal device, and an angle is set between the brush block and both sides of the dust removal device.

Preferably, there are two driving wheels, the driving wheels are arranged in a vertical direction, and the driven wheels are arranged in a horizontal direction.

Preferably, the dust collecting bag is a non-woven bag, and the diameter of the non-woven bag is 40-50 μm.

Preferably, the side wall of the dust removal device is provided with a magnetic charging male port, and the magnetic charging charging port is connected to the battery in the dust removal device.

Preferably, one side of the blackboard frame is provided with a magnetic charging socket corresponding to the magnetic charging socket.

Preferably, the upper cover of the dust removal device is connected with the dust removal device by means of a buckle.

To sum up, the utility model has the following beneficial effects: the utility model adopts the motor-driven dust removal device, adopts the ultrasonic generator to remove the chalk dust, and then sucks the chalk dust into the non-woven fabric through the suction fans on both sides for storage, and then opens the The upper cover is opened to pour out the chalk ash in the non-woven fabric, which effectively reduces the chalk ash inhalation of teachers and students in the classroom. The device has low operating noise and is easy to use.

Description of drawings

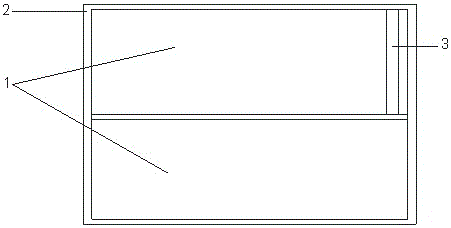

Fig. 1 is the overall structure schematic diagram of the present utility model,

Fig. 2 is the external structure schematic diagram of the dust removal device in the present utility model,

Fig. 3 is the structural schematic diagram of the side of the dust removal device close to the blackboard in the present utility model,

4 is a schematic diagram of the internal structure of the dust removal device in the present invention.

Detailed ways

The specific embodiments of the present invention will be further described below with reference to the accompanying drawings, and this embodiment does not constitute a limitation to the present invention.

An ultrasonic cleaning dust-free blackboard, as shown in FIG. 1, includes a blackboard frame 2, a blackboard 1, and a dust removal device 3. The blackboard 1 is fixedly installed on the blackboard frame 2. The blackboard 1 can slide up and down, guide rails are installed on the upper and lower sides of the blackboard frame 2, and the dust removal device 3 moves along the guide rails.

As shown in FIG. 2 , the main body of the dust removal device 3 is a rectangular parallelepiped, and the lower end of the dust removal device 3 is installed with driving wheels 4 . There are two driving wheels 4 , and the driving wheels 4 are arranged in a vertical direction. To be stable, a driven wheel 5 is installed on the upper end of the dust removal device, the setting direction of the driven wheel 5 is horizontal, and the driving wheel 4 is driven by a motor.

3 and 4 are schematic diagrams of the structure of the dust removal device, the dust removal device is provided with an opening on the side close to the blackboard, the air vents 6 are provided on both sides of the opening, and the ultrasonic sounder 7 is installed in the middle, and the air vents 6 on both sides are provided. It is connected with the exhaust fan, the exhaust fan 10 and the ultrasonic generator 7 are all connected with the battery 9, the battery 9 is also connected with the motor and the exhaust fan 10, and the battery charging port is a magnetic charging female port, so The magnetic charging main port is located on the side wall of the dust removal device 3, the left side of the blackboard frame 2 is provided with a magnetic charging main port corresponding to the magnetic charging port, and the dust removal device 3 goes from the left to the right and then back to the left. The side is a working cycle, and the dust removal device 3 returns to the left side of the blackboard frame 2 to charge and stops working until the next work instruction is issued.

The tail of the exhaust fan 10 is provided with a dust collection bag 11, the dust collection bag 11 is made of non-woven fabric, the non-woven fabric has a pore size of 40-50 μm, and the inhaled chalk dust can be temporarily stored in the dust collection bag 11. Since the particle size of chalk ash is mostly above 100 μm, the dust bag 11 can collect the chalk ash, and the upper cover plate of the dust removal device 3 is connected with the dust removal device 3 by a buckle, and a certain volume is to be collected. After cleaning, you can easily remove the upper cover, take out the dust bag, and put it back in after cleaning, realizing recycling.

A brush block 8 is provided around the opening of the dust removal device, and an angle is set between the brush block 8 and the two sides of the dust removal device 3 , and the brush block 8 can prevent a small part of chalk dust from leaking out.

The above descriptions are only preferred embodiments of the present invention and are not intended to limit the present invention. Those skilled in the art can make various modifications or equivalent replacements to the present invention within the spirit and protection scope of the present invention. , this modification or equivalent replacement should also be regarded as falling within the protection scope of the technical solution of the present invention.

Claims (7)

1. a dust-free blackboard of ultrasonic cleaning, it is characterized in that, comprise blackboard frame, blackboard, and dust removal device, described blackboard is fixedly installed in blackboard frame, and described blackboard is two pieces up and down, and described blackboard can be carried out along the top and bottom. sliding, guide rails are installed on the upper and lower sides of the blackboard frame, the dust removal device moves along the guide rails, and a driving wheel is installed at the lower end of the dust removal device, and the driving wheel is driven by a motor; A driven wheel is installed on the upper end of the dust removal device, an opening is provided on one side of the dust removal device close to the blackboard, air outlets are arranged on both sides of the opening, and an ultrasonic sounder is installed in the middle, and the air outlets on both sides are connected with the exhaust fan, so The tail of the exhaust fan is provided with a dust bag. 2 . The dust-free blackboard cleaned by ultrasonic waves according to claim 1 , wherein a brush block is arranged around the opening of the dust removal device, and an angle is formed between the brush block and the two sides of the dust removal device. 3 . 3 . The dust-free blackboard for ultrasonic cleaning according to claim 1 , wherein there are two driving wheels, the driving wheels are arranged in a vertical direction, and the driven wheels are arranged in a horizontal direction. 4 . 4 . The dust-free blackboard cleaned by ultrasonic wave according to claim 1 , wherein the dust-collecting bag is a non-woven bag, and the aperture of the non-woven bag is 40-50 μm. 5 . 5. A dust-free blackboard cleaned by ultrasonic wave according to claim 1, characterized in that: the side wall of the dust removal device is provided with a magnetic charging male port, and the magnetic charging male port is connected with the battery in the dust removal device . 6 . The dust-free blackboard cleaned by ultrasonic wave according to claim 5 , wherein a magnetic charging female port corresponding to the magnetic charging male port is provided on one side of the blackboard frame. 7 . 7 . The dust-free blackboard cleaned by ultrasonic wave according to claim 1 , wherein the upper cover plate of the dust removal device and the dust removal device are connected by a buckle. 8 .
