Abstract

The utility model discloses a field portable data folder, which comprises a data slot, a data bag, a connecting plate, a cover plate, a metal binder, a strap and a bracket; the lower edge of the data slot is movably connected with one side of the connecting plate; the other side of the connecting plate is connected with the component The rectangular cover plate is flexibly connected; the cover plate can be turned over and can be buckled on the data slot to form a box structure; a metal binder is installed on the connecting plate; the data bag is composed of a rectangular transparent hard plastic sheet and a transparent plastic film attached to it; the data bag The opening on one side is sleeved on the metal buckle of the metal binder; the outer edges of the left and right sides of the data slot are installed with straps; the outer side of the cover plate and the data slot forming the box structure is sleeved with the bracket through the sleeve; the bracket is square Ring-shaped structure, the bracket can be turned over on the cover; the folder is convenient to carry in the field; the cover can be used as a recording table by supporting the bracket, which is convenient for field recording operations and has good durability.

Description

A field portable file folder

technical field

The utility model relates to the technical field of data folders, in particular to a field portable data folder.

Background technique

There are generally three types of folders on the market, which can be roughly divided into three types: "single-sided clips", "double-sided clips" and "insert binders". It is found that it is troublesome to turn pages when recording and is seriously affected by the weather in actual work. When turning pages when the wind speed is strong, the recording card is often blown away or broken, which affects the efficiency of field work and the cleanliness of the data. ; In addition, when recording in the field, it is generally necessary to support the folder while recording, which is more inconvenient.

Utility model content

In order to solve the problems existing in the prior art, the utility model provides a portable data folder in the field. The record card is often blown away or broken, which affects the efficiency of field work and the cleanliness of data, and is inconvenient to record.

In order to realize the purpose of the present utility model, the present utility model adopts the following technical solutions:

A field portable data folder includes a data slot, a data bag, a connecting plate, a cover plate, a metal binder, a strap, and a bracket; the data slot is rectangular with three vertically extending edges, upper, left and right; The lower edge of the data slot is movably connected with one side of the connecting plate; the other side of the connecting plate is movably connected with the rectangular cover plate; the cover plate can be turned over to be buckled on the data slot to form a box structure; the connecting plate is mounted with a metal binder; The data bag is composed of a rectangular transparent hard plastic sheet and a transparent plastic film attached to it. The hard plastic sheet and the plastic film are adhered on three sides, and one side is opened to facilitate the insertion of the record card; one side of the data bag is opened and covered with a metal binder. The outer side of the edge extending on the left and right sides of the data slot is installed with straps; the outer side of the cover plate and the data slot forming a box structure is sleeved with a bracket through a sleeve; the bracket is square Ring-shaped structure, the bracket can be turned over on the cover plate; the outer side of the data slot is provided with a limit part; the cover plate is turned outward and is 90 degrees from the data slot, and one side of the bracket can be stuck in the limit after the bracket is turned over Department.

Preferably, a recording pen fixing sleeve is arranged on the inner side of the cover plate and the data slot to form the box structure.

Preferably, the lower edge of the data slot is movably connected to one side of the connecting plate through hinge A; the other side of the connecting plate is movably connected to the rectangular cover plate through hinge B.

Preferably, the edge of the cover plate is provided with buckles, and the data groove is provided with protrusions; the cover plate can be buckled on the data groove after being turned over, and the buckles and the protrusions are locked and fixed.

Preferably, the connection between the strap and the data slot is rotatable.

Compared with the prior art, the utility model has the following beneficial effects:

The file folder can effectively prevent the record card from being blown by the wind or polluted by the wind and sand in the field, which is convenient for carrying the file folder in the field; the cover plate can be used as a record table through the bracket, which is convenient for field recording operations; the file folder as a whole is relatively Strong and durable.

Description of drawings

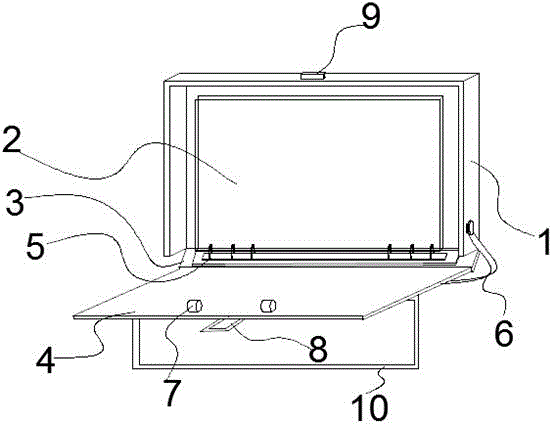

Fig. 1 is the structural representation of a kind of field portable data folder of the present utility model;

Fig. 2 is the side view after the support of a kind of field portable file folder of the present utility model;

FIG. 3 is a partial enlarged view of the connection between the cover plate and the data slot in FIG. 2 .

In the figure: data slot 1, data bag 2, connecting plate 3, cover plate 4, metal binder 5, strap 6, fixing sleeve 7, buckle 8, protrusion 9, bracket 10, limit part 11, hinge A12 , Hinge B13.

Detailed ways

The following will be combined with the accompanying drawings in the embodiments of the present utility model; the technical solutions in the embodiments of the present utility model will be described clearly and completely;

The specific structure and usage of the present utility model refer to Figures 1-2. An outdoor portable data folder includes a data slot 1, a data bag 2, a connecting plate 3, a cover plate 4, a metal binder 5, a strap 6, and a bracket 10; The data slot 1 is rectangular, with three vertically extending edges, upper, left and right; the lower edge of the data slot 1 is movably connected to one side of the connecting plate 3; the other side of the connecting plate 3 is connected to the rectangular cover plate. 4. Active connection; the cover plate 4 can be buckled on the data slot 1 to form a box structure by turning over; the internal recording card is effectively protected; the metal binder 5 is installed on the connecting plate 3; It is composed of a transparent plastic film attached to it. The hard plastic sheet and the plastic film are adhered on three sides, and one side is open to facilitate the insertion of the record card, which can effectively prevent the record card from being blown by the wind or being polluted by the wind and sand in the wild; information bag 2-1 The side opening is sleeved on the metal buckle of the metal binder 5, and the metal binder 5 can facilitate the loading and unloading of the data bag 2; the outer edges of the left and right sides of the data slot 1 are externally installed with straps 6, which are convenient for carrying the data clip in the field; The outer side of the cover plate 4 and the data slot 1 forming the box structure is sleeved with the bracket 10 through a sleeve; the bracket 10 is a square ring structure, and the bracket 10 can be turned over on the cover plate 4; the data A limiter 11 is provided on the outer side of the slot 1; the cover plate 4 is turned outward to form 90 degrees with the data slot 1, and one side of the bracket 10 can be clamped at the limiter 11 after the bracket 10 is turned over; Sleeve on the neck, one side of the data slot 1 is attached to the abdomen, and the bracket 10 supports the cover plate 4 as a recording table, which is convenient for field operations. Fold up and fit with cover 4.

Specifically, a recording pen fixing sleeve 7 is provided on the cover plate 4 and the inner side of the box structure formed with the data slot 1 .

Specifically, the lower edge of the data slot 1 is movably connected to one side of the connecting plate 3 through the hinge A12; the other side of the connecting plate 3 is movably connected to the rectangular cover plate 4 through the hinge B13; the connection is firm and durable. it is good.

Specifically, the edge of the cover plate 4 is provided with buckles 8, and the data slot 1 is provided with protrusions 9;

Specifically, the connection between the strap 6 and the data slot 1 can be rotated; after being supported or portable, the connection angle between the strap 6 and the data slot 1 can be freely changed and adapted.

The above description is only a preferred embodiment of the present invention, but the protection scope of the present invention is not limited to this. The technical solutions and their improvement ideas are equivalently replaced or changed, and all should be included in the protection scope of the present invention.

Claims (5)

1. A field portable file folder, comprising: data trough, data bag, connecting plate, cover plate, metal loose-leaf binder, braces, support; the method is characterized in that: the data slot is rectangular and is provided with an upper edge, a left edge and a right edge which extend vertically; the lower edge of the data slot is movably connected with one edge of the connecting plate; the other side of the connecting plate is movably connected with a rectangular cover plate; the cover plate can be buckled on the data tank through overturning to form a box body structure; the connecting plate is provided with a metal loose-leaf binder; the file bag consists of a rectangular transparent hard plastic sheet and a transparent plastic film attached to the rectangular transparent hard plastic sheet, the hard plastic sheet is adhered to the three sides of the plastic film, and one side of the hard plastic sheet is provided with an opening for conveniently placing a recording card; one side of the file bag is provided with a hole which is sleeved on the metal buckle of the metal loose-leaf binder; braces are arranged outside the extending edges of the left side and the right side of the data slot; the cover plate and the data groove form a box structure, and the outer side of the box structure is sleeved with the support through the sleeve; the bracket is of a square annular structure and can be turned over on the cover plate; the outer side surface of the data groove is provided with a limiting part; the cover plate is turned outwards to form 90 degrees with the data groove, and one side of the turning support rear support can be clamped at the limiting part.

2. The field portable file folder as set forth in claim 1, which is characterized in that: the cover plate and the data groove form a box structure, and the inner side of the box structure is provided with a recording pen fixing sleeve.

3. The field portable file folder as set forth in claim 1, which is characterized in that: the lower edge of the data slot is movably connected with one edge of the connecting plate through a hinge A; the other side of the connecting plate is movably connected with the rectangular cover plate through a hinge B.

4. The field portable file folder as set forth in claim 1, which is characterized in that: the edge of the cover plate is provided with a buckle, and the data tank is provided with a bulge; the cover plate can be buckled on the data groove through overturning and is clamped and fixed with the bulge through the buckle.

5. The field portable file folder as set forth in claim 1, which is characterized in that: the connection part of the strap and the data slot can rotate.
