Abstract

The utility model relates to a material receiving device of a large shearing machine, which relates to the technical field of processing waterproof boxes, comprising a bracket, a transportation device arranged on the bracket, a turning device arranged on the bracket and a conveying device arranged on the bracket , the turning device is located at the discharge end of the shearing machine, and the turning device is located between the conveying device and the conveying device. The turning device includes a turning shaft that is rotatably connected to the bracket, a turning plate that is fixedly connected to the turning shaft, and a turning power set on the bracket. The flip plate is an electromagnetic board with electricity inside, and the flip plate is located below the transport device. The utility model solves the problems of slow speed and low efficiency in manually collecting the steel plates after the shearing machine cuts the steel plates, not only high speed and high efficiency, but also reducing the labor intensity of personnel.

Description

Receiving device for a large shearing machine

technical field

The utility model relates to the technical field of processing of human waterproof boxes, in particular to a material receiving device of a large shearing machine.

Background technique

The shearing machine is a machine that uses one blade to reciprocate linear motion relative to the other blade to cut the plate.

The human waterproof box is welded by various steel plates, and the steel plate is cut from a whole piece of steel plate in the production process. At present, in the process of steel plate production and processing by shearing machine, after the steel plate is cut, it is usually collected and sorted manually, which is slow and inefficient.

Utility model content

In view of the deficiencies in the prior art, the purpose of this utility model is to provide a material receiving device for a large-scale shearing machine, which solves the problems of slow speed and low efficiency of manual collection of steel plates after the shearing machine has cut the steel plates, not only High speed and high efficiency, and reduce the labor intensity of personnel.

The above-mentioned utility model purpose of the present utility model is achieved through the following technical solutions:

A receiving device for a large shearing machine, comprising a bracket, a transport device arranged on the bracket, a turning device arranged on the bracket and a conveying device arranged on the bracket;

The inversion device is located at the discharge end of the shearing machine, and the inversion device is located between the conveying device and the conveying device.

By adopting the above technical solution, after the shearing machine completes the shearing of the steel plate, the steel plate is transported by the transportation device on the bracket. When the transportation device transports the steel plate to the end, the turning device drives the steel plate to turn over, and the turning device drives the steel plate for transportation. The device falls onto the conveying device, and then the conveying device conveys the steel plate away.

The utility model is further configured as follows: the turning device comprises a turning shaft rotatably connected with the support, a turning plate fixedly connected with the turning shaft, and a turning power assembly arranged on the support;

The turning plate is an electromagnetic plate with electricity inside, and the turning plate is located below the transport device.

By adopting the above technical solution, when the steel plate is transported to the end of the bracket, the overturning power assembly drives the overturning shaft to rotate, and at the same time, the inside of the overturning plate is energized, so that the overturning plate becomes an electromagnetic plate, and the overturning shaft drives the overturning plate during the rotation process. , the turning plate drives the steel plate to be transferred from the transport device to the conveying device, and then the conveying device transports the steel plate.

The utility model is further configured as follows: the number of the turning plates is multiple.

By adopting the above technical solution, by setting the conveying plate into multiple, the turning plate can be set into a plurality of independent and smaller turning plates, reducing the weight of the turning plate, so that the turning shaft can better drive the turning shaft to rotate, It is convenient for the steel plate to fall onto the conveying device more stably.

The utility model is further arranged as follows: the transportation device comprises a rotating shaft rotatably connected with the support, a driving sprocket arranged on the rotating shaft, a driven sprocket rotatably connected with the support, and a driving sprocket wound on the driving sprocket and the driven sprocket Chains and transport power assemblies mounted on supports;

The transport power assembly is connected with the rotating shaft.

By adopting the above technical solution, the transport power component drives the driving sprocket to rotate, the driving sprocket drives the chain and the driven sprocket to rotate synchronously, the chain drives the steel plate to move, and then the flip plate drives the steel plate to flip from the chain and fall into the transportation on the device.

The utility model is further configured as follows: the number of the chains is multiple.

By adopting the above technical solution, multiple chains drive the steel plate to move, and the stability is high.

The utility model is further provided that: a plurality of the turning plates and a plurality of the chains are staggeredly distributed.

By adopting the above technical solution, a plurality of turning plates are staggered and arranged between a plurality of chains when passing through, so that when the turning plates grab the steel plate, the steel plate has high stability and is not easy to slip off.

The utility model is further configured as follows: the conveying device comprises a plurality of conveying rollers rotatably connected with the support, conveying sprockets arranged on the conveying rollers, conveying chains wound on the plurality of conveying sprockets, and conveying chains arranged on the support power components;

The conveying power assembly is connected to one of the conveying rollers.

By adopting the above technical solution, the turning plate drives the steel plate to turn over from the chain and fall onto the multiple conveying rollers, the conveying power assembly drives the multiple conveying rollers to rotate synchronously through the conveying chain and the conveying sprocket, and the multiple conveying rollers drive the steel plate to move forward , so that the steel plate enters the next production link.

To sum up, the beneficial technical effects of the present utility model are:

1. After the shearing machine completes the shearing of the steel plate, the transport power component drives the steel plate to transport forward. When the steel plate is transported to the top of the overturning plate, the overturning power drives the overturning shaft to rotate. The plate sucks the steel plate and drives the steel plate to turn over, and then transfers the steel plate from the chain to multiple conveying rollers, then the inside of the overturning plate is powered off, the overturning plate loses its magnetism, the steel plate falls on the conveying roller, and the conveying power component drives the Multiple conveyor rollers rotate, and the conveyor rollers transport the steel plate to the next production link.

2. In the whole process of steel plate shearing and collection, it is all transported and turned by machinery, without manual participation, and only needs to be controlled by personnel, the steel plate collection speed is fast, the efficiency is high, and the labor intensity of personnel is low.

Description of drawings

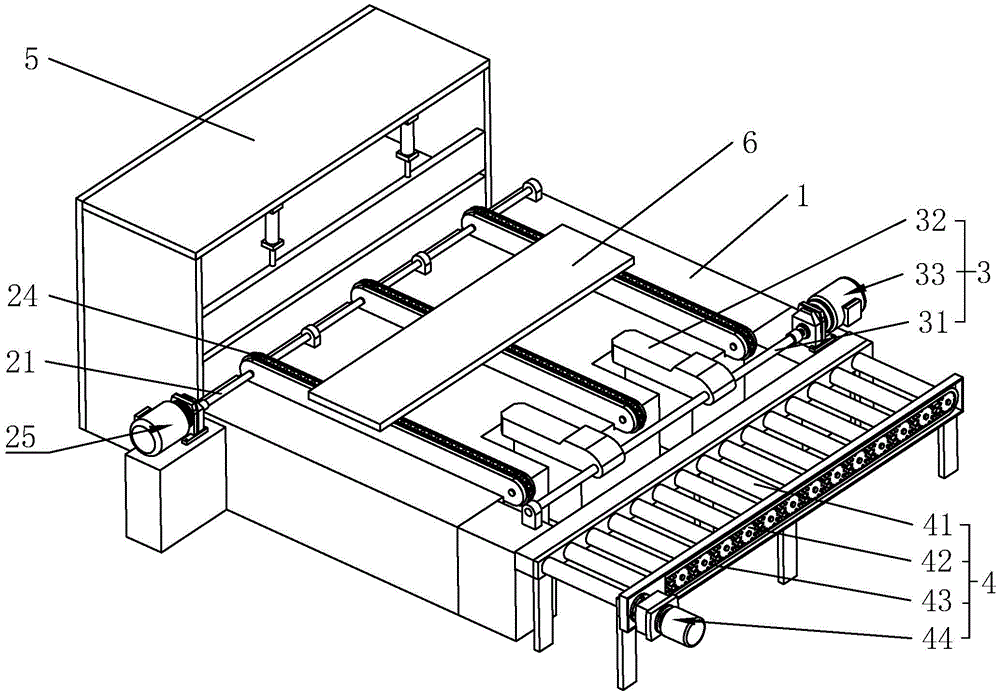

FIG. 1 is a schematic diagram of the use of an embodiment of the present invention.

FIG. 2 is a partial enlarged schematic view of FIG. 1 .

FIG. 3 is a schematic diagram of the power-on structure of the flip plate.

In the figure, 1, bracket; 2, transportation device; 21, rotating shaft; 22, driving sprocket; 23, driven sprocket; 24, chain; 25, transportation power assembly; 3, turning device; 31, turning shaft; 32 33. Turning power assembly; 4. Conveying device; 41. Conveying roller; 42. Conveying sprocket; 43. Conveying chain; 44. Conveying power assembly; 5. Shearing machine; 6. Steel plate.

Detailed ways

The present utility model will be described in further detail below in conjunction with the accompanying drawings.

Referring to FIGS. 1 and 2 , a receiving device for a large shearing machine disclosed in an embodiment of the present utility model includes a bracket 1 , a transport device 2 arranged on the bracket 1 , a turning device 3 arranged on the bracket 1 and There are several parts such as the conveying device 4 arranged on the bracket 1 . The input end of the transport device 2 is provided with a shearing machine 5, and the feeding end of the shearing machine 5 is provided with a steel plate 6. The shearing machine 5 cuts the steel plate 6. After the steel plate 6 is cut, the transport device 2 cuts the steel plate 6. After delivery, the inversion device 3 inverts the steel plate 6 onto the conveying device 4, and then the conveying device 4 conveys the steel plate 6 to the next production link.

1 and 2, the bracket 1 is provided at the output end of the shearing machine 5, the transport device 2 is located at the upper end of the bracket 1, and the transport device 2 is adjacent to the output end of the shearing machine 5, the transport device 2 includes and the bracket 1. The rotating shaft 21 that is rotatably connected, the driving sprocket 22 arranged on the rotating shaft 21, the driven sprocket 23 that is rotatably connected to the bracket 1, the chain 24 wound around the driving sprocket 22 and the driven sprocket 23, and the chain 24 arranged on the bracket 1 25 on the transport power pack.

The rotating shaft 21 is horizontally arranged on the bracket 1, the number of driving sprockets 22 is multiple (three in the figure), the driving sprocket 22 is keyed on the rotating shaft 21, and the driven sprocket 23 is connected to the bracket 1 through the shaft rotation , the number of the driven sprockets 23 is the same as the number of the driving sprockets 22 , and the driven sprockets 23 are arranged on the side of the rotating shaft 21 away from the shearing machine 5 . The number of chains 24 is the same as that of the driving sprockets 22 , and each chain 24 is wound around the driving sprocket 22 and the driven sprocket 23 corresponding to the driving sprocket 22 . The transport power assembly 25 includes a transport reducer provided on the bracket 1 and a transport motor provided on the transport reducer. The output shaft of the transport reducer is connected with the rotating shaft 21, the input shaft of the transport reducer is connected with the output shaft of the transport motor, the transport motor drives the rotating shaft 21 to rotate through the transport reducer, and then the rotating shaft 21 drives the chain 24 and the driven through the driving sprocket 22 The sprocket 23 rotates, and the chain 24 drives the steel plate 6 to move forward.

Referring to FIG. 1 , the turning device 3 is provided on the side of the transport device 2 away from the shearing machine 5 , and the turning device 3 includes a turning shaft 31 rotatably connected with the bracket 1 , a turning plate 32 fixedly connected with the turning shaft 31 , and Rotation power assembly 33 on the top.

The turning shaft 31 is located at the output end of the chain 24, the axis of the turning shaft 31 is parallel to the axis of the rotating shaft 21, the turning plate 32 is fixed on the axis of the turning shaft 31, and the number of turning plates 32 is multiple (two in the figure), The plurality of turning plates 32 are evenly distributed along the axis of the turning shaft 31 , and the plurality of turning plates 32 and the plurality of chains 24 are arranged in a staggered manner. An electromagnetic device is arranged inside the turning plate 32. When the turning plate 32 rotates from the chain 24, the electromagnetic device is energized, the turning plate 32 is magnetic, and the turning plate 32 drives the steel plate 6 to rotate, and the steel plate 6 is driven from the chain 24 to the conveying device. 4, then the electromagnetic device is de-energized, and the steel plate 6 falls onto the conveying device 4. The turning power assembly 33 includes a turning speed reducer arranged on the bracket 1 and a turning motor arranged on the turning speed reducer. The output shaft of the turning speed reducer is connected with the turning shaft 31, and the output shaft of the turning motor is connected with the input shaft of the turning speed reducer. . The flipping motor drives the flipping shaft 31 to rotate through the flipping reducer.

Referring to FIG. 1 , the conveying device 4 includes a plurality of conveying rollers 41 rotatably connected to the support 1 , a conveying sprocket 42 provided on the conveying roller 41 , a conveying chain 43 wound on the plurality of conveying sprockets 42 , and a conveying chain 43 provided on the support 1 . on the delivery power assembly 44.

A plurality of conveying rollers 41 are evenly distributed on the support 1 , the conveying rollers 41 are perpendicular to the turning shaft 31 , and the top end of the conveying roller 41 is lower than the top end of the chain 24 . The conveying sprocket 42 is keyed to one end of the conveying roller 41 away from the turning shaft 31 , and the conveying chain 43 is evenly wound around each conveying sprocket 42 . The conveying power assembly 44 is connected to the conveying roller 41 at the most edge. The conveying power assembly 44 includes a conveying reducer arranged on the bracket 1 and a conveying motor arranged on the conveying reducer, the output shaft of the conveying reducer is connected with the conveying roller 41, and the output shaft of the conveying motor is connected with the input shaft of the conveying reducer , the conveying motor drives the conveying roller 41 to rotate through the conveying reducer, and then the conveying chain 43 drives the multiple conveying rollers 41 to rotate synchronously, and the multiple conveying rollers 41 transport the steel plate 6 away.

The implementation principle of this embodiment is:

After the shearing machine 5 cuts the steel plate 6, the transport power assembly 25 drives the rotating shaft 21 to rotate, the rotating shaft 21 drives the driving sprocket 22, the chain 24 and the driven sprocket 23 to rotate synchronously, the chain 24 drives the steel plate 6 to move, and the steel plate 6 runs. When it reaches the top of the turning plate 32, the turning power assembly 33 drives the turning shaft 31 to rotate. At the same time, the electromagnetic device is energized, the turning plate 32 is magnetic, and the turning plate 32 drives the steel plate 6 to turn over, so that the steel plate 6 is turned from the chain 24. Falling into the upper end of the plurality of conveying rollers 41, the conveying power assembly 44 drives the plurality of conveying rollers 41 to rotate synchronously, and the plurality of conveying rollers 41 transport the steel plate 6 to the next production link.

The embodiments of this specific embodiment are all preferred embodiments of the present invention, and are not intended to limit the protection scope of the present invention, therefore: all equivalent changes made according to the structure, shape and principle of the present invention are It should be covered within the protection scope of the present invention.

Claims (7)

1. A receiving device for a large shearing machine, characterized in that it comprises a bracket (1), a transport device (2) arranged on the bracket (1), and a turning device (3) arranged on the bracket (1) and a conveying device (4) arranged on the support (1); The turning device (3) is located at the discharge end of the shearing machine, and the turning device (3) is located between the conveying device (2) and the conveying device (4). 2 . The receiving device of a large shearing machine according to claim 1 , wherein the turning device ( 3 ) comprises a turning shaft ( 31 ) rotatably connected with the bracket ( 1 ), and a turning shaft ( 31) A fixedly connected turning plate (32) and a turning power assembly (33) arranged on the bracket (1); The turning plate (32) is an electromagnetic plate with electricity inside, and the turning plate (32) is located below the transport device (2). 3 . The receiving device of a large shearing machine according to claim 2 , wherein the number of the turning plates ( 32 ) is plural. 4 . 4 . The receiving device of a large shearing machine according to claim 3 , wherein the conveying device ( 2 ) comprises a rotating shaft ( 21 ) rotatably connected with the bracket ( 1 ), and is arranged on the rotating shaft ( 21 ). 5 . ), the driven sprocket (23) rotatably connected to the bracket (1), the chain (24) wound around the driving sprocket (22) and the driven sprocket (23) and the device transport power assembly (25) on bracket (1); The transport power assembly (25) is connected with the rotating shaft (21). 5 . The receiving device of a large shearing machine according to claim 4 , wherein the number of the chains ( 24 ) is multiple. 6 . 6 . The receiving device of a large shearing machine according to claim 5 , characterized in that: a plurality of the turning plates ( 32 ) and a plurality of the chains ( 24 ) are distributed in a staggered manner. 7 . 7 . The receiving device of a large shearing machine according to claim 6 , wherein the conveying device ( 4 ) comprises a plurality of conveying rollers ( 41 ) rotatably connected with the bracket ( 1 ), and arranged in the a conveying sprocket (42) on the conveying roller (41), a conveying chain (43) wound on a plurality of conveying sprockets (42), and a conveying power assembly (44) provided on the bracket (1); The conveying power assembly (44) is connected with one of the conveying rollers (41).
