Abstract

The utility model discloses an alternately inflatable breathing mask, which comprises a mask body and a fixing belt. A connecting pipe runs through one side surface of the mask body, and one side of the connecting pipe is located inside the mask body with an air dividing cavity. The air cavity is communicated with a deflation cavity through a communication pipe. In the utility model, the CPAP or bi-level breathing therapy apparatus is connected through the connecting pipe of the mask body, and then most of the oxygen is guided to the patient's nostrils through the air guide port through the air dividing cavity of the mask body, and the other part of the oxygen is guided through the connecting pipe. To the air cavity distributed around the inner surface of the mask body, the air vent holes opened on the surface of the air cavity fit the patient's skin, and under the action of continuous oxygen filling, the air cavity and the skin are slightly floated, effectively avoiding the mask. The body is in hard contact with the skin, causing the skin to be red, swollen, painful, or even ruptured and infected, resulting in pressure sores on the facial skin.

Description

An alternate inflatable breathing mask

technical field

The utility model relates to the technical field of auxiliary breathing equipment, in particular to an alternately inflatable breathing mask.

Background technique

The respiratory mask is divided into a nasal mask and a nasal mask. The nasal mask is composed of the main body, the eyebrow support, the elbow, the elbow cover, the soft pad, the rubber plug, the snap ring, the buckle, the forehead pad, and the headband. Oronasal mask consists of main body, elbow, elbow cover, soft pad, rubber plug, snap, forehead pad, headband, respiratory mask is suitable for adults to cover on the nose or mouth and nose, connect CPAP or bi-level breathing therapy instrument use.

In clinical nursing work, for patients who continue to use ventilator masks, due to the less subcutaneous fat around the nose, the skin on both sides of the bridge of the nose and the sides of the nose is under long-term pressure, which is prone to blood circulation disorders, causing skin redness, swelling and pain. Even ulceration and infection will form pressure ulcers on the facial skin. At the same time, there is a certain difference between the size of the mask and the patient's face, making the contact surface between the mask and the patient's face a certain sense of pressure.

Utility model content

The purpose of this utility model is to propose an alternate inflatable breathing mask in order to solve the shortcomings existing in the prior art.

In order to achieve the above purpose, the present utility model adopts the following technical scheme: an alternately inflatable breathing mask, comprising a mask body and a fixing strap, a connecting tube runs through one side surface of the mask body, and one side of the connecting tube is located inside the mask body An air distribution cavity is opened, the air distribution cavity is communicated with a deflation cavity through a communication pipe, and the air deflation cavity is distributed around the edge of the surface of the other side of the mask body. One side surface is bonded with a nose pad, and the surface of the nose pad is provided with a water-absorbing cotton strip, an air guide port is opened under the nose pad at the middle position of the air distribution cavity, and the position of the side wall of the mask body is wound and connected with a fixing belt through a fixing piece .

Preferably, the nose pad has a triangular structure, and the surface of the nose pad is evenly provided with a plurality of water-absorbing cotton strips. There are two nose pads in total, and the two nose pads are symmetrical about the horizontal midline of the mask body.

Preferably, the air distribution cavity has a triangular structure, and the sides of the air distribution cavity of the triangular structure are arc-shaped structures, and the edges and corners of the air distribution cavity are provided with communicating pipes.

Preferably, there are a plurality of the vent holes, and the plurality of vent holes are evenly distributed on the surface of the vent cavity.

Preferably, there are two fixing pieces in total, and the two fixing pieces are symmetrical with respect to the horizontal centerline of the mask body, and a fixing tape is wound and connected between the two fixing pieces.

Preferably, the connecting pipe is communicated with the air guide port through the air dividing cavity, and the end of the connecting pipe is communicated with the CPAP or the bi-level respiratory therapy apparatus.

Preferably, the edge position of the mask body is at the same height as the deflation cavity.

Preferably, the inner surface of the mask body is a raised arc surface.

Compared with the prior art, the beneficial effects of the present utility model are:

1. In the present utility model, the CPAP or bi-level breathing therapy apparatus is connected through the connecting pipe of the mask body, and then most of the oxygen is guided to the patient's nostrils through the air guide port through the air-dividing cavity of the mask body, and another part of the oxygen is connected by The tube leads to the air cavity that is distributed around the inner surface of the mask body, and the vent holes opened on the surface of the air cavity fit the patient's skin. Under the action of continuous oxygen filling, the air cavity and the skin are slightly floated, which is effective. Avoid hard contact between the mask body and the skin, causing skin redness, swelling, pain, or even ulceration, infection, and the occurrence of pressure sores on the facial skin. It can also blow the patient's face under the action of continuous filling of the vent holes to improve comfort, and at the same time , the oxygen introduced through the air cavity can also be flooded in the mask body, avoiding the waste of oxygen;

2. In the present utility model, the nose pads of the triangular structure are bonded on the inner surface of the mask body, and the arc structure on the inner surface of the mask body is matched, so that the nose pads can fit on the patient's nose wings, wherein the nose pads are provided with a plurality of The absorbent tampon, the interval between multiple absorbent tampons is convenient for ventilation, which can improve the comfort and breathability of the mask body in contact with the skin. At the same time, the softness and elasticity of the absorbent tampon itself can reduce the pressure of the mask body on the patient's face. sense.

Description of drawings

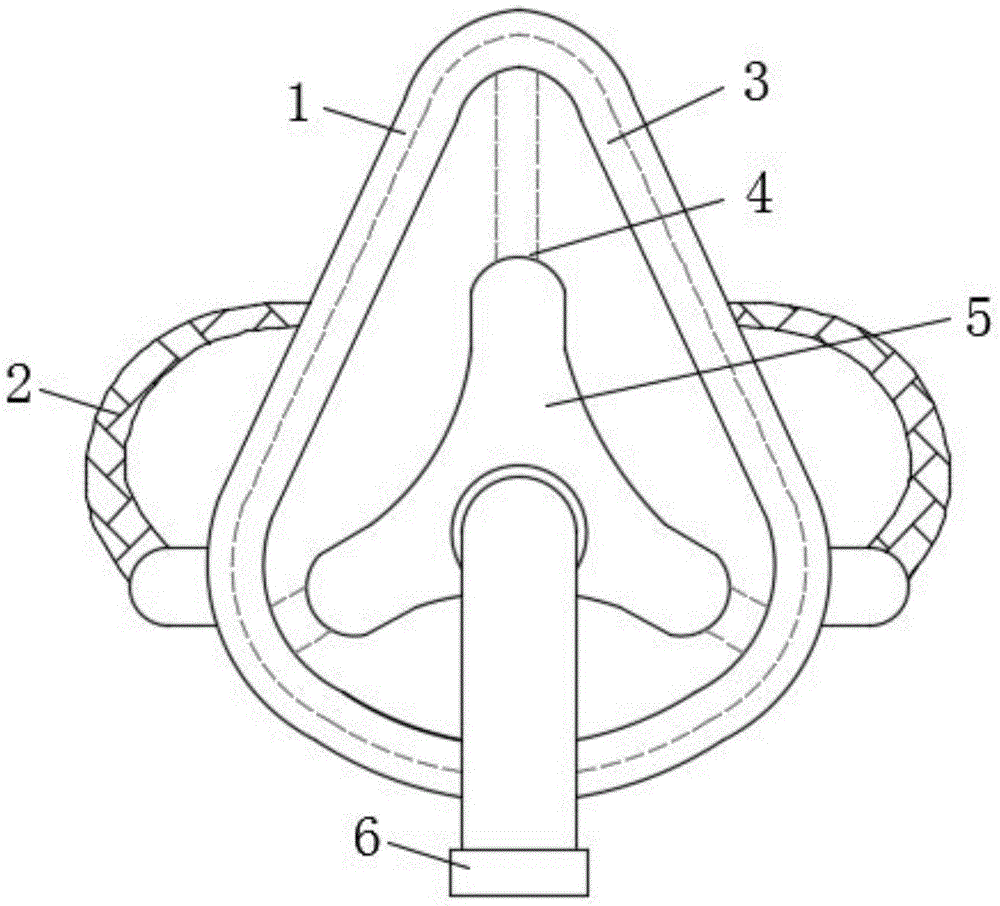

Fig. 1 is the structural representation of a kind of alternately inflatable breathing mask proposed by the utility model;

Fig. 2 is the back view of a kind of alternately inflatable breathing mask proposed by the utility model;

3 is a schematic structural diagram of the nose pad of an alternately inflatable breathing mask proposed by the present invention.

illustration:

1. Mask body; 2. Fixing belt; 3. Air vent cavity; 4. Connecting tube; 5. Air dividing cavity; 6. Connecting tube; 7. Air guide port; 8. Fixing part; 9. Nose pad; 10. Air vent hole ; 11, absorbent cotton sliver.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner" and "outer" The orientation or positional relationship indicated by etc. is based on the orientation or positional relationship shown in the accompanying drawings, which is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the referred device or element must have a specific orientation, with a specific orientation. Therefore, it should not be construed as a limitation to the present invention; the terms "first", "second" and "third" are only used for descriptive purposes and should not be construed as indicating or implying relative importance; in addition, Unless otherwise expressly specified and limited, the terms "installed", "connected" and "connected" should be understood in a broad sense, for example, it may be a fixed connection, a detachable connection, or an integral connection; it may be a mechanical connection, It can also be an electrical connection; it can be a direct connection, or an indirect connection through an intermediate medium, or the internal communication between the two components. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations.

Please refer to FIG. 1 and FIG. 2 , an alternately inflatable breathing mask includes a mask body 1 and a fixing strap 2 , a connecting tube 6 runs through one side of the mask body 1 , and one side of the connecting tube 6 is located inside the mask body 1 The air distribution chamber 5 is opened, and the air distribution chamber 5 is connected with the air release chamber 3 through the communication pipe 4, and the air release chamber 3 is distributed around the edge of the surface of the other side of the mask body 1. The surface of the air release chamber 3 is evenly provided with air release holes 10. The nose pad 9 is bonded to the other side surface of the main body 1, and the surface of the nose pad 9 is provided with a water-absorbing cotton strip 11. The air guide port 7 is opened under the nose pad 9 at the middle position of the air distribution cavity 5, and the position of the side wall of the mask body 1 is fixed by fixing The piece 8 is wound and connected with the fixing belt 2 .

Please refer to FIG. 1 , FIG. 2 and FIG. 3 , the nose pad 9 is a triangular structure, and the surface of the nose pad 9 is evenly provided with a plurality of water-absorbing cotton strips 11 , the nose pad 9 is provided with two, and the two nose pads 9 The mask body 1 is symmetrical with respect to the horizontal midline. The nose pad 9 can fit the patient's nose alar to prevent the skin from directly contacting the plastic mask. The air distribution chamber 5 has a triangular structure, and the sides of the triangular air distribution chamber 5 are arc-shaped structures. The edges and corners of 5 are provided with communication pipes 4, so that the communication pipes 4 can be introduced into the air distribution cavity 5 in multiple ways, so as to improve the uniformity of dispersion. The surface of the air vent cavity 3 is beneficial to improve the ventilation of the mask body 1 and avoid hard contact with the skin. There are two fixing pieces 8 in total, and the two fixing pieces 8 are symmetrical about the horizontal midline of the mask body 1. A fixed belt 2 is wound and connected between the two, the connecting pipe 6 is communicated with the air guide port 7 through the air dividing cavity 5, and the end of the connecting pipe 6 is communicated with the CPAP or the bi-level respiratory therapy apparatus, which is convenient for introducing oxygen to implement oxygen supply, and the edge of the mask body 1 is located It is at the same height as the deflation chamber 3 to prevent the mask body 1 from covering the deflation chamber 3, causing the deflation chamber 3 to lose its function of exhausting. The inner surface of the mask body 1 is a raised curved surface, so that the mask body 1 can fit the patient's face. The skin adopts the oxygen penetration method of the air separation chamber 5 and the air deflation chamber 3, which can give the mask an inflatable permeability effect, and can also provide sufficient oxygen when the air inside the mask body 1 is full. Alternately, avoiding the situation where the inside of the mask cannot be excreted due to the moisture that the patient breathes.

Working principle: When in use, the mask body 1 is connected to the CPAP or bi-level breathing therapy apparatus through the connecting tube 6, and then most of the oxygen is guided to the patient's nostrils through the air guide port 7 through the air distribution cavity 5 of the mask body 1. A part of the oxygen is led to the venting cavity 3 distributed around the inner surface of the mask body 1 through the communication pipe 4. The venting hole 10 opened on the surface of the venting cavity 3 fits the patient's skin, and the venting cavity 3 is made to be connected to the patient's skin through the continuous filling of oxygen. There is a slight floating between the skins, which can effectively avoid the rigid contact between the mask body 1 and the skin, causing skin redness, swelling, pain, or even rupture and infection, resulting in pressure sores on the facial skin, which can also be continuously filled in the vent hole 10. Under the action, the patient's face is blown to improve the comfort, and the oxygen introduced through the deflation chamber 3 can also be flooded in the mask body 1 to avoid the waste of oxygen. Matching the arc structure of the inner surface of the mask body 1, the nose pad 9 can be fitted to the patient's nose, wherein the surface of the nose pad 9 is provided with a plurality of water-absorbing tampons 11, and the intervals between the plurality of water-absorbing tampons 11 are convenient for ventilation, The comfort and air permeability of the mask body 1 in contact with the skin can be improved, and the softness and elasticity of the absorbent tampon 11 itself can reduce the pressure of the mask body 1 on the patient's face.

The above are only the preferred specific embodiments of the present invention, but the protection scope of the present invention is not limited to this. Equivalent replacement or modification of the new technical solution and its utility model concept shall be included within the protection scope of the present utility model.

Claims (8)

1. An alternately inflatable breathing mask, comprising a mask body (1) and a fixing strap (2), characterized in that a connecting pipe (6) runs through one side surface of the mask body (1), and the connecting pipe (6) ) one side is located inside the mask body (1) with an air distribution cavity (5), the air distribution cavity (5) communicates with the air release cavity (3) through the communication pipe (4), and the air release cavity (3) is distributed around the At the edge position of the other side surface of the mask body (1), the surface of the air vent cavity (3) is evenly provided with air vent holes (10), and the other side surface of the mask body (1) is bonded with a nose pad (9), and A water-absorbing cotton strip (11) is provided on the surface of the nose pad (9), and an air guide port (7) is provided below the nose pad (9) in the middle of the air distribution cavity (5), and the side wall of the mask body (1) is located The fixing belt (2) is wound and connected through the fixing piece (8). 2. An alternately inflatable breathing mask according to claim 1, wherein the nose pad (9) is a triangular structure, and the surface of the nose pad (9) is evenly provided with a plurality of absorbent cotton strips (11) There are two nose pads (9) in total, and the two nose pads (9) are symmetrical with respect to the horizontal midline of the mask body (1). 3. A kind of alternately inflatable breathing mask according to claim 1, is characterized in that, described air dividing chamber (5) is triangular structure, and the side of triangular structure air dividing chamber (5) is arc structure, Connecting pipes (4) are provided at the edges and corners of the air distribution chamber (5). 4. An alternately inflatable breathing mask according to claim 1, characterized in that, the vent holes (10) are provided with a plurality of vent holes (10), and the vent holes (10) are evenly distributed in the vent cavity (3) surface. 5. An alternately inflatable breathing mask according to claim 1, characterized in that, there are two said fixing members (8) in total, and the two fixing members (8) are about the horizontal midline of the mask body (1) Symmetrically, a fixing tape (2) is wound and connected between the two fixing pieces (8). 6. An alternately inflatable breathing mask according to claim 1, wherein the connecting pipe (6) is communicated with the air guide port (7) through the air dividing cavity (5), and the end of the connecting pipe (6) is connected The head communicates with the CPAP or bilevel breathing apparatus. 7 . An alternately inflatable breathing mask according to claim 1 , wherein the edge position of the mask body ( 1 ) and the deflation cavity ( 3 ) are at the same height. 8 . 8 . An alternately inflatable breathing mask according to claim 1 , wherein the inner surface of the mask body ( 1 ) is a raised arc surface. 9 .
