Abstract

The utility model provides a flushing device for surgical instruments for animal experiments, belonging to the technical field of experimental instruments, comprising a box cleaning unit and a post-processing unit; the cleaning unit includes a water spray module, a cleaning rack, a motor and a water collecting tank, and the water collecting tank is arranged at Below the cleaning rack, the motor is arranged at the bottom of the box body, and a sleeve that matches the end of the motor output shaft is arranged in the middle of the cleaning rack. The water spray unit is used to spray high-pressure cleaning liquid on the cleaning rack. Heating fan and UV disinfection lamp at the bottom. The device sprays the high-pressure water pumped by the high-pressure water pump onto the surgical instruments to be cleaned through the high-pressure nozzle, so as to wash away the blood or other mucus adhering to the surgical instruments. Drying, drying the thrown equipment through a heating fan, killing harmful bacteria remaining on the equipment through a high temperature environment of an ultraviolet disinfection lamp, avoiding the breeding of bacteria, with good cleaning effect and strong practicability.

Description

Surgical instrument irrigation device for animal experiments

technical field

The utility model belongs to the technical field of experimental instruments, in particular to a flushing device for surgical instruments for animal experiments.

Background technique

Surgical instruments for animal experiments refer to various instruments that are directly or indirectly used in animal bodies, such as scalpels, surgical scissors, support forceps, etc. After the operation is used, blood or other mucus will inevitably stick to it. It is cleaned and disinfected.

At present, after the animal experiment is done in the laboratory, the experimental equipment is generally cleaned manually, or the ultrasonic cleaning tank is used alone for cleaning. The manual cleaning effect is not good, and the disadvantage of the ultrasonic cleaning tank is that it consumes a lot of water.

Therefore, the present application provides a surgical instrument flushing device for animal experiments.

Utility model content

In order to overcome the above-mentioned deficiencies of the prior art, the present invention provides a surgical instrument flushing device for animal experiments.

In order to achieve the above object, the utility model provides the following technical solutions:

A surgical instrument flushing device for animal experiments, comprising a box body, a cleaning unit and a post-processing unit arranged in the box body;

The cleaning unit includes a water spray module, a cleaning rack, a motor and a water collection tank, the water collection tank is arranged below the cleaning rack, the motor is arranged at the bottom of the box body, and a middle of the cleaning rack is arranged with the a sleeve matched with the end of the motor output shaft, the water spraying module is used for spraying high-pressure cleaning liquid on the cleaning rack, and the side wall of the box body is provided with a storage port with a protective door;

The post-processing unit includes a heating fan and an ultraviolet disinfection lamp arranged at the bottom of the top plate of the box body.

Preferably, the cleaning rack includes an annular wall, the sleeve is arranged in the middle of the annular wall, and a number of baffles are evenly arranged at the bottom of the annular wall, between the sleeve and the annular wall A plurality of partitions are provided in the circumferential direction.

Preferably, it also includes an electric telescopic rod and a polished rod, the top of the annular wall is provided with an annular through groove in the circumferential direction, the motor of the electric telescopic rod is arranged on the top of the box, and the telescopic rod of the electric telescopic rod Passing through the annular through groove, and the bottom is in contact with the bottom of the annular wall through the clamping block, the upper end of the polished rod is fixedly connected with the top plate of the box body, and the lower end of the polished rod passes through the annular through groove, And the bottom is in contact with the bottom of the annular wall through another clamping block.

Preferably, the water spraying module comprises an annular water spraying disc, a metal water inlet pipe, a high-pressure pump and a support column, the annular water spraying disc is arranged between the annular wall and the water collection tank, and the annular A plurality of high-pressure nozzles are arranged on the water spout pan, the water outlet of the metal water inlet pipe is communicated with the plurality of high-pressure nozzles, and the high-pressure pump is arranged on the metal water inlet pipe and communicated with the metal water inlet pipe, The water inlet of the metal water inlet pipe is connected to the water source, the upper end of the support column is fixedly connected to the bottom of the annular water spray pan, and the lower end is fixed to the bottom of the box body.

Preferably, a water tank is also included, and the water inlet of the metal water inlet pipe is communicated with the water tank.

Preferably, a water discharge port is provided near the side wall and near the bottom of the water collecting tank, and a water outlet pipe is connected to the water discharge port.

In the device for washing surgical instruments for animal experiments provided by the utility model, the water spray module is arranged under the cleaning rack, and the high-pressure water pumped by the high-pressure water pump is sprayed onto the surgical instruments to be cleaned through the provided high-pressure nozzle, so that the surgical instruments are washed on the surgical instruments. The adhered blood or other mucus is washed away, and the cleaning rack is selected by the motor to drive the cleaning water to dry, and then the equipment after being thrown is heated and dried by the heating fan, and the ultraviolet disinfection lamp is used to kill the equipment in the high temperature environment. The residual harmful bacteria can avoid the breeding of bacteria, the cleaning effect is good, the practicability is strong, and the cleaning effect is better than manual cleaning, and the waste water can be collected through the sump, and the most collected waste water can be reused after treatment. The cleaning pool saves water resources.

Description of drawings

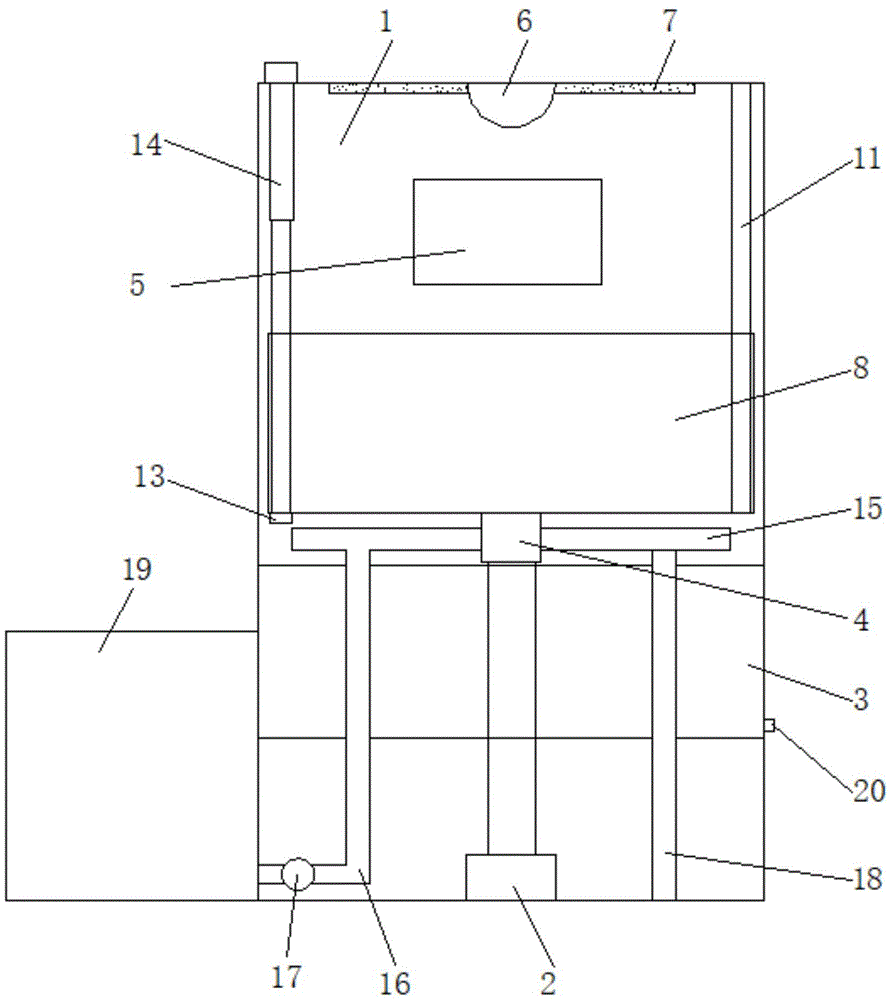

Fig. 1 is the structural representation (cleaning state) of the surgical instrument rinsing device for animal experiment of the utility model embodiment 1;

Fig. 2 is the structural representation of cleaning rack;

Fig. 3 is the structural representation (drying state) of the surgical instrument rinsing device for animal experiments in Example 1 of the present utility model.

Description of reference numbers:

Box 1, motor 2, water collection tank 3, sleeve 4, storage port 5, heating fan 6, ultraviolet disinfection lamp 7, annular wall 8, retaining bar 9, partition 10, polished rod 11, annular through groove 12, Block 13, electric telescopic rod 14, annular water spray disc 15, metal water inlet pipe 16, high pressure pump 17, support column 18, water tank 19, water outlet pipe 20

Detailed ways

In order to enable those skilled in the art to better understand the technical solutions of the present invention and implement them, the present invention will be described in detail below with reference to the accompanying drawings and specific embodiments. The following examples are only used to illustrate the technical solutions of the present invention more clearly, and cannot be used to limit the protection scope of the present invention.

In the description of the present invention, it should be understood that the terms "center", "longitudinal", "lateral", "length", "width", "thickness", "upper", "lower", "front", "Back", "Left", "Right", "Vertical", "Horizontal", "Top", "Bottom", "Inner", "Outer", "Axial", "Radial", "Circumferential" The orientation or positional relationship indicated by "" etc. is based on the orientation or positional relationship shown in the accompanying drawings, and is only for the convenience of describing the technical solution of the present invention and simplifying the description, rather than indicating or implying that the device or element referred to must have a specific Orientation, construction and operation in a particular orientation, and therefore should not be construed as a limitation of the present invention.

Furthermore, the terms "first," "second," etc. are used for descriptive purposes only and should not be construed to indicate or imply relative importance. In the description of the present invention, it should be noted that, unless otherwise expressly specified or limited, the terms "connected" and "connected" should be understood in a broad sense, for example, it may be a fixed connection or a detachable connection, or One-piece connection; it can be a mechanical connection or an electrical connection; it can be directly connected or indirectly connected through an intermediate medium. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood according to specific situations. In the description of the present invention, unless otherwise specified, the meaning of "plurality" is two or more, which will not be described in detail here.

Example 1

The utility model provides a surgical instrument flushing device for animal experiments, as shown in Fig. 1 to Fig. 3 specifically, comprising a box body 1, a cleaning unit and a post-processing unit arranged in the box body 1;

The cleaning unit includes a water spray module, a cleaning rack, a motor 2 and a water collection tank 3. The water collection tank 3 is arranged under the cleaning rack, the motor 2 is arranged at the bottom of the box body 1, and a sleeve matching the end of the output shaft of the motor 2 is arranged in the middle of the cleaning rack. Cartridge 4, the water spray module is used to spray high-pressure cleaning liquid on the cleaning rack, and the side wall of the box body 1 is provided with a storage port 5 with a protective door;

The post-processing unit includes a heating fan 6 and an ultraviolet disinfection lamp 7 arranged at the bottom of the top plate of the box body 1. The heating fan 6 is used to heat and dry the discarded instruments, and the ultraviolet disinfection lamp 7 is used to kill harmful germs remaining on the instruments in a high temperature environment. , to avoid the breeding of bacteria.

Further, in this embodiment, as shown in FIG. 2 , the cleaning rack includes an annular wall 8, the sleeve 4 is arranged in the middle of the annular wall 8, and the bottom of the annular wall 8 is evenly provided with a number of retaining bars 9, the sleeve 4 and the A plurality of partitions 10 are arranged between the annular walls 8 along the circumferential direction. The plurality of partitions 10 divide the inner cavity of the entire annular wall 8 into a plurality of cleaning spaces, and different cleaning tools can be placed in different cleaning spaces. , you can also choose the placement method, such as horizontal placement, vertical placement, etc.

In order to avoid damage to the heating fan 6 and the ultraviolet disinfection lamp 7 caused by the cleaning water, in this embodiment, an electric telescopic rod 14 and a polished rod 11 are also included. The motor of 14 is arranged on the top of the box body 1, the telescopic rod of the electric telescopic rod 14 passes through the annular through groove 12, and the bottom is in contact with the bottom of the annular wall 8 through the clamping block 13, and the upper end of the polished rod is fixedly connected to the top plate of the box body 1, The lower end of the polished rod 11 passes through the annular through groove 12 , and the bottom abuts against the bottom of the annular wall 8 through another clamping block 13 . The height of the cleaning rack can be adjusted through the electric telescopic rod 14 and the polished rod 11 . As shown in FIG. 1, the electric telescopic rod 14 is extended during cleaning, so that the cleaning rack is close to the water spray module. As shown in FIG. 3, the electric telescopic rod 14 is shortened after cleaning, so that the cleaning rack is close to the top of the box 1 for drying, disinfection, etc.

Specifically, in this embodiment, the water spray module includes an annular water spray disc 15 , a metal water inlet pipe 16 , a high-pressure pump 17 and a support column 18 , and the annular water spray disc 15 is arranged between the annular wall 8 and the water collection tank 3 , the annular water spray plate 15 is provided with a plurality of high-pressure nozzles, the water outlet of the metal water inlet pipe 16 is communicated with a plurality of high-pressure nozzles, and the high-pressure pump 17 is arranged on the metal water inlet pipe 16 and communicated with the metal water inlet pipe 16. The metal water inlet pipe The water inlet of 16 is connected to the water source, the upper end of the support column 18 is fixedly connected to the bottom of the annular water spray pan 15 , and the lower end is fixed to the bottom of the box body 1 . The tools placed on the cleaning rack are cleaned by spraying high-pressure water to the top through the high-pressure nozzle.

Meanwhile, in this embodiment, a water tank 19 is also included, and the water inlet of the metal water inlet pipe 16 is communicated with the water tank 19 . The water collecting tank 3 is provided with a water outlet near the side wall and near the bottom, and a water outlet pipe 20 is connected to the water outlet.

In the apparatus for rinsing surgical instruments for animal experiments provided in this embodiment, the water spray module is arranged under the cleaning rack, and the high-pressure water pumped by the high-pressure water pump is sprayed onto the surgical instruments to be cleaned through the provided high-pressure nozzles, so as to wash the surgical instruments on the surgical instruments. The adhered blood or other mucus is washed away, and the cleaning rack is selected by the motor to drive the cleaning water to dry, and then the equipment after being thrown is heated and dried by the heating fan, and the ultraviolet disinfection lamp is used to kill the equipment in the high temperature environment. Residual harmful bacteria, avoid breeding bacteria, good cleaning effect and strong practicability.

The above-mentioned embodiments are only preferred specific embodiments of the present invention, and the protection scope of the present invention is not limited thereto. Any person skilled in the art can obviously obtain the technology within the technical scope disclosed by the present invention. Simple changes or equivalent replacements of the scheme all belong to the protection scope of the present invention.

Claims (6)

1. The surgical instrument washing device for the animal experiment is characterized by comprising a box body (1), a cleaning unit and a post-processing unit, wherein the cleaning unit and the post-processing unit are arranged in the box body (1);

the cleaning unit comprises a water spraying module, a cleaning frame, a motor (2) and a water collecting tank (3), the water collecting tank (3) is arranged below the cleaning frame, the motor (2) is arranged at the bottom of the box body (1), a sleeve (4) matched with the end part of an output shaft of the motor (2) is arranged in the middle of the cleaning frame, the water spraying module is used for spraying high-pressure cleaning liquid onto the cleaning frame, and an object placing opening (5) with a protective door is arranged on the side wall of the box body (1);

the post-treatment unit comprises a heating fan (6) and an ultraviolet disinfection lamp (7) which are arranged at the bottom of the top plate of the box body (1).

2. The surgical instrument washing device for animal experiments as claimed in claim 1, wherein the washing rack comprises an annular wall (8), the sleeve (4) is arranged in the middle of the annular wall (8), a plurality of barrier strips (9) are uniformly arranged at the bottom of the annular wall (8), and a plurality of partition plates (10) are circumferentially arranged between the sleeve (4) and the annular wall (8).

3. The surgical instrument washing device for animal experiments as claimed in claim 2, further comprising an electric telescopic rod (14) and a polished rod (11), wherein the top of the annular wall (8) is circumferentially provided with an annular through groove (12), the motor of the electric telescopic rod (14) is arranged at the top of the box body (1), the telescopic rod of the electric telescopic rod (14) passes through the annular through groove (12), the bottom of the telescopic rod abuts against the bottom of the annular wall (8) through a clamping block (13), the upper end of the polished rod is fixedly connected with the top plate of the box body (1), the lower end of the polished rod (11) passes through the annular through groove (12), and the bottom of the polished rod abuts against the bottom of the annular wall (8) through another clamping block (13).

4. The surgical instrument washing device for animal experiments as claimed in claim 2, wherein the water spraying module comprises an annular water spraying disc (15), a metal water inlet pipe (16), a high pressure pump (17) and a support column (18), the annular water spraying disc (15) is arranged between the annular wall (8) and the water collecting tank (3), a plurality of high pressure nozzles are arranged on the annular water spraying disc (15), the water outlet of the metal water inlet pipe (16) is communicated with the plurality of high pressure nozzles, the high pressure pump (17) is arranged on the metal water inlet pipe (16) and is communicated with the metal water inlet pipe (16), the water inlet of the metal water inlet pipe (16) is communicated with a water source, the upper end of the support column (18) is fixedly communicated with the bottom of the annular water spraying disc (15), and the lower end of the support column is fixed on the bottom of the box body (1).

5. The surgical instrument flushing device for animal experiments as claimed in claim 4, characterized by further comprising a water tank (19), wherein the water inlet of the metal water inlet pipe (16) is communicated with the water tank (19).

6. The surgical instrument flushing device for animal experiments as claimed in claim 1, characterized in that the water collecting tank (3) is provided with a water outlet near the bottom near the side wall, and the water outlet is connected with a water outlet pipe (20).
