Abstract

The utility model discloses a hard disk box with a heat dissipation structure, comprising a box body, a pair of protective plates are fixedly connected to the upper end of the box body through a rotating shaft, a connection plate is fixedly connected to the rear side of the box body, and a plurality of support columns are fixedly connected to the lower end of the box body. The upper ends of several support columns are fixedly connected to the support plate, the upper end of the support plate is provided with a hard disk, the upper end of the box body is fixedly connected to the heat sink fins, the lower end of the heat sink fins is fixedly connected to the heat sink base plate, and the lower end of the heat sink base plate is fixed to the heat conduction plate. The middle part of the side wall is fixedly connected to the protective net, and the protective net is located on one side of the box body and is fixedly connected to the limit frame. The beneficial effect achieved by the utility model is that the hot air in the box can be discharged and released through the structure of the fan, the limit frame and the protective net. , to achieve the effect of heat dissipation and cooling in the box, and the adopted structure of heat sink fins and heat conduction plate can discharge the heat generated by the body of the hard disk when it is working, so that the use effect of the hard disk is better.

Description

A hard disk enclosure with a heat dissipation structure

technical field

The utility model relates to a hard disk case, in particular to a hard disk case with a heat dissipation structure, which belongs to the technical field of hard disk storage.

Background technique

With the rapid development of network and multimedia, people often encounter large-capacity data exchange in GB. Faced with such large data, hard disk is undoubtedly the best carrier. However, ordinary hard disks are installed in the chassis. And the operating system is installed, so it is not easy to move. The function of the hard disk box is to physically protect a hard disk. At the same time, it uses a connection method that is easy to move to realize the role of a mobile hard disk.

The hard disk enclosures currently used do not have good heat dissipation function. After the hard disk is placed in the hard disk enclosure and connected to the computer, heat will be generated in the hard disk enclosure. The increase of the temperature in the enclosure will cause the performance of the hard disk to decline and affect the use of the hard disk. Effect.

Utility model content

The utility model provides a hard disk box with a heat dissipation structure, which can discharge and release the hot air in the box body through the structure of a fan, a limit frame and a protective net, so as to achieve the effect of heat dissipation and temperature reduction in the box body.

In order to solve the above-mentioned technical problems, the utility model provides the following technical solutions:

The utility model relates to a hard disk box with a heat dissipation structure, comprising a box body, the middle part of the upper end of the box body is fixedly connected to a pair of protective plates through a rotating shaft, the rear side of the box body is fixedly connected to a connecting plate, and the lower end of the box body is fixedly connected A number of support columns, the upper ends of the support columns are fixedly connected to a support plate, the upper end of the support plate is provided with a hard disk, the upper end of the box body is fixedly connected to the heat sink fins, and the lower end of the heat sink fins is fixedly connected to the heat sink bottom plate, The lower end of the heat sink bottom plate is fixedly connected to the heat conduction plate, the middle of the two side walls of the box body is fixedly connected to a protective net, the protective net is located on one side of the box body and is fixedly connected to a limit frame, and the limit frame is fixedly connected to the exhaust fan through a bearing .

As a preferred technical solution of the present invention, both inner sides of the limiting frame are fixedly connected to the protective sleeve by straight rods, and the bearing is fixedly connected to the protective sleeve.

As a preferred technical solution of the present invention, an interface board is fixedly connected to the connection board, a plurality of interfaces are clamped on the interface board, and a number of heat dissipation holes are opened on the connection board.

As a preferred technical solution of the present invention, there are four exhaust fans and limit frames, and the four exhaust fans are symmetrically arranged on the protective nets on both sides of the box body.

As a preferred technical solution of the present invention, there are two fins and a base plate for the heat sink, and a pair of the fins and base plate for the heat sink are fixed on the upper end of the box at the front and rear.

As a preferred technical solution of the present invention, a pair of said protective plates are fixedly connected with dust-proof pads.

The beneficial effects achieved by the utility model are: the hot air in the box can be discharged and released through the structure of the fan, the limit frame and the protective net, so as to achieve the effect of heat dissipation and temperature reduction in the box, and the heat sink fins and the heat conduction plate are adopted. The structure can discharge the heat generated by the main body of the hard disk during operation, so that the use effect of the hard disk is better.

Description of drawings

The accompanying drawings are used to provide a further understanding of the present invention, and constitute a part of the specification, and are used to explain the present invention together with the embodiments of the present invention, and do not constitute a limitation to the present invention. In the attached image:

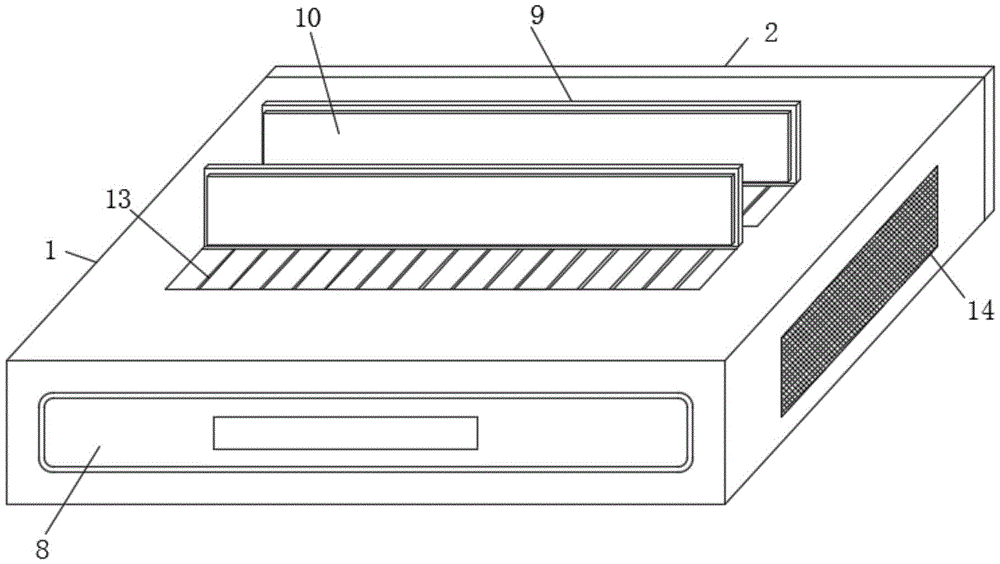

Fig. 1 is the structural representation of the present utility model;

Fig. 2 is the structural sectional view of the present utility model;

Fig. 3 is the rear view of the structure of the present utility model;

4 is a side view of the limiting frame structure of the present invention.

In the figure: 1. Box body; 2. Connecting board; 3. Interface board; 4. Interface; 5. Heat dissipation hole; 6. Supporting column; 7. Supporting plate; 8. Hard disk; 9. Protection plate; 10. Dustproof Pad; 11, heat conduction plate; 12, heat sink bottom plate; 13, heat sink fins; 14, protective net; 15, limit frame; 16, exhaust fan; 17, straight rod; 18, protective sleeve; 19, bearing.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Embodiment: As shown in Figures 1-4, the present invention is a hard disk enclosure with a heat dissipation structure, comprising a case body 1, and the middle part of the upper end of the case body 1 is fixedly connected to a pair of protective plates 9 through a rotating shaft, which is used for cooling the fins of the heat dissipation plate. For the protection of the sheet 13, the rear side of the box body 1 is fixedly connected to the connecting plate 2, the inner and lower ends of the box body 1 are fixedly connected to a number of support columns 6, and the upper ends of the support columns 6 are fixedly connected to the support plate 7, which has the effect of supporting the hard disk 8. The support plate 7. The upper end is provided with a hard disk 8, the upper end of the box body 1 is fixedly connected to the heat sink fins 13, the lower end of the heat sink fins 13 is fixedly connected to the heat sink base plate 12, and the lower end of the heat sink base plate 12 is fixedly connected to the heat conduction plate 11, which is used to dissipate heat from the hard disk 8 The heat is transferred to the heat sink fins 13, the middle of the two side walls of the box body 1 is fixedly connected to the protective net 14, the protective net 14 is located on one side of the box body 1 and is fixedly connected to the limit frame 15, and the limit frame 15 is fixed by the bearing 19. The exhaust fan 16 is connected to perform heat dissipation and exhaust air treatment in the box body 1 .

Both sides of the limit frame 15 are fixedly connected to the protective sleeve 18 through the straight rod 17, which plays the role of protecting the exhaust fan 16. The bearing 19 is fixedly connected to the protective sleeve 18 to protect the bearing 19, and the connecting plate 2 is fixedly connected to the interface board 3, the interface There are several interfaces 4 on the board 3, which are used to connect the computer interface. There are several cooling holes 5 on the connecting board 2, and four exhaust fans 16 and limit frame 15 are provided to increase the heat dissipation. 16 are symmetrically arranged on the protective nets 14 on both sides of the box body 1. The protective nets 14 play a protective role. There are two heat sink fins 13 and two heat sink base plates 12. A pair of heat sink fins 13 and heat sinks are provided. The bottom plate 12 is fixed on the upper end of the box body 1 at the front and rear, and a pair of protective plates 9 are fixedly connected with a dust-proof pad 10 . The dust-proof pad 10 is used to prevent dust from accumulating on the heat sink fins 13 and reduce the heat dissipation effect of the heat sink fins 13 .

Specifically, when the utility model is used, the power is turned on, the hard disk 8 is inserted into the box body 1, the hard disk 8 is in contact with the support plate 7 in the box body 1, and then the protective plate 9 on the upper end of the box body 1 is opened to dissipate heat. The fins 13 are in contact with the outside world, and at the same time, the exhaust fans 16 on both sides of the box body 1 are activated, and then the computer connection interface is connected with the interface 4 of the interface board 3. The hot air is discharged to increase the air flow rate in the box body 1. At the same time, the heat emitted by the hard disk 8 body is also transmitted to the heat sink fins 13 through the heat conduction plate 11, and is discharged from the box body 1 to reach the inside of the box body 1. For the effect of heat dissipation and cooling of the hard disk 8 , a plurality of heat dissipation holes 5 are provided on the connection board 2 to conduct heat dissipation treatment on the interface 4 .

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. The hard disk box with the heat dissipation structure is characterized by comprising a box body (1), wherein a pair of protection plates (9) are fixedly connected to the middle of the upper end of the box body (1) through a rotating shaft, a connecting plate (2) is fixedly connected to the rear side of the box body (1), a plurality of support columns (6) are fixedly connected to the lower end of the box body (1), a support plate (7) is fixedly connected to the upper ends of the support columns (6), a hard disk (8) is arranged at the upper end of the support plate (7), radiating fins (13) are fixedly connected to the upper end of the box body (1), a radiating fin base plate (12) is fixedly connected to the lower end of the radiating fin base plate (12), a heat conduction plate (11) is fixedly connected to the lower end of the radiating fin base plate (12), a protection net (14) is fixedly connected to the middle of two, the limiting frame (15) is fixedly connected with an exhaust fan (16) through a bearing (19).

2. A hard disk cartridge with a heat dissipation structure as claimed in claim 1, wherein the inner sides of the position limiting frame (15) are fixedly connected with the protecting sleeve (18) through straight rods (17), and the bearing (19) is fixedly connected with the protecting sleeve (18).

3. A hard disk cartridge with a heat dissipation structure as claimed in claim 1, wherein the connecting plate (2) is fixedly connected with an interface board (3), the interface board (3) is provided with a plurality of interfaces (4), and the connecting plate (2) is provided with a plurality of heat dissipation holes (5).

4. A hard disk cartridge with a heat radiation structure as claimed in claim 1, wherein there are four exhaust fans (16) and four limit frames (15), and the four exhaust fans (16) are symmetrically arranged on the protective net (14) at both sides of the cartridge body (1).

5. A hard disk cartridge with a heat radiation structure as claimed in claim 1, wherein there are two of said heat sink fins (13) and said heat sink base plate (12), and a pair of said heat sink fins (13) and said heat sink base plate (12) are fixed to the upper end of said cartridge body (1) in the front-rear direction.

6. A hard disk cartridge with a heat dissipation structure as set forth in claim 1, wherein a dust-proof pad (10) is fixedly attached to each of the pair of shield plates (9).
