Abstract

The utility model discloses a solar street lamp, which comprises a lamp body, a connecting rod, a solar panel and a mounting seat. The tail end of the lamp body is provided with a connecting portion, one end of the connecting rod is installed in the connecting portion, and the other end of the connecting rod is connected to the mounting seat. Fixed connection, the top of the connecting rod is provided with a mounting post, the top of the mounting post is provided with a connecting piece, the bottom of the solar panel is provided with a fixing piece, the fixing piece is rotatably connected with the connecting piece, the solar panel is provided with a light-sensing switch, and the light-sensing switch is connected with the connecting piece. The lamp body is electrically connected, the solar panel of the utility model can be rotated and adjusted, and the lamp body can be automatically turned on and off according to the light intensity.

Description

A solar street light

technical field

The utility model relates to the technical field of lighting street lamps, in particular to a solar street lamp.

Background technique

With the development of society, urban roads are basically equipped with street lamps for lighting. Traditional street lamp installation requires pre-buried lines, which is inconvenient to install, resulting in limited installation locations. In addition, street lamps work for a long time will generate greater energy consumption, so people invented However, the solar panel of the existing solar street lamp cannot be adjusted, so that the solar panel cannot absorb the light at the best angle, and the solar street lamp still needs to be turned on and off.

Utility model content

The technical problem to be solved by the utility model is to provide a solar street lamp with a stable structure, a solar panel that can be rotated and adjusted, and can be automatically switched on and off according to the light intensity.

In order to solve the above-mentioned technical problems, the technical scheme of the present utility model is:

A solar street lamp, comprising a lamp body, a connecting rod, a solar panel and a mounting seat, the tail end of the lamp body is provided with a connecting part, one end of the connecting rod is installed in the connecting part, and the other end of the connecting rod is connected to the connecting part. The mounting seat is fixedly connected, the top of the connecting rod is provided with a mounting post, the top of the mounting post is provided with a connecting piece, the bottom of the solar panel is provided with a fixing piece, the fixing piece is rotatably connected with the connecting piece, and the solar energy The board is provided with a light-sensing switch, and the light-sensing switch is electrically connected with the lamp body.

In a further improvement of the present invention, the connecting piece is a U-shaped piece, the two sides of the connecting piece are rotatably connected to the fixing piece through a rotating shaft, the end of the rotating shaft is provided with a wing nut, and the bottom of the connecting piece is connected to the fixed piece. The mounting post is rotatably connected.

In a further improvement of the present invention, an auxiliary connecting rod is arranged between the mounting column and the mounting seat, two ends of the auxiliary connecting rod are respectively fixedly connected with the mounting column and the mounting seat, and the bottom of the auxiliary connecting rod is provided with a The support bar connected at the top of the connecting rod.

In a further improvement of the utility model, the lamp body includes a light-transmitting plate, a reflector, a light source plate and a lamp holder, the light-transmitting plate is covered at the opening of the lamp holder, and the side part of the lamp holder is covered with an anti-dropping cover. One side of the anti-dropping piece is attached to the light-transmitting plate, and the other side of the anti-dropping piece is fixedly connected with the lamp socket.

In a further improvement of the present invention, the lamp body further includes a control circuit board, the control circuit board includes a wifi module and a power detection module, the lamp source board is provided with a first lamp group and a second lamp group, and the first lamp group and the second lamp group are arranged on the light source board. A lamp group and a second lamp group are respectively electrically connected with the control circuit board.

In a further improvement of the present invention, the mounting seat includes a U-shaped fixing portion and a mounting portion, the connecting rod is welded with the fixing portion, the mounting portion is connected with the ends on both sides of the fixing portion, and the mounting portion is provided with Mounting holes.

A further improvement of the utility model further includes a hoop, and the mounting portion is connected with the hoop through bolts.

With the above technical solution, the street lamp is charged by the solar panel for energy storage, so that the street lamp can be freed from the constraints of the wires and can be applied to more places. The solar panel can be rotated up and down. Similarly, the connecting piece is connected with the installation column so that the solar panel can be rotated left and right. The solar panel can be rotated and adjusted to adapt to different directions of illumination. In addition, the lamp body is provided with a first lamp group and a second lamp group. , so that the street lamp can be converted into a state of lower energy consumption when the electricity is less, and maintain a part of the lighting function.

Description of drawings

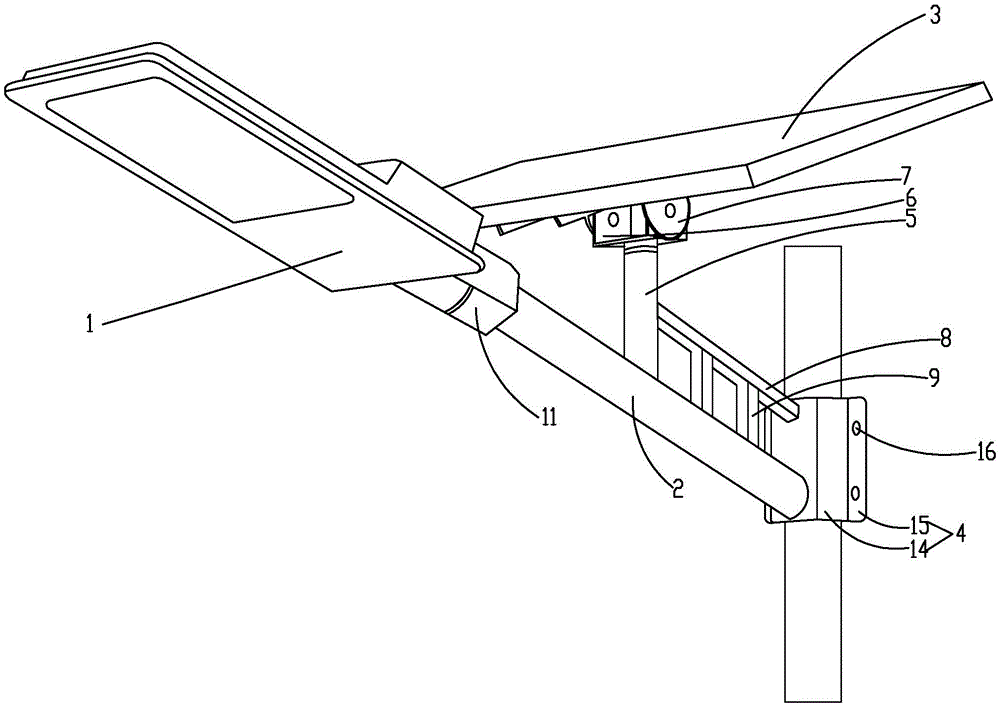

Fig. 1 is the structural representation of the utility model;

Figure 2 is a front view of the lamp body;

Indicated in the figure: 1. Lamp body; 2. Connecting rod; 3. Solar panel; 4. Mounting seat; 5. Mounting column; 6. Connecting piece; 7. Fixing piece; 8. Auxiliary connecting rod; 9. Supporting bar; 10. Light-transmitting plate; 11. Anti-dropping part; 12. First lamp group; 13. Second lamp group; 14. Fixing part; 15. Mounting part; 16. Mounting hole;

Detailed ways

As shown in Figures 1-2, a solar street lamp includes a lamp body 1, a connecting rod 2, a solar panel 3 and a mounting seat 4. The tail end of the lamp body 1 is provided with a connecting portion 17, and the connecting rod One end of 2 is installed in the connecting part 17, the connecting part 17 is provided with a mounting hole 16, the connecting rod 2 is fixed in the mounting hole 16, the other end of the connecting rod 2 is fixedly connected with the mounting seat 4, and the top of the connecting rod 2 is provided with Mounting column 5, the top of the mounting column 5 is provided with a connecting piece 6, the bottom of the solar panel 3 is provided with a fixing piece 7, and the fixing piece 7 is rotatably connected with the connecting piece 6, specifically, the connecting piece 6 is a U-shaped piece, and the connecting piece 6 The two sides of the solar panel are rotatably connected with the fixing member 7 through the rotating shaft, and the rotating shaft passes through the connecting member 6 and the fixing member 7, so that the solar panel 3 can be rotated up and down to adjust to adapt to the illumination in different directions. The end of the rotating shaft is provided with a butterfly type After the adjustment is completed, the butterfly nut can be locked to prevent the solar panel 3 from rotating at will. Similarly, the bottom of the connector 6 is connected with the mounting column 5 in rotation, so that the solar panel 3 can be rotated and adjusted left and right, and the solar panel 3 is provided with a light sensor. The switch, the light-sensing switch is electrically connected with the lamp body 1, and the light-sensing switch can detect the intensity of the light, and control the lamp body 1 to light up when it is dark, so as to realize automatic control.

An auxiliary connecting rod 8 is provided between the mounting post 5 and the mounting seat 4, the two ends of the auxiliary connecting rod 8 are respectively fixedly connected with the mounting post 5 and the mounting base 4, and the bottom of the auxiliary connecting rod 8 is provided with a connecting rod 2 connected to the top The arrangement of the support bar 9 and the auxiliary connecting rod 8 makes the overall structure of the street lamp more stable.

The lamp body 1 includes a light-transmitting plate 10, a reflector, a light source plate and a lamp holder, the light-transmitting plate 10 is covered at the opening of the lamp holder, and the light-transmitting plate 10 is fixedly connected to the lamp holder through a sealant, and has good waterproof performance. The side part of the lamp holder is covered with an anti-drop part 11, the anti-drop part 11 is a U-shaped part, one side of the anti-drop part 11 is attached to the light-transmitting plate 10, and the other side of the anti-drop part 11 is fixedly connected with the lamp holder, The disposition of the anti-drop member 11 plays a role in preventing the light-transmitting plate 10 from falling.

The lamp body 1 also includes a control circuit board, the control circuit board includes a wifi module and a power detection module, and the light source board is provided with a first lamp group 12 and a second lamp group 13, and the first lamp group 12 and the second lamp group 13 are respectively connected with each other. The control circuit board is electrically connected. The setting of the wifi module enables people to remotely control the street lights. The power detection module can detect the battery power of the street lights. When the battery power drops to the set value, it will control the first light group 12 to turn off and the second light group. 13 is turned on, the energy consumption of the second light group 13 is smaller than that of the first light group 12, and when the power is not enough, it is switched to reduce energy consumption and maintain a part of the lighting function.

The mounting seat 4 includes a U-shaped fixing portion 14 and a mounting portion 15. The connecting rod 2 is welded to the bottom of the fixing portion 14. The mounting portion 15 is connected to the ends on both sides of the fixing portion 14. The mounting portion 15 is parallel to the wall. 15 is provided with mounting holes 16, install expansion bolts on the wall, and then set the bolts in the mounting holes 16 to fix the street lamps on the wall. When the street lamps need to be fixed on the column, the utility model also includes a hoop The installation part 15 is connected with the hoop sleeve by bolts, the installation part 15 is matched with the hoop sleeve, and the installation and fixation of the street lamp on the column is realized by shrinking the hoop sleeve by the bolts.

The embodiments of the present invention are described in detail above with reference to the accompanying drawings, but the present invention is not limited to the described embodiments. For those skilled in the art, without departing from the principle and spirit of the present invention, various changes, modifications, substitutions and alterations can be made to these embodiments, which still fall within the protection scope of the present invention.

Claims (7)

1. A solar street lamp, comprising a lamp body (1), a connecting rod (2), a solar panel (3) and a mounting seat (4), characterized in that: the tail end of the lamp body (1) is provided with a connecting portion (17), one end of the connecting rod (2) is installed in the connecting portion (17), the other end of the connecting rod (2) is fixedly connected with the mounting seat (4), and the top of the connecting rod (2) A mounting column (5) is provided, the top of the mounting column (5) is provided with a connecting piece (6), and the bottom of the solar panel (3) is provided with a fixing piece (7), the fixing piece (7) and the The connecting piece (6) is rotatably connected, and the solar panel (3) is provided with a light-sensing switch, and the light-sensing switch is electrically connected with the lamp body (1). 2. The solar street lamp according to claim 1, characterized in that: the connecting piece (6) is a U-shaped piece, and both sides of the connecting piece (6) are rotatably connected to the fixing piece (7) through a rotating shaft, The end of the rotating shaft is provided with a wing nut, and the bottom of the connecting piece (6) is rotatably connected with the mounting column (5). 3. The solar street light according to claim 1, wherein an auxiliary connecting rod (8) is provided between the mounting post (5) and the mounting seat (4), and the auxiliary connecting rod (8) The two ends of the auxiliary connecting rod (8) are respectively fixedly connected with the mounting column (5) and the mounting seat (4), and the bottom of the auxiliary connecting rod (8) is provided with a support bar (9) connected with the top of the connecting rod (2). 4. The solar street lamp according to claim 1, characterized in that: the lamp body (1) comprises a light-transmitting plate (10), a reflector, a light source plate and a lamp socket, and the light-transmitting plate (10) covers The lamp holder is closed at the opening of the lamp holder, the side part of the lamp holder is covered with an anti-dropping piece (11), one side of the anti-dropping piece (11) is attached to the light-transmitting plate (10), and the anti-dropping piece (11) The other side is fixedly connected with the lamp holder. 5. The solar street light according to claim 4, characterized in that: the light body (1) further comprises a control circuit board, the control circuit board comprises a wifi module and a power detection module, and the light source board is provided with a first A lamp group (12) and a second lamp group (13), the first lamp group (12) and the second lamp group (13) are respectively electrically connected with the control circuit board. 6. The solar street light according to claim 1, characterized in that: the mounting seat (4) comprises a U-shaped fixing part (14) and a mounting part (15), and the connecting rod (2) is connected to the fixing part (15). The mounting portion (14) is welded, the mounting portion (15) is connected with the ends on both sides of the fixing portion (14), and the mounting portion (15) is provided with mounting holes (16). 7. The solar street light according to claim 6, characterized in that it further comprises a ferrule, and the mounting portion (15) is connected with the ferrule by means of bolts.
