CN211618235U - Side-pushing type box filling machine with stacking function - Google Patents

Abstract

The utility model relates to a side-push type case packing machine with stacking. The side-push type case packer with stacking includes a frame, an electronically controlled operation box, a pushing mechanism, a box accumulation mechanism, a box support mechanism and a case turning mechanism. The box accumulation mechanism includes a pushing mechanism, and the pushing mechanism pushes The box bodies accumulated in the box accumulating mechanism go to the pushing end of the pushing mechanism, the box turning mechanism turns the carrying box over and the box opening cover is supported by the box supporting mechanism, and the pushing mechanism pushes the box body to be placed in the carrying box, the The frame is provided with a blocking mechanism at the position of the pushing end of the pushing mechanism, and the blocking mechanism blocks the box body conveyed by the box accumulation mechanism; the blocking mechanism includes a blocking side plate and a blocking upper plate; It is easy to operate and easy to use. It can adjust the height of the bottom of the pressing mechanism in the blocking mechanism and the position of the blocking side plate according to the size of different types of boxes. It is more flexible and easy to popularize and use.

Description

A side-push type case packer with stacking

technical field

The utility model belongs to the technical field of case packing machines, in particular to a side push type case packing machine with stacking.

Background technique

Palletizing side-push cartoners are widely used in the field of packaging and packing. They are generally used by the control system to control the box accumulation mechanism, the pusher mechanism, and the box support mechanism. The box accumulation mechanism generally divides the box materials on the conveyor line. The layers are collected and accumulated, and when they reach a suitable height, they are pushed to the moving port of the pushing mechanism, and the moving port of the pushing mechanism is also provided with a box-holding mechanism, and the box used to carry the box is opened, and then used The pushing mechanism pushes the box material into the box to facilitate packing. The box opening mechanism is generally used in conjunction with the box turning mechanism. The box turning mechanism uses suction cups and turning cylinders to absorb and turn the box from the surface of the conveyor belt or conveying roller. , so that the box mouth corresponds to the position of the moving end of the pusher mechanism, which is convenient for the pusher mechanism to push the materials in; but the existing stacking side-push cartoning machine is in use, and the box accumulation mechanism pushes the accumulated box materials to the pusher. When the moving end of the feeding mechanism is placed, the box body may be pushed and shaken, which is inconvenient for people to use.

Utility model content

The purpose of the utility model is to provide a side-push type case packing machine with stacking with simple structure and reasonable design in order to solve the above problems.

The utility model realizes the above-mentioned purpose through the following technical solutions:

A side-push type case packer with stacking includes a rack, an electric control operation box, a pushing mechanism, a box accumulation mechanism, a box support mechanism and a case turning mechanism, wherein the box accumulation mechanism includes a push mechanism, and the push mechanism The box bodies accumulated in the box accumulation mechanism are pushed to the pushing end of the pushing mechanism. The frame is provided with a blocking mechanism at the position of the material pushing end of the material pushing mechanism, and the blocking mechanism blocks the box body conveyed by the box accumulation mechanism.

As a further optimized solution of the present invention, the blocking mechanism includes a blocking side plate and a blocking upper plate.

As a further optimized solution of the present invention, the side of the blocking side plate away from the box accumulation mechanism is provided with a No. 1 telescopic mechanism, and the output end of the No. 1 telescopic mechanism is fixedly connected to the outer surface of the blocking side plate.

As a further optimized solution of the present invention, a pressing mechanism is fixedly connected to the outer surface of the lower end of the upper blocking plate.

As a further optimized solution of the present invention, the pressing mechanism includes a lower tube, an upper rod is inserted into the upper end of the lower tube, and the upper rod moves up and down along the inner surface of the lower tube, and the upper rod moves up and down along the inner surface of the lower tube. The upper end of the setting rod is fixedly connected with the blocking upper plate.

As a further optimized solution of the present invention, a lower limit plate is fixedly connected to the outer surface of the lower tube, and a compression spring is arranged between the lower limit plate and the blocking upper plate.

As a further optimized solution of the present invention, the upper blocking plate is connected with a No. 2 telescopic mechanism, and the No. 2 telescopic mechanism drives the pressing mechanism to move down.

As a further optimized solution of the present invention, the upper blocking plate includes an upper limit plate, and the moving end of the No. 2 telescopic mechanism is fixedly connected to the upper limit plate.

As a further optimized solution of the present invention, the outer surface of the lower end of the lower tube is sleeved with balls.

The beneficial effect of the utility model is that: the utility model is provided with a blocking mechanism, and the blocking side plate and the blocking upper plate of the blocking mechanism are used to guide, block and limit the materials conveyed by the box accumulation mechanism, thereby improving the efficiency of the box body and the box body. It blocks the stability of the side plate before contacting, and also improves the stability of the box body when the box body is placed before packing. At the same time, the pressing mechanism is connected with a No. 2 telescopic mechanism. When facing different box body sizes, it is necessary to adjust the blocking When the plate is up, the electric control operation box can be used to control the operation of the corresponding No. 2 telescopic mechanism, drive a certain number of pressing mechanisms to move down, and control the No. 1 telescopic mechanism to drive the blocking side plate, so that the two can be used together, which is convenient for a variety of Different types of boxes are used together. The outer surface of the lower end of the lower tube is covered with balls. The balls are used as guide pressing parts, which can be used for vertical and horizontal movement. The whole device is easy to operate and easy to use, and can be used according to different types of boxes The size of the body is adjusted, the height of the bottom of the pressing mechanism in the blocking mechanism and the position of the blocking side plate are adjusted, and the use is relatively flexible, which is convenient for popularization and use.

Description of drawings

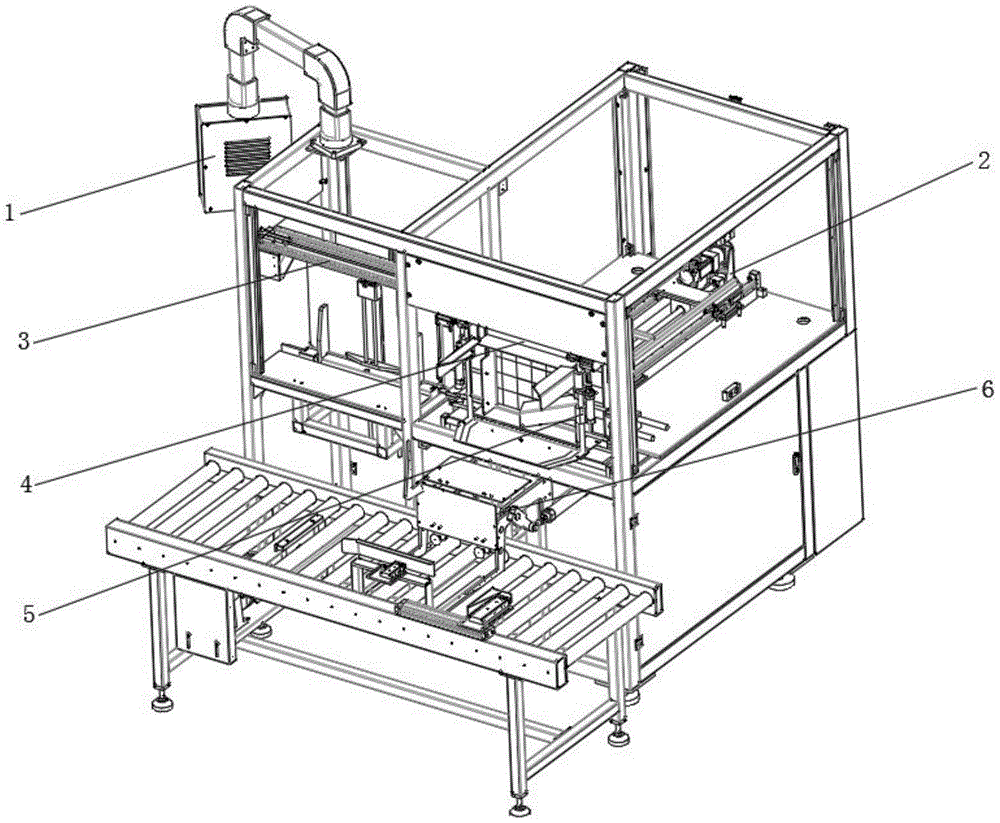

Fig. 1 is the overall structure schematic diagram of the present utility model;

Fig. 2 is the top view structure schematic diagram of Fig. 1 of the present utility model;

Fig. 3 is the structural representation of the blocking mechanism of the present invention;

FIG. 4 is a schematic structural diagram of the pressing mechanism of the present invention.

In the figure: 1. Electric control operation box; 2. Pushing mechanism; 3. Box accumulation mechanism; 4. Blocking mechanism; 41. Blocking side plate; 42. Blocking upper plate; 43. No. 1 telescopic mechanism; Telescopic mechanism; 45, pressing mechanism; 451, lower tube; 452, upper rod; 453, lower limit plate; 454, compression spring; 455, ball; 456, upper limit plate; 5, box support mechanism; 6, Turnover mechanism.

Detailed ways

The application will be described in further detail below in conjunction with the accompanying drawings. It is necessary to point out that the following specific embodiments are only used to further illustrate the application, and should not be construed as limiting the protection scope of the application. Those skilled in the art can The above application content makes some non-essential improvements and adjustments to this application.

Example 1

As shown in Figure 1-4, a side-push type case packer with stacking includes a frame, an electric control operation box 1, a pushing mechanism 2, a box accumulation mechanism 3, a box support mechanism 5, and a box turning mechanism 6. The frame is provided with a blocking mechanism 4 at the position of the pushing end of the pushing mechanism 2 , and the blocking mechanism 4 blocks the boxes conveyed by the box accumulation mechanism 3 . The blocking mechanism 4 includes a blocking side plate 41 and a blocking upper plate 42; a side of the blocking side plate 41 away from the stacking mechanism 3 is provided with a No. 1 telescopic mechanism 43, the output end of the No. 1 telescopic mechanism 43 and the blocking side The outer surface of the plate 41 is fixedly connected; the outer surface of the lower end of the blocking side plate 41 is provided with a limit block, that is, a limit chute is set on the upper end face of the frame, and the limit block at the lower end of the blocking side plate 41 is used to connect with the limit chute. The input end of the No. 1 telescopic mechanism 43 is electrically connected with the output end of the electric control operation box 1, and the electric control operation box 1 is provided with an AT89C51 single-chip system, which uses This control system is used in conjunction with the No. 1 telescopic mechanism 43 in this embodiment, a cylinder is selected, and other telescopic mechanisms, such as an electric telescopic rod or a screw sliding movement system controlled by a servo motor, can also be used;

A pressing mechanism 45 is fixedly connected to the outer surface of the lower end of the upper blocking plate 42; the pressing mechanism 45 includes a lower tube 451, and an upper rod 452 is inserted into the upper end of the lower tube 451, and the upper rod 452 moves up and down along the inner surface of the lower tube 451, the upper end of the upper rod 452 is fixedly connected with the blocking upper plate 42; the outer surface of the lower tube 451 is fixedly connected with a lower limit plate 453, the lower limit plate A compression spring 454 is arranged between 453 and the upper blocking plate 42; the upper blocking plate 42 is connected with a No. 2 telescopic mechanism 44, and the No. 2 telescopic mechanism 44 drives the pressing mechanism 45 to move down; the upper blocking plate 42 includes The upper limit plate 456, the moving end of the No. 2 telescopic mechanism 44 is fixedly connected with the upper limit plate 456; the input end of the No. 2 telescopic mechanism 44 is electrically connected with the output end of the electronic control operation box 1, and the No. 2 telescopic mechanism 44 is electrically connected When retracting, the upper limit plate 456 is level with the blocking upper plate 42. In this embodiment, the No. 2 telescopic mechanism 44 uses an electric push rod as a telescopic piece, and its stroke can be selected according to the range to be adjusted, or other telescopic controls can be selected Each group of pressing mechanisms 45 corresponds to a No. 2 telescopic mechanism 44. The outer surface of the lower end of the lower tube 451 is sleeved with balls 455. The balls 455 are used as guide pressing parts, which can be used for movement in both vertical and horizontal directions.

It should be noted that, when using the side-push type case packing machine with stacking, it is necessary to first know the number of boxes to be packed at one time, and then control the blocking of the side plate 41 and the blocking upper plate 43 through the electronic control operation box 1 . In the case of the position, the pushing mechanism pushes the multiple boxes accumulated in the box accumulation mechanism 3 to the pushing end of the pushing mechanism 2, the box turning mechanism 6 overturns the carrying box and the box opening mechanism 5 holds up the box cover, The pushing mechanism 2 pushes the box to be placed in the carrying box, and the frame is located at the pushing end of the pushing mechanism 2 and is provided with a blocking mechanism 4 , which blocks and restricts the box conveyed by the box accumulation mechanism 3 . , use the blocking side plate 41 and the blocking upper plate 43 to limit the multiple boxes accumulated by the box accumulation mechanism 3, and at the same time use the ball 455 at the bottom of the pressing mechanism 45, when the pushing mechanism pushes the box body to contact the blocking side plate 41, the The box body performs a guiding function, and at the same time, the action of the compression spring 454 is used to have a pressing effect on the pushed box body, which improves the stability of the box body when it is packed, and is convenient for the box body to be packed and used.

The above-mentioned embodiments only represent several embodiments of the present invention, and the descriptions thereof are specific and detailed, but should not be construed as limiting the scope of the present invention. It should be pointed out that for those of ordinary skill in the art, some modifications and improvements can be made without departing from the concept of the present invention, which all belong to the protection scope of the present invention.

Claims (9)

1. The utility model provides a take pile up neatly side pushing-type case packer, its characterized in that, includes frame, automatically controlled operation case (1), pushing equipment (2), long-pending box mechanism (3), props case mechanism (5) and turns over case mechanism (6), long-pending box mechanism (3) includes pushing equipment, pushing equipment promotes the pushing equipment of box body to pushing equipment (2) of accumulation in long-pending box mechanism (3), turn over case mechanism (6) upset bearing box and prop the case flap by propping case mechanism (5), pushing equipment (2) promote the box body and arrange the bearing box in, the frame is located the pushing equipment position of pushing equipment (2) is provided with blocking mechanism (4), blocking mechanism (4) block the box body that long-pending box mechanism (3) carried.

2. The side-pushing type case packer with palletizing function as claimed in claim 1, wherein: the blocking mechanism (4) comprises a blocking side plate (41) and a blocking upper plate (42).

3. The side-pushing type case packer with palletizing function as claimed in claim 2, wherein: one side of the blocking side plate (41) far away from the box stacking mechanism (3) is provided with a first telescopic mechanism (43), and the output end of the first telescopic mechanism (43) is fixedly connected with the outer surface of the blocking side plate (41).

4. A side-pushing case packer with palletizer as claimed in claim 3, wherein: the outer surface of the lower end of the blocking upper plate (42) is fixedly connected with a pressing mechanism (45).

5. The side-pushing type case packer with palletizing function as claimed in claim 4, wherein: the pressing mechanism (45) comprises a lower pipe (451), an upper rod (452) is inserted into the upper end of the lower pipe (451), the upper rod (452) moves up and down along the inner surface of the lower pipe (451), and the upper end of the upper rod (452) is fixedly connected with the upper blocking plate (42).

6. The side-pushing type case packer with palletizing function as claimed in claim 5, wherein: the outer surface of the lower pipe (451) is fixedly connected with a lower limiting plate (453), and a compression spring (454) is arranged between the lower limiting plate (453) and the blocking upper plate (42).

7. A side-pushing case packer with palletizer as claimed in claim 3 or 6, wherein: the blocking upper plate (42) is connected with a second telescopic mechanism (44), and the second telescopic mechanism (44) drives the pressing mechanism (45) to move downwards.

8. A side-pushing case packer with palletizer as claimed in claim 7, wherein: the blocking upper plate (42) comprises an upper limiting plate (456), and the moving end of the second telescopic mechanism (44) is fixedly connected with the upper limiting plate (456).

9. The side-pushing type case packer with palletizing function as claimed in claim 6, wherein: the outer surface of the lower end of the lower pipe (451) is sleeved with a ball (455).
