Abstract

A barrel mixing mechanism for an injection molding machine includes a barrel, a stirring chamber is arranged inside the barrel, a motor is embedded in the top of the barrel, and a rotating rod is arranged below the motor, and the left and right sides of the rotating rod are arranged. A plurality of stirring blades are arranged on the outer wall, the bottom end of the rotating rod is connected with a bearing, a discharge port is provided below the material cylinder, and a groove is provided on the inner wall on the left side of the discharge port, and the discharge port is provided with a groove. The interior of the material opening is provided with a baffle, and the right end of the baffle passes through the right outer wall of the discharge opening and is connected to the outside of the barrel. The first feeding pipe and the second feeding pipe of the utility model are arranged above the stirring sheet, and during feeding, the material can be quickly stirred by the stirring sheet, so that the stirring of the raw materials is more uniform, and the setting of the connecting plate can make the stirring rod in the stirring process. The separator can control the flow rate of the raw materials flowing into the injection molding machine, and can make the raw materials fully stirred in the stirring chamber, so that the conveying materials are more fully mixed, and multiple stirring blades are provided to make the stirring more uniform and loose.

Description

A barrel mixing mechanism for an injection molding machine

technical field

The utility model relates to the field of injection molding machine parts, in particular to a barrel mixing mechanism for an injection molding machine.

Background technique

Injection molding machine is also known as injection molding machine or injection molding machine. It is the main molding equipment for making thermoplastics or thermosetting plastics into various shapes of plastic products using plastic molding dies. Divided into vertical, horizontal, all-electric. The injection molding machine can heat the plastic and apply high pressure to the molten plastic, so that it is shot out and fills the mold cavity. The outer wall of the cylinder is heated to make the plastic melt, and then the machine closes the mold and moves the injection seat forward to make the nozzle close to the gate of the mold. The molten material is injected into the closed mold with low temperature under pressure and fast speed. After a certain period of time and pressure maintenance (also known as pressure holding) and cooling, the mold can be opened and the product can be taken out. Prevent the backflow of molten material in the mold cavity, replenish material into the mold cavity, and ensure that the product has a certain density and dimensional tolerance). The basic requirements of injection molding are plasticization, injection and molding. During injection molding, the mixing of raw materials can affect the quality of the product.

For the existing mixing mechanism of the barrel of the injection molding machine, the mixing is uneven and the mixing efficiency is low, thus affecting the quality of the product. Therefore, a mixing mechanism with uniform mixing and high mixing efficiency is required.

Utility model content

The purpose of the utility model is to provide a barrel mixing mechanism for an injection molding machine to solve the problems in the prior art.

In order to achieve the above purpose, the utility model provides the following technical solutions: a barrel mixing mechanism for an injection molding machine, comprising a barrel, a stirring chamber is arranged inside the barrel, and a first mixing chamber is arranged above the left side of the barrel. A feeding pipe, and a first feeding port is connected above the first feeding pipe, a second feeding pipe is provided above the right side of the barrel, and a second feeding pipe is provided above the second feeding pipe The top of the barrel is inlaid with a motor, and a rotating rod is arranged below the motor. A plurality of stirring blades are arranged on the left and right outer walls of the rotating rod. The bottom end of the rotating rod is connected with a bearing. A discharge port is arranged under the barrel, and a groove is arranged on the inner wall of the left side of the discharge port. A partition is arranged inside the discharge port, and the right end of the partition runs through the right outer wall of the discharge port. Attached to the outside of the barrel.

Preferably, the other end of the first feeding pipe and the other end of the second feeding pipe are both disposed inside the stirring chamber and extend above the stirring blade.

Preferably, the rotating rod is fixed on the bottom of the motor through a fixing member.

Preferably, the bearing is fixed on the bottom of the stirring chamber through a connecting plate.

Preferably, the left end of the separator is stuck in the groove, and the thickness of the separator is smaller than the height of the groove.

Preferably, a pull ring is connected to the right end of the separator.

Compared with the prior art, the beneficial effect of the present utility model is that the first feeding pipe and the second feeding pipe of the present utility model are arranged above the stirring sheet, and during feeding, the material can be quickly stirred by the stirring sheet, so that the The raw materials are stirred more evenly. The setting of the connecting plate can make the stirring rod more stable and firm during stirring. The partition plate can control the flow rate of the raw materials flowing into the injection molding machine, and can make the raw materials fully stirred in the stirring chamber, so that the mixing of the conveying materials is more sufficient. There are multiple paddles for more even and loose blending.

Description of drawings

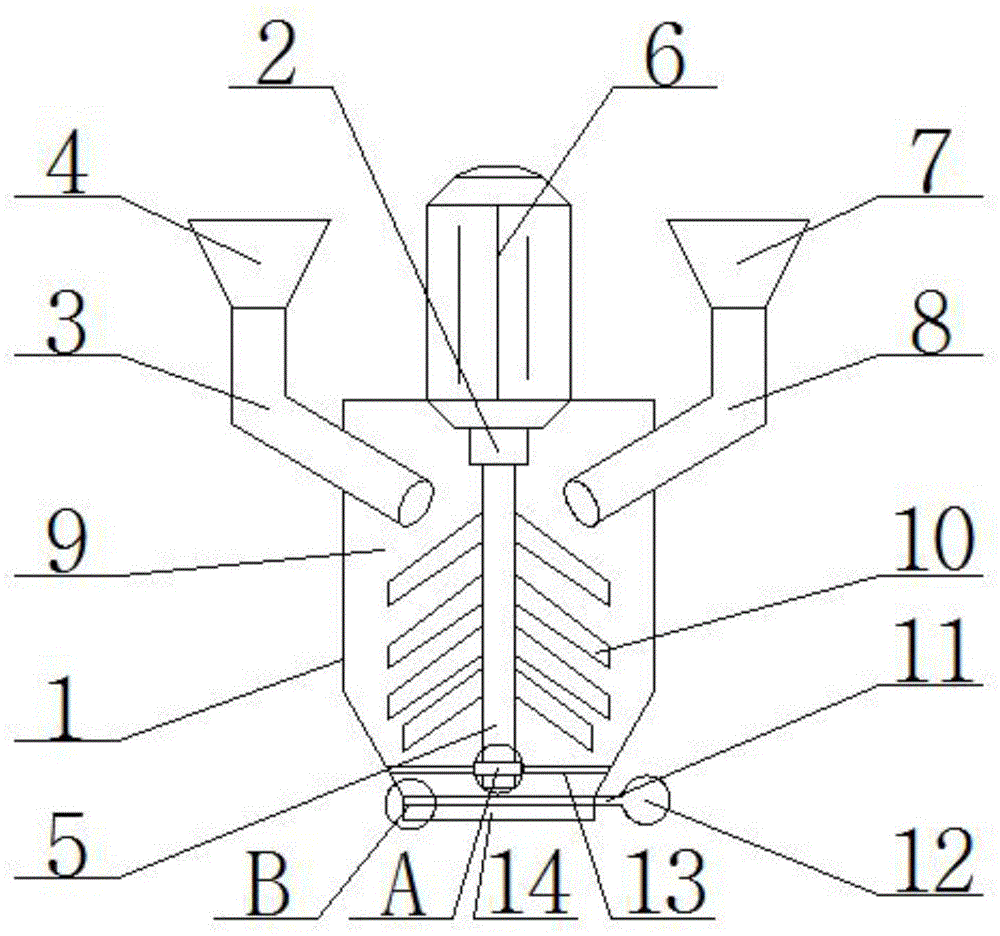

Figure 1 is a schematic structural diagram of a barrel mixing mechanism for an injection molding machine of the present invention.

Fig. 2 is a partial schematic diagram of part A of a barrel mixing mechanism for an injection molding machine of the present invention.

Fig. 3 is a partial schematic diagram of part B of a barrel mixing mechanism for an injection molding machine of the present invention.

In the figure: 1. Barrel; 2. Fixing part; 3. The first feeding pipe; 4. The first feeding port; 5. The rotating rod; 6. The motor; 7. The second feeding port; 8. The second Feeding pipe; 9. Stirring chamber; 10. Stirring plate; 11. Baffle plate; 12. Pull ring; 13. Connecting plate; 14. Discharge port; 15. Bearing; 16. Groove.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Referring to FIGS. 1 to 3 , in the embodiment of the present invention, a barrel mixing mechanism for an injection molding machine includes a barrel 1 , which is characterized in that a stirring chamber 9 is arranged inside the barrel 1 . A first feeding pipe 3 is provided above, and a first feeding port 4 is connected above the first feeding pipe 3. A second feeding pipe 8 is provided above the right side of the barrel 1, and the second feeding pipe 8 is provided with a second feeding port 7, the top of the barrel 1 is inlaid with a motor 6, and a rotating rod 5 is provided below the motor 6, and a plurality of stirring blades 10 are provided on the left and right outer walls of the rotating rod 5. The bottom end of the rod 5 is connected with a bearing 15, a discharge port 14 is provided below the barrel 1, and a groove 16 is provided on the inner wall of the left side of the discharge port 14, and a partition 11 is provided inside the discharge port 14. And the right end of the partition plate 11 runs through the right outer wall of the discharge port 14 and is connected to the outside of the barrel 1, and the other end of the first feeding pipe 3 and the other end of the second feeding pipe 8 are both arranged in the stirring chamber 9. Inside, and extends to the top of the stirring blade 10, the rotating rod 5 is fixed on the bottom of the motor 6 through the fixing member 2, the bearing 15 is fixed on the bottom of the stirring chamber 9 through the connecting plate 13, and the left end of the partition plate 11 is stuck in the groove 16. , and the thickness of the partition plate 11 is smaller than the height of the groove 16 , and a pull ring 12 is connected to the right end of the partition plate 11 .

The working principle of the utility model is as follows: start the motor 6, add the raw materials from the first feeding port 4 and the second feeding port 7 into the stirring chamber 9, the motor 6 drives the stirring blade 10 on the stirring rod 5 to stir, and the raw materials are stirred. Fully uniform, after stirring evenly, the partition plate 11 is pulled apart by the pull ring 12, and the uniformly stirred raw material flows from the discharge port 14 into the injection molding machine.

It will be apparent to those skilled in the art that the present invention is not limited to the details of the above-described exemplary embodiments, and that the present invention may be implemented in other specific forms without departing from the spirit or essential characteristics of the present invention. Therefore, the embodiments are to be considered in all respects as exemplary and not restrictive, and the scope of the present invention is defined by the appended claims rather than the foregoing description, and it is therefore intended that the All changes within the meaning and range of the required equivalents are embraced within the present invention. Any reference signs in the claims shall not be construed as limiting the involved claim.

Claims (6)

1. A barrel mixing mechanism for an injection molding machine, comprising a barrel (1), characterized in that a stirring chamber (9) is provided inside the barrel (1), and a mixing chamber (9) is provided on the left side of the barrel (1). A first feeding pipe (3) is provided above, and a first feeding port (4) is connected above the first feeding pipe (3), and a second feeding port (4) is provided above the right side of the barrel (1). A feeding pipe (8), and a second feeding port (7) is arranged above the second feeding pipe (8), a motor (6) is inlaid on the top of the barrel (1), and the motor (6) is A rotating rod (5) is arranged below, a plurality of stirring blades (10) are arranged on the left and right outer walls of the rotating rod (5), and a bearing (15) is connected to the bottom end of the rotating rod (5). A discharge port (14) is provided below the material barrel (1), and a groove (16) is provided on the inner wall of the left side of the discharge port (14), and a partition plate is provided inside the discharge port (14). (11), and the right end of the partition plate (11) penetrates through the right outer wall of the discharge port (14) and is connected to the outside of the barrel (1). 2. A barrel mixing mechanism for an injection molding machine according to claim 1, wherein the other end of the first feeding pipe (3) and the other end of the second feeding pipe (8) are both provided with Inside the stirring chamber (9), and extending to the top of the stirring blade (10). 3 . The barrel mixing mechanism for an injection molding machine according to claim 1 , wherein the rotating rod ( 5 ) is fixed on the bottom of the motor ( 6 ) through a fixing piece ( 2 ). 4 . 4. A barrel mixing mechanism for an injection molding machine according to claim 1, wherein the bearing (15) is fixed at the bottom of the stirring chamber (9) through a connecting plate (13). 5. A barrel mixing mechanism for an injection molding machine according to claim 1, wherein the left end of the partition plate (11) is stuck in the groove (16), and the thickness of the partition plate (11) is less than Height of groove (16). 6. A barrel mixing mechanism for an injection molding machine according to claim 1, wherein a pull ring (12) is connected to the right end of the partition plate (11).
