CN211616101U - Cement mortar agitated vessel is used in building wallboard production - Google Patents

Abstract

The utility model discloses a cement mortar mixing device for the production of building wall panels, which comprises a rectangular base, a stirring mechanism and a lifting mechanism are arranged on the upper wall of the rectangular base, and the stirring mechanism is located on the lifting mechanism; The mechanism mainly includes: a lead screw frame, a lead screw and a stepping motor; a support column is installed on the upper wall of the rectangular base, a strip-shaped groove is opened on the side wall surface of the support column, and the lead screw frame is arranged in the strip-shaped groove. Inside the groove, the utility model relates to the technical field of building wall panel production. It is convenient to mix and stir the raw materials used in the production of building wall panels, without manual manual operation, improve the production efficiency of building wall panels, and save time and effort when mixing raw materials for building wall panels.

Description

A kind of cement mortar mixing equipment for building wallboard production

technical field

The utility model relates to the technical field of building wallboard production, in particular to a cement mortar mixing device for building wallboard production.

Background technique

In the production of building wall panels, a variety of raw materials need to be mixed and stirred. In the traditional mixing and stirring of raw materials, manual manual operation is mostly used, which increases the manpower. The production efficiency of building wall panels cannot be satisfied today, so the production and usage volume of building wall panels cannot be satisfied. In view of this, the above-mentioned problems are studied and the device is designed.

Utility model content

Aiming at the deficiencies of the prior art, the utility model provides a cement mortar mixing equipment for the production of building wall panels, which solves the problem that a variety of raw materials need to be mixed and stirred during the production of the existing building wall panels. When stirring, most of the manual operation is adopted, which increases the manpower, and when the raw materials are manually stirred, the work efficiency is low due to manual manual operation.

In order to achieve the above purpose, the utility model is realized through the following technical solutions: comprising a rectangular base, the upper wall of the rectangular base is provided with a stirring mechanism and a lifting mechanism, and the stirring mechanism is located on the lifting mechanism;

The lifting mechanism mainly includes: a lead screw frame, a lead screw and a stepping motor;

A support column is installed on the upper wall of the rectangular base, a strip groove is formed on the side wall of the support column, the lead screw frame is arranged in the strip groove, and the lead screw is inserted on the lead screw frame, The lead screw is sleeved with a lead screw pair, the stepper motor is arranged on the inner lower wall of the strip groove, and the drive end of the stepper motor is connected with the lead screw;

The stirring mechanism mainly includes: a strip plate, a servo motor, a stirring rod, a collecting box and several threaded rods;

The strip-shaped plate is arranged on the side wall surface of the screw pair, the lower wall of the strip-shaped plate is installed with a drive mounting seat, the servo motor is arranged on the lower wall surface of the drive mounting seat, and a connecting rod is installed on the drive end of the servo motor, A stirring rod is installed on the connecting rod, two rows of moving wheels are installed on the lower wall of the collection box, strip-shaped grooves matching the moving wheels are opened on the upper wall of the rectangular base, and the collection box is placed on the rectangular base. Above the base, and the moving wheel is located inside the strip-shaped groove, the side wall surface of the collection box is installed with a number of backing plates, the side wall surface of the backing plate is provided with threaded openings, and the upper wall surface of the rectangular base is in the same position as the threaded openings. Correspondingly, there are threaded grooves, and the plurality of threaded rods are respectively inserted into the threaded ports and correspond to the threaded grooves.

Preferably, pillars are installed at four corners of the lower wall of the rectangular base, and spacers are installed on the lower wall of each pillar.

Preferably, a first fixing frame is installed on the stepping motor, and the first fixing frame is overlapped with the strip groove.

Preferably, a ring handle is sleeved on each of the several threaded rods.

Preferably, a rectangular through hole is formed on the side wall surface of the collection box, and a door matching the rectangular through hole is connected to the side wall surface of the collection box through a hinge.

Preferably, a second fixing frame is installed on the servo motor, and the second fixing frame is connected with the drive mounting seat.

beneficial effect

The utility model provides a cement mortar mixing equipment for the production of building wall panels. The invention has the following beneficial effects: it is convenient to mix and stir the raw materials used in the production of building wall panels, without manual manual operation, the production efficiency of building wall panels is improved, and time and effort are saved when mixing raw materials for building wall panels.

Description of drawings

FIG. 1 is a schematic structural diagram of a cement mortar mixing equipment for building wallboard production according to the utility model.

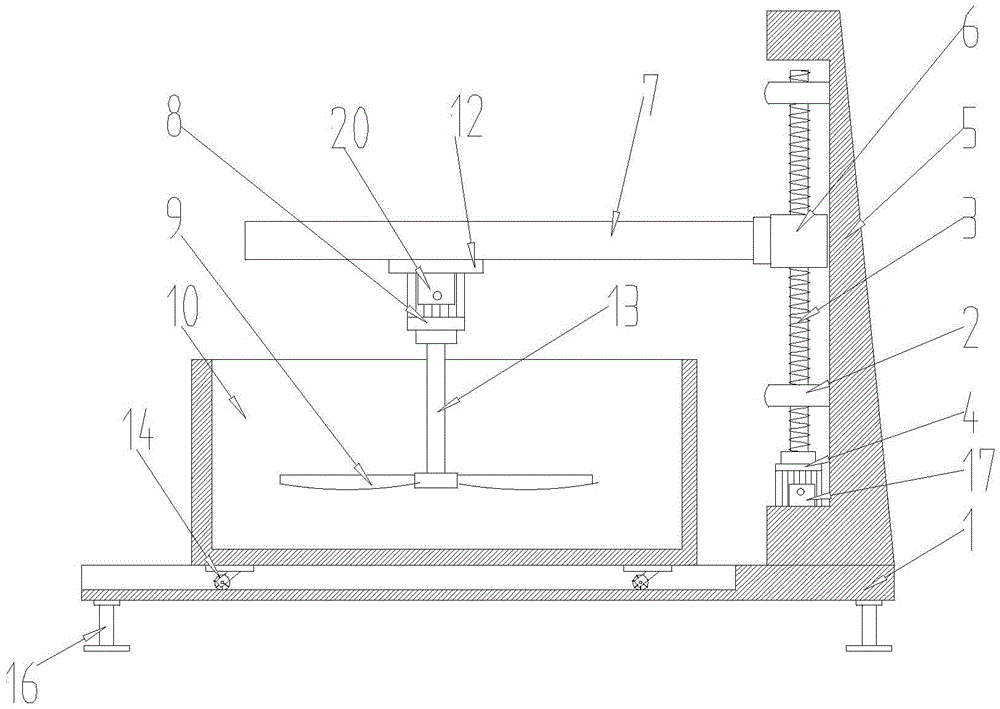

Figure 2 is a front view of a cement mortar mixing equipment for building wallboard production according to the utility model.

Figure 3 is a bottom view of a collection box of a cement mortar mixing equipment for building wallboard production according to the utility model.

In the figure: 1-rectangular base; 2-screw frame; 3-screw; 4-stepping motor; 5-support column; 6-screw pair; 7-strip plate; 8-servo motor; 9- Stirring rod; 10-collection box; 11-threaded rod; 12-drive mounting seat; 13-connecting rod; 14-moving wheel; 15-backing plate; 16-pillar; 17-first fixing frame; 18-ring handle; 19-stop door; 20-second fixing frame.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

The following are the types and functions of the electrical components used in this case:

Motor driver: The driver, also known as "servo controller" and "servo amplifier", is a controller used to control servo motors. Its function is similar to that of frequency converters acting on ordinary AC motors. It is part of the servo system and is mainly used. for high-precision positioning systems. Generally, the servo motor is controlled by three methods of position, speed and torque to achieve high-precision positioning of the transmission system. It is currently a high-end product of transmission technology.

Example: All electrical components in this case are connected with the power supply to which they are adapted through wires through a person in the art, and an appropriate controller should be selected according to the actual situation to meet the control requirements. For the specific connection and control sequence, please refer to the following: In the working principle described above, the electrical connection between the electrical components is completed in sequence, and the detailed connection method is known in the art. The following mainly introduces the working principle and process, and does not describe the electrical control.

Please refer to Figures 1-3, the utility model provides a technical solution: a cement mortar mixing equipment for the production of building wall panels.

The lifting mechanism mainly includes: a lead screw frame 2, a lead screw 3 and a stepping motor 4;

A support column 5 is installed on the upper wall of the rectangular base 1, a strip groove is formed on the side wall surface of the support column 5, the lead screw frame 2 is arranged inside the strip groove, the lead screw 3 is inserted on the lead screw frame 2, and the lead screw 3. A lead screw pair 6 is sleeved on the upper part, the stepping motor 4 is arranged on the lower wall surface of the strip groove, and the driving end of the stepping motor 4 is connected with the lead screw 3;

According to the above, the working materials are obtained: the support column 5 plays a role in supporting the screw frame 2, and the screw 3 on the screw frame 2 is connected with the stepping motor 4, so as to achieve when the driving end of the stepping motor 4 rotates , drive the lead screw 3 to rotate, so that the lead screw pair 6 rotates, so when the drive end of the stepping motor 4 rotates forward, the lead screw 3 rotates forward, so that the lead screw pair 6 rises, and when the drive end of the stepping motor 4 rotates counterclockwise , the lead screw 3 rotates counterclockwise, so that the lead screw pair 6 descends.

The stirring mechanism mainly includes: a strip plate 7, a servo motor 8, a stirring rod 9, a collection box 10 and several threaded rods 11;

The strip-shaped plate 7 is arranged on the side wall surface of the screw pair 6, the lower wall of the strip-shaped plate 7 is provided with a drive mounting seat 12, the servo motor 8 is arranged on the lower wall surface of the driving mounting seat 12, and a connecting rod 13 is installed on the driving end of the servo motor 8, A rubber pad rod is installed on the connecting rod 13, two rows of moving wheels 14 are installed on the lower wall of the collection box 10, and a strip-shaped groove matching the moving wheels 14 is opened on the upper wall of the rectangular base 1. The collection box 10 is placed on the rectangular base. Above the seat 1, and the moving wheel 14 is located inside the strip-shaped groove, a number of backing plates 15 are installed on the side wall surface of the collection box 10, and the side wall surface of the backing plate 15 is provided with threaded openings. Correspondingly, there are threaded grooves, and a plurality of threaded rods 11 are respectively inserted into the threaded ports and correspond to the threaded grooves.

According to the above, the working principle is obtained: the strip plate 7 is placed on the screw pair 6, so when the screw pair 6 is lifted and lowered, the strip plate 7 is lifted and lowered, and the strip plate 7 plays a supporting role for supporting the servo motor 8, and The rotation of the drive end of the servo motor 8 drives the stirring rod 9 on the connecting rod 13 to rotate, so when the screw pair 6 is lifted and lowered, the servo motor 8 adjusts the height, so that the height of the stirring rod 9 can be adjusted, and the moving wheel 14 on the lower wall of the collection box 10, It is convenient for the collection box 10 to move, and then the moving wheel 14 is placed inside the strip groove, so that the collection box 10 can be placed on the rectangular base 1, and then the threaded rod 11 is screwed, and the threaded rod 11 is passed through the threaded rod 11 and overlapped with the threaded groove. Then, the collecting box 10 is fixed, so that the stirring rod 9 can be easily inserted into the collecting box 10 for stirring.

As a preferred solution, further, pillars 16 are installed at the four corners of the lower wall of the rectangular base 1, and spacers are installed on the lower wall of each pillar 16; the pillars 16 play a supporting role.

As a preferred solution, further, a first fixing frame 17 is installed on the stepping motor 4, and the first fixing frame 17 is overlapped with the strip groove; the first fixing frame 17 is used to support the stepping motor 4.

As a preferred solution, further, several threaded rods 11 are covered with annular handles 18 ; when the threaded rods 11 are twisted through the annular handles 18 , there is a reasonable force application point.

As a preferred solution, further, the side wall surface of the collection box 10 is provided with a rectangular through hole, and the side wall surface of the collection box 10 is connected with a door 19 matching the rectangular through hole through hinges; the collection box 10 is easily taken through the rectangular through hole. After stirring the ingredients.

As a preferred solution, further, a second fixing frame 20 is installed on the servo motor 8, and the second fixing frame 20 is connected with the drive mounting base 12; the second fixing frame 20 is used to support the servo motor 8.

It should be noted that, in this document, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply any relationship between these entities or operations. any such actual relationship or sequence exists. Moreover, the terms "comprising", "comprising" or any other variation thereof are intended to encompass a non-exclusive inclusion such that a process, method, article or device that includes a list of elements includes not only those elements, but also includes not explicitly listed or other elements inherent to such a process, method, article or apparatus. without more restrictions. An element defined by the phrase "comprising an... does not preclude the presence of additional identical elements in a process, method, article or apparatus comprising said element".

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. A cement mortar mixing plant for building wall panel production, comprising a rectangular base (1), characterized in that the upper wall of the rectangular base (1) is provided with a stirring mechanism and a lifting mechanism, and the stirring mechanism is located at on the lifting mechanism; The lifting mechanism mainly includes: a lead screw frame (2), a lead screw (3) and a stepping motor (4); A support column (5) is installed on the upper wall surface of the rectangular base (1), a strip-shaped groove is formed on the side wall surface of the support column (5), and the lead screw frame (2) is arranged inside the strip-shaped groove, The lead screw (3) is inserted on the lead screw frame (2), the lead screw (3) is sleeved with a lead screw pair (6), and the stepping motor (4) is arranged in the strip groove On the lower wall surface, the drive end of the stepping motor (4) is connected with the lead screw (3); The stirring mechanism mainly includes: a strip plate (7), a servo motor (8), a stirring rod (9), a collecting box (10) and several threaded rods (11); The strip-shaped plate (7) is arranged on the side wall surface of the screw pair (6), the lower wall surface of the strip-shaped plate (7) is mounted with a drive mounting seat (12), and the servo motor (8) is arranged on the drive mounting seat (12) On the lower wall surface, a connecting rod (13) is installed on the driving end of the servo motor (8), a stirring rod (9) is installed on the connecting rod (13), and the lower wall surface of the collecting box (10) is installed There are two rows of moving wheels (14), the upper wall of the rectangular base (1) is provided with a strip-shaped groove that matches the moving wheels (14), and the collection box (10) is placed on the rectangular base (1) Above, and the moving wheel (14) is located inside the strip groove, a plurality of backing plates (15) are installed on the side wall surface of the collection box (10), and the side wall surface of the backing plate (15) The upper wall surface of the rectangular base (1) is provided with thread grooves corresponding to the positions of the thread openings, and the plurality of threaded rods (11) are respectively inserted into the thread openings and correspond to the thread grooves. 2. A kind of cement mortar mixing equipment for building wall panel production according to claim 1, characterized in that, pillars (16) are installed at the four corners of the lower wall surface of the rectangular base (1), and each of the Gaskets are installed on the lower wall surfaces of the pillars (16). 3. The cement mortar mixing equipment for building wall panel production according to claim 1, wherein a first fixing frame (17) is installed on the stepper motor (4), and the first fixing The frame (17) is overlapped with the strip groove. 4 . The cement mortar mixing equipment for building wallboard production according to claim 1 , wherein a ring handle ( 18 ) is sleeved on the several threaded rods ( 11 ). 5 . 5. A kind of cement mortar mixing equipment for building wall panel production according to claim 1, characterized in that, the side wall surface of the collection box (10) is provided with a rectangular through hole, and the side wall surface of the collection box (10) is provided with a rectangular through hole. A blocking door (19) matched with the rectangular through hole is connected by a hinge. 6. The cement mortar mixing equipment for building wall panel production according to claim 1, wherein a second fixing frame (20) is installed on the servo motor (8), and the second fixing frame is (20) is connected with the drive mounting seat (12).
