Abstract

The utility model discloses a Pulsatilla extract device, comprising a hopper fixing plate, a first stirring rod, a one-way valve, a stirring barrel, a feeding port, a first motor, a second rotating rod, a mixing box, a casing and an extraction box , the second motor, the recovery pipe, the pump, the installation cavity, the bottom plate, the sample box, the discharge valve, the installation plate, the first filter screen, the slide rail, the second filter screen, the third filter screen, the slider and the elastic steel sheet . The utility model can improve the extraction quality by installing the first filter screen, the second filter screen and the third filter screen respectively inside the installation cavity, and the three filter screens can be easily installed through the installation plate, the slider and the slide rail, and the elastic steel sheet can be used to install the three filter screens. It is easy to disassemble, and the new filter can be replaced in time to maintain the extraction efficiency. The second motor and the first stirring rod can speed up the filtration of the extraction liquid, and then the liquid residue can be filtered many times through the pump and recovery, which is convenient for Improve extraction quality and efficiency to avoid waste.

Description

A kind of Pulsatilla extract device

technical field

The utility model relates to an extraction device, in particular to an extraction device for Pulsatilla, belonging to the technical field of extraction useful.

Background technique

Pulsatilla is slightly soluble in cold water, easily soluble in heat, soluble in hot ethanol and chloroform ether, turns yellow in the presence of alkali, has significant antibacterial effect, also has similar bacteriostatic effect on Escherichia coli, is effective against Gram-negative bacteria, and Streptomycin has a synergistic effect, but the effect on cocci is different. It is first excited and then paralyzed on the central nervous system, has analgesic and analgesic effects, and has strong nail fungus activity.

When extracting Pulsatilla, the general device has poor extraction efficiency and cannot handle the liquid residue. There may be a certain content of Pulsatilla in the liquid residue. During the extraction process, the filter device should be replaced in time to avoid excessive use, resulting in poor filtering effect. Therefore, in view of the above problems, an extracting device for pustules is proposed.

Utility model content

The purpose of this utility model is to provide a kind of Pulsatilla extract device in order to solve the above-mentioned problem.

The utility model achieves the above objects through the following technical solutions. A Pulsatilla extract device includes a bottom plate, a shell, a stirring bucket and an installation cavity, the top of the bottom plate is fixed to the shell in the center, and an extraction box is installed on the top of the inner cavity of the shell , the bottom of the extraction box is fixed to the center of the top of the installation cavity, the two sides of the installation cavity are fixed to the fixed plate, the fixed plate is fixed to the inner wall of the shell, and the two sides of the inner cavity of the installation cavity are fixed to slide A sliding block is installed inside the sliding rail, the two sliding blocks facing each other are fixed to a mounting plate, and the first filter screen and the second filter screen are fixedly connected between the two mounting plates from top to bottom. and the third filter screen, the elastic steel sheet is fixed on one side of the installation cavity, the hopper is fixed in the center of the bottom of the elastic steel sheet, the discharge valve is fixed in the center of the bottom of the hopper, and the pump is fixed in the center of the shell side The center of the top of the pump and the center of the bottom are fixedly connected to the recovery pipe, the two sections of the recovery pipe are connected to the extraction box and the hopper respectively through the shell, the center of the top of the shell is fixed to the mixing box, and the mixing box is A mixing tank is installed in the cavity, a check valve is fixed in the center of the bottom of the mixing tank, and the bottom of the one-way valve penetrates the mixing box and the shell and is connected to the extraction box.

Preferably, a sample box is installed in the center of the bottom of the inner cavity of the housing, and the sample box is located directly below the discharge valve.

Preferably, a first stirring rod is installed in the center of the inner cavity of the extraction box, one end of the first stirring rod is connected to the second motor through the extraction box, and one side of the second motor is fixed on the inner wall of the casing.

Preferably, a second rotating rod is installed in the center of the inner cavity of the mixing tank, the top of the second rotating rod is connected to the first motor through the mixing tank and the mixing tank, and the first motor is fixed at the center of the top of the mixing tank.

Preferably, several stirring blades are fixedly connected to the surfaces of the second rotating rod and the first stirring rod.

Preferably, a feeding port is installed at one end of the top of the mixing box, and a feeding pipe is fixed in the center of the bottom of the feeding port, and the feeding pipe runs through the mixing box and is connected to the stirring barrel.

The beneficial effects of the present utility model are:

1. The utility model can improve the extraction quality by installing the first filter screen, the second filter screen and the third filter screen respectively in the installation cavity, and the three filter screens can be easily installed through the installation plate, the slider and the slide rail, and the elastic steel The sheet can be easily disassembled, and the new filter can be replaced in time, which is convenient to maintain the extraction efficiency;

2. The utility model can speed up the filtration of the extraction liquid through the second motor and the first stirring rod, and can filter the liquid residue for many times through the pump and recovery, which is convenient to improve the extraction quality and efficiency, and can avoid waste.

Description of drawings

In order to more clearly illustrate the embodiments of the present utility model or the technical solutions in the prior art, the following briefly introduces the accompanying drawings that need to be used in the description of the embodiments or the prior art. Obviously, the accompanying drawings in the following description These are just some embodiments of the present invention, and for those of ordinary skill in the art, other drawings can also be obtained from these drawings without creative labor.

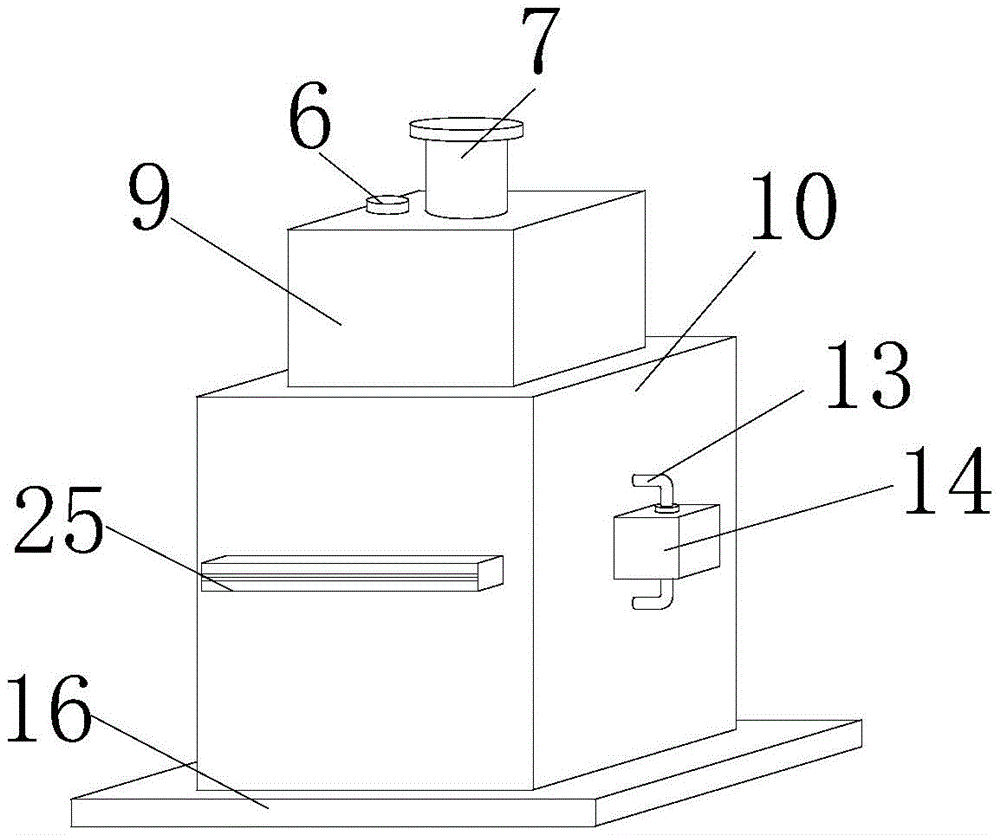

Fig. 1 is the three-dimensional schematic diagram of the utility model;

2 is a schematic diagram of the internal structure of the utility model;

FIG. 3 is a schematic diagram of the structure of the installation cavity of the present invention.

In the picture: 1. Hopper, 2. Fixed plate, 3. First stirring rod, 4. Check valve, 5. Stirring barrel, 6. Feeding port, 7. First motor, 8. Second rotating rod, 9 , Mixing box, 10, Housing, 11, Extraction box, 12, Second motor, 13, Recovery pipe, 14, Pump, 15, Installation cavity, 16, Bottom plate, 17, Sample box, 18, Outlet valve, 19. Mounting plate, 20, First filter, 21, Slide rail, 22, Second filter, 23, Third filter, 24, Slider, 25, Elastic steel sheet.

Detailed ways

In order to make the purpose, features and advantages of the present utility model more obvious and understandable, the technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the embodiments described below are only a part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

The technical solutions of the present utility model will be further described below with reference to the accompanying drawings and through specific embodiments.

In the description of the present invention, it should be understood that the orientations or positional relationships indicated by the terms "upper", "lower", "top", "bottom", "inner", "outer", etc. are based on those shown in the accompanying drawings. The orientation or positional relationship is only for the convenience of describing the present utility model and simplifying the description, rather than indicating or implying that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and therefore cannot be understood as a reference to the present utility model. limits.

Please refer to FIGS. 1-3 , a Pulsatilla extract device includes a bottom plate 16 , a casing 10 , a stirring bucket 5 and an installation cavity 15 . The top center of the bottom plate 16 is fixed to the casing 10 , and inside the casing 10 The extraction box 11 is installed on the top of the cavity, the bottom of the extraction box 11 is fixed on the center of the top of the installation cavity 15, the fixing plate 2 is fixed on both sides of the installation cavity 15, and the fixing plate 2 is fixed on the inner wall of the housing 10, Both sides of the inner cavity of the mounting cavity 15 are fixedly connected to the slide rail 21 , the slide rail 21 is internally mounted with a sliding block 24 , and the opposite sides of the two sliding blocks 24 are fixed to the mounting plate 19 , and the two mounting plates The first filter screen 20, the second filter screen 22 and the third filter screen 23 are sequentially fixed between 19 and 19. One side of the installation cavity 15 is fixed with an elastic steel sheet 25, and the bottom center of the elastic steel sheet 25 is fixed. The hopper 1 is fixedly connected, the discharge valve 18 is fixedly connected to the bottom center of the hopper 1, the pump 14 is fixedly connected to the center of one side of the casing 10, and the recovery pipe 13 is fixedly connected to the top center and bottom center of the pump 14. The recovery pipes 13 all penetrate through the casing 10 and are respectively connected to the extraction box 11 and the hopper 1. The top of the casing 10 is fixed to the mixing box 9 in the center. The mixing box 9 is equipped with a mixing barrel 5, and the mixing barrel 5 A one-way valve 4 is fixed in the center of the bottom, and the bottom of the one-way valve 4 penetrates the mixing box 9 and the casing 10 and is connected to the extraction box 11 .

A sample box 17 is installed in the center of the bottom of the inner cavity of the housing 10, and the sample box 17 is located directly below the discharge valve 18, which is convenient for taking out samples; the center of the extraction box 11 is installed with a first stirring rod 3, and the first stirring rod 3 is installed in the center of the inner cavity of the extraction box 11. One end of a stirring rod 3 penetrates through the extraction box 11 and is connected to the second motor 12, and one side of the second motor 12 is fixed on the inner wall of the casing 10, which can speed up the filtration of the mixed liquid; The rotating rod 8, the top of the second rotating rod 8 is connected to the first motor 7 through the mixing barrel 5 and the mixing box 9, and the first motor 7 is fixed in the center of the top of the mixing box 9, which can speed up the fusion; the second rotation Several stirring blades are fixed on the surface of the rod 8 and the first stirring rod 3, which can improve the extraction efficiency; a feeding port 6 is installed at one end of the top of the mixing box 9, and a feeding pipe is fixed in the center of the bottom of the feeding port 6. The feeding pipe runs through the mixing box 9 and is connected to the mixing barrel 5, which is convenient for conveying Pulsatilla powder.

When the utility model is in use, the electrical components appearing in this application are all connected to an external power supply and a control switch when in use, and the Pulsatilla officinalis powder and the extractant are transported to the inside of the mixing barrel 5 through the feeding port 6, and then the first motor 7 is turned on, The first motor 7 can drive the second rotating rod 8, and the second rotating rod 8 rotates and the stirring blade on the surface of the second rotating rod 8 conducts stirring, enters the inside of the extraction box 11 through the one-way valve 4, and then can pass through the inside of the installation cavity 15. The first filter screen 20, the second filter screen 22 and the third filter screen 23 are filtered, and the first stirring rod 3 is driven to rotate by the second motor 12, and the stirring blades on the surface of the first stirring rod 3 can speed up the filtering efficiency. After that, the liquid slag inside the hopper 1 can be filtered many times through the pump 14 and the recovery pipe 13, the sample can be taken out through the discharge valve 18 and the sample box 17, and the elastic steel sheet 25, the slider 24 and the slide rail 21 can be used to take out the sample. The mounting plate 19 is taken out for easy removal and replacement of the three filters.

The first motor 7 and the second motor 12 use the YE2 model and related supporting power supplies and circuits produced by Zhejiang Jiegong Motor's source manufacturer.

The pump machine 14 adopts the 35L air pump model and its related supporting power supply and circuit produced by Shenzhen Dinglisheng Technology Co., Ltd.

The related circuits, electronic components and modules are all in the prior art, which can be realized by those skilled in the art. It is needless to mention that the content of the protection of the present invention does not involve the improvement of software and methods.

It will be apparent to those skilled in the art that the present invention is not limited to the details of the above-described exemplary embodiments, and that the present invention may be implemented in other specific forms without departing from the spirit or essential characteristics of the present invention. Therefore, the embodiments are to be considered in all respects as exemplary and not restrictive, and the scope of the present invention is defined by the appended claims rather than the foregoing description, and it is therefore intended that the All changes within the meaning and scope of the required identical elements are included in the present invention. Any reference signs in the claims shall not be construed as limiting the involved claim.

As mentioned above, the above embodiments are only used to illustrate the technical solutions of the present utility model, but not to limit them; although the present utility model has been described in detail with reference to the foregoing embodiments, those of ordinary skill in the art should understand: it can still be Modify the technical solutions described in the foregoing embodiments, or perform equivalent replacements to some of the technical features; and these modifications or replacements do not make the essence of the corresponding technical solutions depart from the spirit and scope of the technical solutions of the embodiments of the present invention .

Claims (6)

1. a Pulsatilla extract device, it is characterized in that: comprise bottom plate (16), shell (10), mixing barrel (5) and installation cavity (15), described bottom plate (16) top centrally fastens the shell (10). 10), an extraction box (11) is installed at the top of the inner cavity of the housing (10), the bottom of the extraction box (11) is fixed at the center of the top of the installation cavity (15), and both sides of the installation cavity (15) are fixed. A fixing plate (2) is connected, the fixing plate (2) is fixed on the inner wall of the casing (10), and the sliding rails (21) are fixed on both sides of the inner cavity of the installation cavity (15), and the sliding rails ( 21) The sliding block (24) is installed inside, the two sliding blocks (24) are fixed to the mounting plate (19) on the opposite side, and the second mounting plate (19) is fixed in sequence from top to bottom. A filter screen (20), a second filter screen (22) and a third filter screen (23), one side of the installation cavity (15) is fixed with an elastic steel sheet (25), and the bottom of the elastic steel sheet (25) A hopper (1) is fixed to the center, a discharge valve (18) is fixed to the bottom of the hopper (1), a pump (14) is fixed to the center of one side of the casing (10), and the pump (14) The recovery pipe (13) is fixedly connected to the center of the top and the center of the bottom, and the two sections of the recovery pipe (13) pass through the casing (10) and are respectively connected to the extraction box (11) and the hopper (1). The casing (10) A mixing box (9) is fixedly connected to the center of the top, a mixing bucket (5) is installed in the inner cavity of the mixing box (9), and a check valve (4) is fixed to the center of the bottom of the mixing bucket (5). 4) The bottom runs through the mixing box (9) and the shell (10) to connect the extraction box (11). 2. A Pulsatilla extract device according to claim 1, characterized in that: a sample box (17) is installed in the center of the bottom of the inner cavity of the casing (10), and the sample box (17) is located at the discharge valve ( 18) directly below. 3. A Pulsatilla extract device according to claim 1, characterized in that: a first stirring rod (3) is installed in the center of the inner cavity of the extraction box (11), and one end of the first stirring rod (3) penetrates through The extraction box (11) is connected to a second motor (12), and one side of the second motor (12) is fixed on the inner wall of the housing (10). 4. A Pulsatilla extract device according to claim 1, characterized in that: a second rotating rod (8) is installed in the center of the inner cavity of the stirring barrel (5), and the top of the second rotating rod (8) penetrates through The mixing barrel (5) and the mixing box (9) are connected to a first motor (7), and the first motor (7) is fixedly connected to the center of the top of the mixing box (9). 5 . A Pulsatilla extract device according to claim 4 , wherein a plurality of stirring blades are fixedly connected to the surfaces of the second rotating rod ( 8 ) and the first stirring rod ( 3 ). 6 . 6. A Pulsatilla extract device according to claim 1, characterized in that: a feed port (6) is installed at one end of the top of the mixing box (9), and the center of the bottom of the feed port (6) is fixedly connected to The feeding pipe is connected to the mixing tank (5) through the mixing box (9).
