Abstract

The utility model relates to the technical field of sterilization cabinets, in particular to a sterilization cabinet for oral materials. A disinfection solution holding pool is arranged at the bottom of the cabinet body, a soaking basket is arranged in the cabinet body, a top plate is fixedly installed on the top of the cabinet body, and a top plate is fixedly installed on the surface. Symmetrically arranged two side plates, a rotating shaft is rotatably installed between the two side plates, a winding wheel is fixedly installed on the middle part of the rotating shaft body, and one end of the rotating shaft passes through the side plate and is fixedly connected with the output shaft of the winding motor. A winding rope is fixedly wound on the winding wheel. One end of the winding rope passes through the top plate and a hook is fixedly installed. The top of the soaking basket is fixedly installed with a fixing ring. The hook hooks the fixing ring. One side of the upper part of the cabinet is embedded in the height direction. Two fans are installed, and an outlet grill corresponding to the two fans is opened on the other side of the upper part of the cabinet. The utility model has the advantages of convenient operation and good disinfection effect.

Description

A kind of oral material disinfection cabinet

technical field

The utility model relates to the technical field of disinfection cabinets, in particular to a disinfection cabinet for oral materials.

Background technique

In the daily work of the stomatology department, many equipment materials such as mouth mirrors, tweezers, and probes are used. In order to prevent cross-contamination, these materials need to be sterilized after use. Most of the existing sterilizing devices are very simple, and only put the soaking basket containing the oral materials into the bucket filled with disinfectant for soaking and sterilizing. Due to the limitation of human physical strength, this device can only sterilize a small amount of oral materials at a time. Sterilize by immersion. And when the soaking basket is taken out of the disinfectant, because there is no standing measure, when draining the oral materials in the soaking basket, people need to hold the soaking basket to drain, because it is impossible for the staff to hold the soaking basket for a long time. Therefore, the soaking basket is usually taken away directly after holding it for a period of time, so that the disinfectant that has not been drained will drip on the ground, causing ground pollution and waste of disinfectant.

Utility model content

The purpose of the utility model is to solve the shortcomings of the prior art that only a small amount of materials can be sterilized at one time, the operation is inconvenient, and the disinfectant cannot be fully drained, and a sterilization cabinet for oral materials is proposed.

In order to achieve the above-mentioned purpose, the utility model adopts the following technical solutions:

A disinfection cabinet for oral materials is designed, including a cabinet body, a disinfectant holding pool is arranged at the bottom of the cabinet body, a cabinet door is hingedly installed on the upper part of the outer wall of the cabinet, a soaking basket is arranged in the cabinet body, and the cabinet body A top plate is fixedly installed on the top, two symmetrically arranged side plates are fixedly installed on the upper surface of the top plate, a rotating shaft is rotatably installed between the two side plates, and a winding wheel is fixedly installed on the middle of the shaft body of the rotating shaft. The end of one side of the rotating shaft passes through the side plate and is fixedly connected to the output shaft of the winding motor. The winding wheel is fixedly wound with a winding rope, and one end of the winding rope is fixedly installed with a hook after passing through the top plate. The soaking basket A fixing ring is fixedly installed on the top, the hook hooks the fixing ring, two fans are embedded and installed on one side of the upper part of the cabinet along the height direction, and two fans are opened on the other side of the upper part of the cabinet. For the corresponding air outlet grille, symmetrically arranged support legs are fixedly installed on both sides of the bottom of the cabinet, and the bottom ends of the support legs are fixedly connected to the bottom plate.

Preferably, a water outlet funnel is fixedly installed at the bottom of the cabinet, a first elbow is fixedly installed at the bottom end of the water outlet funnel, and a faucet is fixedly installed at the end of the first elbow.

Preferably, the lower part of the cabinet is provided with a second elbow connected to the disinfectant holding pool, and a water inlet funnel is fixedly installed at the end of the second elbow.

Preferably, a plurality of uniformly distributed UV lamps are fixedly installed on the lower surface of the top plate

The oral material disinfection cabinet proposed by the utility model has the beneficial effects that: by setting the soaking basket, when sterilizing a large number of instruments, the instruments only need to be placed in the soaking basket, and then the soaking basket is put into the soaking basket through the winding rope. The disinfectant is placed in the pool for soaking and disinfection. After soaking, the soaking basket is retracted upward with the winding rope, and the soaking basket is left for a period of time to allow the equipment to fully drain. Turn on the fan while draining to speed up the draining of the equipment. Speed, after draining, just take out the soaking basket, the whole operation process is simple and fast, suitable for sterilizing a large number of instruments, and the disinfection effect is good.

Description of drawings

Fig. 1 is the structural representation one of a kind of oral cavity material disinfection cabinet proposed by the utility model;

Fig. 2 is the structural representation two of a kind of oral material disinfection cabinet proposed by the utility model;

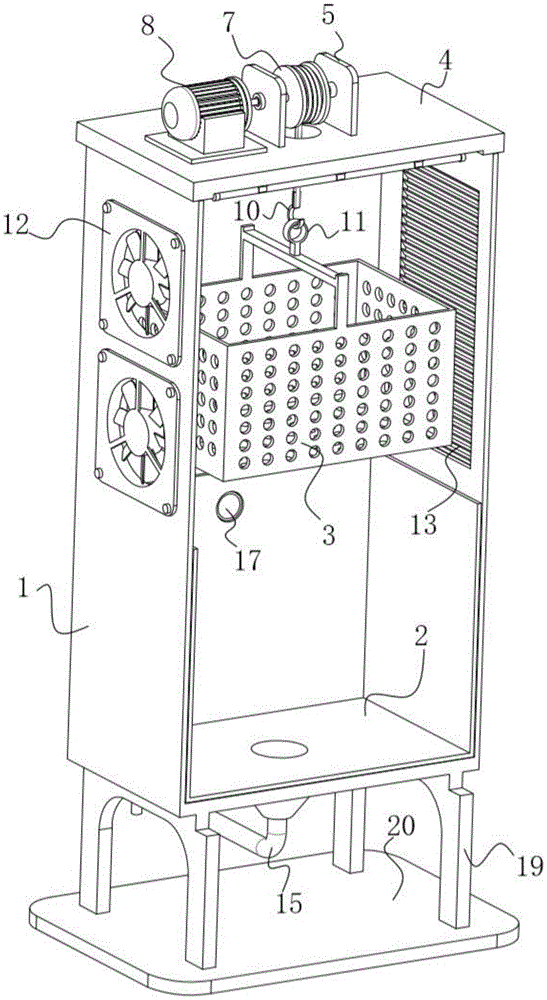

3 is a schematic diagram 1 of the internal structure of a kind of oral material disinfection cabinet proposed by the utility model;

FIG. 4 is a second schematic diagram of the internal structure of a disinfection cabinet for oral materials proposed by the utility model.

In the figure: cabinet 1, disinfectant holding pool 2, soaking basket 3, top plate 4, side plate 5, rotating shaft 6, winding wheel 7, winding motor 8, winding rope 9, hook 10, fixing ring 11, Fan 12 , outlet grill 13 , outlet funnel 14 , first elbow 15 , faucet 16 , second elbow 17 , inlet funnel 18 , support legs 19 , bottom plate 20 , UV lamp 21 , cabinet door 22 .

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example.

Example 1

Referring to Figures 1-4, an oral material disinfection cabinet includes a cabinet body 1, the inner bottom of the cabinet body 1 is provided with a disinfectant holding pool 2, the upper part of the outer wall of the cabinet body 1 is hingedly installed with a cabinet door 22, and the cabinet body 1 is provided with a The soaking basket 3, the top plate 4 is fixedly installed on the top of the cabinet body 1, the upper surface of the top plate 4 is fixedly installed with two symmetrically arranged side plates 5, a rotating shaft 6 is rotatably installed between the two side plates 5, and the middle part of the shaft body of the rotating shaft 6 is installed A winding wheel 7 is fixedly installed, one end of the rotating shaft 6 passes through the side plate 5 and then the output shaft of the winding motor 8 is fixedly connected, the winding wheel 7 is fixedly wound with a winding rope 9, and one end of the winding rope 9 passes through the top plate. 4. A hook 10 is fixedly installed at the rear, a fixing ring 11 is fixedly installed on the top of the soaking basket 3, and the hook 10 is hooked to the fixing ring 11. Two fans 12 are embedded and installed on one side of the upper part of the cabinet 1 along the height direction. The upper part of the cabinet 1 The other side of the device is provided with an air outlet grille 13 corresponding to the two fans 12. The air outlet grille 13 is used to cooperate with the fans 12 to speed up the air circulation speed, thereby speeding up the drying speed of the apparatus. Symmetrically arranged support legs 19 are fixedly installed on both sides of the bottom of the cabinet 1 , and the bottom ends of the support legs 19 are fixedly connected to the bottom plate 20 .

When the utility model is in use, first add appropriate disinfectant to the disinfectant holding pool 2, then hang the soaking basket 3 filled with disinfecting instruments on the hook 10, and then control the winding motor 8 to put the soaking basket 3 into the disinfectant Soak in the liquid holding tank 2. After the soaking is completed, control the winding motor 8 to put away the soaking basket 3, and then let the soaking basket 3 stand for a period of time to allow the equipment to drain. During the draining process, it can be opened. Fan 2, to speed up the draining process of the instruments. Once drained, remove the soaking basket.

Example 2

2-4, as another preferred embodiment of the present utility model, the difference from Embodiment 1 is that a water outlet funnel 14 is fixedly installed at the bottom of the cabinet 1, and a first elbow 15 is fixedly installed at the bottom end of the water outlet funnel 14. A faucet 16 is fixedly installed at the end of the first elbow 15 . By arranging the first elbow 15 and the water outlet funnel 14, it is more convenient to replace the disinfectant in the disinfectant holding pool 2, just turn on the faucet, and then let the disinfectant in the disinfectant holding pool drain out.

Example 3

2 , as another preferred embodiment of the present utility model, the difference from Embodiment 1 is that the lower part of the cabinet 1 is provided with a second elbow 17 that communicates with the disinfectant holding pool 2, and the end of the second elbow 17 is provided. A water inlet funnel 18 is fixedly installed. When it is necessary to add the disinfectant into the disinfectant holding pool 2, the operation of adding the disinfectant only needs to be poured into the water inlet funnel 18.

Example 4

Referring to FIG. 4 , as another preferred embodiment of the present invention, the difference from Embodiment 1 is that a plurality of uniformly distributed ultraviolet lamps 21 are fixedly installed on the lower surface of the top plate 4 . When the instruments in the soaking basket 3 are drained, the ultraviolet lamp 21 can be turned on to irradiate the instruments in the soaking basket, so as to further improve the disinfection effect.

The above description is only a preferred embodiment of the present invention, but the protection scope of the present invention is not limited to this. Equivalent replacement or modification of the new technical solution and its utility model concept shall be included within the protection scope of the present utility model.

Claims (4)

1. An oral material disinfection cabinet, comprising a cabinet body (1), characterized in that, the inner bottom of the cabinet body (1) is provided with a disinfectant holding pool (2), and the upper part of the outer wall of the cabinet body (1) is hinged A cabinet door (22) is installed, a soaking basket (3) is arranged in the cabinet body (1), a top plate (4) is fixedly installed on the top of the cabinet body (1), and the upper surface of the top plate (4) is fixedly installed There are two symmetrically arranged side plates (5), a rotating shaft (6) is rotatably installed between the two side plates (5), and a winding wheel (7) is fixedly installed on the middle part of the shaft body of the rotating shaft (6). ), the end of one side of the rotating shaft (6) passes through the side plate (5) and is fixedly connected to the output shaft of the winding motor (8), and the winding wheel (7) is fixedly wound with a winding rope (9). One end of the winding rope (9) is fixedly installed with a hook (10) after passing through the top plate (4), a fixing ring (11) is fixedly installed on the top of the soaking basket (3), and the hook (10) is hooked on the fixing ring ( 11), two fans (12) are embedded and installed on one side of the upper part of the cabinet (1) along the height direction, and two fans (12) are opened on the other side of the upper part of the cabinet (1). Corresponding air outlet grilles (13), symmetrically arranged support legs (19) are fixedly installed on both sides of the bottom of the cabinet (1), and the bottom ends of the support legs (19) are fixedly connected to the bottom plate (20). . 2. The oral material disinfection cabinet according to claim 1, characterized in that a water outlet funnel (14) is fixedly installed at the bottom of the cabinet body (1), and a water outlet funnel (14) is fixedly installed at the bottom end of the water outlet funnel (14). An elbow (15), a water tap (16) is fixedly installed at the end of the first elbow (15). 3. The oral material sterilization cabinet according to claim 1, wherein the lower part of the cabinet body (1) is provided with a second elbow (17) communicating with the disinfectant holding pool (2), so that the A water inlet funnel (18) is fixedly installed at the end of the second elbow (17). 4 . The oral material disinfection cabinet according to claim 1 , wherein a plurality of uniformly distributed ultraviolet lamps ( 21 ) are fixedly installed on the lower surface of the top plate ( 4 ). 5 .
