Abstract

The utility model discloses an anti-collision pier device for an intelligent power pole tower, which comprises an anti-collision pier, a power pole tower and a solar panel. The middle part is fixedly connected with a flasher by bolts, one side of the anti-collision pier is fixedly connected with a bracket, and one end of the bracket is connected with a solar panel by bolts; the utility model is provided with a solar panel, a flasher and an anti-collision pier. , and the solar panel converts light energy into electrical energy, and stores the electrical energy in the battery through the discharge interface, and uses the battery to provide electrical energy to the flash, so that in the thunderstorm weather at night, when the sight of pedestrians, non-motor vehicles, etc. is unclear, the flash continues to emit. The yellow flashing lights remind pedestrians and non-motor vehicle owners to stay away from power towers, which can effectively prevent personal injury and legal disputes from power companies.

Description

An intelligent power pole tower anti-collision pier device

technical field

The utility model relates to the technical field of power supply equipment, in particular to an intelligent power pole tower anti-collision pier device.

Background technique

At present, with the continuous development of the economy and society, power poles and towers are widely used on both sides of roads in cities and rural areas due to their economic and use characteristics, which are convenient for users and residents to use electricity. When the line of sight is unclear, personal injury caused by hitting a power pole and tower, legal disputes over the power company's equipment have gradually increased.

Utility model content

The purpose of the present invention is to provide an intelligent power tower anti-collision pier device to solve the problems raised in the above background technology.

In order to achieve the above purpose, the utility model provides the following technical solutions: an intelligent power pole tower anti-collision pier device, comprising an anti-collision pier, a power pole tower and a solar panel, and the middle part of the upper surface of the anti-collision pier is fixedly connected with a power pole tower through bolts The middle part of one side of the anti-collision pier is connected with a flash lamp by bolts, one side of the anti-collision pier is connected with a bracket by bolts, and one end of the bracket is connected with a solar panel by bolts. The surface is fixedly connected with a battery by bolts, the inner wall of the anti-collision pier is connected with a discharge interface by bolts, and the anti-collision pier on one side of the discharge interface is connected with a charging interface by bolts, and the anti-collision pier is close to the discharge interface. A wiring hole is opened on one side, the output end of the solar panel is electrically connected to the input end of the discharge interface, the output end of the discharge interface is electrically connected to the input end of the battery, and the output end of the battery is electrically connected to the charging end The interface input end is electrically connected, and the charging interface output end is electrically connected with the flash.

Preferably, the lower surface of the anti-collision pier is connected with uprights by bolts near both ends, and one end of the uprights is welded with a cone head.

Preferably, the cone head has a triangular pyramid structure, and the length of the column is 3.0-5.0 meters.

Preferably, the anti-collision pier is a hollow structure, and the height of the anti-collision pier is 1.5-3.0 meters, and the width of the anti-collision pier is 0.5-1 meter.

Preferably, a shock-absorbing pad is pasted on the periphery of the anti-collision pier, and a rubber pad is pasted on the periphery of the shock-absorbing pad.

Preferably, there are three flashing lights in total, and the distance between the flashing lights and the ground is 1.0-2.5 meters.

Compared with the prior art, the beneficial effects of the present utility model are:

The utility model is provided with a solar cell panel, a flashing light and an anti-collision pier, and the solar cell panel converts light energy into electrical energy, and stores the electrical energy in the storage battery through the discharge interface, and utilizes the storage battery to provide electrical energy to the flashing light, so that in the thunderstorm weather at night When the sight of pedestrians, non-motor vehicles, etc. is unclear, the flashing lights continuously emit yellow flashing lights to remind pedestrians and non-motor vehicle owners to stay away from the power tower, which can effectively prevent personal injury and the occurrence of legal disputes in the power company, and the utility model uses solar cells. The board is charged to supply power for the yellow flash, which has the advantages of energy saving, safety and intelligence.

Description of drawings

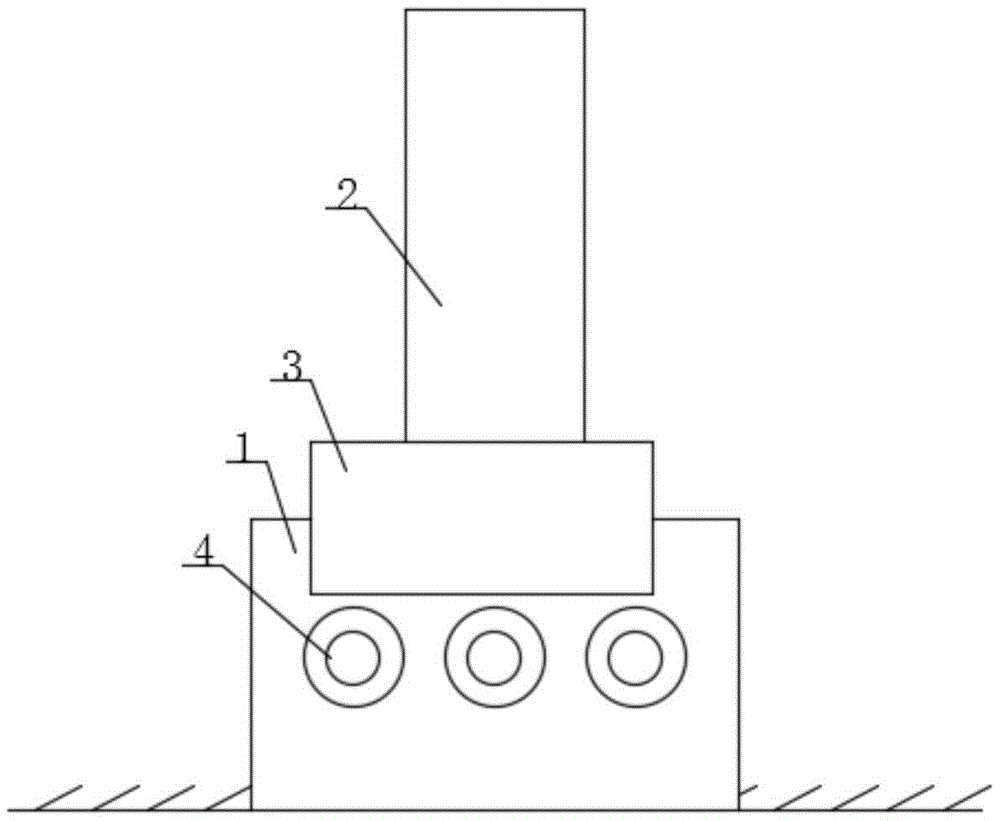

1 is a schematic diagram of the overall structure of the present utility model;

Fig. 2 is the side view structure schematic diagram of the utility model;

Fig. 3 is the cross-sectional structural schematic diagram of the anti-collision pier of the present invention;

FIG. 4 is a schematic diagram of the electrical connection structure of the components of the present invention.

In the picture: 1-anti-collision pier; 2-power tower; 3-solar panel; 4-flash; 5-pillar; 6-cone head; 7-support; 8-battery; 9-discharge interface; 10-charging interface ; 11 - Wiring hole.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

1-4, the present utility model provides a technical solution: an intelligent power tower anti-collision pier device, comprising an anti-collision pier 1, a power pole tower 2 and a solar panel 3, and the middle part of the upper surface of the anti-collision pier 1 A power tower 2 is fixedly connected by bolts, and a flasher 4 is fixedly connected to the middle of one side of the anti-collision pier 1 by bolts. A bracket 7 is fixedly connected to one side of the anti-collision pier 1 by bolts, and one end of the bracket 7 is fixedly connected to a solar panel 3 by bolts. A battery 8 is fixedly connected to the lower surface of the inner wall of the anti-collision pier 1 by bolts. The battery 8 is specifically a battery of type SP12-100. One side of the inner wall of the anti-collision pier 1 is fixedly connected with a discharge interface 9 by bolts. , the anti-collision pier 1 on one side of the discharge interface 9 is fixedly connected with a charging interface 10 by bolts, the side of the anti-collision pier 1 close to the discharge interface 9 is provided with a wiring hole 11, and the output end of the solar panel 3 is connected to the The input end of the discharge interface 9 is electrically connected, the output end of the discharge interface 9 is electrically connected to the input end of the battery 8, the output end of the battery 8 is electrically connected to the input end of the charging interface 10, and the charging interface 10. The output end is electrically connected with the flashing light 4, and the lower surface of the anti-collision pier 1 is connected with a column 5 near both ends by bolts. On the ground, the cone head 6 has a triangular pyramid structure, the length of the column 5 is 3.0-5.0 meters, the anti-collision pier 1 is a hollow structure, and the height of the anti-collision pier 1 is 1.5-3.0 meters. The width of the pier 1 is 0.5-1 meters, the shock-absorbing pad is pasted on the periphery of the anti-collision pier 1, and the rubber pad is pasted on the periphery of the shock-absorbing pad. 4 There are three in total, and the distance dimension of the flash 4 from the ground is 1.0-2.5 meters.

Working principle: When in use, the column 5 and the cone head 6 are buried below the ground, and the lower surface of the anti-collision pier 1 is on the same plane as the ground, and the solar panel 3 converts light energy into electrical energy, and passes the discharge interface 9. Store the electrical energy in the storage battery 8, and use the storage battery 8 to provide electrical energy to the flashing light 4, so that in the thunderstorm weather at night, when the sight of pedestrians, non-motor vehicles, etc. is unclear, the flashing lamp 4 continuously emits yellow flashing lights, prompting pedestrians and non-motor vehicle owners to stay away. The power tower 2 can effectively prevent personal injury and the occurrence of legal disputes of the power company, and the utility model adopts the solar panel 3 to charge to supply power for the yellow flashing light 4, which has the advantages of energy saving, safety and intelligence.

It should be noted that, in this document, relational terms such as first and second are used only to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply any relationship between these entities or operations. any such actual relationship or sequence exists. Moreover, the terms "comprising", "comprising" or any other variation thereof are intended to encompass a non-exclusive inclusion such that a process, method, article or device that includes a list of elements includes not only those elements, but also includes not explicitly listed or other elements inherent to such a process, method, article or apparatus.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. The utility model provides an intelligence electric power tower anticollision mound device, includes anticollision mound (1), electric power tower (2) and solar cell panel (3), its characterized in that: the solar energy anti-collision device is characterized in that the middle part of the upper surface of the anti-collision pier (1) is fixedly connected with an electric power tower (2) through a bolt, the middle part of one side of the anti-collision pier (1) is fixedly connected with a flash lamp (4) through a bolt, one side of the anti-collision pier (1) is fixedly connected with a support (7) through a bolt, one end of the support (7) is fixedly connected with a solar cell panel (3) through a bolt, the lower surface of the inner wall of the anti-collision pier (1) is fixedly connected with a storage battery (8) through a bolt, one side of the inner wall of the anti-collision pier (1) is fixedly connected with a discharge interface (9) through a bolt, the anti-collision pier (1) on one side of the discharge interface (9) is fixedly connected with a charging interface (10) through a bolt, a, the output end of the discharging interface (9) is electrically connected with the input end of the storage battery (8), the output end of the storage battery (8) is electrically connected with the input end of the charging interface (10), and the output end of the charging interface (10) is electrically connected with the flash lamp (4).

2. The intelligent electric power tower anti-collision pier device according to claim 1, wherein: anticollision mound (1) lower surface is close to both ends department and all passes through bolt fixedly connected with stand (5), stand (5) one end welding has conical head (6).

3. The intelligent electric power tower anti-collision pier device according to claim 2, wherein: the cone head (6) is of a triangular cone structure, and the length of the upright post (5) is 3.0-5.0 m.

4. The intelligent electric power tower anti-collision pier device according to claim 1, wherein: the anti-collision pier (1) is of a hollow structure, the height of the anti-collision pier (1) is 1.5-3.0 m, and the width of the anti-collision pier (1) is 0.5-1 m.

5. The intelligent electric power tower anti-collision pier device according to claim 1, wherein: a shock pad is adhered to the periphery of the anti-collision pier (1), and a rubber pad is adhered to the periphery of the shock pad.

6. The intelligent electric power tower anti-collision pier device according to claim 1, wherein: the number of the flash lamps (4) is three, and the distance between the flash lamps (4) and the ground is 1.0-2.5 m.
