Abstract

The utility model relates to the technical field of construction, and discloses a novel building structure, comprising a main board (1), wherein the main board (1) is in the shape of a rectangle and the front is in a hollow state, and top surfaces on the left and right sides of the main board (1) Both are provided with sliding holes (2), and two sliding holes (2) are provided with sliding grooves (4) on the inner wall of one side close to each other. A connecting rod (5) is movably connected in the sliding grooves (4), and the connecting rod (5) ) is sleeved with a wire wrapping disc (7), the outer walls of the two wire wrapping discs (7) are fixedly connected with a steel cable (8), and the outer wall of the middle section of the wire rope (8) is fixedly connected with a connecting disc (9), a connecting column (10) is fixedly connected to the front surface of the connecting plate (9), and a planting plate (11) is fixedly connected to one end of the connecting column (10) away from the connecting plate (9). In the normal state, the windshield B is in an upside-down state, which can ensure that the sun shines on the flowers and plants on the planting board at a sufficient angle. When the heavy rain comes, the windshield B is bent in the direction of the planting board to prevent the rain. Thereby increasing the range and effect of rain protection.

Description

A new type of building structure

technical field

The utility model relates to the technical field of construction, in particular to a novel building structure.

Background technique

In order to increase the aesthetics of the residential environment, more and more families now build flower and grass planting buildings in yards and other places to grow flowers and plants.

The existing flower and grass planting buildings use the method of installing rain shelters on the flowers and grass to prevent excessive rainwater from entering the flower and grass planting area during heavy rain and other weather. The rainwater barrier effect is not good, resulting in affecting the normal growth of flowers and plants. Therefore, a new type of building structure is urgently needed to solve the above problems.

Utility model content

(1) Technical problems solved

In view of the deficiencies of the prior art, the present invention provides a novel building structure to solve the above problems.

(2) Technical solutions

In order to achieve the above purpose, the present utility model provides the following technical solutions: a novel building structure, including a main board, the main board is in the shape of a rectangle and the front is in a hollow state, and the top surfaces of the left and right sides of the main board are provided with sliding holes, so The sliding hole is communicated with the hollow part of the main board, and the inner wall of the two sliding holes close to each other is provided with a sliding groove, and a connecting rod is movably connected in the sliding groove, and the shape of the connecting rod is an L-shaped body and a circular cross section. The outer wall of the connecting rod is sleeved with a wire wrapping disc, the outer walls of the two wire wrapping discs are fixedly connected with a steel cable, the outer wall of the middle section of the wire rope is fixedly connected with a connecting disc, and the front side of the connecting disc is fixedly connected There is a connecting column, and one end of the connecting column away from the connecting plate is fixedly connected with a planting plate.

A rain shield A is fixedly connected to the front end of the connecting rod, and a water groove A is opened on the top surface of the rain shield A.

The inner walls of the two sliding holes facing away from one side are provided with tooth slots, and the outer walls of the connecting rods are sleeved with spur gears at the positions corresponding to the tooth slots.

The end of the rain shield A away from the main board is fixedly connected with the rain shield B through the hinge of the rotating shaft.

The bottom end of the rain shield A is fixedly connected with a return spring, and the end of the return spring away from the rain shield A is fixedly connected with the rain shield B.

Preferably, the top surface of the planting board is provided with a planting groove.

Preferably, the spur gear is fixedly connected with the wire winding reel.

Preferably, a water tank B is opened on the top surface of the rain shield B, and the water tank A and the water tank B communicate with each other.

Preferably, the included angle between the top surface of the rain shield B and the top surface of the return spring is smaller than the included angle between the bottom surface of the rain shield B and the bottom surface of the return spring.

(3) Beneficial effects

Compared with the prior art, the utility model provides a novel building structure, which has the following beneficial effects:

1. The new building structure uses rainwater to increase the weight of the rain shield A after it rains, so that the planting plate moves in the direction close to the rain shield A through mechanical transmission, thereby reducing the gap between the rain shield A and the planting plate and increasing the shielding. The rain shield A can protect the planting board from the rain and reduce the space for rainwater to enter the top surface of the planting board inclinedly, so as to avoid the problem that rainwater accumulates in the planting board, which is difficult to clean and affects the growth of flowers and plants.

2. The new building structure, through the setting of the windshield B, is in a raised state under normal conditions, which can ensure that the sun shines on the flowers and plants on the planting board at a sufficient angle. When the rainy weather comes, the rainwater increases. The weight of the rain shield B makes the rain shield B bend towards the direction of the planting board to shield the rain, thereby increasing the range and effect of the rain shield.

Description of drawings

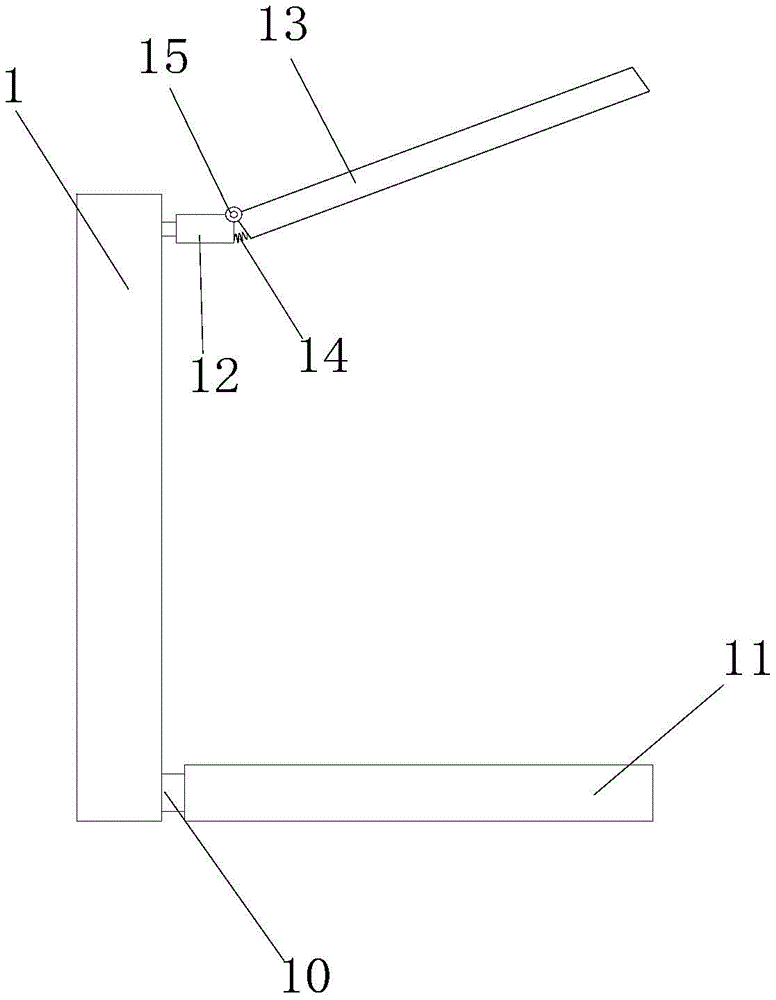

Fig. 1 is the side structure schematic diagram of the present utility model;

Fig. 2 is the front sectional structure schematic diagram of the mainboard of the present utility model;

Fig. 3 is the enlarged view of the A place of the utility model Fig. 2;

FIG. 4 is a schematic structural diagram of the rain shield A and the rain shield B of the present invention.

In the picture: 1 main board, 2 sliding holes, 3 tooth grooves, 4 sliding grooves, 5 connecting rods, 6 spur gears, 7 winding discs, 8 steel cables, 9 connecting discs, 10 connecting columns, 11 planting boards, 12 rain shields Plate A, 13 rain shield B, 14 return spring, 15 hinge hinge, 16 water tank A, 17 water tank B.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

1-4, the present utility model proposes a new type of building structure, including a main board 1, the main board 1 is in the shape of a rectangle and the front is in a hollow state, and the top surfaces of the left and right sides of the main board 1 are provided with sliding holes 2. The sliding hole 2 is communicated with the hollow part of the main board 1. The inner wall of the two sliding holes 2 close to each other is provided with a sliding groove 4. A connecting rod 5 is movably connected in the sliding groove 4. The shape is an L-shaped body and the cross section is circular. The outer wall of the connecting rod 5 is sleeved with a wire winding disc 7, and the outer walls of the two wire winding discs 7 are fixedly connected with a wire rope 8. The middle section of the wire rope 8 The outer wall is fixedly connected with a connecting plate 9, the front surface of the connecting plate 9 is fixedly connected with a connecting column 10, and one end of the connecting column 10 away from the connecting plate 9 is fixedly connected with a planting plate 11, and the top surface of the planting plate 11 is opened with a Planting groove, flowers and plants are planted in the planting board 11.

The front end of the connecting rod 5 is fixedly connected with a rain shield A12, and a water groove A16 is opened on the top surface of the rain shield A12.

The inner walls of the two sliding holes 2 facing away from each other are laid with tooth slots 3 , and the outer wall of the connecting rod 5 is sleeved with a spur gear 6 at the position corresponding to the tooth slot 3 , and the spur gear 6 is fixed with the winding disc 7 . When the rainwater falls, it will enter the water tank A16, resulting in an increase in the weight of the windshield A12. When the weight of the windshield A12 is higher than that of the planting plate 11, the connecting rod 5 will slide down in the chute 4. The gear 6 drives the wire winding disc 7 to rotate through the meshing with the tooth slot 3, so that the wire rope 8 is wound on the wire winding disc 7, and the connecting disc 9 is lifted with the shortening of the length of the wire rope 8, and drives the planting plate 11 to approach the stopper. The position of the rain shield A12 is moved. By using rainwater to increase the weight of the rain shield A12 after the rain, the planting plate 11 is moved to the direction close to the rain shield A12 through mechanical transmission, thereby reducing the gap between the rain shield A12 and the planting plate 11. Increase the rain shielding range of the rain shield A12 to the planting board 11 and reduce the space for rainwater to enter the top surface of the planting board 11 obliquely, so as to avoid the problem that rainwater accumulates in the planting board 11 and causes difficulty in cleaning and affects the growth of flowers and plants.

One end of the rain shield A12 away from the main board 1 is fixedly connected with a rain shield B13 through the hinge 15 of the rotating shaft, and a water groove B17 is formed on the top surface of the rain shield B13.

The water tank A16 communicates with the water tank B17.

The bottom end of the rain shield A12 is fixedly connected with a return spring 14, and the end of the return spring 14 away from the rain shield A12 is fixedly connected with the rain shield B13. The angle is smaller than the angle between the bottom surface of the windshield B13 and the bottom surface of the return spring 14. The windshield B13 is used to increase the water storage capacity and the range of rain protection. Through the setting of the windshield B13, the windshield B13 is in a raised state under normal conditions. , it can ensure that the sun shines on the flowers and plants on the planting board 11 at a sufficient angle. When the heavy rain comes, the rain increases the weight of the flashing board B13, so that the flashing board B13 is bent in the direction of the planting board 11 to block the rain, thereby Increases the range and effect of rain protection.

When in use, the flowers and plants are first planted in the planting board 11, and when the rain falls, it will enter the water tank A16, causing the weight of the rain shield A12 to increase. 5 slides down in the chute 4, at this time, the spur gear 6 drives the wire winding disc 7 to rotate through the meshing with the tooth slot 3, so that the wire rope 8 is wound on the wire winding disc 7, and the connecting disc 9 follows the length of the wire rope 8. Shorten and lift, drive the planting board 11 to move to the position close to the rain shield A12, thereby narrowing the gap between the rain shield A12 and the planting board 11, increasing the rain shielding range of the rain shield A12 to the planting board 11 and reducing the inclined entry of rainwater The space on the top surface of the planting board 11.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. A novel building structure, comprising a main board (1), characterized in that: the main board (1) is in the shape of a rectangle and the front is in a hollowed-out state, and the top surfaces of the left and right sides of the main board (1) are provided with sliding holes (2), the sliding hole (2) communicates with the hollow part of the main board (1), and the inner wall of the two sliding holes (2) close to each other is provided with a sliding groove (4), and the sliding groove (4) moves in the inner wall. A connecting rod (5) is connected, the shape of the connecting rod (5) is an L-shaped body and the cross section is circular, and the outer wall of the connecting rod (5) is sleeved with a winding disc (7). A steel cable (8) is fixedly connected to the outer wall of the wire reel (7), a connecting plate (9) is fixedly connected to the outer wall of the middle section of the steel cable (8), and a connecting column is fixedly connected to the front of the connecting plate (9). (10), a planting plate (11) is fixedly connected to one end of the connecting column (10) away from the connecting plate (9), and a planting groove is provided on the top surface of the planting plate (11). 2. A new type of building structure according to claim 1, characterized in that: the front end of the connecting rod (5) is fixedly connected with a rain shield A (12), and the A water tank A (16) is opened on the top surface. 3. A new type of building structure according to claim 2, characterized in that: the inner walls of the two sliding holes (2) facing away from each other are laid with tooth slots (3), the connecting rod (5) is The position of the outer wall corresponding to the tooth slot (3) is sleeved with a spur gear (6), and the spur gear (6) is fixedly connected with the wire winding disc (7). 4. A new type of building structure according to claim 3, characterized in that: one end of the rain shield A (12) away from the main board (1) is fixedly connected with the rain shield B ( 13), a water trough B (17) is opened on the top surface of the rain shield B (13). 5. A new type of building structure according to claim 4, characterized in that: the water tank A (16) is communicated with the water tank B (17). 6. A new type of building structure according to claim 5, characterized in that: the bottom end of the rain shield A (12) is fixedly connected with a return spring (14), and the return spring (14) is far away from the rain shield One end of the plate A (12) is fixedly connected to the rain shield B (13), and the angle between the top surface of the rain shield B (13) and the top surface of the return spring (14) is smaller than the bottom surface of the rain shield B (13) and the return spring. (14) The included angle of the bottom surface.
