Abstract

The utility model discloses a dyeing device for socks processing, belonging to the field of socks processing. A dyeing device for socks processing comprises a box body, an air compressor and a vortex tube. The outer side of the box body is fixedly connected with a horizontal plate, so the The air compressor and the vortex tube are fixedly installed on the horizontal plate, the air outlet end of the air compressor and the air inlet end of the vortex tube are connected and arranged, the upper end of the box body is fixedly installed with an L-shaped plate, and the L-shaped The lower end of the horizontal part of the plate is fixedly installed with a motor, and the output shaft of the motor is fixedly connected with a rotating rod. There is a dyeing cylinder, and a liquid storage tank and a deflector are fixedly installed in the box. This device changes the original dip dyeing method, adopts centrifugal force dyeing, dyes from the inside to the outside, and can also de-liquid dry socks. and recycle the dye solution.

Description

A dyeing device for socks processing

technical field

The utility model relates to the field of socks processing, in particular to a dyeing device for socks processing.

Background technique

Socks play the role of protecting and beautifying feet. Socks are divided into cotton yarn socks, wool socks, silk socks and various chemical fiber socks according to raw materials. According to the shape, there are long socks, middle socks, short socks, etc., as well as flat mouth , Luokou, with heel, without heel and jacquard, weaving and other styles and varieties, although socks are only a supporting role, they are not inferior to fashion in terms of fashion sensitivity, bright green, exciting pink and purple , a vibrant red.

The existing socks are usually dyed in a dyeing bucket first, and then placed on a paddle to dry. The dyeing needs to be placed for a long time, and the quality of the dyeing cannot be guaranteed, and the dyeing may be uneven. After the dyeing, it needs to be taken out for drying. A lot of time is wasted for workers, resulting in reduced work efficiency, and the quality of dyeing is easily affected during the transfer process, and the socks are loaded with dyeing liquid during the transfer process, which is likely to cause waste of dyeing liquid.

Utility model content

1. Technical problems to be solved

In view of the problems existing in the prior art, such as long dyeing time, inability to dry in time and inefficient use of dyeing liquid, the purpose of this utility model is to provide a dyeing device for socks processing, which can realize the timely drying of socks after dyeing. , so that the dyeing device has the function of drying, and the dyeing solution can be recycled, which improves the utilization rate of the dyeing solution.

2. Technical solutions

In order to solve the above problems, the present invention adopts the following technical solutions.

A dyeing device for socks processing includes a box body, an air compressor and a vortex tube, a horizontal plate is fixedly connected to the outside of the box body, the air compressor and the vortex tube are fixedly installed on the horizontal plate, and the air The air outlet end of the compressor and the air inlet end of the vortex tube are connected and arranged, the upper end of the box body is fixedly installed with an L-shaped plate, the lower end of the horizontal part of the L-shaped plate is fixedly installed with a motor, and the output shaft of the motor is fixed A rotating rod is connected, and the rotating rod rotates through the top surface of the box and extends to its interior. The lower end of the rotating rod is fixedly connected to a dyeing cylinder through a turntable, and a liquid storage tank is fixedly installed in the box from bottom to top. box and a deflector, the deflector is provided with a deceleration mechanism, one end of the deceleration mechanism is fixedly connected with the lower end of the dyeing cylinder, the deceleration mechanism is provided with a clamping assembly, the liquid storage tank, the diversion The board and the dyeing cylinder are provided with the same circulation mechanism, and the box body, the air compressor and the vortex tube are provided with the same auxiliary mechanism, so that the socks can be dried in time after dyeing, so that the dyeing device has the function of drying, Moreover, the dyeing solution can be recycled, which improves the utilization rate of the dyeing solution.

Further, the speed reduction mechanism includes a first driven rod and a plurality of second driven rods rotatably connected to the upper end of the guide plate, and the first driven rod and the plurality of second driven rods are sleeved There is the same protection tube, a first gear is fixed coaxially on the part of the first driven rod located in the protection tube, and a plurality of second driven rods located in the protection tube are coaxially fixedly connected with a first gear. Two gears, the first gear meshes with the second gear, the upper end of the first driven rod outside the protection tube is fixedly connected with a disc, the disc is fixedly connected with the lower end of the dyeing cylinder, the second The driven rod is in contact with one end of the clamping assembly, and the setting of the deceleration mechanism realizes that one first driven rod drives a plurality of second driven rods to move, so as to realize the dyeing of multiple groups of socks, and the meshing between the gears makes the The rotation direction of the socks is opposite to the spraying direction of the dyeing cylinder, which makes the dyeing more uniform and sufficient, and improves the quality of the dyeing.

Further, the clamping assembly includes a plurality of support plates that are coaxially and fixedly connected to the second driven rod. The upper end of the support plate is provided with two vertical plates and two clamping plates. Through the fixed connection of the telescopic rods, the telescopic rods are sleeved with springs, and the two clamping plates are arranged in contact with the second driven rods. The fixed clamping of socks lays a good foundation for the dyeing of socks.

Further, the circulation mechanism includes a water pump fixedly installed on the upper end of the liquid storage tank and a guide pipe arranged through the guide plate, the liquid inlet end of the water pump is connected with a guide pipe, and the liquid inlet of the guide pipe is set at the At the bottom of the liquid storage tank, the liquid outlet end of the water pump is connected with a liquid outlet pipe, and the liquid outlet pipe is arranged in rotation and communication with the dyeing cylinder. The dyeing solution is fully utilized, the waste of dyeing solution in the existing device is avoided, and the utilization rate of the dyeing solution is improved.

Further, the auxiliary mechanism includes a cold air pipe and a hot air pipe connected to the vortex pipe, the cold air pipe is arranged through the side wall of the box body and extends to the inside thereof, and the air outlet end of the hot air pipe penetrates the box. The top surface of the body is located just above the second driven rod. The setting of the auxiliary mechanism realizes the cooling and cooling of the liquid storage tank, ensuring the quality of the dyeing liquid, and the hot air pipe realizes the timely cooling of the socks after dyeing. Drying saves working time, improves work efficiency, and avoids waste of dyeing liquid caused by transferring to drying equipment.

Further, the front side wall of the box body is provided with an installation door, and the installation of the installation door realizes the installation and dyeing of the socks and the retraction after dyeing.

3. Beneficial effects

Compared with the prior art, the advantages of the present utility model are:

(1) This solution realizes that the socks are dried in time after dyeing, so that the dyeing device has the function of drying, and the dyeing solution can be recycled, which improves the utilization rate of the dyeing solution.

(2) In this scheme, the deceleration mechanism is set to realize that one first driven rod drives a plurality of second driven rods to move, so as to realize the dyeing of multiple groups of socks, and the meshing between the gears makes the rotation direction of the socks and the dyeing cylinder. The direction of spraying is opposite, which makes the dyeing more uniform and sufficient, and improves the quality of dissemination.

(3) The setting of the clamping components in this solution realizes the fixed clamping of the socks sleeved on the plurality of second driven rods, which lays a good foundation for the dyeing of the socks.

(4) The arrangement of the circulation mechanism in this solution realizes the full utilization of the dyeing solution, avoids the waste of dyeing solution in the existing device, and improves the utilization rate of the dyeing solution.

(5) The setting of the auxiliary mechanism in this scheme realizes the cooling and cooling of the liquid storage tank, which ensures the quality of the dyeing solution, and the hot air duct realizes the timely drying of the socks after dyeing, which saves the working time and improves the work efficiency. efficiency, and also avoids the waste of dyeing liquid caused by transfer to drying equipment.

(6) The setting of the installation door in this scheme realizes the installation and dyeing of socks and the recovery after dyeing.

Description of drawings

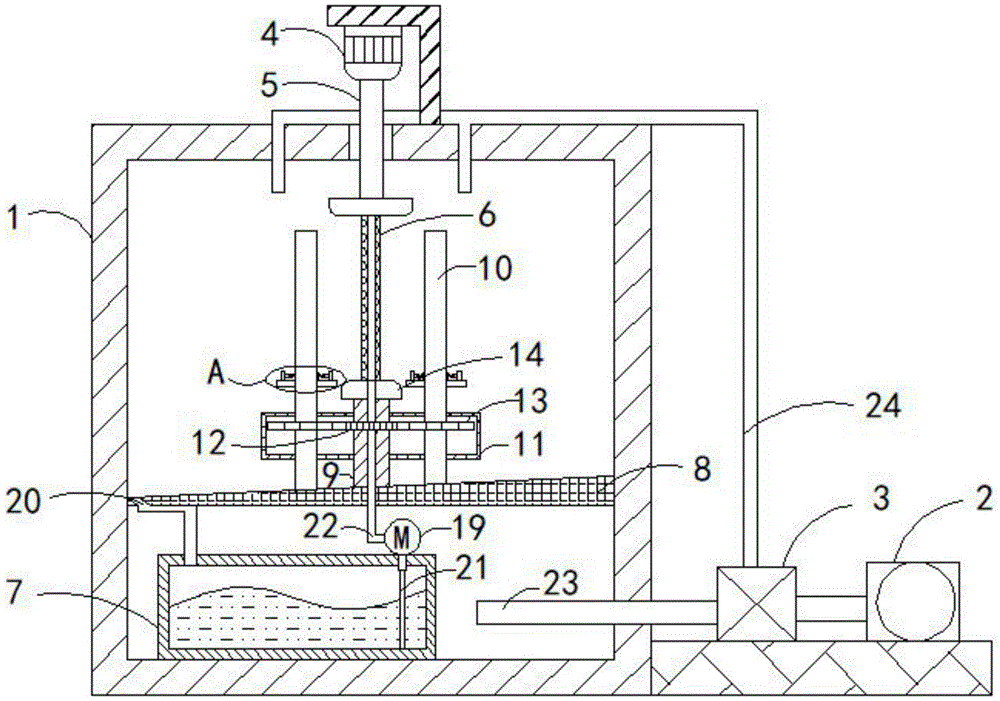

1 is a schematic structural diagram of a dyeing device for sock processing according to the present invention;

2 is a schematic diagram of the external structure of a dyeing device for sock processing according to the present invention;

3 is a schematic structural diagram of the first gear meshing with a plurality of second gears of the present invention;

FIG. 4 is an enlarged schematic view of A in FIG. 1 .

Description of the labels in the figure:

1 box, 2 air compressor, 3 vortex tube, 4 motor, 5 rotating rod, 6 dyeing cylinder, 7 liquid storage tank, 8 deflector, 9 first driven rod, 10 second driven rod, 11 protection Pipe, 12 first gear, 13 second gear, 14 disc, 15 support plate, 16 vertical plate, 17 splint, 18 telescopic rod, 19 water pump, 20 guide pipe, 21 pipe, 22 liquid outlet pipe, 23 cold air pipe , 24 hot air pipes, 25 installation doors.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model; obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. For example, based on the embodiments of the present invention, all other embodiments obtained by persons of ordinary skill in the art without creative work shall fall within the protection scope of the present invention.

In the description of the present invention, it should be noted that the orientation or positional relationship indicated by the terms "upper", "lower", "inner", "outer", "top/bottom", etc. is based on the drawings shown in the drawings. The orientation or positional relationship is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and therefore should not be construed as a limit. Furthermore, the terms "first" and "second" are used for descriptive purposes only and should not be construed to indicate or imply relative importance.

In the description of the present invention, it should be noted that, unless otherwise expressly specified and limited, the terms "installation", "provided with", "sleeve/connection", "connection", etc., should be understood in a broad sense, such as "Connection" can be a fixed connection, a detachable connection, or an integral connection; it can be a mechanical connection or an electrical connection; it can be a direct connection or an indirect connection through an intermediate medium, and it can be two elements Internal connectivity. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations.

Please refer to Figure 1-4, a dyeing device for socks processing, including a box body 1, an air compressor 2 and a vortex tube 3, the outer side of the box body 1 is fixedly connected with a horizontal plate, and the air compressor 2 and the vortex tube 3 are fixed Installed on the horizontal plate, the horizontal plate provides support for the air compressor 2 and the vortex tube 3, please refer to FIG. Generate cold air and hot air, so as to realize the drying of socks and the cooling of dyeing liquid. The upper end of the box 1 is fixedly installed with an L-shaped plate, and the lower end of the horizontal part of the L-shaped plate is fixedly installed with a motor 4. The model of the motor 4 is For 5RK90W, the L-shaped plate is set to support the motor 4. Please refer to Figure 1. The output shaft of the motor 4 is fixedly connected with a rotating rod 5. The rotating rod 5 rotates through the top surface of the box 1 and extends to its interior. The lower end of the rotating rod 5 is fixedly connected with the dyeing cylinder 6 through the turntable, and the dyeing cylinder 6 is equipped with dyeing liquid, and the dyeing cylinder 6 is provided with a plurality of through holes, so that the dyeing cylinder 6 can be made to throw out the dyeing liquid through the through holes when rotating. , please refer to FIG. 1, the tank 1 is fixedly installed with a liquid storage tank 7 and a deflector 8 in order from bottom to top, and the deflector 8 is made of a polyurethane foam board, so that the Heat, to avoid the heating and drying of the gas to conduct heat into the liquid storage tank 7 to affect the quality of the dye liquor, the deflector 8 is provided with a deceleration mechanism, one end of the deceleration mechanism is fixedly connected with the lower end of the dyeing drum There is a clamping assembly, the liquid storage tank 7, the baffle 8 and the dyeing cylinder 6 are provided with the same circulation mechanism, the box body 1, the air compressor 2 and the vortex tube 3 are provided with the same auxiliary mechanism, and the front end of the box body 1 is provided with the same auxiliary mechanism. There is an installation door 25 on the side wall. Please refer to Figure 1. The installation door 25 is set to facilitate opening the box 1 to store and take out the dyeing and drying of socks. It can also release the heated gas to prevent the heating gas from being too high and damaging the box. 1.

The speed reduction mechanism includes a first driven rod 9 and a plurality of second driven rods 10 that are rotatably connected to the upper end of the deflector 8 . It should be noted that the plurality of second driven rods 10 are annularly arranged on the first driven rods 10 . Around the movable rod 9, this arrangement can realize the sleeves of multiple socks on the second driven rod 10, and then realize the processing, dyeing and drying of multiple socks at one time, and the shape of the second driven rod 10 is cylindrical, which is convenient for the second driven rod 10. The two driven rods 10 can completely stretch the socks, which improves the production efficiency. The first driven rod 9 and a plurality of second driven rods 10 are sleeved with the same protection tube 11, and the protection tube 11 is provided to prevent spraying The dyeing liquid falls on the parts connected by the gears to avoid contamination and damage to the gear parts caused by the dyeing liquid. The part of the first driven rod 9 located in the protection tube 11 is coaxially and fixedly connected with the first gear 12, please refer to Fig. 1 , the parts of the plurality of second driven rods 10 located in the protection tube 11 are all coaxially and fixedly connected with a second gear 13, please refer to FIG. 1, the first gear 12 meshes with the second gear 13, the first gear 12 is larger than the The two gears 13 are arranged in this way, so that the rotation directions of the first driven rod 9 and the second driven rod 10 are reversed, which is more conducive to the dyeing of socks. Please refer to FIG. 3 , the first driven rod 9 is located outside the protection tube 11. Part of the upper end is fixedly connected with a disc 14, and the purpose of setting the disc 14 is that the rotation of the disc 14 drives the rotation of the dyeing cylinder 6, and then drives the rotation of the first driven rod 9 and a plurality of second driven rods 10, which not only realizes the use of Centrifugal force throws out the dyeing liquid in the dyeing drum 6, and evenly dyes the socks on the socks, please refer to Fig. 1, the disc 14 is fixedly connected with the lower end of the dyeing drum 6, please refer to Fig. 1, the second driven rod 10 and the clamping assembly one end in contact with each other.

The clamping assembly includes a plurality of support plates 15 that are coaxially and fixedly connected to the second driven rod 10. Please refer to FIG. 4. The upper end of the support plate 15 is provided with two vertical plates 16 and two clamping plates 17. The plate 16 and the two clamping plates 17 are disposed at both ends of the second driven rod 10. The clamping plate 17 is closer to the second driven rod 10 than the vertical plate 16. The vertical plate 16 and the clamping plate 17 are fixedly connected by the telescopic rod 18, please refer to the figure 4. A spring is sleeved on the telescopic rod 18, and the two ends of the spring are respectively fixedly connected with the side of the vertical plate 16 close to the second driven rod 10 and the side of the splint 17 away from the second driven rod 10. The splint 17 is arranged in contact with the second driven rod 10. After the sock is sleeved on the second driven rod 10, the splint 17 is pressed. Due to the restoring action of the telescopic rod 18 and the spring, the two splints 17 are connected to the second driven rod. The rod 10 is clamped and fixed.

Among them, the circulation mechanism includes a water pump 19 fixedly installed on the upper end of the liquid storage tank 7 and a guide pipe 20 arranged through the guide plate 8. The upper end surface of the guide plate 8 is arranged obliquely, so that the dyeing liquid after dyeing is gravitational It flows into the guide pipe 20 under the action of the pump 19. The specification of the water pump 19 is Yinong brand SGR20-2.5-8S, and the liquid inlet end of the water pump 19 is connected with a conduit 21, please refer to Fig. 1, the liquid inlet of the conduit 21 is set in the storage The bottom of the liquid tank 7 is arranged in this way to facilitate the suction of the dyeing liquid. Please refer to FIG. 1. The liquid outlet end of the water pump 19 is connected with a liquid outlet pipe 22. Please refer to FIG. 1. The liquid outlet end of the liquid pipe 22 passes through the guide plate 8, the first driven rod 9, the disc 14 and the dyeing cylinder 6 in sequence, please refer to FIG. The arrangement of the pipes realizes that the recovered dyeing liquid flows into the liquid storage tank 7 through the guide pipe 20 and the conduit, so as to complete the recovery and recycling of the dyeing liquid.

More specifically, the auxiliary mechanism includes a cold air duct 23 and a hot air duct 24 connected to the vortex tube 3. The cold air duct 23 is arranged through the side wall of the box 1 and extends to the inside thereof. One side of the liquid tank 7 is set in this way to cool the recovered dyeing solution. Although the deflector 8 has a heat insulating effect, the recovered dyeing solution recycles the dyed solution with heat through the guiding tube 20. The cold air duct 23 can cool down the recovered hot color liquid, so as to ensure the quality of the dyeing liquid in the liquid storage tank 7, please refer to FIG. Just above the driven rod 10, please refer to FIG. 1, the hot air duct 24 can be arranged in this way to dry the dyed socks in time, thereby saving the working time of natural air drying, improving the working efficiency, and avoiding the transfer caused by transfer. Waste of dyeing liquid caused by drying equipment.

Working principle: Turn on the water pump 19 first, the liquid inlet end of the water pump 19 sucks out the dyeing liquid in the liquid storage tank 7 through the conduit 21 and passes through the guide plate 8, the first driven rod 9 and the disc in turn through the liquid outlet pipe 22 14 flows into the dyeing cylinder 6, because the dyeing cylinder 6 is provided with a plurality of through holes, and the through holes will flow out the dyeing liquid, and the outflowing dyeing liquid flows into the guiding pipe 20 through the guide plate 8 and then flows back to the guide pipe 20 through the vertical pipe. In the liquid storage tank 7, the recycling of the dyeing solution is realized. After the water pump 19 is turned on for a period of time, the dyeing drum 6 is always in a state of constant full drum dyeing solution. At this time, a plurality of socks are set on the second driven rod 10. and press the splint 17, so that the socks are firmly put on the second driven rod 10, turn on the motor 4, the rotation of the motor 4 drives the rotating rod 5 to rotate, the rotating rod 5 rotates to drive the dyeing cylinder 6 to rotate, and further drives the first driven rod 6 to rotate. The driven rod 9 rotates, and the first gear 12 on the first driven rod 9 meshes with the plurality of second gears 13, thereby driving the plurality of second driven rods 10 to rotate, and the upper through hole in the dyeing cylinder 6 that rotates is matched with it. The dyeing solution from the spraying place uniformly dyes the socks. After the dyeing is finished, the air compressor 2 and the vortex tube 3 are turned on. The cold air generated by the vortex tube 3 cools the liquid storage tank 7 through the cold air duct 23, and the hot air duct 24 When drying socks, it changes the original dip-dyeing dyeing method, adopts centrifugal force dyeing, and dyes from the inside to the outside, so that the socks can be dyed more fully, and it has the function of drying, which is directly carried out in the box 1. De-liquid drying, and the dyeing liquid can be recycled, which not only saves time, but also improves the efficiency of dyeing and production.

The above descriptions are only preferred specific embodiments of the present invention; however, the protection scope of the present invention is not limited thereto. Any person skilled in the art who is familiar with the technical scope disclosed by the present utility model, according to the technical solution of the present utility model and its improvement concept, equivalently replaces or changes, should be covered within the protection scope of the present utility model.
