Abstract

The utility model discloses a device for storing steel reinforcement cages for pile foundations. The device comprises at least two support frames which are matched with the steel reinforcement cages for pile foundations. Cage matched arc-shaped support bars, two ends of the arc-shaped support bars are provided with a triangular side support stand, and the middle of the arc-shaped support bars is provided with a plurality of vertical supports arranged at intervals, and the vertical supports are arranged at intervals. Both the support and the triangular side support stand are fixed on the bottom bracket, a diagonal brace is arranged between the triangular side support stand and the bottom bracket, and the lowest point of the arc-shaped support steel bar is not less than 30cm from the ground . The utility model can keep the steel reinforcement cage of the pile foundation stable under the action of wind force and other external forces, without side rolling, and keep the position and posture of the steel reinforcement cage of the pile foundation stable; the reinforcement cage can be effectively avoided from being soaked by rainwater; Low and recyclable.

Description

A device for storing steel cages for pile foundations

technical field

The utility model relates to a storage device for reinforcing steel cages, in particular to a device for storing steel reinforcing cages for pile foundations.

Background technique

After the completion of the expressway pile foundation reinforcement cage, in order to ensure the storage quality of the reinforcement cage and avoid the corrosion of the reinforcement cage caused by the rainwater immersion, the reinforcement cage needs to be heightened. However, at the current construction site, the processed steel cages are often placed directly on the ground because there is no suitable heightening device for the steel cages, which can easily cause corrosion of the steel cages.

Utility model content

In order to solve the technical problems existing in the known technology, the utility model provides a device for storing steel reinforcement cages for pile foundations, which is simple in structure, convenient in manufacture, low in cost and high in recycling rate.

The technical solution adopted by the present invention to solve the technical problems existing in the known technology is: a device for storing steel reinforcement cages for pile foundations, the device includes at least two support frames that are matched with the steel reinforcement cages for pile foundations. The frame is made of welded steel bars, including arc-shaped support steel bars that match the pile foundation steel cages, two ends of the arc-shaped support steel bars are provided with a triangular side support frame, and the middle of the arc-shaped support steel bars is provided with a triangular side support frame. There are a plurality of vertical supports arranged at intervals, the vertical supports and the triangular side support stand are fixed on the bottom bracket, and a diagonal support is arranged between the triangular side support stand and the bottom bracket, The lowest point of the arc-shaped supporting steel bar is not less than 30cm from the ground.

The bottom bracket adopts a "said" shape structure.

The triangular side support stand adopts an isosceles triangular structure, and a reinforcing rib perpendicular to the bottom bracket is arranged in the middle.

The diagonal brace is connected with the middle of the reinforcing rib.

The interval between two adjacent vertical supports is 10-20 cm.

The utility model has the advantages and positive effects as follows: the supporting frame that matches the reinforcing steel cage of the pile foundation is used to support the reinforcing steel cage of the pile foundation, and the reinforcing steel cage of the pile foundation can be kept stable under the action of wind and other external forces, and the pile foundation does not roll. The posture of the base steel cage is stable and unchanged; the lowest point of the support frame is not less than 30cm from the ground, which can effectively prevent the steel cage from being soaked by rainwater, thereby avoiding corrosion caused by rainwater soaking; the support frame is welded with steel bars, which is convenient for on-site production ,low cost. In addition, the utility model has the advantages of simple structure and recyclability.

Description of drawings

Fig. 1 is the support frame structure schematic diagram of the present invention;

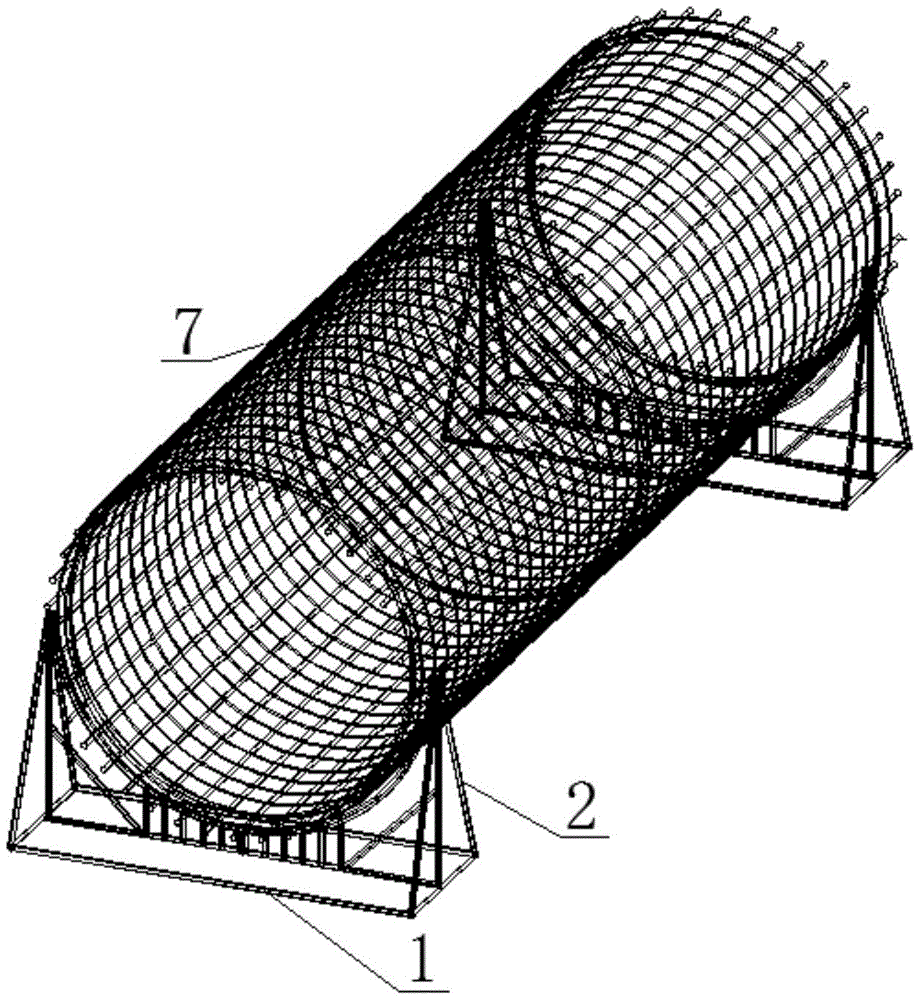

FIG. 2 is a schematic structural diagram of the utility model.

In the picture: 1. Bottom bracket, 2. Triangular side support frame, 3. Vertical connecting bar, 4. Oblique connecting bar, 5. Arc support bar, 6. Vertical connecting bar of unequal length, 7. Pile base steel cage

Detailed ways

In order to further understand the content of the invention, features and effects of the present utility model, the following embodiments are exemplified and described in detail as follows in conjunction with the accompanying drawings:

Please refer to Fig. 1-2, a device for storing steel reinforcement cages for pile foundations, the device includes at least two support frames that are matched with the steel reinforcement cages 7 for pile foundations, and the support frames are welded from steel bars, including The arc-shaped support bars 5 matched with the pile foundation reinforcement cage 7 are used to form an effective support for the pile foundation reinforcement cage 7 . The two ends of the arc-shaped supporting steel bar 5 are provided with a triangular side support stand 2, and the middle part of the arc-shaped supporting steel bar 5 is provided with a plurality of vertical supports 6 arranged at intervals. The triangular side support stand 2 is fixed on the bottom bracket 1, a diagonal brace 4 is arranged between the triangular side support stand 2 and the bottom bracket 1, and the lowest point of the arc-shaped support bar 5 is away from the ground. Not less than 30cm to avoid the steel cage 7 being soaked by rainwater.

In the present embodiment, the bottom bracket 1 adopts a "yue"-shaped structure, which is simple in structure and saves materials. The triangular side support stand 2 adopts an isosceles triangle structure, and a reinforcing rib 3 perpendicular to the bottom bracket 1 is arranged in the middle, and the structure is stable and reliable. The diagonal brace 4 is connected to the middle of the reinforcing rib 3 to form a stable and reliable support for the reinforcing rib 3 . The interval between two adjacent vertical supports 6 is 10-20 cm, and the structure is stable and reliable.

After the pile foundation reinforcement cage 7 is processed, according to its length, a support frame is placed at the two ends or both ends and the middle of the pile foundation reinforcement cage 7 to realize the storage of the pile foundation reinforcement cage 7 and avoid the pile foundation. Corrosion of steel cage 7 due to rainwater immersion.

Although the preferred embodiments of the present utility model have been described above in conjunction with the accompanying drawings, the present utility model is not limited to the above-mentioned specific embodiments, which are only illustrative and not restrictive. Under the inspiration of the present utility model, those of ordinary skill can also make many forms without departing from the scope of protection of the present utility model and the claims, which all belong to the protection scope of the present utility model.

Claims (5)

1. The utility model provides a device for pile foundation steel reinforcement cage is deposited, its characterized in that, the device include at least two with the anastomotic support frame of pile foundation steel reinforcement cage, the support frame is formed by steel bar welding, include with the anastomotic arc supporting reinforcement of pile foundation steel reinforcement cage, arc supporting reinforcement's both ends respectively are equipped with a triangle-shaped collateral branch grudging post, arc supporting reinforcement's middle part is equipped with the vertical braces that many intervals set up, vertical braces with triangle-shaped collateral branch grudging post is all fixed on the collet triangle-shaped collateral branch grudging post with be equipped with the bracing between the collet, the minimum distance ground of arc supporting reinforcement is not less than 30 cm.

2. The apparatus according to claim 1, wherein the bottom support is of a "herringbone" configuration.

3. The apparatus of claim 1, wherein the triangular side stands are in the form of isosceles triangles and have a central reinforcing rib perpendicular to the base.

4. An apparatus for storage of a pile foundation reinforcement cage according to claim 3, wherein the braces are connected to a central portion of the reinforcing bars.

5. An apparatus for storing a pile foundation reinforcement cage according to claim 1, wherein the spacing between adjacent vertical supports is 10-20 cm.
