Abstract

The utility model discloses a switch board dust collector relates to dust collector technical field, specifically is a switch board dust collector, including quick-witted case main part, the fixed support frame that is provided with of inner bottom wall of quick-witted case main part, upper surface one side fixedly connected with dust removal motor of support frame, the last surface opposite side fixed mounting of support frame has dust removal fan, dust removal motor's output and dust removal fan's axis of rotation fixed connection. This switch board dust collector, through micro motor, the brush, the cooperation setting of infundibulate dust absorption pipe and holding rod, the brush rotates and to clear up the dust on narrow and small gap and the switch board inner wall that adsorbs between electrical components and electrical components effectively, holding rod can let staff and switch board keep the certain distance, avoid inhaling too much dust, harm is healthy, infundibulate dust absorption pipe can increase dust absorption area and rotate the brush and inhale away the dust that comes down of clearance, thereby make deashing and dust absorption go on simultaneously, and the work efficiency is improved.

Description

Switch board dust collector
Technical Field
The utility model relates to a dust collector technical field specifically is a switch board dust collector.
Background
The power distribution cabinet is the final-stage equipment of a power distribution system, is a general name of a motor control center, and is used in occasions with dispersed loads and less loops; the motor control center is used for the occasions with concentrated loads and more loops, the motor control center distributes the electric energy of a certain circuit of the upper-level distribution equipment to the nearby loads, the equipment provides protection, monitoring and control for the loads, after the distribution cabinet is used for a long time, dust is adhered to the shell of the electrical equipment or the mounting head, and the cleaning of the adhesive dust cannot be completed by strong blowing or electrostatic dust removal. The existing dust removing equipment only performs dust collection on a cleaning part in the using process, but other dust such as spider webs are often adhered to narrow gaps in the cabinet body, so that the dust is very difficult to collect cleanly in the cleaning process, and the dust collecting effect is poor.
The utility model discloses a switch board dust collector disclosed in chinese utility model patent application publication specification CN208142657U, though, can clear up most position dust, nevertheless, this switch board dust collector, the existence is to the unable clearance of narrow and small gap, remove and clear up the inconvenient shortcoming of the inside dust of dust collector.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
Not enough to prior art, the utility model provides a switch board dust collector has solved the problem of proposing in the above-mentioned background art.
(II) technical scheme
In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: a dust removal device of a power distribution cabinet comprises a cabinet main body, wherein a support frame is fixedly arranged on the inner bottom wall of the cabinet main body, a dust removal motor is fixedly connected to one side of the upper surface of the support frame, a dust removal fan is fixedly arranged on the other side of the upper surface of the support frame, the output end of the dust removal motor is fixedly connected with the rotating shaft of the dust removal fan, the air suction port of the dust removal fan is sleeved with one end of a dust absorption hose, the other end of the dust absorption hose penetrates through the middle of a holding rod and is sleeved with the minimum diameter end of a funnel-shaped dust absorption pipe, the middle of the funnel-shaped dust absorption pipe is fixedly connected with one end of the holding rod, a steel pipe penetrating through the inner bottom wall is welded in the middle of the inner bottom wall of the cabinet main body, a plastic hose is sleeved at one end of the steel, and the outer wall of the dust removal cloth bag framework is sleeved with a dust removal cloth bag.
Optionally, one side of the outer wall of the case body is fixedly connected with a handle, and the other side of the outer wall of the case body is fixedly connected with a buckle.
Optionally, the method is characterized in that: the top swing joint of machine case main part has the case lid, the upper surface of case lid is equipped with dust removal motor control switch, one side that the upper portion of case lid is close to dust removal motor control switch is inlayed and is had the handle, the opposite side that dust removal motor control switch was kept away from on the upper portion of case lid is seted up the round hole that is greater than the dust absorption hose diameter, one side fixedly connected with hasp of case lid.
Optionally, the lower fixed surface of machine case main part is connected with the supporting leg, and the quantity of supporting leg is three and becomes equilateral triangle and distributes, and the equal fixedly connected with universal wheel in bottom of three supporting leg.
Optionally, the upper portion of the holding rod is sleeved with an insulating rubber sleeve, a micro motor switch is arranged on the upper portion of the outer surface of the holding rod, and the holding rod is made of an aluminum alloy tube.
Optionally, the inner wall of the maximum diameter end of the funnel-shaped dust collection pipe is fixedly connected with a fixed support, the fixed support is fixedly connected with a micro motor, and the output end of the micro motor is fixedly connected with a brush.
Optionally, the dust removal cloth bag is made of a polyester needle felt.
(III) advantageous effects
The utility model provides a switch board dust collector possesses following beneficial effect:
1. this switch board dust collector, cooperation setting through micro motor and brush, thereby rotate through micro motor and drive the brush and rotate in the use, make the brush can clear up the dust of absorption on narrow and small gap and switch board inner wall between electrical components and electrical components effectively, through holding the pole, infundibulate dust absorption pipe, the cooperation setting of micro motor and brush, the in-process holding the pole that uses can let staff and switch board keep the certain distance, avoid inhaling too much dust, harm healthy, infundibulate dust absorption pipe can increase dust absorption area and in time drives the dust that the brush rotated the clearance and comes and inhales away, thereby the effect that deashing and dust absorption go on simultaneously has been played, work efficiency is improved.
2. This switch board dust collector through the setting of dust removal sack, can effective filtration adsorb the dust, and the environmental protection sets up through the cooperation of handle and universal wheel, makes this switch board dust collector possess the effect of being convenient for to remove.
Drawings

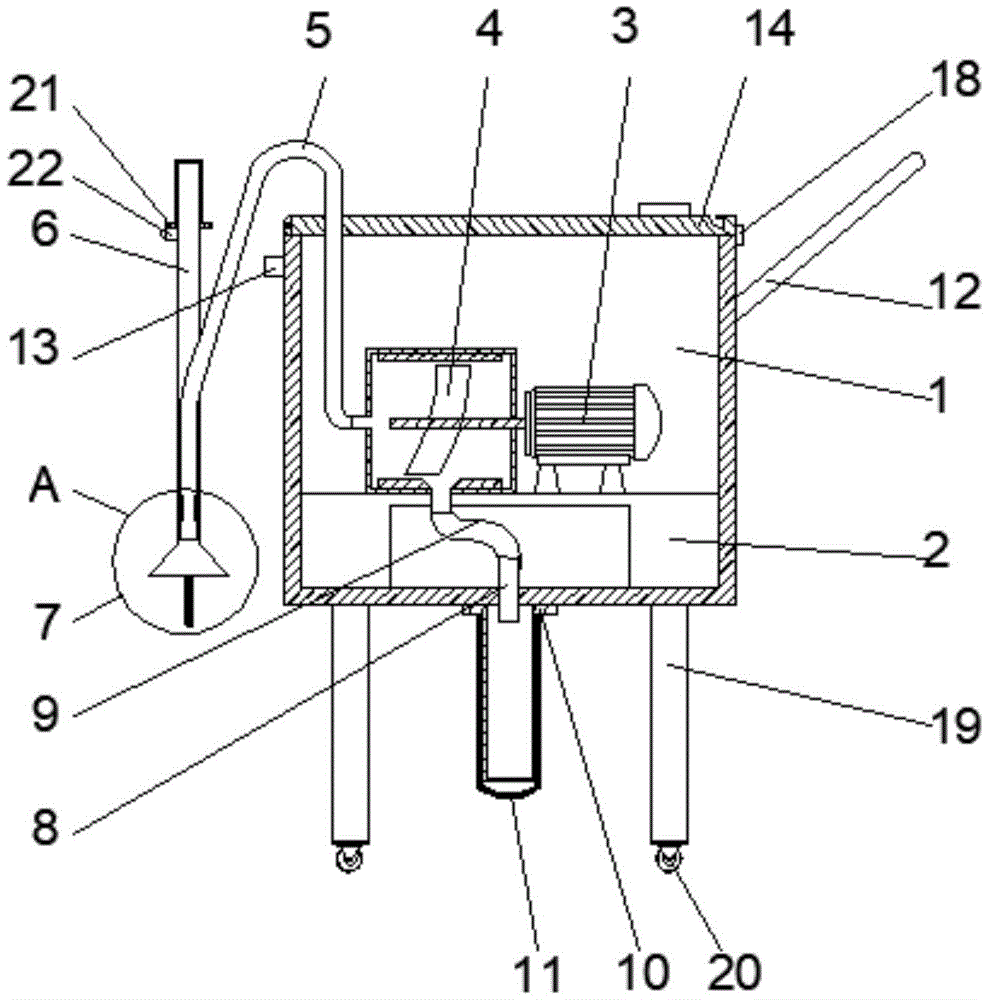

FIG. 1 is a schematic structural view of the present invention;
fig. 2 is a schematic structural view of the present invention viewed from above.
FIG. 3 is a schematic view of a partially enlarged structure of the present invention
FIG. 4 is the schematic diagram of the skeleton structure of the dust-removing cloth bag of the present invention
In the figure: 1. a chassis main body; 2. a support frame; 3. a dust removal motor; 4. a dust removal fan; 5. a dust collection hose; 6. a hand-held lever; 7. a funnel-shaped dust collection pipe; 8. a steel pipe; 9. a plastic hose; 10. a dust removal cloth bag framework; 11. a dust removal cloth bag; 12. a handle; 13. buckling; 14. a case cover; 15. a dust removal motor control switch; 16. a handle; 17. a circular hole; 18. locking; 19. supporting legs; 20. a universal wheel; 21. an insulating rubber sleeve; 22. a micro motor switch; 23. fixing a bracket; 24. a micro motor; 25. and a brush.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1 to 4, the present invention provides a technical solution: a dust removing device of a power distribution cabinet comprises a cabinet main body 1, a supporting frame 2 is fixedly arranged on the inner bottom wall of the cabinet main body 1, a dust removing motor 3 is fixedly connected to one side of the upper surface of the supporting frame 2, a dust removing fan 4 is fixedly arranged on the other side of the upper surface of the supporting frame 2, the output end of the dust removing motor 3 is fixedly connected with a rotating shaft of the dust removing fan 4, an air suction inlet of the dust removing fan 4 is sleeved with one end of a dust suction hose 5, the other end of the dust suction hose 5 penetrates through the middle part of a holding rod 6 and is sleeved with the minimum diameter end of a funnel-shaped dust suction pipe 7, a fixed support 23 is fixedly connected to the inner wall of the maximum diameter end of the funnel-shaped dust suction pipe 7, a micro motor 24 is fixedly connected to the fixed support 23, a brush 25 is fixedly connected to the output end of the micro, the dust cleaning machine has the advantages that the brush 25 can effectively clean dust adsorbed on narrow gaps between electrical components and the electrical components and on the inner wall of a power distribution cabinet, the middle of the funnel-shaped dust collection pipe 7 is fixedly connected with one end of the holding rod 6, the upper part of the holding rod 6 is sleeved with the insulating rubber sleeve 21, the upper part of the outer surface of the holding rod 6 is provided with the micro motor switch 22, the holding rod 6 is made of an aluminum alloy pipe, the holding rod 6 can keep a certain distance between a worker and the power distribution cabinet to avoid sucking excessive dust and harm to body health, the funnel-shaped dust collection pipe 7 can enlarge the dust collection area and timely suck away the dust cleaned by rotating the brush 25, so that the effects of simultaneously cleaning dust and collecting dust are achieved, the working efficiency is improved, the steel pipe 8 penetrating through the inner bottom wall is welded in the middle of the inner bottom wall of the machine case main body 1, the plastic hose 9 is sleeved at one end of the steel pipe 8, the middle part of the lower surface of the case body 1 is fixedly connected with a dust removing cloth bag framework 10, the outer side of the dust removing cloth bag framework 10 is sleeved with a dust removing cloth bag 11, the material of the dust removing cloth bag 11 is polyester needle felt, one side of the outer wall of the case body 1 is fixedly connected with a handle 12, the handle 12 plays a role of facilitating pushing and pulling a dust removing device, the other side of the outer wall of the case body 1 is fixedly connected with a buckle 13, the buckle 13 can be clamped with a holding rod 6 to prevent the holding rod 6 from falling off when not in use, the top of the case body 1 is movably connected with a case cover 14, the case cover 14 is arranged to facilitate opening and facilitate maintenance, the upper surface of the case cover 14 is provided with a dust removing motor control switch 15, one side of the upper part of the case cover 14, which is close to the dust removing motor control switch 15, is embedded with a handle 16, and the other side of the upper part, one side fixedly connected with hasp 18 of case lid 14, the lower fixed surface of chassis body 1 is connected with supporting leg 19, and the quantity of supporting leg 19 is three and becomes equilateral triangle and distribute, and the equal fixedly connected with universal wheel 20 in bottom of three supporting leg 19.
The electrical components presented herein are electrically connected to an external master controller and 220V mains, and the master controller may be a conventional known device controlled by a computer or the like.
When the dust removal device is used, the handle 12 is held, the dust removal device is moved to the front of a power distribution cabinet needing to remove dust through rolling of the universal wheel 20, the power supply is connected, the dust removal motor control switch 15 is turned on, the dust removal motor 3 is started, the dust removal motor 3 drives the dust removal fan 4 to rotate to generate suction, the micro motor switch 22 is started to drive the hairbrush 25 to rotate, the hairbrush 25 is aligned to a part, needing to remove dust, in the power distribution cabinet through the holding rod 6, the dust is effectively removed, meanwhile, the suction generated by the dust removal fan 4 sucks away the dust, which falls off after the hairbrush 25 is removed, the dust is conveyed to the dust removal cloth bag 11 through an air outlet of the dust removal fan 4, the dust removal cloth bag can effectively adsorb the dust, escape is prevented, the dust removal cloth bag can be taken down after each dust removal, and the dust removal cloth bag is installed again after being.
The utility model discloses a theory of operation and beneficial effect: the dust removal device for the power distribution cabinet is arranged by matching the micro motor 24 and the brush 25, the brush 25 is driven to rotate by rotating the micro motor 24 in the using process, so that the brush 25 can effectively clean dust adsorbed on narrow gaps between electrical elements and the electrical elements and on the inner wall of the power distribution cabinet, the funnel-shaped dust collection pipe 7 and the micro motor 24 are arranged by matching the holding rod 6 and the brush 25, the holding rod 6 can keep a certain distance between a worker and the power distribution cabinet in the using process to avoid sucking excessive dust and harm the health of the body, the funnel-shaped dust collection pipe 7 can enlarge the dust collection area and timely suck away the dust which is cleaned by rotating the brush 25 driven by the micro motor 24, thereby simultaneously performing the functions of dust removal and dust collection, the working efficiency is improved, the dust can be effectively filtered and adsorbed by setting the dust collection cloth bag 11, the environment is protected, through the cooperation setting of handle 12 and universal wheel 20, make this switch board dust collector possess the effect of being convenient for remove.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims (7)

1. The utility model provides a switch board dust collector, includes quick-witted case main part (1), its characterized in that: the dust collection box is characterized in that a support frame (2) is fixedly arranged on the inner bottom wall of the box main body (1), a dust collection motor (3) is fixedly connected to one side of the upper surface of the support frame (2), a dust collection fan (4) is fixedly mounted to the other side of the upper surface of the support frame (2), the output end of the dust collection motor (3) is fixedly connected with a rotating shaft of the dust collection fan (4), an air suction inlet of the dust collection fan (4) is sleeved with one end of a dust collection hose (5), the other end of the dust collection hose (5) penetrates through the middle of a holding rod (6) and is sleeved with the minimum diameter end of a funnel-shaped dust collection pipe (7), the middle of the funnel-shaped dust collection pipe (7) is fixedly connected with one end of the holding rod (6), a steel pipe (8) penetrating through the inner bottom wall is welded to the middle of the inner bottom wall of the, the other end of the plastic hose (9) is sleeved with an air outlet at the bottom of the dust removal fan, the middle part of the lower surface of the case main body (1) is fixedly connected with a dust removal cloth bag framework (10), and the outer side of the dust removal cloth bag framework (10) is sleeved with a dust removal cloth bag (11).
2. The dust removing device for the power distribution cabinet according to claim 1, wherein: the novel cabinet is characterized in that a handle (12) is fixedly connected to one side of the outer wall of the cabinet body (1), and a buckle (13) is fixedly connected to the other side of the outer wall of the cabinet body (1).
3. The dust removing device for the power distribution cabinet according to claim 1, wherein: the top swing joint of chassis main part (1) has case lid (14), the upper surface of case lid (14) is equipped with dust removal motor control switch (15), one side that the upper portion of case lid (14) is close to dust removal motor control switch (15) is inlayed and is had handle (16), round hole (17) that are greater than dust absorption hose (5) diameter are seted up to the opposite side that dust removal motor control switch (15) were kept away from on the upper portion of case lid (14), one side fixedly connected with hasp (18) of case lid (14).
4. The dust removing device for the power distribution cabinet according to claim 1, wherein: the lower surface fixedly connected with supporting leg (19) of machine case main part (1), the quantity of supporting leg (19) is three and becomes equilateral triangle and distributes, the equal fixedly connected with universal wheel (20) in bottom of three supporting leg (19).
5. The dust removing device for the power distribution cabinet according to claim 1, wherein: insulating rubber sleeve (21) has been cup jointed on the upper portion of holding pole (6), the surface upper portion of holding pole (6) is equipped with micro motor switch (22), the material of holding pole (6) is the aluminum alloy pipe.
6. The dust removing device for the power distribution cabinet according to claim 1, wherein: the utility model discloses a dust collection device, including infundibulate dust absorption pipe (7), the biggest diameter end inner wall fixedly connected with fixed bolster (23) of infundibulate dust absorption pipe (7), fixedly connected with micro motor (24) on fixed bolster (23), the output fixedly connected with brush (25) of micro motor (24).
7. The dust removing device for the power distribution cabinet according to claim 1, wherein: the dust removal cloth bag (11) is made of polyester needle felt.
